2008 Benelli BX570 Motard

You are here: Home — New 2008 Models — 2008 Benelli Motorcycle Models

2008 Benelli BX570 Motard
Back to 2008 Benelli Motorcycle Index Page

Click photos to enlarge for detail.
They make great desktop images.

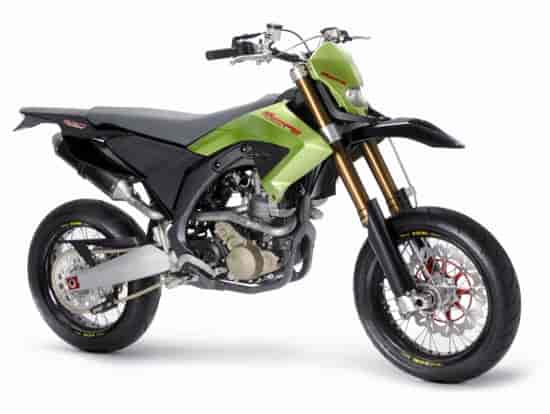

2008 Benelli BX570 Motard

2008 Benelli BX570 Motard

2008 Benelli BX570 Motard

2008 Benelli BX570 Motard

– 2008 Benelli BX570 Motard

2008 Benelli BX570 Motard

The BX 570 Motard offers aggresive styling with exceptional performance and agility, all part of Benelli’s entry into the supermotard market



US SPECIFICATIONS: 2008 Benelli BX570 Motard
Price $0,000 MSRP

Not available in the USA



Canada SPECIFICATIONS: 2008 Benelli BX570 Motard

TBD



EUROPE SPECIFICATIONS: 2008 Benelli BX570 Motard

ENGINE
TYPE Single cylinder, 4 stroke, liquid cooled, 4 titanium valves, double overhead camshaft, with balancer shaft
DISPLACEMENT 569 cc
BORE x STROKE 104 x 67 mm
COMPRESSION RATIO 12,5:1
RATED OUTPUT n.d.
MAX. TORQUE n.d.
FUEL SUPPLY Electronic injection with throttle body ø48 mm
EXHAUST SYSTEM With catalytic converter and oxigen sensor
CERTIFICATION Euro 3
CLUTCH Wet clutch
GEARBOX 6 speed
FINAL DRIVE Chain drive, ratio n.d.

CHASSIS
FRAME Single tube cradle with forged, casted and extruded elements and carbon structural part patented. Light alloy rear subframe
FRONT SUSPENSION ø50 mm upside-down fork, with hydraulic extension and compression adjustments
FRONT SUSPENSION STROKE 272,5 mm
REAR SUSPENSION Aluminum casted swingarm, progressive rear dumper completely adjustable in extension, compression and spring preload
REAR SUSPENSION STROKE n.d.
FRONT BRAKE Single floating disk ø320 mm with 4 pistons radial caliper
REAR BRAKE Single disk ø220 mm with single piston floating caliper
FRONT RIM 3,5”x17”
REAR RIM 4.25”x17”
FRONT TYRE 120/70 R17
REAR TYRE 150/60 R17

SIZES
LENGHT n.d.
WIDHT EXCLUDING MIRRORS n.d.
HEIGHT EXCLUDING MIRRORS n.d.
SEAT HEIGHT n.d.
WHEELBASE n.d.
UNLADEN WEIGHT* n.d.
ROAD READY WEIGHT** n.d.
PERMITTED TOTAL WEIGHT n.d.
USABLE TANK VOLUME 8,5 lt
RESERVE n.d.

* without fluids
** According to guideline 93/93/CEE with all fluids, fuelled with at least 90% of usable tank volume

(Benelli Q.J. reserves the right to change technical specifications, equipment, set ups, and colours without prior notice.)
