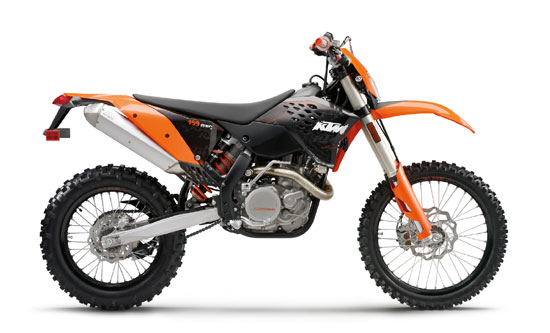

2009 KTM 450 EXC

2009 KTM 450 EXC

2009 KTM 450 EXC

2009 KTM 450 EXC

2009 KTM 450 EXC

• 2009 KTM 450 EXC

2009 KTM 450 EXC

Once a champion, always a champion. If one bike in the hard-fought E2 class has until now had what it takes to be the series winner, then that bike is the 450 EXC. And so it should stay! Ultra-modern technology is used both in the chassis and also in the ultra-powerful SOHC engine, which further perfects one of the most successful of off-road bikes.

The result is an extremely light, agile and immensely powerful high-tech race bike which once again raises the bar a whole step higher for the opposition.

2009 KTM 450 EXC – Specifications

Engine type Single cylinder, 4-stroke
Displacement 449.3 cc
Bore x stroke 95 / 63.4 mm (3.74 / 2.5″)
Compression ratio 11.9:1
Starter/Battery Kick- and electric starter/12V 4Ah
Transmission 6 gears
Carburetor Keihin FCR-MX 39
Control 4 V / OHC with rocker levers
Lubrication Pressure lubrication with 3 oil pumps
Engine lubrication Motorex, SAE 15W-50
Transmission oil Motorex, SAE 15W-50
Primary drive 33:76
Final drive 15:45 (13:52)
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan


Frame Central double-cradle-type 25CrMo4 steel
Subframe Aluminium 7020
Handlebar Neken, Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP PDS shock absorber
Suspension travel front/rear 300/335 mm (11.81/13.19″)
Brakes, front/rear Disc brakes Ø 260/220 mm (10.24/8.66″)
Rims, front/rear 1.60 x 21″; 2.15 x 18″ Excel
Tires, front/rear 90/90-21″; 140/80-18″
Chain X-ring chain 5/8 x 1/4″
Main silencer Aluminium
Steering head angle 63.5°
Wheel base 1475 ± 10 mm (58.0 ± 0.39″)
Ground clearance (unloaded) 380 mm (15″)
Seat height 985 mm (38.78″)
Tank capacity approx. 9 liters (2.38 gal)
Weight (no fuel) approx. 113.9 kg (251 lbs)
