2009 KTM 85XC

You are here: Index2009 Models — 2009 KTM Motorcycle Models

2009 KTM 85XC
Back to 2009 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

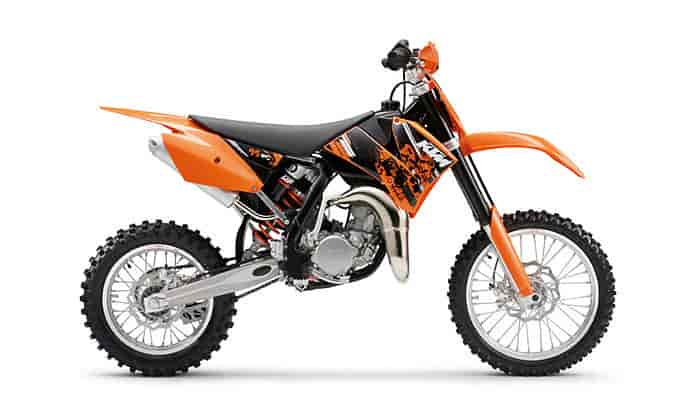

2009 KTM 85XC
2009 KTM 85XC

2009 KTM 85XC
2009 KTM 85XC

• 2009 KTM 85XC

2009 KTM 85XC

Even under extreme loads, this full-fledged racing bike (seat height = 900 mm) wins you over with its sturdy frame, 43-mm WP upside-down forks and fully adjustable PDS system. And together with its top quality, exhaust-controlled cylinder, the even further improved engine supplies maximum power and plenty of torque.

What more could a biker’s heart desire?



2009 KTM 85XC – Specifications

Engine type Single cylinder, 2-stroke
Displacement 84.9 cc
Bore x stroke 47/48.95 mm (1.85/1.93″)
Starter Kickstarter
Transmission 6 gears
Carburetor Keihin PWK 28
Control Power valve
Engine lubrication Mixture lubrication 1:40
Transmission oil 15W50
Primary drive 19:66
Final drive 14:46
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Moric digital 2M1

Frame Double grinded central double-cradle-type frame
Subframe Aluminium 7020
Handlebar Aluminium Ø 22 mm (0.87″)
Front suspension WP USD Ø 43 mm (1.69″)
Rear suspension WP monoshock PDS
Suspension travel front/rear 275/300 mm (10.83/11.81″)
Brakes, front/rear Disc brake Ø 220/200 mm (8.66/7.87″)
Rims, front/rear 1.6 x 17″; 1.85 x 14″ Aluminium
Tires, front/rear 70/100-17; 90/100-14
Chain 1/2 x 5/16″ O-Ring
Main silencer Aluminium 85 SX
Steering head angle 66°
Wheel base 1290 mm ± 10 mm (50.79″±0.39″)
Ground clearance (unloaded) 385 mm (15.16″)
Seat height 865 mm (35.06″)
Tank capacity approx. 5 liters (1.32 gal)
Weight (no fuel) approx. 66 kg (145.5 lbs)
