– 2010 Benelli Tre 899K

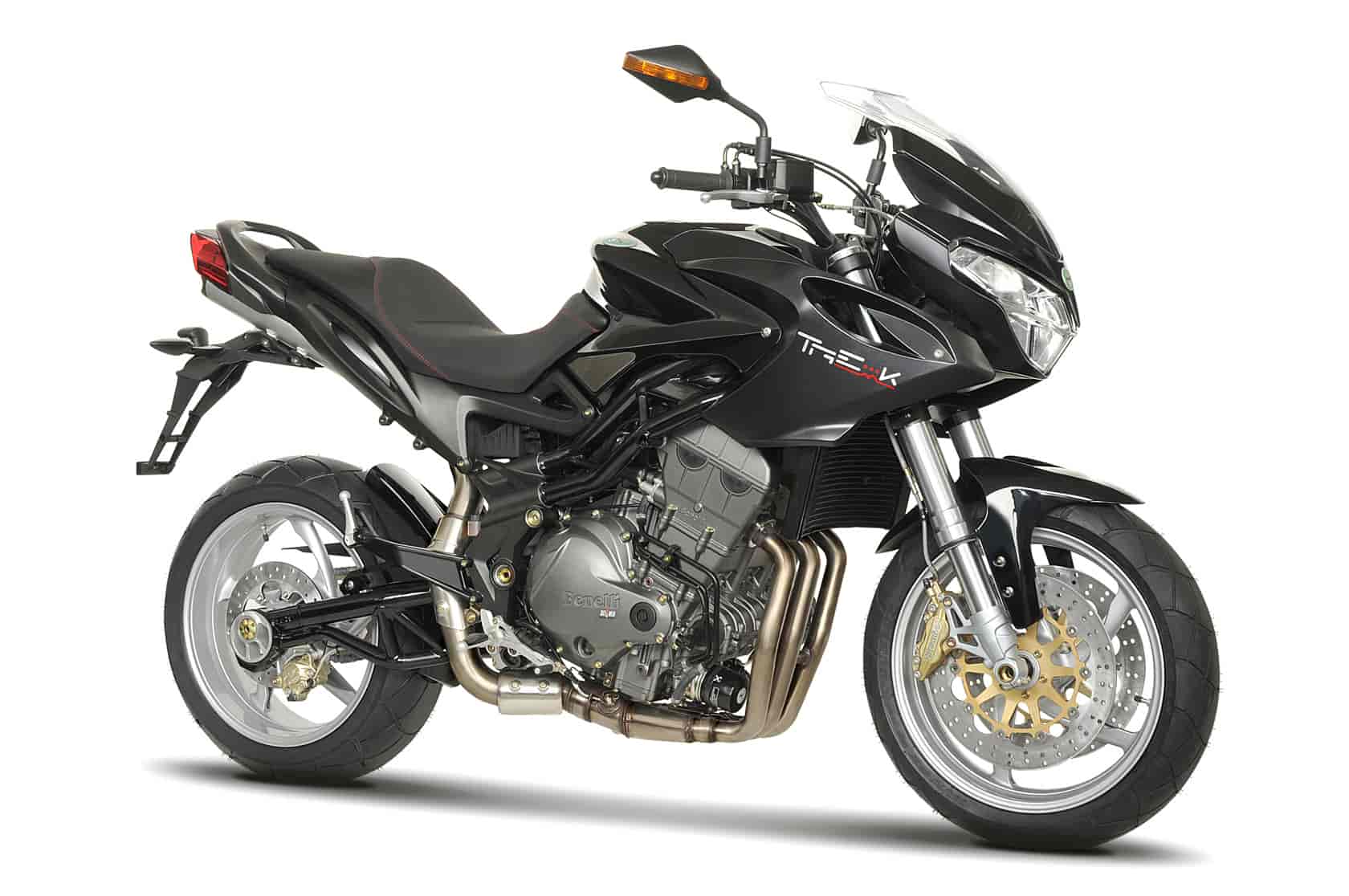

2010 Benelli Tre 899K
“Outside the known limits”
A fully new bike for a new way of ride from the research and development dept.
A new product for exclusive adventures.
The frame is designed to resist every shock in any situation.
An easy ride and sensitivity to reactions were the targets of Benelli’s technicians during the project.
New geometry for new adventures.
The new position of the radiator allows high thermal exchanges at low speed and during off road use. All made to improve reliability .
The new frame is suited to the new requirements.
The new shape guarantees an easy ride and a ride neutrality, both being unique features for a bike in this class.
The rear end is designed to guarantee the best stability and the easiest way to ride without loosing comfort or suspension reaction.
2010 Benelli Tre 899K – Specifications
TYPE In line 3 cylinders, 4-stroke, liquid cooled , 4 valves per cylinder double overhead camshaft, with balance shaft
DISPLACEMENT 898 cc
BORE x STROKE 88 x 49.2 mm
COMPRESSION RATIO 12.5:1
RATED OUTPUT 78 kW (106 cv) @ 10000 rpm
MAX. TORQUE 75 Nm (7.65 kgm) @ 5000 rpm
FUEL SUPPLY Electronic injection with three throttle bodies Ã¸53 mm
EXHAUST SYSTEM With catalytic converter and oxygen sensor
CERTIFICATION Euro 3
CLUTCH Wet clutch
GEARBOX 6 speed
FINAL DRIVE Chain drive, ratio 16:41
FRAME Decomposable, front steel trestle, rear aluminium alloy casting
FRONT SUSPENSION Ã¸50 mm upside-down fork
FRONT SUSPENSION STROKE 150 mm
REAR SUSPENSION Steel trestle swingarm, progressive rear dumper with hydraulic extension and spring preload adjustments
REAR SUSPENSION STROKE 144 mm
FRONT BRAKE Twin floating disk Ã¸320 mm with 4 piston calipers
REAR BRAKE Single disk Ã¸240 mm with double piston caliper
FRONT RIM 3.50”x17”
REAR RIM 6.00”x17”
FRONT TYRE 120/70 – ZR17
REAR TYRE 180/55 – ZR17 (190/50 – ZR17)
LENGHT 2183 mm
WIDHT EXCLUDING MIRRORS 850 mm
HEIGHT EXCLUDING MIRRORS 1320 mm
SEAT HEIGHT 840 mm
WHEELBASE 1515 mm
UNLADEN WEIGHT* 215 kg
ROAD READY WEIGHT** 240 kg
PERMITTED TOTAL WEIGHT 440 kg
USABLE TANK VOLUME 22 lt
RESERVE 4 lt
* without fluids
** According to guideline 93/93/CEE with all fluids, fuelled with at least 90% of usable tank volume
(Benelli Q.J. reserves the right to change technical specifications, equipment, set ups, and colours without prior notice.)
