2010 Harley-Davidson FXDWG Dyna Wide Glide

Back to 2010 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

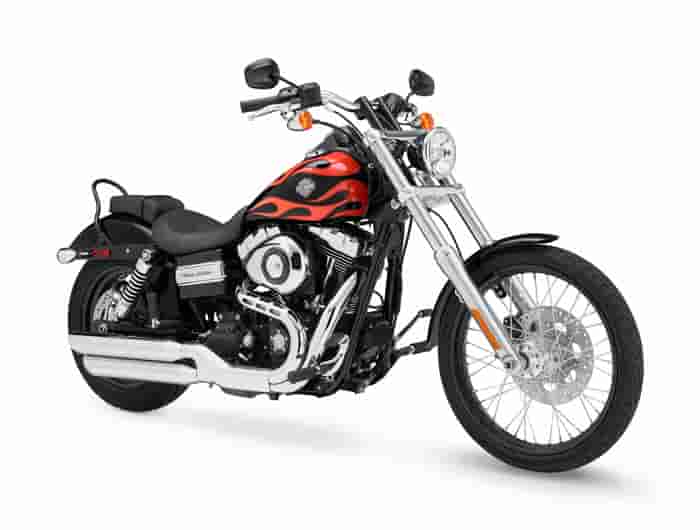

2010 Harley-Davidson FXDWG Dyna Wide Glide

2010 Harley-Davidson FXDWG Dyna Wide Glide

2010 Harley-Davidson FXDWG Dyna Wide Glide

2010 Harley-Davidson FXDWG Dyna Wide Glide

2010 Harley-Davidson FXDWG Dyna Wide Glide

2010 Harley-Davidson FXDWG Dyna Wide Glide

2010 Harley-Davidson FXDWG Dyna Wide Glide

– 2010 Harley-Davidson FXDWG Dyna Wide Glide

2010 Harley-Davidson FXDWG Dyna Wide Glide

The new Wide Glide® is a Dyna® Big Twin done up old-school chopper style – a low, stretched-out custom with drag bars and forward foot controls that give its rider a real fists-in-the-wind profile. The LED stop/turn/tail light combo and side-mounted license plate keep the chopped rear fender clean.

The Harley-Davidson Dyna family has its roots in the factory-custom revolution of the 1970s, and combines Big Twin performance with an extended FX front end. Dyna models deliver great handling and bold styling.



Model Highlights

New Helical cut 5th gear for improved transmission sound
– Black powder-coated powertrain with chrome covers
– Chrome, “Tommy Gun” 2-1-2 collector exhaust with dual mufflers
– 4.7-gallon Street Bob®-style fuel tank, raised at the front .75-inch
– 40-spoke laced steel wheels with black rims
– 21-inch front wheel
– Front and rear suspension lowered one inch
– 34 degree fork angle
– Wide polished aluminum triple clamps
– Chopped rear fender with chrome supports
– Low solo seat with separate passenger pillion
– Stainless steel internally-wired handlebar on four-inch black riser
– Wrinkle-black battery box and fender struts
– Black mirrors and headlight bucket
– Black one-piece wire sissy bar
– Dual red LED lights combine the stop/turn/tail functions
– Side-mounted license plate
– Low-profile tank console with electronic speedometer



Key Features

The new Wide Glide® is a Dyna® Big Twin done up old-school chopper style – a low, stretchedout
custom with drag bars and forward foot controls that give its rider a real fists-in-the-wind profile. The LED stop/turn/tail light combo and side-mounted license plate keep the chopped rear fender clean.

The Harley-Davidson Dyna family has its roots in the factory-custom revolution of the 1970s, and combines Big Twin performance with an extended FX front end. Dyna models deliver great handling and bold styling.

– Rubber-mounted Twin Cam 96™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI), rated at 92 ft. lbs. of torque
– 6-speed Cruise Drive® transmission
– Exposed under-seat battery box
– Exposed rear coil-over shock absorbers
– Forward-mounted rider footpegs with brake and shift levers
– Optional Harley-Davidson® Smart Security System with hands-free security fob
– Optional Vivid Black Flame paint scheme







2010 Harley-Davidson FXDWG Dyna Wide Glide – Specifications
USA MSRP: Vivid Black $14,499, Solids $14,874, Two-Tones $15,194
Canada MSRP: See Local Canadian Dealer For Pricing

Engine
Engine4 Air-cooled, Twin Cam 96™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.25 mm x 111.25 mm)
Displacement 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System5 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass Media, washable
Lubrication System Pressurized, dry-sump

Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive6 Belt, 32/66 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
o 1st 9.311
o 2nd 6.454
o 3rd 4.793
o 4th 3.882
o 5th 3.307
o 6th 2.790

Chassis
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded
Front Forks 49 mm with polished aluminum fork triple clamp and dual-rate springs
Rear Shocks Coil-over shock
Wheels7: Black, Laced Steel
o Front 21 in. x 2.15 in. (533.40 mm x 54.61 mm)
o Rear 17 in. x 4.50 in. (431.80 mm x 114.30 mm)
Brakes:
o Caliper Type 4-piston fixed front, and 2-piston torque-free floating rear
o Rotor Type (diameter x width): Patented, uniform expansion rotors (floating, front only)
o Front (floating) 11.80 in. x .20 in. (299.72 mm x 5.08 mm)
o Rear 11.50 in. x .23 in. (292.10 mm x 5.84 mm)
Suspension Travel:
o Front Wheel 5 in. (127.0 mm)
o Rear Wheel 3.10 in. (78.74 mm)

Performance
Engine Torque (per SAE J1349):
o North America 92 ft. lbs. @ 3000 rpm (124.75 Nm @ 3000 rpm)
Lean Angle (per SAE J1168):
o Right 28.4°
o Left 31.9°

Fuel Economy
(EPA urban/highway test) 35/54 mpg (6.72/4.36 L/100 km)

Electric
Battery (per Battery Council International Rating) Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 40-amp system (493W @ 13.5V, 2000 rpm, 540W max power @ 13.5V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
o Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
o Rear Turn Signal Lights8 Running Lamp: 9W Brake/Turn Lamp: 43W
o Rear Brake Light8 Tail Lamp: 2.3W Brake Lamp: 4.4W
o Indicator Lamps High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system9 (optional), 6-speed, low fuel warnings
Electric Power Outlet Standard

Dimensions
Length 94.0 in. (2387.60 mm)
Overall Width 37.20 in. (944.88 mm)
Overall Height 47.80 in. (1214.12 mm)
Seat Height:
o Laden2 25.50 in. (647.70 mm)
o Unladen 26.70 in. (678.18 mm)
Ground Clearance 4.20 in. (106.68 mm)
Rake (steering head) 34°
Fork Angle 36°
Trail 5.20 in. (132.08 mm)
Wheelbase 68.30 in. (1734.82 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and rear):
o Front – GT502 F 80/90-21 54V
o Rear – GT502 180/60B17 75V
Fuel Capacity 4.70 gal. (17.79 L) (warning light at approximately 0.9 gal.)
Oil Capacity (w/filter) 3 qts. (2.84 L)
Transmission Capacity 1 qts. (0.95 L)
Primary Chain Case Capacity3 1 qts. (0.95 L)

Weight:
o As Shipped 647 lbs. (293.48 kg)
o In Running Order 665 lbs. (301.64 kg)
o Gross Vehicle Weight Rating 1085 lbs. (492.16 kg)
o Gross Axle Weight Rating:
o Front 390 lbs. (176.90 kg)
o Rear 695 lbs. (315.25 kg)

Color Options
Solids
– Vivid Black
– Red Hot Sunglo

Two-Tones
– Vivid Black Flame

U.S. MSRP
Vivid Black $14,499
Solids $14,874
Two-Tones $15,194

Warranty
Warranty10 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7) kg operator weight.
3 Primary case oil fill is 32 oz. or as needed to fill to bottom of diaphragm.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Standard and optional fuel systems may vary by country and region.
6 U.S. and HDI markets, except Japan: Belt, 32/64 ratio.
7 Standard and optional wheels may vary by country and region.
8 The 2010 Dyna FXDWG has new Stop/Tail/Turnsignals. The full specifications
for these lights are as follows: FXDWG rear domestic turn signals produce the
following power levels at 14.4 VDC: Running lamp: 9W Brake/Turn Lamp: 43W
FXDWG rear HDI turn signals produce the following levels at 14.4 VDC: Brake/
Running Lamp: 0W Turn: 35W FXDWG Rear HDI/Tail/Brake Lamp produce the
following power levels at 14.4 VDC: Tail: 2.3W Brake: 4.4W.
9 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
10 See motorcycle owner’s manual for complete details.







2010 Harley-Davidson FXDWG Dyna Wide Glide – Media/Press Releases



NEW HARLEY-DAVIDSON® WIDE GLIDE® ROLLS WITH OLD-SCHOOL STYLE

Wide Glide Model Returns with a Chopped Rear Fender, Black Trim and Tommy Gun Exhaust

MILWAUKEE (July 25, 2009) – The 2010 Wide Glide is a new Harley-Davidson Dyna® model done up old-school chopper style – a low, stretched-out custom with forward foot controls that give its rider a real fists-in-the-wind profile. Its name-sake wide front end, black-wire sissy bar and available orange-to-yellow fade flames paint scheme might be hits from the bike-builder archives, but the LED stop/turn/tail light combo is new technology that keeps its chopped rear fender clean and uncluttered. The new Wide Glide is also priced to be a great value – call it affordable attitude.

The Wide Glide motorcycle is powered by a rubber-mounted Twin Cam 96™ V-Twin powertrain with Electronic Sequential Port Fuel Injection (ESPFI) that produces 92 ft. lbs. of peak torque at 3000 rpm. The engine is finished in black powdercoat with bright machined highlights on the cylinder fins and chrome-plated rocker and derby covers. The 6-Speed Cruise Drive® transmission features a new helical-cut fifth gear for smooth operation. Distinctive Dyna Wide Glide styling cues include an under-seat battery box, exposed rear shock absorbers, and a 4.7-gallon fuel tank with the speedometer mounted in the console.

Key Dyna Wide Glide Features
The lowered front and rear suspension reduces seat height to just 25.5 inches.
The 49mm front forks are raked out to 34 degrees. Wide polished aluminum triple clamps create more space between the forks to open up the front-end styling and accentuate the 21-inch by 2.15-inch front wheel.
40-spoke laced wheels with black steel rims.
The handlebar is internally wired and mounted on four-inch-high black risers.
Black mirrors and headlamp bucket match the black risers.
Battery box and rear fender struts are finished in wrinkle black powdercoat. A chrome strip on the battery box has an embossed “Wide Glide” logo.
The front of the fuel tank is tilted up .75-inch to accent the Wide Glide chopper profile.
Chrome 2-1-2 “Tommy Gun” exhaust with styled exhaust shields and staggered dual mufflers.
Low-slung solo seat with a separate passenger pillion.
Black one-piece “wire” sissy bar.
A chopped rear fender exposes the 180/60B tire.
Dual red LED rear lamps combine the stop/turn/tail functions and eliminate a large, central tail lamp. The license plate mount is moved to the side of the chassis.
The Wide Glide model has a base price of $14,499 in Vivid Black, and will also be offered in an optional, limited-production Red Hot Sunglo and Vivid Black base with Flames paint scheme.
