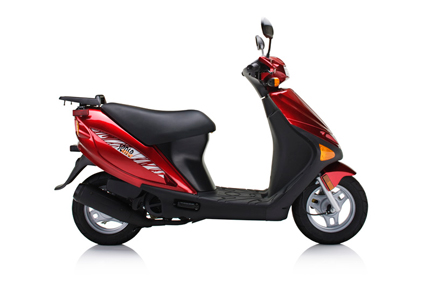

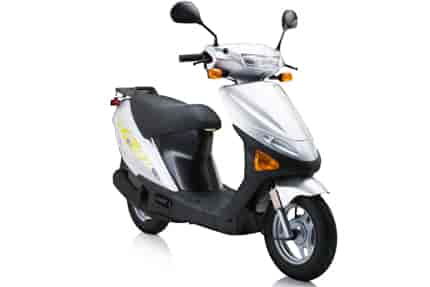

2011 Hyosung SB50ZR / Sense / SB50 Super Cab
2011 Hyosung SB50ZR / Sense / SB50 Super Cab

2011 Hyosung SB50ZR / Sense / SB50 Super Cab
2011 Hyosung SB50ZR / Sense / SB50 Super Cab

2011 Hyosung SB50ZR / Sense / SB50 Super Cab
2011 Hyosung SB50ZR / Sense / SB50 Super Cab

2011 Hyosung SB50ZR / Sense / SB50 Super Cab
2011 Hyosung SB50ZR / Sense / SB50 Super Cab



– 2011 Hyosung SB50ZR / Sense / SB50 Super Cab

2011 Hyosung SB50ZR / Sense / SB50 Super Cab

Small and nimble with a low centre of gravity, the electric-start Hyosung SB50 Super Cab has been assiduously crafted with a commercial focus in mind. Of course, it’s purely up to you, but a scooter which pays scant attention to the price of crude oil, tips the scales at a svelte 70kg, and has dual headlights for faultless night-time vision must be onto something good. What’s more, there’s enough underseat storage to swallow a helmet and associated nick-nacks, while an optional colour-matched top box stitches up the leftover cargo market. Telescopic front forks ensure a smooth ride on all road surfaces, and the zippy 50cc engine, feeding an automatic transmission, is indestructible. No longer does a low price mean you have to compromise on quality.

The SENSE offers the most value you can buy in a scooter. The SB50ZR has large under seat storage that is excellent for the urban rider. This is transportation that puts a smile on your face, is good for the environment, and is easy on your wallet.






2011 Hyosung SB50ZR / Sense / SB50 Super Cab Features:

Telescopic forks offer superior dampening to provide you with a comfortable ride.

The Sense has a powerful 50cc engine and delivers excellent acceleration.

OPTIONAL ACCESSORIES
Sports muffler
Sports Carrier
Tinted Screen

COLOUR AND TRIM
Electric Yellow
Pearl Red
Deep Blue









2011 Hyosung SB50ZR / Sense / SB50 Super Cab – North American Specifications
MSRP – See Dealer for current pricing.

Chassis Overall Length (inch) 70.2
Overall Height (inch) 41.9
Overall Width (inch) 25.6
Wheel Base (inch) 48.9
Ground Clearance (inch) 4.5
Seat Height (inch) 29.5
Brake (Front) 162Ø Single disc, 1 piston caliper
Brake (Rear) Drum
Suspension (Front) Conventional Telescopic
Suspension (Rear) Mono Shock Absorber (Preload adjustable)
Tire (Front) 3.50 -10 51J
Tire (Rear) 3.50 -10 51J
Fuel Tank Capacity (gal) 1.24
Dry Mass 176 lbs

Engine Type Forced Air cooled 2-stroke Single cylinder
Displacement (cc) 49
Bore x Stroke 41 x 37.4
Compression Ratio 7.2 : 1
Max Power 4 HP
Max Torque 2.8 lb/ft @ 6500 RPM
Fuel System Carburetor

Transmission Clutch Centrifugal automatic clutch
Gear CVT

Warranty Year 2





2011 Hyosung SB50ZR / Sense / SB50 Super Cab – International Specifications
MSRP – See Dealer for current pricing.

Dimensions & Dry Mass
Overall Length (mm)1,754
Overall Width (mm)667
Overall Height (mm)1,030
Wheel Base (mm)1,221
Dry Mass (kg)70
Seat Height (mm)760
Ground Clearance112

Engine
TypeAir-cooled, two-stroke, single-cylinder
Fuel SystemSingle 14mm carburettor
Displacement (cc)49
Starting SystemElectric and kick

Capacity
Fuel Tank (litres)4.8

Transmission:
TypeV-belt fully automatic
ClutchDry centrifugal

Chassis:
Front SuspensionTelescopic forks
Rear Suspension Coil spring
Front Tyre120/90-10
Rear Tyre130/90-10
Front BrakeDisc
Rear BrakeDrum

Warranty
WarrantyTwo-year, unlimited kilometres
Model year is identified by the 10th digit in the VIN code


Hyosung Notes : Specifications and pricing are subject to change without notice. Images for illustration purpose only.
