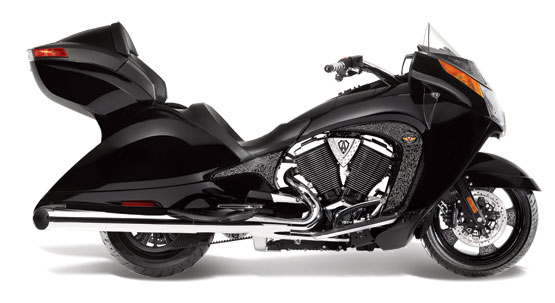

2011 Victory Arlen Ness Vision
2011 Victory Arlen Ness Vision

2011 Victory Arlen Ness Vision
2011 Victory Arlen Ness Vision



– 2011 Victory Arlen Ness Vision

2011 Victory Arlen Ness Vision

If you thought the Victory Vision was already the ultimate bike, check this out. The Arlen Ness Signature Series Victory Vision features the personal custom treatment of this legendary custom builder. Custom paint, graphics and Ness accessories from nose to tail, this is the ultimate. And it’s pure Arlen.



Key Victory Arlen Ness Vision Key Features

106 CI Engine with diamond cut cylinder heads: The Freedom 106/6 Stage 1 V-Twin with precision diamond-cut cylinders is the epitome of customization. This distinctive Ness model offers both power and premium styling.




2011 Victory Arlen Ness Vision – Specifications
USA MSRP – $27,999 USD
Canada MSRP – $31,219 CDN

Engine

Engine Type 4-stroke 50o V-Twin
Cooling System Air / oil
Displacement 106 ci / 1731 cc
Bore x Stroke 101 x 108 mm
Compression ratio 9.4 : 1
Valve train Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Fuel Capacity 6.0 gal / 22.7 ltr
Exhaust Split dual exhaust with crossover
Oil capacity 5.0 qts / 4.75 ltr
Charging System 48 amps max output
Battery 12 volts / 18 amp hours
Primary Drive Gear drive with torque compensator
Clutch Wet, multi-plate
Transmission 6-speed overdrive constant mesh
Final Drive Carbon Fiber Reinforced Belt


Chassis Dimensions

Length 104.9 in / 2,665 mm
Wheelbase 65.7 in / 1670 mm
Seat Height 24.5 in / 622 mm
Ground Clearance 4.8 in / 122 mm
Rake/trail 29.0o / 5.6 in / 142 mm
Dry Weight 869 Lbs / 395 Kg
GVWR 1414 lbs / 643 kg

Suspension

Front Suspension Conventional telescopic fork, 46 mm diameter, 5.1 in / 130 mm travel
Rear Suspension Single, mono-tube, cast aluminum with constant-rate linkage, 3.65 in / 92.7 mm travel, air adjustable

Brakes

Brake Systmen Type Linked (ABS)
Front braking system Dual 300mm floating rotors with 4-piston calipers
Rear braking system 300mm floating rotor with 2-piston caliper

Wheels and Tires

Front Wheel 18 x 3.0 in
Rear Wheel 16 x 5.0 in
Front Tire 130/70R18 Dunlop Elite 3
Rear Tire 180/60R16 Dunlop Elite 3

Color Options

Colors Ness Custom: Black/ Ness Graphics
