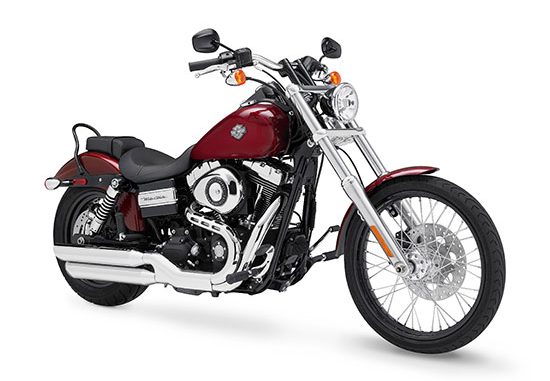

2010 Harley-Davidson FXDWG Dyna Wide Glide

2010 Harley-Davidson FXDWG Dyna Wide Glide
2010 Harley-Davidson FXDWG Dyna Wide Glide



2010 Harley-Davidson FXDWG Dyna Wide Glide – Specifications
USA MSRP: Vivid Black $14,499, Solids $14,874, Two-Tones $15,194

Canada MSRP: See Local Canadian Dealer For Pricing


Engine
Engine4 Air-cooled, Twin Cam 96™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.25 mm x 111.25 mm)
Displacement 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System5 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass Media, washable
Lubrication System Pressurized, dry-sump

Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive6 Belt, 32/66 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
o 1st 9.311
o 2nd 6.454
o 3rd 4.793
o 4th 3.882
o 5th 3.307
o 6th 2.790

Chassis
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded
Front Forks 49 mm with polished aluminum fork triple clamp and dual-rate springs
Rear Shocks Coil-over shock
Wheels7: Black, Laced Steel
o Front 21 in. x 2.15 in. (533.40 mm x 54.61 mm)
o Rear 17 in. x 4.50 in. (431.80 mm x 114.30 mm)
Brakes:
o Caliper Type 4-piston fixed front, and 2-piston torque-free floating rear
o Rotor Type (diameter x width): Patented, uniform expansion rotors (floating, front only)
o Front (floating) 11.80 in. x .20 in. (299.72 mm x 5.08 mm)
o Rear 11.50 in. x .23 in. (292.10 mm x 5.84 mm)
Suspension Travel:
o Front Wheel 5 in. (127.0 mm)
o Rear Wheel 3.10 in. (78.74 mm)

Performance
Engine Torque (per SAE J1349):
o North America 92 ft. lbs. @ 3000 rpm (124.75 Nm @ 3000 rpm)
Lean Angle (per SAE J1168):
o Right 28.4°
o Left 31.9°

Fuel Economy
(EPA urban/highway test) 35/54 mpg (6.72/4.36 L/100 km)

Electric
Battery (per Battery Council International Rating) Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 40-amp system (493W @ 13.5V, 2000 rpm, 540W max power @ 13.5V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
o Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
o Rear Turn Signal Lights8 Running Lamp: 9W Brake/Turn Lamp: 43W
o Rear Brake Light8 Tail Lamp: 2.3W Brake Lamp: 4.4W
o Indicator Lamps High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system9 (optional), 6-speed, low fuel warnings
Electric Power Outlet Standard

Dimensions
Length 94.0 in. (2387.60 mm)
Overall Width 37.20 in. (944.88 mm)
Overall Height 47.80 in. (1214.12 mm)
Seat Height:
o Laden2 25.50 in. (647.70 mm)
o Unladen 26.70 in. (678.18 mm)
Ground Clearance 4.20 in. (106.68 mm)
Rake (steering head) 34°
Fork Angle 36°
Trail 5.20 in. (132.08 mm)
Wheelbase 68.30 in. (1734.82 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and rear):
o Front – GT502 F 80/90-21 54V
o Rear – GT502 180/60B17 75V
Fuel Capacity 4.70 gal. (17.79 L) (warning light at approximately 0.9 gal.)
Oil Capacity (w/filter) 3 qts. (2.84 L)
Transmission Capacity 1 qts. (0.95 L)
Primary Chain Case Capacity3 1 qts. (0.95 L)

Weight:
o As Shipped 647 lbs. (293.48 kg)
o In Running Order 665 lbs. (301.64 kg)
o Gross Vehicle Weight Rating 1085 lbs. (492.16 kg)
o Gross Axle Weight Rating:
o Front 390 lbs. (176.90 kg)
o Rear 695 lbs. (315.25 kg)

Color Options
Solids
– Vivid Black
– Red Hot Sunglo

Two-Tones
– Vivid Black Flame

U.S. MSRP
Vivid Black $14,499
Solids $14,874
Two-Tones $15,194

Warranty
Warranty10 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7) kg operator weight.
3 Primary case oil fill is 32 oz. or as needed to fill to bottom of diaphragm.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Standard and optional fuel systems may vary by country and region.
6 U.S. and HDI markets, except Japan: Belt, 32/64 ratio.
7 Standard and optional wheels may vary by country and region.
8 The 2010 Dyna FXDWG has new Stop/Tail/Turnsignals. The full specifications
for these lights are as follows: FXDWG rear domestic turn signals produce the
following power levels at 14.4 VDC: Running lamp: 9W Brake/Turn Lamp: 43W
FXDWG rear HDI turn signals produce the following levels at 14.4 VDC: Brake/
Running Lamp: 0W Turn: 35W FXDWG Rear HDI/Tail/Brake Lamp produce the
following power levels at 14.4 VDC: Tail: 2.3W Brake: 4.4W.
9 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
10 See motorcycle owner’s manual for complete details.



2010 Harley-Davidson CVO Fat Bob FXDFSE2

2010 Harley-Davidson CVO Fat Bob FXDFSE2
2010 Harley-Davidson CVO Fat Bob FXDFSE2



2010 Harley-Davidson CVO Fat Bob FXDFSE2 – Specifications
USA MSRP: $25,299

Canada MSRP: See Local Canadian Dealer For Pricing

Engine
Engine4 Air-cooled, Twin Cam 110™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 4.0 in. x 4.38 in. (101.60 mm x 111.252 mm)
Displacement 110 cu. in. (1803 cc)
Compression Ratio 9.15:1
Fuel System5 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Heavy breather intake; high flow, forward-facing exposed filter
Lubrication System Pressurized, dry-sump

Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/66 ratio
Clutch Hydraulically actuated, 9-plate, wet, with high performance spring
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
o 1st 9.311
o 2nd 6.454
o 3rd 4.793
o 4th 3.882
o 5th 3.307
o 6th 2.790

Chassis
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded; color-matched to vehicle
Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded; color-matched to vehicle
Front Forks 49 mm with dual-rate springs
Rear Shocks Fully Covered, Coil-over shock

Wheels6: Powder-coated, Chrome-plated “Fang” wheels
o Front 16 in. x 3 in. (406.40 mm x 76.20 mm)
o Rear 16 in. x 5 in. (406.40 mm x 127.0 mm)
Brakes:
o Caliper Type 4-piston fixed front, and 2-piston floating rear
o Rotor Type (diameter x width): Floating rotors
o Front (dual) 11.80 in. x .20 in. (300.0 mm x 5.08 mm)
o Rear 11.50 in. x .23 in. (292.10 mm x 5.84 mm)
Suspension Travel:
o Front Wheel 4.33 in. (109.98 mm)
o Rear Wheel 2.13 in. (54.10 mm)

Performance
Engine Torque6 (per SAE J1349):
o North America 113 ft. lbs. @ 3500 rpm (153.21 Nm @ 3500 rpm)
Lean Angle (per SAE J1168):
o Right 28.5°
o Left 31°

Fuel Economy7
(EPA urban/highway test) 36/53 mpg (6.53/4.44 L/100 km)

Electric
Battery (per Battery Council International Rating) Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 40-amp system (493W @ 13.5V, 2000 rpm, 540W max power @ 13.5V)
Starting 1.4 kW electric with solenoid shift starter motor engagement

Lights (as per country regulation):
o Headlamp (dual quartz halogen) 55-watt low beam, 60-watt high beam
o Tail/Stop Lights 3W/11W (2W/10W)
o Turn Signal Lights 28W (21W) self-canceling
o Indicator Lamps High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system, 6-speed, low fuel warnings8, 9

Dimensions
Length 91.0 in. (2311.40 mm)
Overall Width 36.60 in. (929.64 mm)
Overall Height 45.50 in. (1155.70 mm)
Seat Height:
o Laden2 26.20 in. (665.48 mm)
o Unladen 27.90 in. (708.66 mm)
Ground Clearance 4.33 in. (109.98 mm)
Rake (steering head) 29°
Fork Angle 28°
Trail 5.53 in. (140.46 mm)
Wheelbase 63.60 in. (1615.44 mm)

Tires (Dunlop® Harley-Davidson Series, bias blackwall front and rear):
o Front – D427F 130/90B16 67H
o Rear – D427 180/70B16 77H
Fuel Capacity 5 gal. (18.93 L) (warning light at approximately 0.9 gal.)
Oil Capacity (w/filter) 3 qts. (2.84 L)
Transmission Capacity 1 qts. (0.95 L)
Primary Chain Case Capacity3 1 qts. (0.95 L)
Weight:
o As Shipped 692 lbs. (313.89 kg)
o In Running Order 719 lbs. (326.14 kg)
o Gross Vehicle Weight Rating 1085 lbs. (492.16 kg)
o Gross Axle Weight Rating:
o Front 390 lbs. (176.90 kg)
o Rear 695 lbs. (315.25 kg)

Color Options
Custom Colors
– Cryptic Black with Hellfire Flames
– Satin Pewter with Sandstorm Grind
– Opal Blue with Hellfire Flames

Pricing
U.S. MSRP $25,299

Warranty
Warranty7 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7) kg operator weight.
3 Estimated from fuel economy tests on a sample motorcycle from the
corresponding family conducted by Harley-Davidson under ideal laboratory
conditions. Not all motorcycle models undergo fuel economy testing. Fuel
economy and mileage may vary among motorcycle models within a family. Your
mileage may vary depending on your personal riding habits, weather conditions,
trip length, vehicle condition and vehicle configuration and other conditions.
Break-in mileage may vary.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Primary case oil fill is 32 oz. or as needed to fill to bottom of diaphragm.
6 Standard and optional wheels may vary by country and region.
7 See motorcycle owner’s manual for complete details.
8 Values shown are nominal. Performance may vary by country and region.
9 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.



Click photos to enlarge.
They make great desktop images.

2010 Harley-Davidson Street Glide FLHX
2010 Harley-Davidson Street Glide FLHX



2010 Harley-Davidson Street Glide FLHX – Specifications
USA MSRP: Solids $18,999, Two-Tones $19,479, Custom Colors $19,899

Canada MSRP: See Local Canadian Dealer For Pricing

Engine
Engine3 Air-cooled, Twin Cam 96™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.25 mm x 111.25 mm)
Displacement3 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass, washable
Lubrication System Pressurized, dry-sump
drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
o 1st 9.593
o 2nd 6.650
o 3rd 4.938
o 4th 4.000
o 5th 3.407
o 6th 2.875

Chassis
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm Mild steel; two-piece drawn and welded section; forged juctions; MIG welded
Front Forks 41.3 mm telescopic, triple circuit damping
Rear Shocks Short, air-adjustable
Wheels5: Black, Slotted Disc Cast Aluminum
o Front 18 in. x 3.50 in. (457.20 mm x 88.90 mm)
o Rear 16 in. x 5 in. (406.40 mm x 127.0 mm)

Brakes:
o Caliper Type 32 mm, 4-piston fixed front and rear
o Rotor Type (diameter x width): Patented, fixed rotors
o Front (dual) 11.81 in. x .20 in. (299.97 mm x 5.08 mm)
o Rear 11.81 in. x .28 in. (299.97 mm x 7.11 mm)
o Anti-Lock Braking System (option) Available
Suspension Travel:
o Front Wheel 4.60 in. (116.84 mm)
o Rear Wheel 2 in. (50.80 mm)

Engineered for Sidecar Use Available

Performance
Engine Torque6 (per SAE J1349):
o North America 92.60 ft. lbs. @ 3500 rpm (125.55 Nm @ 3500 rpm)
Lean Angle (per SAE J1168):
o Right 32°
o Left 29°

Fuel Economy7
(EPA urban/highway test) 35/54 mpg (6.72/4.36 L/100 km)

Electric
Battery (per Battery Council International Rating) Sealed, maintenance-free, 12V, 28-amp/hour, 370 cca
Charging Three-phase, 50-amp system (585W @ 13V, 2000 rpm, 650W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
o Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
o Tail/Stop Lights 8W/28W (5W/21W)
o Turn Signal Lights 28W (21W) self-canceling
o Indicator Lamps High beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system8 (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)

Dimensions
Length 95.0 in. (2413.0 mm)
Overall Width 38.0 in. (965.20 mm)
Overall Height 52.20 in. (1325.88 mm)
Seat Height:
o Laden2 26.30 in. (668.02 mm)
o Unladen 27.30 in. (693.42 mm)
Ground Clearance 4.70 in. (119.38 mm)
Rake (steering head) 26°
Fork Angle 29.2°
Trail 6.69 in. (169.93 mm)
Wheelbase 63.50 in. (1612.90 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and rear):
o Front – D408F BW 130/80B18 63H
o Rear – D407 BW 180/65B16 81H
Fuel Capacity 6 gal. (22.71 L) (warning light at approximately 1 gal.)
Oil Capacity (w/filter) 4 qts. (3.78 L)
Transmission Capacity 1 qts. (0.95 L)
Primary Chain Case Capacity 1.40 qts. (1.32 L)

Weight:
o As Shipped 773 lbs. (350.63 kg)
o In Running Order 810 lbs. (367.42 kg)
o Gross Vehicle Weight Rating 1360 lbs. (616.90 kg)
o Gross Axle Weight Rating
o Front 500 lbs. (226.80 kg)
o Rear 927 lbs. (420.49 kg)

Color Options
Solids
– Vivid Black
– Scarlet Red
– Brilliant Silver Pearl
– Black Denim
– Red Hot Sunglo

Custom Colors
– Merlot Sunglo/Cherry Red Sunglo
– White Ice Pearl/Black Ice Pearl

U.S. MSRP
Solids $18,999
Two-Tones $19,479
Custom Colors $19,899

Warranty
Warranty9 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional fuel systems may vary by country and region.
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance may vary by country and region.
7 Estimated from fuel economy tests on a sample motorcycle from the
corresponding family conducted by Harley-Davidson under ideal laboratory
conditions. Not all motorcycle models undergo fuel economy testing. Fuel
economy and mileage may vary among motorcycle models within a family. Your
mileage may vary depending on your personal riding habits, weather conditions,
trip length, vehicle condition and vehicle configuration and other conditions.
Break-in mileage may vary.
8 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
9 See motorcycle owner’s manual for complete details.

<< Page BackPage Forward >>




Page 1
Page 2Page 3Page 4Page 5Page 6Page 7Page 8Page 9Page 10Page 11Page 12



Harley-Davidson Motorcycles
Harley-Davidson





If you would like Total Motorcycle, North America’s leading motorcycle information website to do a test ride and ride review of your motorcycle or scooter models just contact us for information or to book a date, location and time. It is a great way to promote your model and your company to over half a million visitors worldwide each month for no cost! Contact us today to inquire.


About Michael Le Pard 2145 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle. Supporting over Motorcyclists and Motorcycling for 19 great years. Total Motorcycle is my pride and joy and being able to reach out 300 million people has been incredible but I could not have done it without the support of my visitors, readers and members, thank you so much! You are making a difference to millions of riders worldwide. Thank you.
