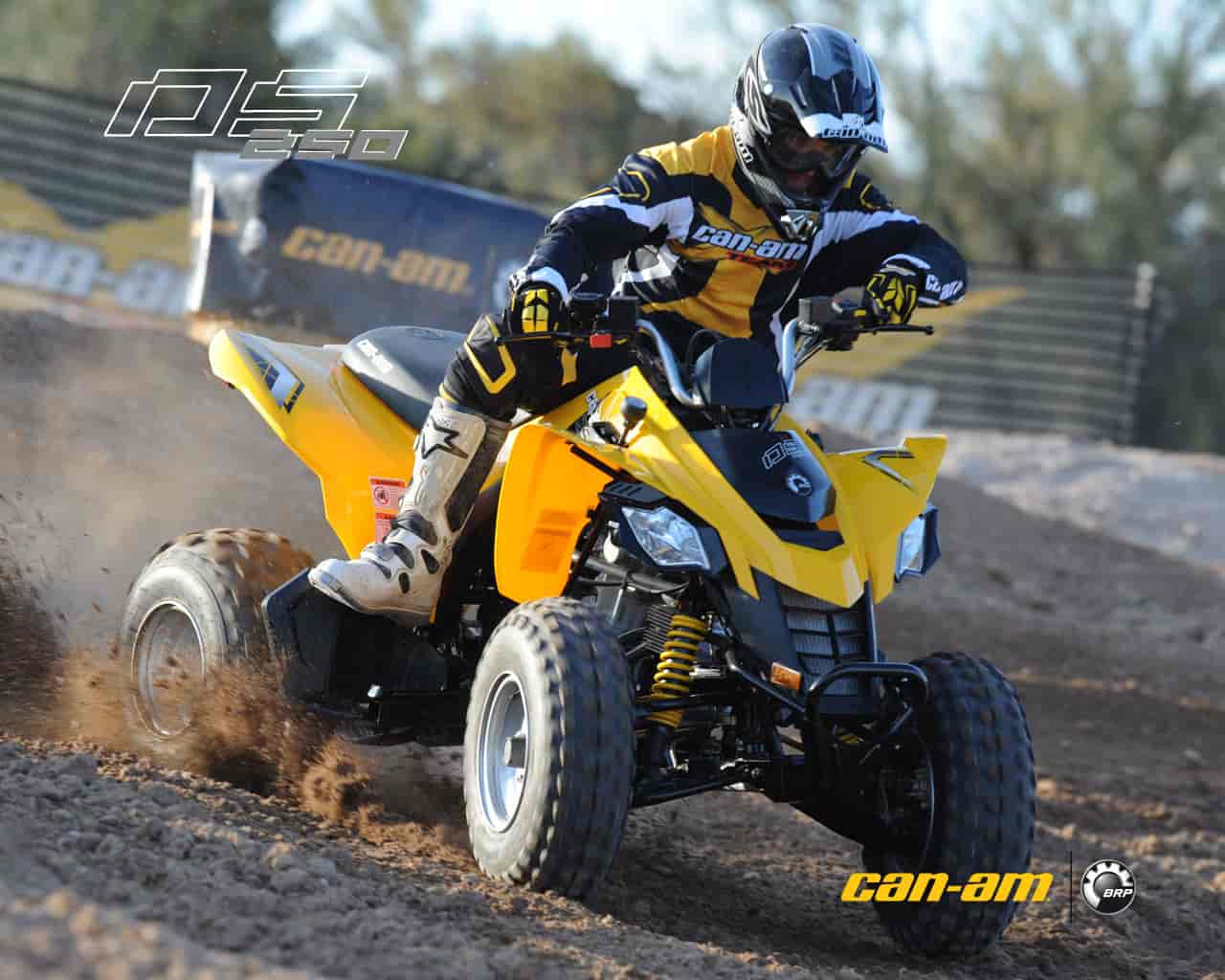

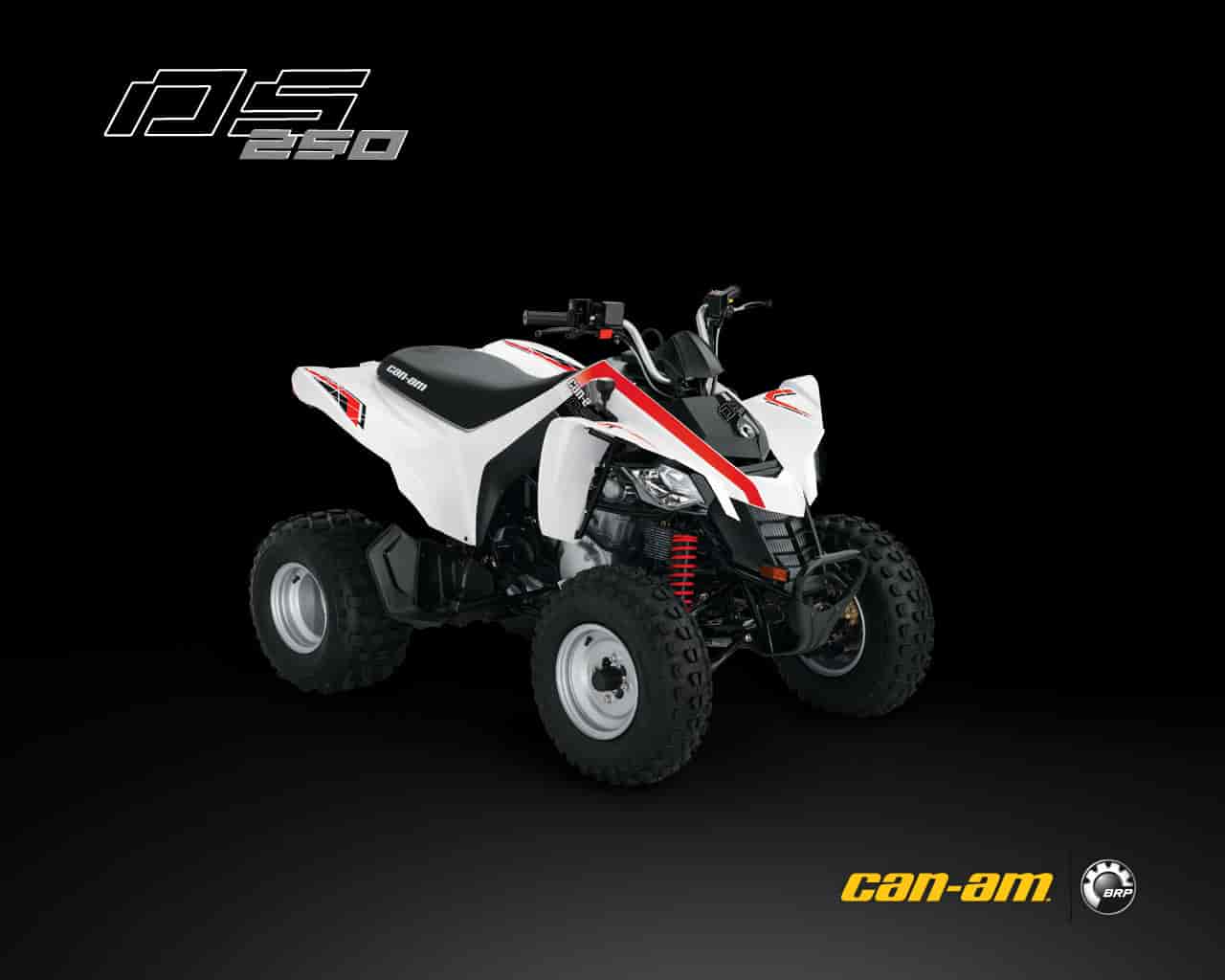

2009 Can-Am DS 250
2009 Can-Am DS 250
– 2009 Can-Am DS 250
2009 Can-Am DS 250
HOW DO WE CONVINCE YOU THESE QUADS ARE READY TO RACE OUT OF THE BOX? IT’S SIMPLE: RIDE ONE.
Key Features:
DS 250 FEATURES
249.4cc liquid-cooled engine CVT Transmission Electric start Hydraulic front and rear disc brakes with steel-braided brake lines Double A-arm front suspension Pre-Load Adjustable Front and Rear Shocks New headlights
OTHER STANDARD FEATURES
Neutral light, reverse light & oil temperature light Available Colors: Yellow, White/ Can-Am Red
2009 Can-Am DS 250 – Specifications
American MSRP $3,499 USD
Canadian MSRP $4,049 CDN
Engine
Type : 249.4cc, single cylinder, liquid-cooled, SOHC, 4-valve
Bore & Stroke : 71 x 63 mm
EFI System/Carburetor : Keihin PTG 23
Starting System : Electric
Transmission : Automatic CVT, sub-transmission w/forward, neutral & reverse
Drive Train : Chain driven/solid axle
Chassis
Frame : DS 250
Front Suspension Type : Double A-arm 5-position Adj. pre-load
Travel : 5.5 in (140 mm)
Rear Suspension Type : Swingarm 5-position adj. pre-load
Travel : 6.7 in (170 mm)
Front Brake : 2 hydraulic discs
Rear Brake : 1 hydraulic disc
Tires/Front : 22 x 7 x 10 in. 559 x 178 x 254 mm
Tires/Rear : 508 x 279 x 229 in. 20 x 11 x 9 mm
Wheels : Steel
Dimensions
L x W x H (in) : 72 x 40.5 x 43.5 in
L x W x H (mm) : 1.83 x 1.03 x 1.105 mm
Wheelbase : 47 in (1.187 mm)
Seat Height : 31.5 in (800 mm)
Ground Clearance : 10.2 in (260 mm)
Dry Weight : 429 lbs (195 kg)
Storage : N/A
Fuel Capacity : 3.3 US gal. (12.5 L)
Features
Instrumentation : Neutral light, reverse light and oil/temperature light
Anti-Theft : D.E.S.S. (Digital Encoded Security System)
Electrical : N/A
Lighting : 2 headlamps (35W) with tail light/brake light
DC Outlet : Yes
Color(s) available : Yellow, White/ Can-Am Red
