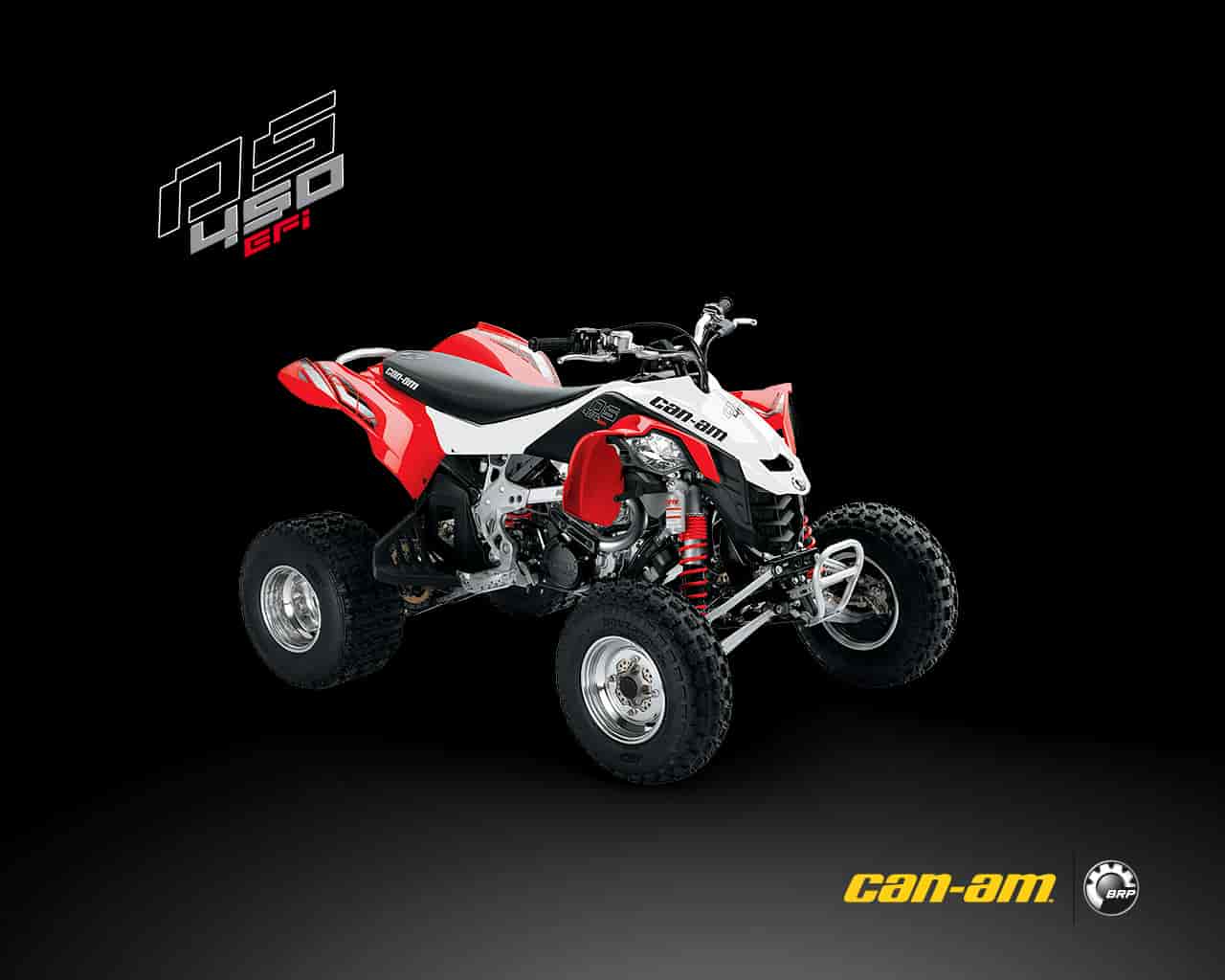

2009 Can-Am DS 450 EFI

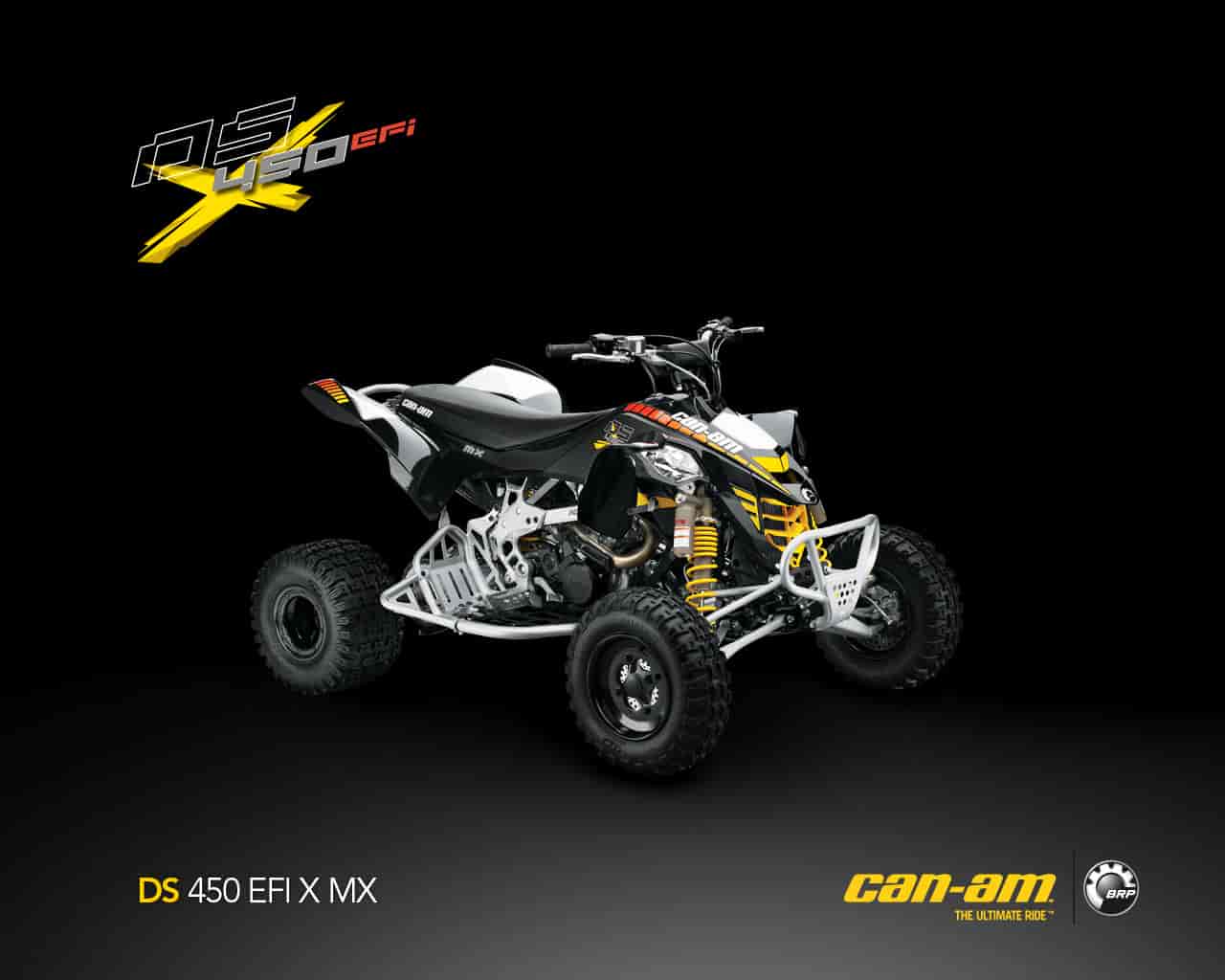

2009 Can-Am DS 450 X MX EFI

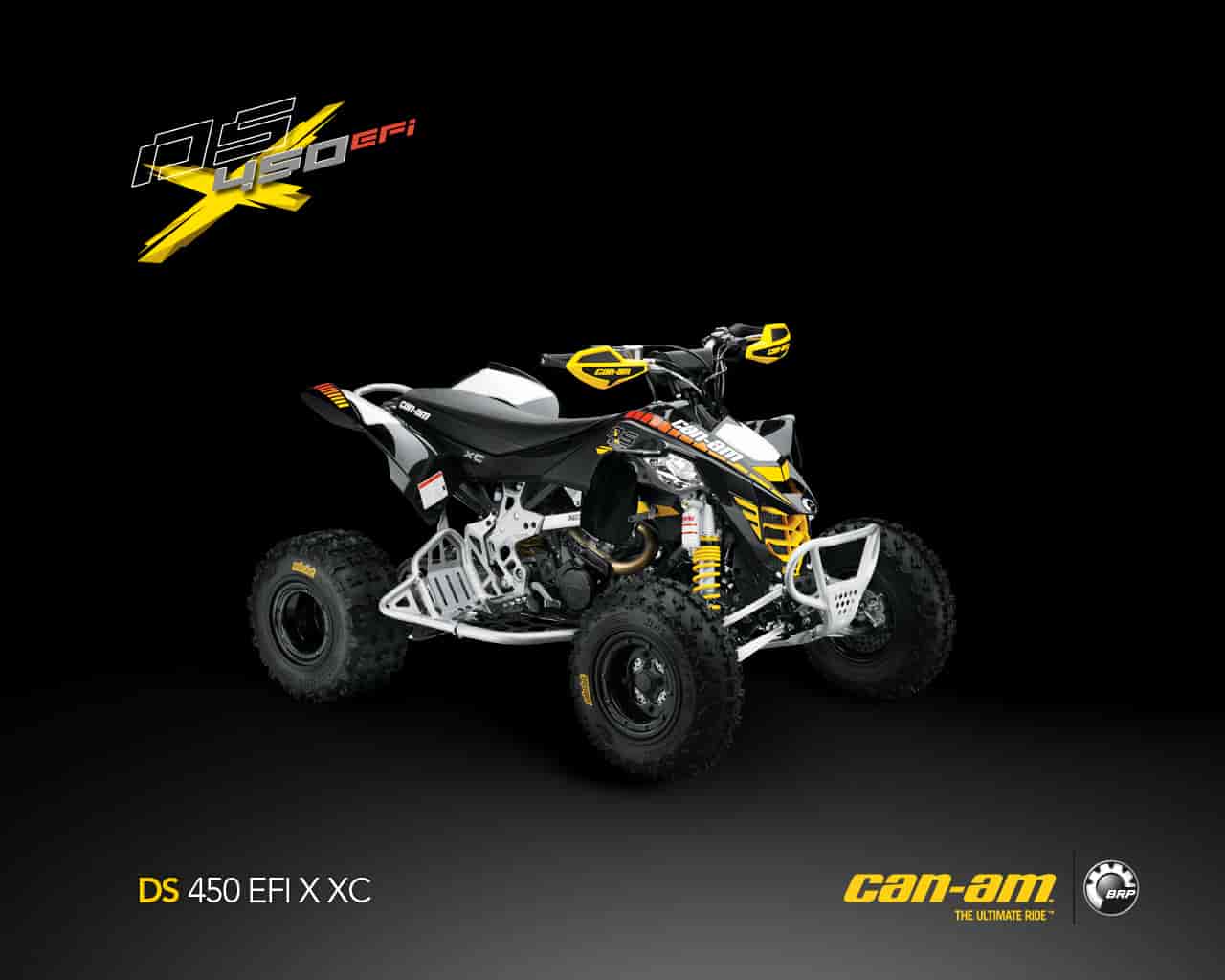

2009 Can-Am DS 450 X XC EFI
2009 Can-Am DS 450 EFI
2009 Can-Am DS 450 X MX EFI
2009 Can-Am DS 450 X XC EFI
– 2009 Can-Am DS 450 EFI
2009 Can-Am DS 450 EFI
HOW DO WE CONVINCE YOU THESE QUADS ARE READY TO RACE OUT OF THE BOX? IT’S SIMPLE: RIDE ONE.
Last year, the DS 450 and the DS 450 X were introduced, each offering the lowest weight, lowest unsprung weight, most power and most mass centralization.
This year, we’ve refined the X concept even further with two new terrain-specific models – the 50″ wide DS 450 X mx and the tight-wood racing DS 450 X xc. Both offer the same industry-leading attributes. Both are ready to race right out of the box. And together they give you the opportunity to ride the way you want to ride. Track or trail.
Key Features:
Standard package features:
Rotax 4-TEC 449cc, liquid-cooled, single cylinder 4-stroke
DOHC 4-valve head
97 x 60.8 mm bore and stroke
EFI with 46 mm throttle body, 16 bit CPU with 32 MHz clock speed
Electric start
5-speed manual transmission
Chain drive with rigid axle
No weld, ALTEC twin pyramidal aluminum frame
R-Type forged aluminum double A-arm front suspension
KYB HPG aluminum piggyback front shocks with compression and rebound clickers, threaded pre-load adjustment and 9.5″ (241 mm) of travel
R-Type cast aluminum swingarm rear suspension
KYB HPG aluminum piggyback rear shock with adjustment for compression, rebound, spring preload and 10.5″ (267 mm) of travel
ITP Holeshot SR front and rear tires
Polished aluminum wheels
New headlights for 2009
New color option – Can-Am Red
OTHER FEATURES
Wilwood disc brakes Racing kick-up footpegs Detachable headlights Interchangeable fenders Electric start 5-speed manual transmission Chain drive with rigid axle ITP Holeshot SR front and rear tires Polished aluminum wheels
DS 450 EFI X mx give you all the standard DS 450 EFI features, PLUS:
+ 2″ double A-arms with adjustable caster and camber give a 50-inch front stance
Kashima-coated KYB HPG C40 aluminum piggyback front shocks with dual-speed compression, rebound and preload adjustments and 10.7″ (272 mm) of travel
Kashima-coated KYB HPG C46 aluminum remote reservoir rear shock with dual-speed compression, rebound and preload adjustments, and 10.7″ (272 mm) of travel
7″ (179 mm) factory-set ride height (175-lb rider)
Adjustable-width hollow rear axle (from 46″ [1.17 m] to 50″ [1.27 m] by increments of 0.5″ [12.7 mm] per spacer)
20×6-10 ITP QuadCross MX PRO front tires
18×10-8 ITP QuadCross MX PRO rear tires
Black aluminum ITP 10×5 T-9 GP front wheels
Black aluminum ITP 8×8 T-9 Trac-lock rear wheels
Extra-strength extended 1″ (25.4 mm) steering stem with anti-vibe mounts
Aluminum nerf bars with removable heel guards and side extensions
Aluminum 6061-T6 taper-profile handlebar with square pad
Aluminum front bumper, number plate ready
X package seat cover
X mx race graphics
Manufacturer Suggested Retail Price (MSRP): $10,749 CAD/$8,949 USD
DS 450 EFI X xc give you all the standard DS 450 EFI features, PLUS:
R-type forged aluminum double A-arms with adjustable caster
KYB HPG C36 aluminum piggyback front shocks with dual-speed compression, rebound and preload adjustments and 9.6″ (245 mm) of travel
KYB HPG C40 aluminum piggyback rear shock with dual-speed compression, rebound and preload adjustments and 10.5″ (267 mm) of travel
7.5″ (190 mm) factory-set ride height (175-lb rider)
Adjustable-width hollow rear axle (from 46″ [1.17 m] to 50″ [1.27 m] by increments of 0.5″ [12.7 mm] per spacer)
Extra-strength extended 1″ (25.4 mm) steering stem with anti-vibe mounts
21×7-10 ITP Holeshot GNCC 6-ply front tires
20×10-9 ITP Holeshot GNCC 6-ply rear tires
Black aluminum ITP 10×5 T-9 Trac-lock front wheels
Black aluminum ITP 9×8 T-9 Trac-lock rear wheels
3-mm full aluminum chassis skid plate
5-mm full aluminum swing arm skid plate
Aluminum nerf bars with removable heel guards and side extensions
Aluminum 6061-T6 taper-profile handlebar with square pad
Aluminum front bumper, number plate ready
Handlebar wind deflectors
X package seat cover
X xc race graphics
Manufacturer Suggested Retail Price (MSRP): $10,349 CAD/$8,749 USD
2009 Can-Am DS 450 EFI – Specifications
American MSRP $7,499 USD
Canadian MSRP $8,999 CDN
Engine
Type : 449.3cc, single-cylinder, liquid-cooled, DOHC 4-valve head with high-flow “Durchzugskraft” design, 38mm intake valve, 31 mm Nimonic – alloy
Bore & Stroke : 97 x 60.8 mm
EFI System/Carburetor : 46 mm Throttle Body, 16 bit / 32 MHz CPU
Starting System : Electric
Transmission : 5-speed manual / Heavy-duty clutch, 9 friction plates with DirectLink mechanism
Drive Train : 520 O-ring high capacity chain, aluminum sproket hub, aluminum sprocket, rigid axle
Chassis
Frame : ALTEC dual-pyramidal aluminum
Front Suspension Type : R-Type forged aluminum double A-arm KYB HPG piggyback shocks with compression, rebound and preload adjustments
Travel : 9.5 in (241 mm)
Rear Suspension Type : R-Type cast aluminum swingarm Chromoly hollow rear axle KYB HPG piggyback shock with compression, rebound and preload adjustments
Travel : 10.5 in (267 mm)
Front Brake : Dual 182mm wave type discs with inverted twin-piston calipers
Rear Brake : 198mm wave type rotor with single piston caliper
Tires/Front : ITP Holeshot SR 21 x 7R-10 in. 533 x 178R x 254 mm
Tires/Rear : ITP Holeshot SR 20 x 10R-9 in 508 x 254R x 229 mm
Wheels : Aluminum Polished
Dimensions
L x W x H (in) : 72.4 x 46 x 41.9 in
L x W x H (mm) : 1.839 x 1.168 x 1.064 mm
Wheelbase : 50 in (1.267 mm)
Seat Height : 33 in (831 mm)
Ground Clearance : 9 in (229 mm)
Dry Weight : 345 lbs (156 kg)
Storage : N/A
Fuel Capacity : 3 US gal. (11.5 L)
Features
Instrumentation : Low fuel, check engine, neutral
Anti-Theft : N/A
Electrical : N/A
Lighting : Dual removable headlights (35W)
DC Outlet : N/A
Color(s) available : Yellow, White/ Can-Am Red
