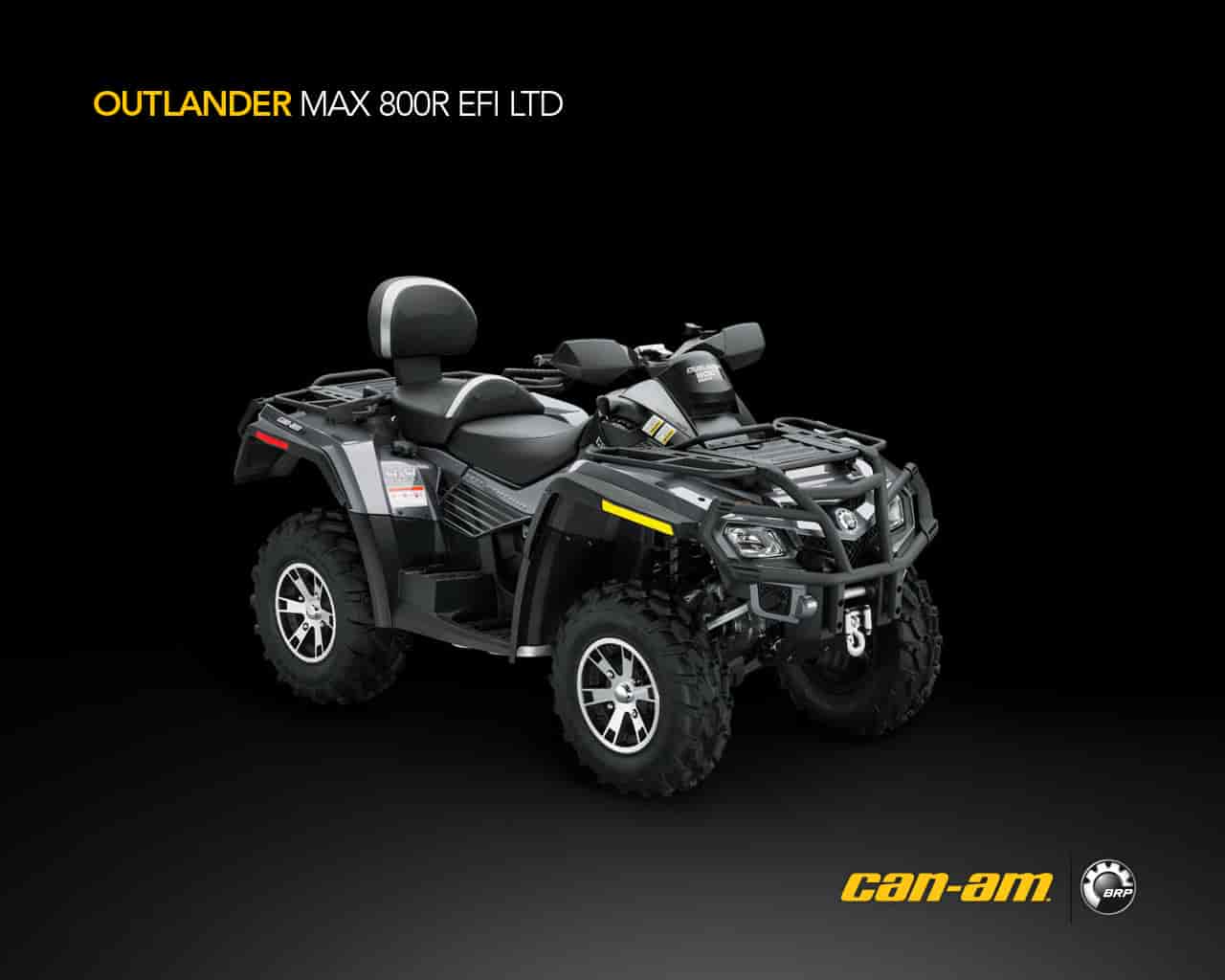

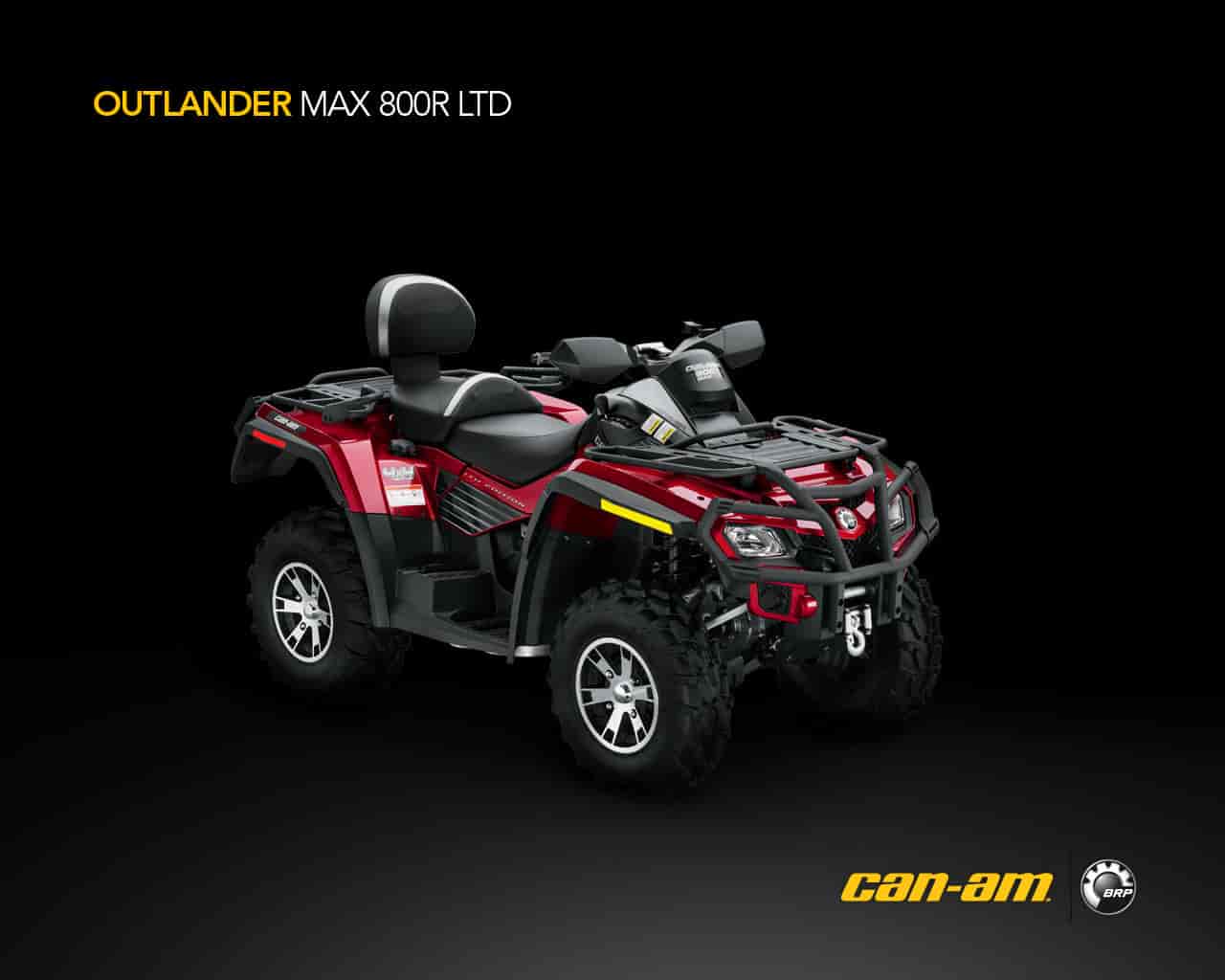

2009 Can-Am Outlander MAX 800R EFI LTD
2009 Can-Am Outlander MAX 800R EFI LTD

2009 Can-Am Outlander MAX 800R EFI LTD
2009 Can-Am Outlander MAX 800R EFI LTD

2009 Can-Am Outlander MAX 800R EFI LTD
2009 Can-Am Outlander MAX 800R EFI LTD

– 2009 Can-Am Outlander MAX 800R EFI LTD

2009 Can-Am Outlander MAX 800R EFI LTD


Picture the Outlander MAX loaded with every feature you’ll ever need. Now call it the Limited package. This Outlander comes with features ready for packing on miles and miles. And it’s all wrapped in a luxury appearance package that will draw admiring stares at any trail.

Welcome to the new world of luxury ATVing – the Outlander MAX 800R EFI LTD.

Key Features:

Standard package features:
Rotax 800R EFI engine
New redesigned fascia
TTI independent rear suspension
Lightweight double A-arm front suspension
Visco-Lok† auto-locking front differential
Continuously Variable Transmission [CVT]
Center skid plate
Integrated and removable GPS
Multi-function full digital gauge
D.E.S.S. electronic anti-theft system
Steel racks with 300-pound [136 kg] capacity
Cast aluminum rims with aggressive tread Carlisle ACT radial tires
3000-pound [1,361 kg] BRP XL3000 winch
Roller fairlead and wired remote winch control
Integrated winch remote storage
Handlebar wind deflectors
Redesigned heavy-duty front and rear bumpers
Ergonomic passenger backrest
Convertible rack/seat system with totable storage box
Raised floorboards
Multi-position passenger handgrips
Driver lumbar support


Rotax V-Twin 799,9cc EFI engine New front fascia design TTI independent rear suspension Visco-Lok† 4×4 front differential Double-A-Arm front suspension CVT transmission Multi-function gauge Integrated removable GPS

Cast aluminum wheels BRP XL3000 winch Carlisle‡ 26-inch ACT radial tires Center skid plate MAX chassis Heavy-duty front and rear bumpers Handlebar wind deflectors & comfort grips Convertible rack/seat system View


Electronic anti-theft system (D.E.S.S.) Steel racks with 300-pound [136 kg] capacity Convertible rack/seat system SST frame Muffler trim and mudguards Available Colors: Radiant Red Metallic, Steel Grey Metallic Suggested Price: $13,999 CAD Next: Specifications


2009 Can-Am Outlander MAX 800R EFI LTD – Specifications
American MSRP $11,949+ USD
Canadian MSRP $13,999 CDN

Type : 799.9cc, V-twin, liquid-cooled, SOHC, 8-valve (4-valve / cyl)
Bore & Stroke : 91 x 62 mm
EFI System/Carburetor : 46mm Throttle Body, 2 Siemens VDO injectors
Starting System : Electric
Transmission : CVT, sub-transmission with high, low, park, neutral & reverse, Standard Engine braking
Drive Train : Selectable 2w/4w shaft driven with Visco-lok† front differential

Frame : SST
Front Suspension Type : Double A-arm, Forged Aluminum upper arm
Travel : 8 in (203 mm)
Rear Suspension Type : TTI independent
Travel : 9 in (229 mm)
Front Brake : 2 inboard hydraulic discs
Rear Brake : 1 inboard hydraulic disc
Tires/Front : 26 x 8 x 12 in. 660.4 x 203 x 305 mm
Tires/Rear : 660 x 254 x 305 in. 26 x 10 x 12 mm
Wheels : Steel

L x W x H (in) : 94 x 46 x 45 in
L x W x H (mm) : 2.387 x 1.168 x 1.143 mm
Wheelbase : 59 in (1.499 mm)
Seat Height : 34.5 in (877 mm)
Ground Clearance : 12 in (305 mm)
Dry Weight : 713 lbs (323 kg)
Towing Capacity : 1300 lbs (590 kg)
Rack Capacity : 100 lbs (45 kg).
Storage : Rear storage 5.3 US gal (20L) CRS (Convertible Rack System)
Fuel Capacity : 5.3 US gal. (20 L)

Instrumentation : Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip meter, diagnostic center, gear position, hour meter, engine hour meter, 4×4 indicator, temperature and engine lights, fuel gauge, auto shut off after 15 minutes
Anti-Theft : D.E.S.S. (Digital Encoded Security System)
Electrical : Prewired for winch
Lighting : 2 fender mounted headlamps (35W) with tail light / brake light
DC Outlet : Lighter type in console, standard connector in the back (15A)
Color(s) available : Radiant Red Metallic, Steel Grey Metallic
