– 2009 Kawasaki KFX 90

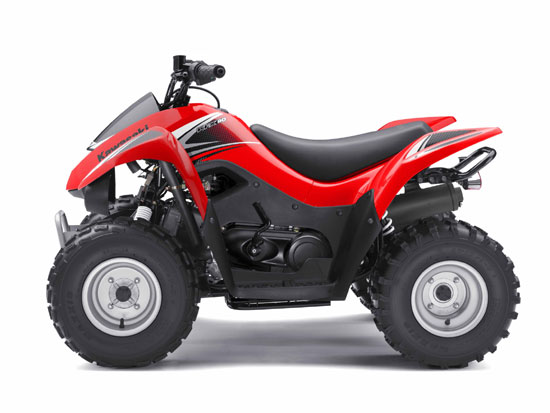

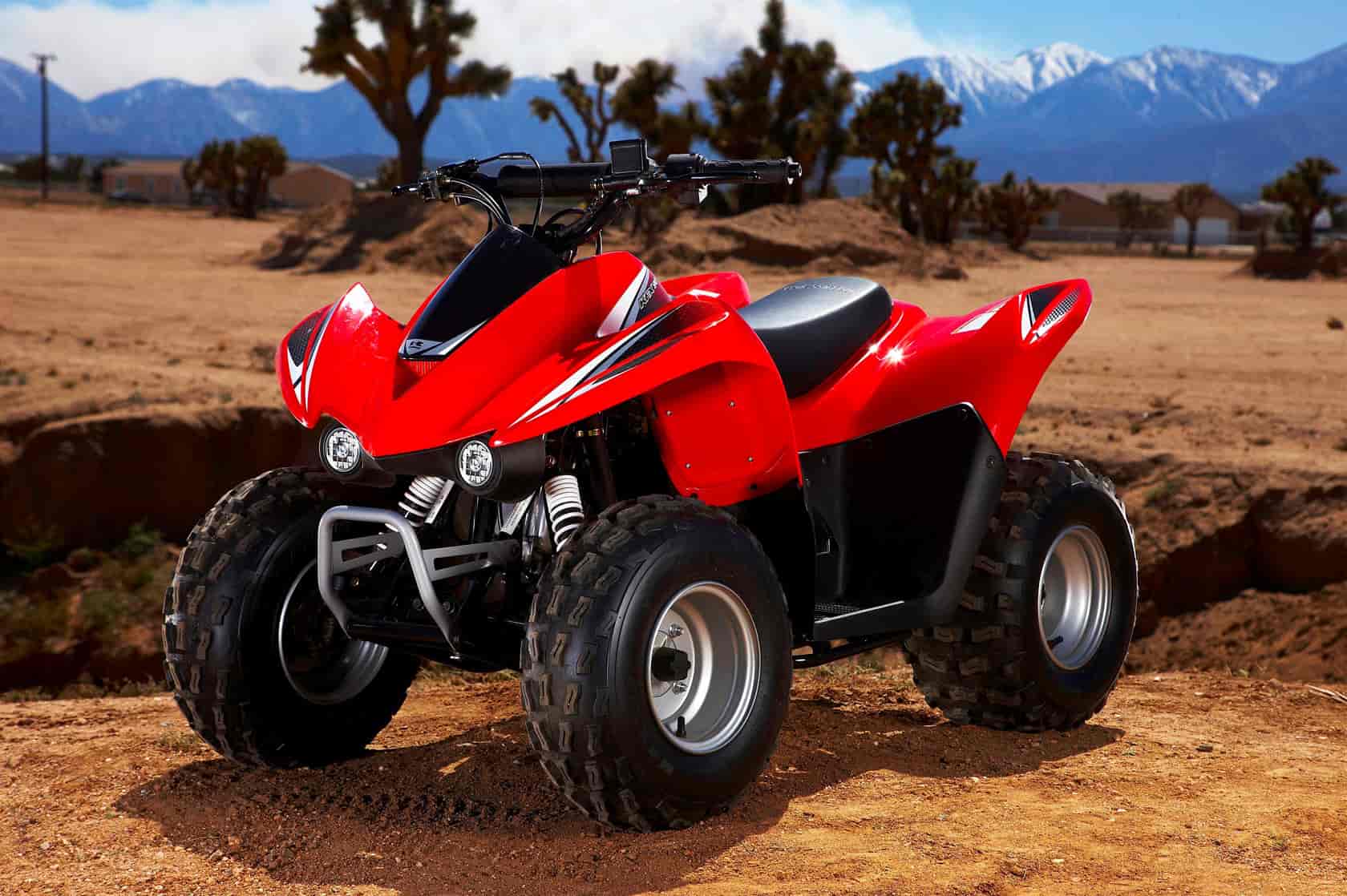

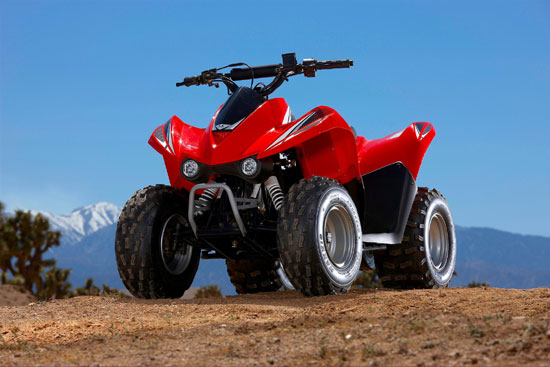

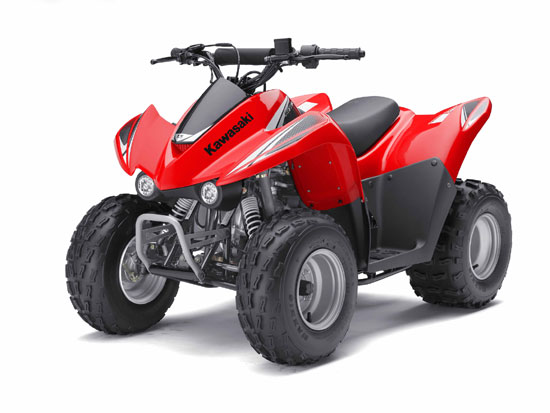

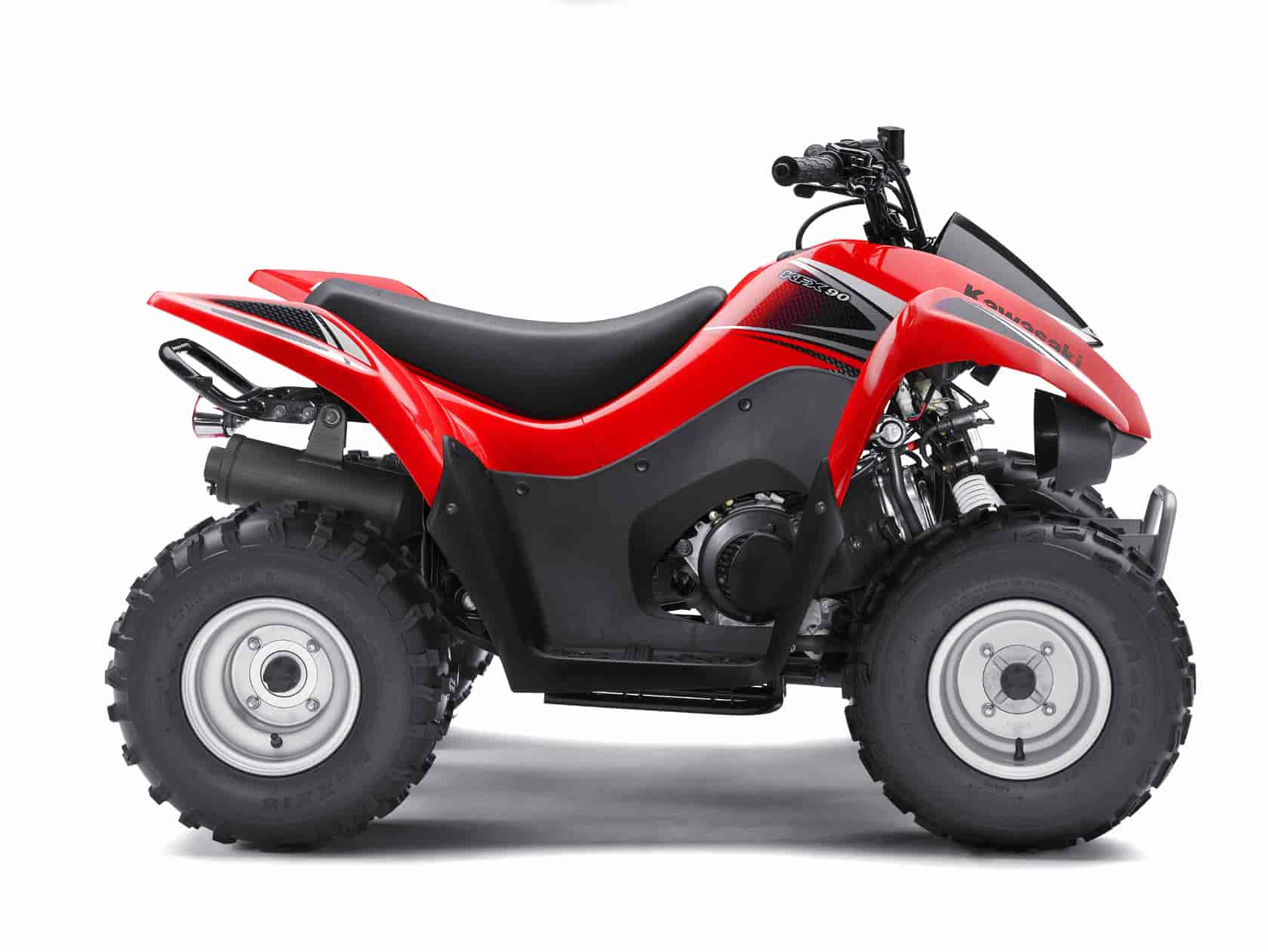

2009 Kawasaki KFX 90
Stylish ATV sized to fit growing youth
Parents appreciate quality products that are designed to fit the needs of their growing youth. A wide stance, large tires, and full floorboards allow the KFX90 to offer stable and confidence-inspiring handling traits. Its friendly performance and big-bike styling make the KFX®90 ATV a smart choice for riders 12 years and older. At the core of the KFX90 is a reliable and environmentally friendly four-stroke air-cooled engine that provides healthy mid-range performance with an easy-to-use power delivery.
The KFX90 is also equipped with electric starting, single-shock swingarm rear suspension, A-arm front suspension, dual front drum and single rear disc brakes, much like those found on the larger KFX models.
Parents are sure to appreciate the added safety offered by the KFX90’s keyed ignition switch which prevents use without the key. Once they hand over the key, parents can maintain control over the KFX90’s use via the throttle limiting screw and a CVT transmission speed limiter. These allow the maximum speed to be preset to match the rider’s ability while letting the rider’s confidence and skill levels increase in controlled increments.
The KFX90 is the perfect choice for riders 12 years and older. This ATV offers great mid-range engine performance with full-size ATV flair in its styling. Power comes from an easy to use and environmentally friendly, four-stroke, air-cooled powerplant.
Authentic Kawasaki Accessories are available through Kawasaki dealers.
Features and Benefits:
89cc air-cooled, OHC, four-stroke single
– Reliable 89cc air-cooled overhead-cam four-stroke engine
– Produces user-friendly power that’s easily managed by entry-level riders
– Electric push-button starting with kick-start backup
– Electrically-operated fuel enrichener automatically opens fuel passage during cranking for easy starting
– Equipped with an USFS-approved spark arrestor
– Continuously variable automatic transmission (CVT)
– Centrifugal clutch on the transmission allows engine braking under certain conditions for added slowing power
– Chain drive
– Aggressive sport ATV design similar to larger KFX models
– Wide stance for stable handling
– Steel chassis for durability
– Full floorboards
– A-arm front suspension
– Swingarm rear suspension
– 3.9 in. ground clearance at the rear axle
– Maxxis tires – 18 X 7-8 front, 18 X 9-8 rear
– Two front drum brakes and a rear disc brake for excellent stopping power
– All three brakes are activated by the handlebar-mounted brake levers to simplify operation
Easy Parental Controls
– Keyed ignition switch prevents starting without a key
– Throttle-limiting screw and a collar in the CVT allows parents to limit throttle opening to help new riders gain experience at slower speeds
2009 Kawasaki KFX 90 – USA Specifications
American MSRP: $2,399
Engine: Air-cooled, four-stroke, single cylinder
Bore x stroke: 47.0 x 51.8mm
Compression ratio: 10.0:1
Fuel system: Single 16mm Keihin PTE 16 carburetor
Ignition: Solid state CDI
Transmission: Continuously Variable Automatic
Final drive: Chain
Frame: Double cradle, steel
Suspension front / wheel travel: Single A-arm with twin shock absorbers / 2.8 in.
Suspension rear / wheel travel: Swingarm with single shock absorber / 2.9 in.
Front tire: AT18x7-8tubeless
Rear tire: AT18x9-8 tubeless
Front brakes / rear brake: Dual mechanical drums / Hydraulic disc
Overall length: 56.1 in.
Overall width: 35.6 in.
Wheelbase: 38.0 in.
Ground clearance: At rear axle – 3.9 in.
Track Front/Rear: 26.8 / 26.0 in.
Fuel capacity: 1.5 gal.
Curb weight: 267 lbs.
Color choices: Lime Green
2009 Kawasaki KFX 90 – Canada Specifications
Canadian MSRP $2,999
Type 4-stroke Single
Displacement 89.9 cc
Bore and Stroke 47 x 51.8 mm
Compression Ratio 10.8:1
Valve System SOHC, 2 valves per cylinder
Carburetor Keihin PTE 16
Starting Electric with kick back-up
Cooling Fan air
Lubrication Forced lubrication, wet sump
Transmission Automatic, CVT with centrifugal clutch
Primary Drive Belt converter
Final Drive Chain, 2WD
Primary Reduction Ratio 2.50 ~ 0.80 (belt converter)
Gear Ratio 8.5 (49/18 x 50/16)
Final Ratio 2.0 (32/16)
Type Double cradle, tubular steel
Suspension: Front Single A-arm with twin shocks
Suspension: Rear Uni-Trak Swingarm, single shock
Wheel Travel: Front / Rear 71 mm / 74 mm
Tires: Front / Rear AT 18 x 7-8 / AT 18 x 9-7
Tread (Front/Rear) 680 mm / 660 mm
Front Brakes Dual mechanical drums
Rear Brake Hydraulic drilled discs with single piston caliper
Parking Brake Mechanical drum
Overall Length 1425 mm
Overall Width 905 mm
Overall Height 925 mm
Wheelbase 965 mm
Seat Height 650 mm
Dry Weight 115 kg
Fuel Capacity 5.5 litres
Colours Sunbeam Red
Warranty 6 months
Good Times Protection Plan 24 or 36 months (Kawasaki GTPP begins after the standard limited warranty expires)
The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Kawasaki Heavy Industries, Ltd. reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets. Available colours may vary by market. Note: Specifications and pricing are subject to change.
