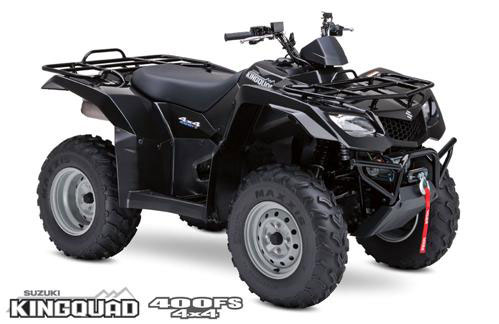

2009 Suzuki KingQuad 400 FS Anniversary Edition
2009 Suzuki KingQuad 400 FS Anniversary Edition

2009 Suzuki KingQuad 400 FS Anniversary Edition
2009 Suzuki KingQuad 400 FS Anniversary Edition

– 2009 Suzuki KingQuad 400 FS Anniversary Edition

2009 Suzuki KingQuad 400 FS Anniversary Edition

Key Features
Special Semi-Automatic version of the KingQuad 400 featuring Realtree Hardwoods HD Enhanced camouflage bodywork

Angular and aggressive bodywork featuring high clearance fenders, the distinctive KingQuad headlights and grill, a T-shaped seat, and highlighted by a large-diameter steel tube bumper

Large 4.2-gallon fuel tank for long riding range

Large 190mm diameter front disc brakes combined with front brake calipers featuring 34mm-diameter pistons for improved braking performance

Gate-type shift lever is now mounted on the left side providing simple and precise shifting in various riding conditions

25-inch Maxxis tires featuring an aggressive dual stage tread pattern for consistent traction and a quiet ride are mounted on durable steel wheels

Engine Features
Dependable 376cc single-cylinder, 4-valve, 4-stroke engine is tuned for high-torque output and quick acceleration, and uses Suzuki’s well-proven SACS air-oil cooling system. Gear-driven balancer shaft reduces vibration

Keihin™ CVK32 carburetor provides smooth throttle response and high fuel efficiency – includes throttle pulley system designed for light throttle lever operation

Five-speed transmission with automatic clutch, high/low range and reverse – subtransmission and reverse controlled by a single automotive-style, fuel tank-mounted drive selection lever

Choose 2WD or 4WD operation with the convenient handlebar-mounted control lever

Torque-sensing limited-slip front differential provides maximum traction and light steering in tight turns

Electric and recoil starting with “in gear” starting capability – engine will start in any transmission setting by pulling the hand brake lever and pressing the starter button

CDI ignition and powerful 220 watt charging system with maintenance-free battery

Chassis Features
Styled for a big, strong appearance with high radius fenders, a rugged-style grill and large front bumper designed for easy winch installation

Compact instrument display including speedometer, odometer, tripmeter, and indicator lights for neutral, reverse and oil temperature

12V/120W electrical outlet mounted in left front fender – standard automotive-style outlet fits a wide range of electrical accessories

Twin 35/35W fender-mounted multi-reflector headlights, plus large 5/21W combination taillight and brake light as standard equipment

Durable steel frame made of large diameter, thin-wall tubing for maximum strength and minimal weight

Lightweight polyethylene skid plate and bumper guard provide maximum protection with minimal resistance over rocks and other obstacles

Independent double A-arm front suspension with class-leading 6.7 in. of wheel travel for a comfortable ride on all types of terrain

Swingarm-style rear suspension with oil-damped shock absorbers provide 6.7 in. of wheel travel and 9.8 in. of ground clearance

High-capacity racks and towing capacity, plus 4.0 liter storage box now mounted and protected under the seat

Minimum Age: 16 years old



2009 Suzuki KingQuad 400 FS Anniversary Edition – USA Specifications
American MSRP $5,649+ USD

Engine: 376 cc (22.9 cu. in), 4-stroke, air-cooled with SACS, OHC
Bore Stroke: 82.0 mm (3.228 in) x 71.2 mm (2.803 in)
Compression Ratio: 9.0 : 1
Fuel System: KEIHIN CVK32, single
Lubrication: Wet sump
Ignition: Electronic ignition (CDI)
Transmission: 5-speed forward constant mesh, with high-/low-range, and reverse
Final Drive: Shaft drive
Overall Length: 2060 mm (81.1 in)
Overall Width: 1145 mm (45.1 in)
Overall Height: 1220 mm (48.0 in)
Seat Height: 840 mm (33.1 in)
Ground Clearance: 250 mm (9.8 in)
Wheelbase: 1270 mm (50.0 in)
Curb Weight: 279 kg (615 lbs)
Suspension Front: Independent, double wishbone, coil spring, oil damped
Suspension Rear: Swingarm type, coil spring, oil damped
Brakes Front: Disc brake, twin
Brakes Rear: Drum brake
Tires Front: AT25 ? 8-12 ??, tubeless
Tires Rear: AT25 ? 10-12 ??, tubeless
Fuel Tank Capacity: 16.0 L (4.2/3.5 US/Imp gal) – Including Reserve
Color: Black – Anniversary


2009 Suzuki KingQuad 400 FS Anniversary Edition – Canada Specifications
Canadian MSRP $TBA CDN
