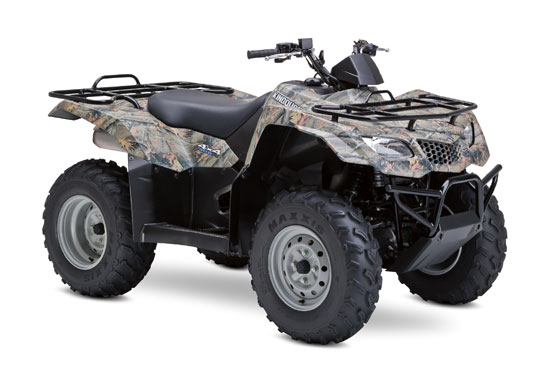

2009 Suzuki KingQuad 400 FS Camo
2009 Suzuki KingQuad 400 FS Camo

– 2009 Suzuki KingQuad 400 FS Camo

2009 Suzuki KingQuad 400 FS Camo

When you’re planning your next hunting or fishing trip, plan on taking along the ideal back woods companion: the KingQuad 400 Camouflage Edition 4×4. It features REALTREE HARDWOODS HD® ENHANCED pattern that incorporates the latest advancements in camouflage artwork.

The KingQuad 400 Camouflage Edition: it’s the outdoor companion you’ve been hunting for.

Key Features
Special Semi-Automatic version of the KingQuad 400 featuring Realtree Hardwoods HD Enhanced camouflage bodywork

Angular and aggressive bodywork featuring high clearance fenders, the distinctive KingQuad headlights and grill, a T-shaped seat, and highlighted by a large-diameter steel tube bumper

Large 4.2-gallon fuel tank for long riding range

Large 190mm diameter front disc brakes combined with front brake calipers featuring 34mm-diameter pistons for improved braking performance

Gate-type shift lever is now mounted on the left side providing simple and precise shifting in various riding conditions

25-inch Maxxis tires featuring an aggressive dual stage tread pattern for consistent traction and a quiet ride are mounted on durable steel wheels

Engine Features
Dependable 376cc single-cylinder, 4-valve, 4-stroke engine is tuned for high-torque output and quick acceleration, and uses Suzuki’s well-proven SACS air-oil cooling system. Gear-driven balancer shaft reduces vibration

Keihin™ CVK32 carburetor provides smooth throttle response and high fuel efficiency – includes throttle pulley system designed for light throttle lever operation

Five-speed transmission with automatic clutch, high/low range and reverse – subtransmission and reverse controlled by a single automotive-style, fuel tank-mounted drive selection lever

Choose 2WD or 4WD operation with the convenient handlebar-mounted control lever

Torque-sensing limited-slip front differential provides maximum traction and light steering in tight turns

Electric and recoil starting with “in gear” starting capability – engine will start in any transmission setting by pulling the hand brake lever and pressing the starter button

CDI ignition and powerful 220 watt charging system with maintenance-free battery

Chassis Features
Styled for a big, strong appearance with high radius fenders, a rugged-style grill and large front bumper designed for easy winch installation

Compact instrument display including speedometer, odometer, tripmeter, and indicator lights for neutral, reverse and oil temperature

12V/120W electrical outlet mounted in left front fender – standard automotive-style outlet fits a wide range of electrical accessories

Twin 35/35W fender-mounted multi-reflector headlights, plus large 5/21W combination taillight and brake light as standard equipment

Durable steel frame made of large diameter, thin-wall tubing for maximum strength and minimal weight

Lightweight polyethylene skid plate and bumper guard provide maximum protection with minimal resistance over rocks and other obstacles

Independent double A-arm front suspension with class-leading 6.7 in. of wheel travel for a comfortable ride on all types of terrain

Swingarm-style rear suspension with oil-damped shock absorbers provide 6.7 in. of wheel travel and 9.8 in. of ground clearance

High-capacity racks and towing capacity, plus 4.0 liter storage box now mounted and protected under the seat

Minimum Age: 16 years old



2009 Suzuki KingQuad 400 FS Camo – USA Specifications
American MSRP $5,549+ USD

Model Number KLTF400FCK9
Type Utility Sport
Warranty 12 month limited warranty.

Suggested Retail $576
SEP $5549
Engine 4-stroke, air-cooled with SACS, OHC
Bore & Stroke 82.0 mm (3.228 in) x 71.2 mm (2.803 in)
Compression Ratio 9.0 : 1
Fuel System KEIHIN CVK32, single
Lubrication Wet sump
Ignition Electronic ignition (CDI)
Starter Electric starter
Transmission 5-speed forward constant mesh
Final Drive Shaft drive
Overall Length 2060 mm (81.1 in)
Overall Width 1145 mm (45.1 in)
Overall Height 1220 mm (48.0 in)
Seat Height 840 mm (33.1 in)
Ground Clearance 250 mm (9.8 in)
Wheelbase 1270 mm (50.0 in)
Curb Weight 279 kg (615 lbs)
Suspension Front Independent, double wishbone, coil spring, oil damped
Suspension Rear Swingarm type, coil spring, oil damped
Brakes Front Disc brake, twin
Brakes Rear Drum brake
Tires Front AT25 × 8-12, tubeless
Tires Rear AT25 × 8-12, tubeless
Fuel Tank Capacity 16.0 L (4.2/3.5 US/Imp gal) – Including Reserve
Color Realtree Hardwoods HD Enhanced


2009 Suzuki KingQuad 400 FS Camo – Canada Specifications
Canadian MSRP $TBA CDN
