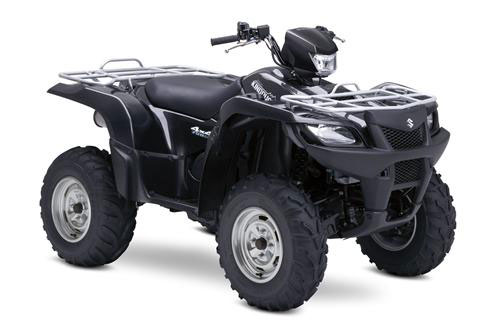

2009 Suzuki KingQuad 750AXi Power Steering Limited
2009 Suzuki KingQuad 750AXi Power Steering Limited

– 2009 Suzuki KingQuad 750AXi Power Steering Limited

2009 Suzuki KingQuad 750AXi Power Steering Limited

Key Features
The new Suzuki Electric Power Steering system delivers a lighter steering effort in a variety of conditions to reduce rider fatigue
Distinctive Black Brush bodywork is combined with durable-coated silver finish cargo racks
Powerful KingQuad engine features a large 104mm bore for a displacement of 722cc providing maximum performance and throttle response
Ultra-efficient air filter features both paper and foam elements for optimum air filter performance

Engine Features
SCEM (Suzuki Composite Electrochemical Material) cylinder allows for improved heat transfer, lightweight and tighter piston clearance
Torque-sensing front differential offers powerful traction when needed and light steering when desired
Cylinder canted forward 48 degrees for lower center of gravity, reduced engine height and lower seat height, and is rubber mounted with two balancer shafts for smooth performance
Compact 4-valve cylinder head with large 36mm intake valves and straight intake ports for increased cylinder charging efficiency ? includes lightweight magnesium valve cover
Semi-gear driven valve system minimizes cam sprocket size allowing a short/narrow cylinder head design and reduced overall engine height
Plasma-spray cylinder coating (SPSC) allows lightweight cylinder construction without a sleeve for improved resistance to heat and friction
Suzuki fuel injection system provides excellent throttle response, fuel efficiency and quick engine starts
QuadMatic? CVT-type automatic transmission designed for maximum versatility and convenience ? fender-mounted gate-type shifter operation for high/low forward ranges, plus neutral and reverse
Advanced engine brake system minimizes free-wheeling to reduce downhill speed
Electric 2WD, 4WD and differential-lock 4WD – convenient handlebar-mounted push-button controls allow the rider to easily select the right setting for any traction condition

Chassis Features
Comfortable T-shaped seat with tapered design for rider mobility, plus thick padding for support
Independent double A-arm front suspension with 6.7 inches of wheel travel ? includes large diameter shock absorbers with 5-way spring preload adjustment
Fully independent, I-beam rear suspension with long suspension travel (7.7 inches) ? includes 5-way preload adjustable shock absorbers and large diameter rear sway-bar
Large, 200mm diameter front disc brakes with single-piston calipers designed for strong, reliable braking performance
Sealed, multi-plate rear brake system provides high durability, reduced unsprung weight and low-maintenance
Pressed-aluminum wheels for reduced unsprung weight
Polyethylene skid plate provides front-to-rear under carriage protection with minimal resistance over rocks and rough terrain

Utility/Convenience Features
Easy-to-read LCD instrument display ? includes speedometer (mile/km selectable), odometer, twin-trip meters, hour meter, clock, fuel gauge, drive range (H,L,N,R) and drive mode (4WD, 4WD lock) ? LED indicators for neutral, reverse, 4WD lock, FI/water temp
Distinctively-styled 30W multi-reflector halogen headlights, and compact 5/21W tail light and brake light ? additional 40W multi-reflector, handlebar-mounted auxiliary light
Large 4.6 gallon fuel tank positioned below seat for a low center-of-gravity ? includes vacuum-operated petcock, ratchet-style fuel cap and convenient bar-type fuel gauge
Rugged steel-tube racks with attractive, high-quality wrinkle paint finish

Minimum Age: 16 Years Old



2009 Suzuki KingQuad 750AXi Power Steering Limited – USA Specifications
American MSRP $9,099+ USD

Engine: 722 cc (44.1 cu. in), 4-stroke, liquid-cooled, DOHC
Bore Stroke: 104.0 mm (4.094 in) x 85.0 mm (3.346 in)
Compression Ratio: 10.0 : 1
Fuel System: Fuel injection
Lubrication: Wet Sump
Ignition: Electronic ignition (CDI)
Transmission: Automatic variable ratio (V-belt), with high-/low-range, and reverse
Final Drive: Shaft drive
Overall Length: 2115 mm (83.3 in)
Overall Width: 1210 mm (47.6 in)
Overall Height: 1285 mm (50.6 in)
Seat Height: 920 mm (36.2 in)
Ground Clearance: 280 mm (11.0 in)
Wheelbase: 1285 mm (50.6in)
Curb Weight: 305 kg (672 lbs)
Suspension Front: Independent, double wishbone, coil spring, oil damped
Suspension Rear: Independent, double wishbone, coil spring, oil damped
Brakes Front: Disc brake, twin
Brakes Rear: Sealed oil-bathed multi-disc
Tires Front: AT25 ? 8-12 ??, tubeless
Tires Rear: AT25 ? 10-12 ??, tubeless
Fuel Tank Capacity: 17.5 L (4.6/3.8 US/Imp gal)
Color: Black Brush


2009 Suzuki KingQuad 750AXi Power Steering Limited – Canada Specifications
Canadian MSRP $0+ CDN

Model not available in Canada
