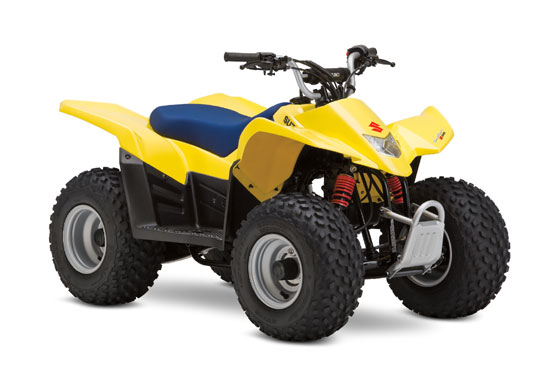

2009 Suzuki QuadSport Z50

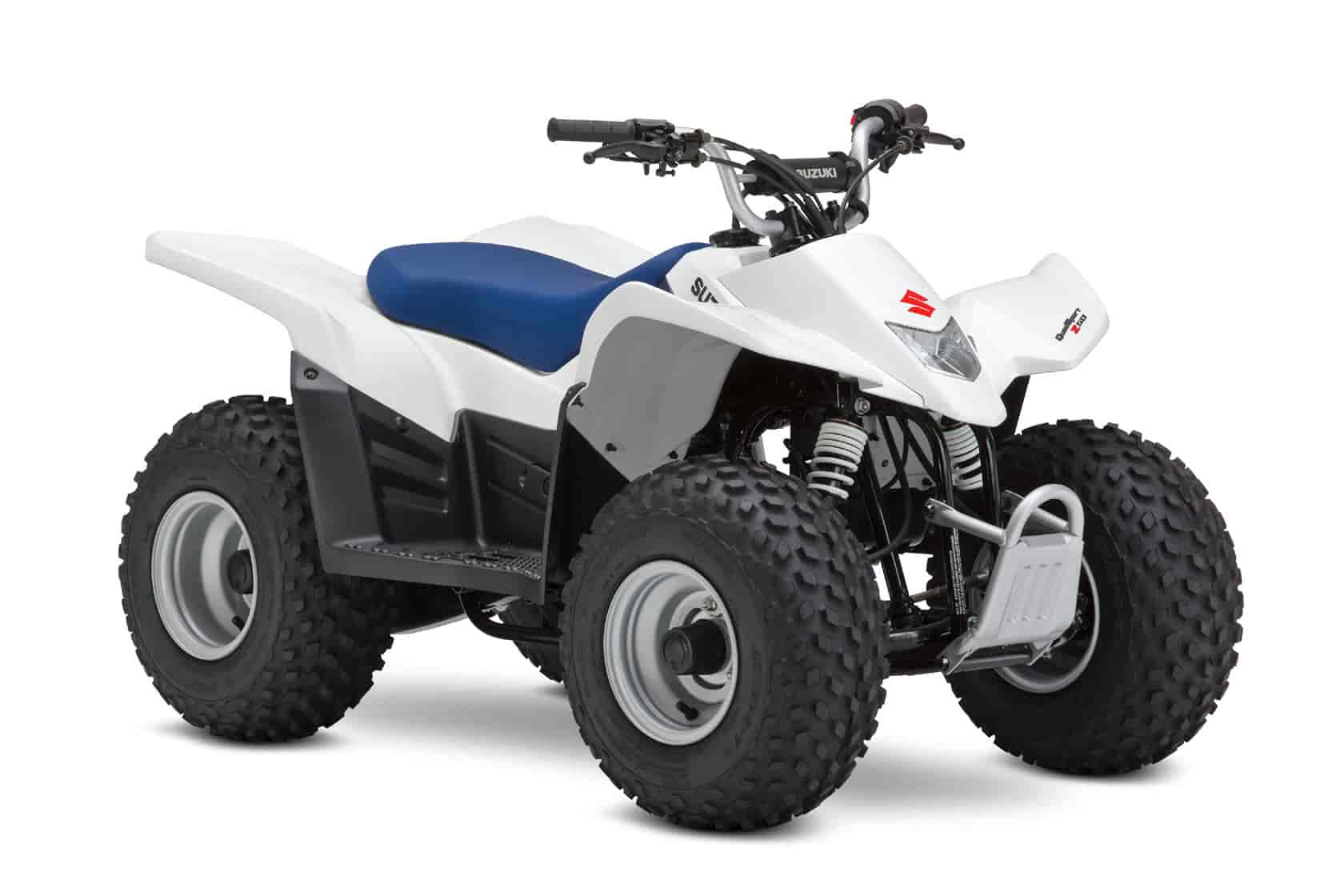

2009 Suzuki QuadSport Z50

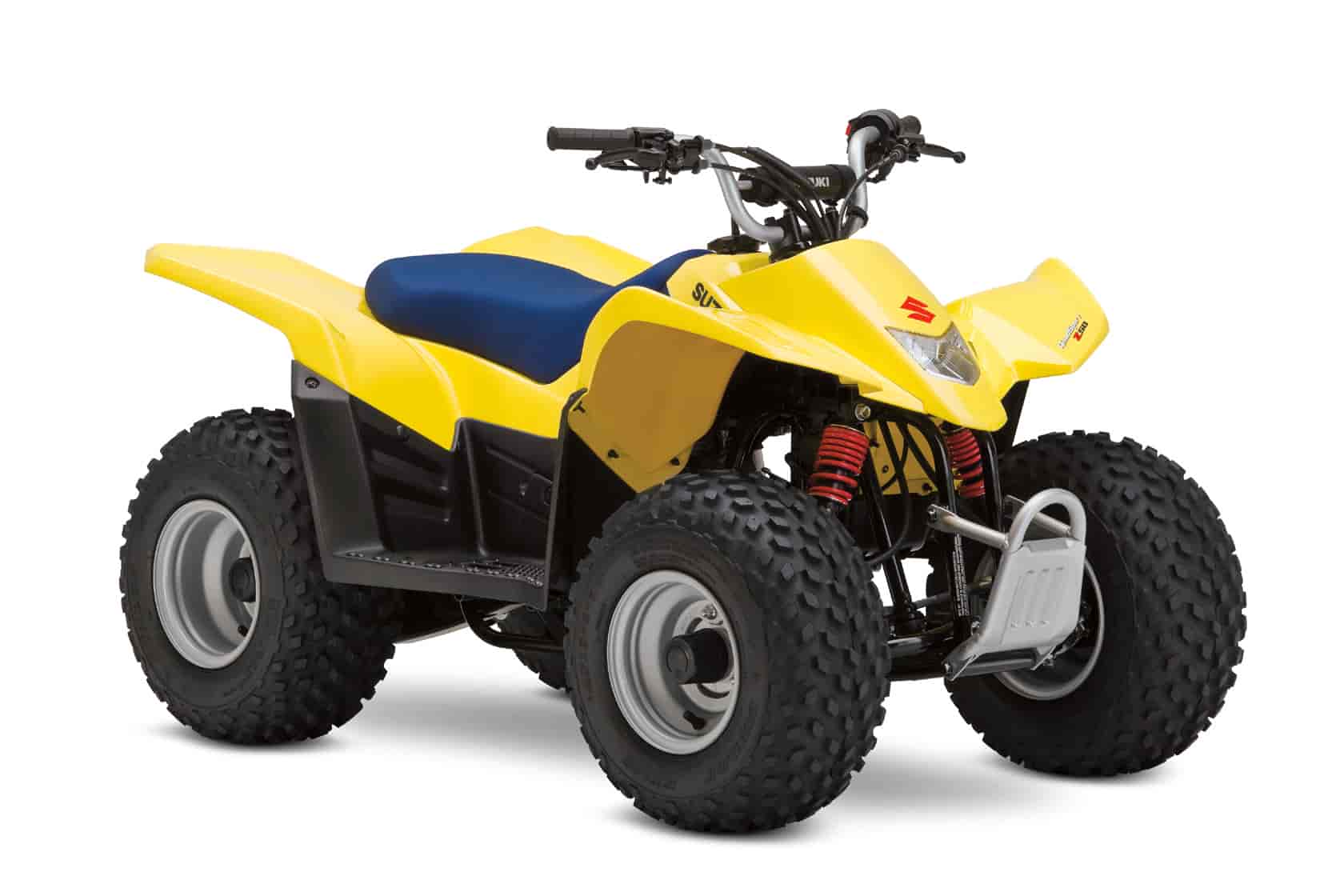

2009 Suzuki QuadSport Z50
2009 Suzuki QuadSport Z50

– 2009 Suzuki QuadSport Z50

2009 Suzuki QuadSport Z50

With the QuadSport LT-Z50, there’s another great way to get the whole family involved in the off-road fun. With a smooth and torquey four-stroke engine, it offers performance that’s ideal for beginning riders just developing their skills.

As a small and lightweight ATV, it’s designed for adult-supervised beginning riders ages 6 year and older. And it has a variety of features, such as smooth running CVT automatic transmission which provides easy operation allowing the rider to focus on riding instead of shifting. Plus an electric starting system to help your youngster spend time learning to ride right – and that’s sure to put a parent’s mind at ease.

Key Features
QuadSport Z50 is designed for adult-supervised riders age 6 and older – includes many features that make learning to ride a safe and fun experience

4-stroke youth ATV that combines modern sport styling inspired by the championship-winning QuadSport Z400 and a quiet, smooth-running engine

Electric starting system with a keyed ignition switch, plus standard recoil backup starter

Engine Features
Compact 49cc 4-stroke, single-cylinder, air-cooled engine designed for durability, quiet operation and low maintenance

An easy-to-operate CVT automatic transmission provides easy operation and ample torque and low speeds for easy control.

Simple screw-type throttle limiter allows maximum power-delivery to be adjusted to suit the rider’s ability.

Three-quarter-gallon fuel tank for long operating range, as well as compact size and low weight

Chassis Features
Child-size (Y-6) controls for easy operation

Strong, high-rigidity steel frame

Single A-arm front suspension with twin independent shock absorbers, and single-shock rear suspension provide long wheel travel for a comfortable ride

Large diameter front drum brakes and single rear drum brake provide strong braking performance

One-piece 7-inch wheels with tubeless tires provide a smooth comfortable ride

Full-size floorboards keep the rider comfortable and steady

Suzuki T-shaped seat similar to the QuadRacer R450 for smooth weight transition and a comfortable ride

Utility/Convenience Features
A tether-type remote engine stop switch allows an adult supervisor to shutdown the ATV’s engine when necessary

Minimum Age: 6 Years Old




2009 Suzuki QuadSport Z50 – USA Specifications
American MSRP $1,899+ USD

Model Number LTZ50K9
Type Sport
Warranty 12 month limited warranty.

Suggested Retail $1899
SEP $334
Engine 4-stroke, air-cooled
Bore & Stroke 36.0 mm (1.417 in) x 48.6 mm (1.913 in)
Compression Ratio 8.4 : 1
Fuel System MIKUNI VM13, single
Lubrication Splash
Ignition Electronic ignition (CDI)
Starter Electric and recoil
Transmission Automatic
Final Drive D.I.D 415. 82 links
Overall Length 1270 mm (50.0 in)
Overall Width 760 mm (29.9 in)
Overall Height 765 mm (30.1 in)
Seat Height 535 mm (21.1 in)
Ground Clearance 120 mm (4.7 in)
Wheelbase 830 mm (32.7 in)
Curb Weight 78 kg (171 lbs)
Suspension Front Independent, swing axle, coil spring, oil damped
Suspension Rear Swingarm type, coil spring, oil damped
Brakes Front Drum brake
Brakes Rear Drum brake
Tires Front 0
Tires Rear 0
Fuel Tank Capacity 2.6 L (0.7/0.6 US/Imp gal)
Color Yellow, White


2009 Suzuki QuadSport Z50 – Canada Specifications
Canadian MSRP $1,999+ CDN

Engine Engine type 49cc, four-stroke, single cylinder, air-cooled
Carburator Mikuni VM12SC
Ignition CDI
Starter Recoil
Transmission 1-speed, automatic clutch
Final Drive Chain
Front Suspension Independent, single A-arm, oil-damped shocks
Rear Suspension Swingarm, coil spring, oil-damped shock
Front Brakes Dual mechanical drum
Rear Brakes Mechanical drum
Front Tire AT 16×8-7
Rear Tire AT 16×8-7
Overall Length 125.9 cm (49.6 inches)
Overall Width 75.9 cm (29.9 inches)
Wheelbase 82.5 cm (32.5 inches)
Seat Height 53.5 cm (21.1 inches)
Ground Clearance 11.9 cm (4.7 inches)
Dry Weight 71 kg (156 lbs)
Fuel Tank Capacity 2.6 litres (0.6 imp. gal)
Colour White, Yellow
Warranty 6 months
