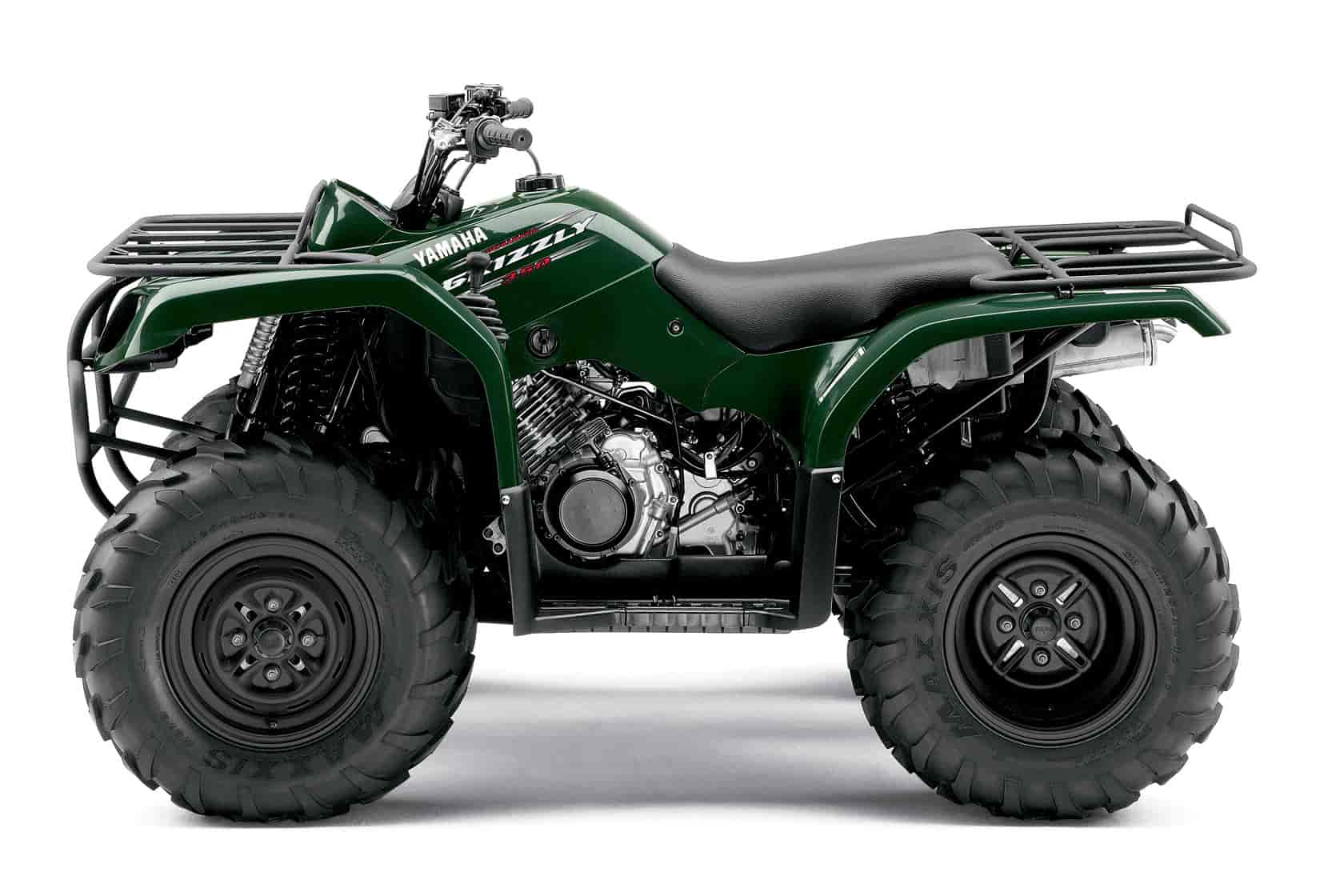

2010 Yamaha Grizzly 350 Automatic 2WD
2010 Yamaha Grizzly 350 Automatic 2WD
– 2010 Yamaha Grizzly 350 Automatic 2WD
2010 Yamaha Grizzly 350 Automatic 2WD
An ATV with a proven engine and rugged chassis, providing great performance in an affordable package.
There’s more than one bear in the forest.
A mid-size 2WD ATV with our exclusive fully automatic Ultramatic transmission, disc brake and more.
Features and Specifications:
Key Features:
” The power-packed, full-featured Grizzly 350 Automatic 2WD carries a lot of advanced Yamaha ATV technology in an affordable package.
” Fully automatic Ultramatic® transmission is the most advanced drive system in ATV-ing, with an automatic centrifugal clutch that maintains constant belt tension for reduced wear, instant response and downhill engine braking.
” Light weight and advanced design produce an ATV with light steering and a class-leading turning radius, for excellent maneuverability and nimble handling.
” Left-side-mounted F/N/R shift lever keeps throttle hand free.
Engine:
” Tough-as-nails 348cc air/oil-cooled SOHC, four-stroke single produces stump-pulling bottom-end power and loves to rev.
” Semi-oval slide 33mm Mikuni® carburetor and high-output DC-CDI ignition deliver excellent throttle response and engine performance at all rpm.
” Fully sealed drive case keeps out water and debris to minimize belt slippage.
” Pushbutton electric starter is backed up by auxiliary recoil starter.
” Stainless steel muffler and header design provides superior power characteristics, exhaust sound and unmatched durability.
” Automatic cam chain tensioner reduces engine maintenance.
Chassis/Suspension:
” Lightweight CAD-designed chassis features outstanding durability with superior rigidity for class-leading agility and handling.
” 9.7 inches of ground clearance and high-impact plastic skidplate offers great handling and undercarriage protection.
” Light steering and a class-leading turning radius combine for increased comfort and incredible maneuverability.
” Reliable, low-maintenance shaft drive.
” 32.6-inch seat height creates enhanced handling.
” Independent double-wishbone front suspension has five-way preload-adjustable shocks and 6.3 inches of travel.
” Sturdy steel swingarm is controlled by a single rear shock with five-way adjustable preload and 7.1 inches of travel.
” Aggressive 25×8-12 front and 25×10-12 rear tires further boost ground clearance while providing plenty of traction and responsive handling.
” Heavy-duty front carry bar.
Additional Features:
” Steel cargo racks with special, extra-durable wrinkle paint finish feature a combined cargo capacity of 264 pounds (88 front, 176 rear).
” Specially designed drive system air intake vent prevents overheating and keeps water and mud from entering drive case.
” Tool-free, easy-access air filter box for quick maintenance.
” Standard, center-mounted trailer hitch can hook up more than 1100 pounds of payload.
” Large front and rear fenders with inner guards offer excellent mud/splash protection.
” Water-resistant, large-capacity underseat storage box provides added convenience.
” Plush, specially designed seat is contoured for incomparable rider comfort.
” Large-capacity, 3.8-gallon fuel tank has an easy-to-reach petcock.
” Rear brake/taillight.
” Maintenance-free 12-amp-hour battery provides reliable all-weather starting power.
” Easy-access underseat marine-spec electrical components ensure maximum protection from the elements.
” Dual, bright, multireflector 30-watt Krypton bulb headlights with high and low beams.
” Easy, handlebar-mounted choke lever.
” Built in Newnan, GA, USA.
2010 Yamaha Grizzly 350 Automatic 2WD – USA Specifications
MSRP* $4,799 (Hunter Green) Available from November 2009
Engine
Type 348cc, 4-stroke, air/oil-cooled single; SOHC
Bore x Stroke 83.0mm x 64.5mm
Compression Ratio 9.2:1
Fuel Delivery Mikuni 33mm BSR
Ignition DC-CDI
Starting System Electric w/auxiliary pull
Transmission Yamaha Ultramatic® V-belt with rear-wheel engine braking/F, N, R
Drive Train 2WD; shaft drive
Chassis
Suspension/Front Independent double wishbone; 5-way preload adjustment, 6.3-in travel
Suspension/Rear Swingarm; 5-way preload adjustment, 7.1-in travel
Brakes/Front Dual hydraulic discs
Brakes/Rear Fully sealed drum
Tire/Front AT25x8-12
Tire/Rear AT25x10-12
Dimensions
L x W x H 78.1 x 42.7 x 44.1 in
Seat Height 32.6 in
Wheelbase 48.5 in
Turning Radius 118 in
Ground Clearance 9.7 in
Fuel Capacity 3.8 gal
Wet Weight 540 lb
Rack Capacity 88 lb Fr./176 lb Rr.
Towing Capacity 1102 lb
Other
Instrumentation None
Lighting Dual 30W Krypton multireflector headlights & 21/5W brakelight
Warranty 6 Month (Limited Factory Warranty)
2010 Yamaha Grizzly 350 Automatic 2WD – Canada Specifications
Canadian MSRP* $NA
Model not available in Canada
