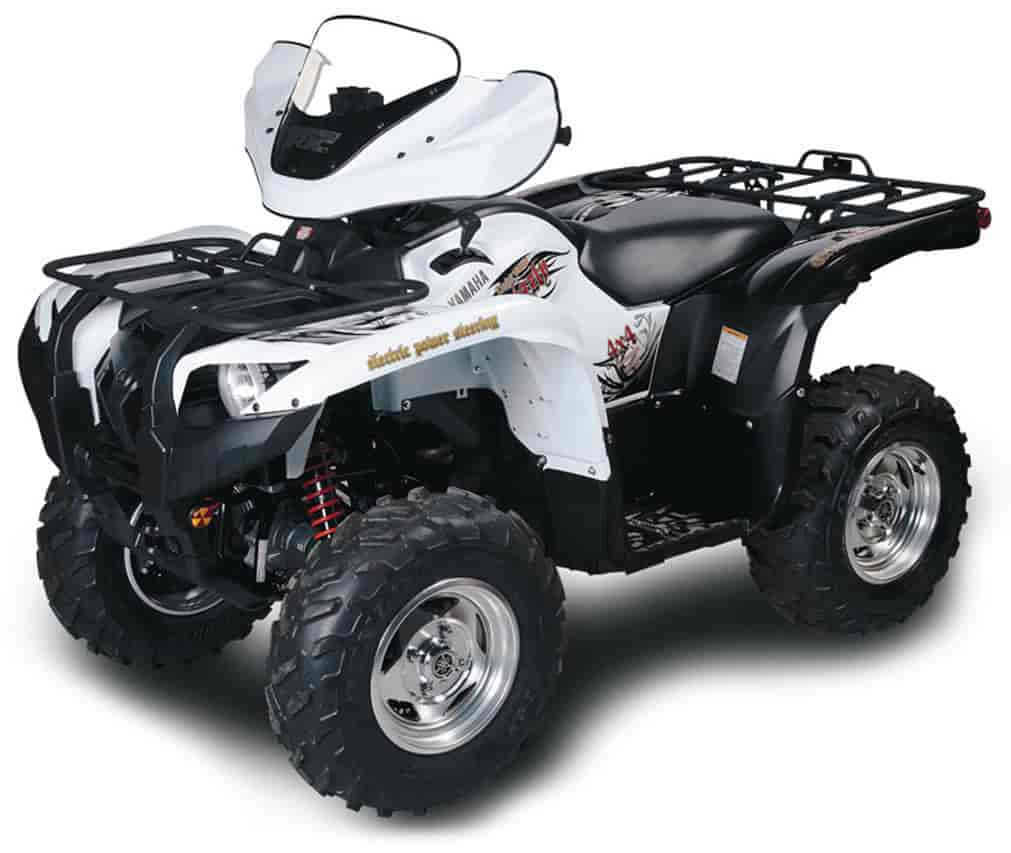

2010 Yamaha Grizzly 700 FI EPS LE

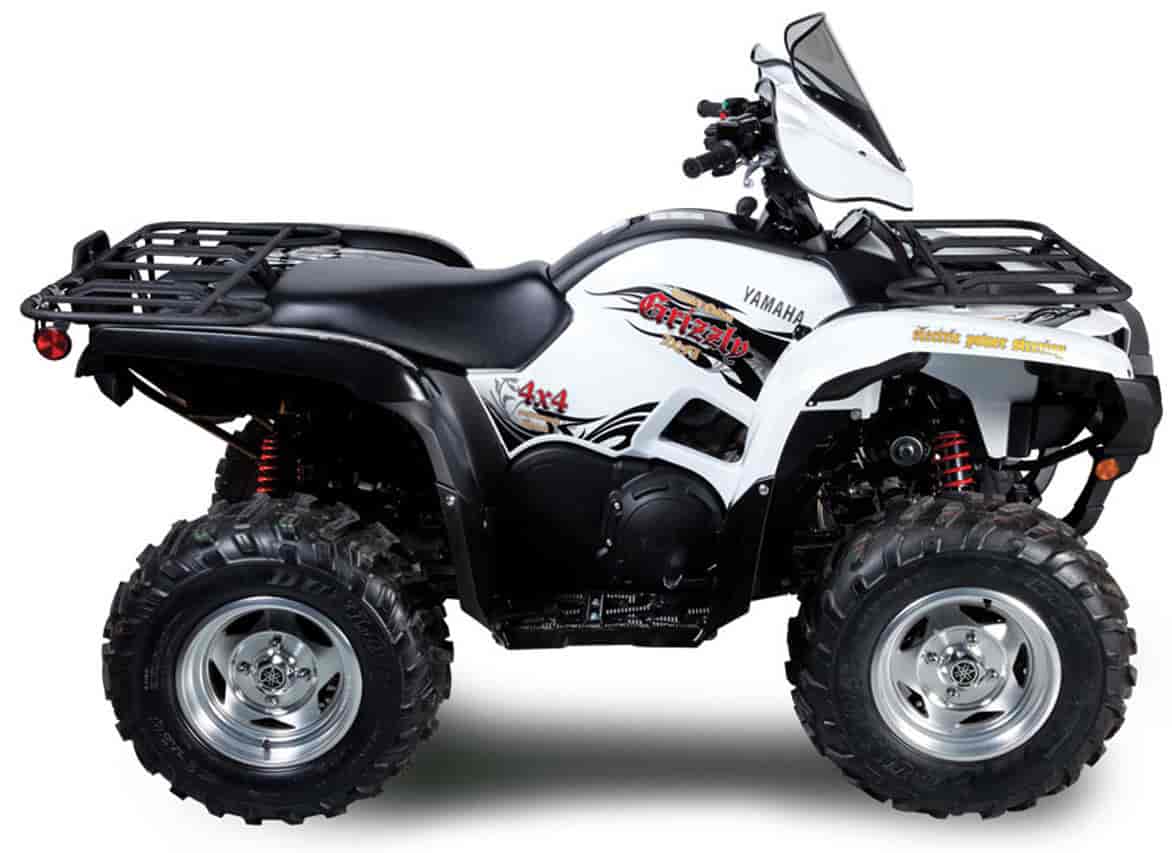

2010 Yamaha Grizzly 700 FI EPS LE

2010 Yamaha Grizzly 700 FI EPS LE
2010 Yamaha Grizzly 700 FI EPS LE

2010 Yamaha Grizzly 700 FI EPS LE
2010 Yamaha Grizzly 700 FI EPS LE

– 2010 Yamaha Grizzly 700 FI EPS LE

2010 Yamaha Grizzly 700 FI EPS LE

The 2010 Yamaha Grizzly 700 is the top of the line full-bore ATV from Yamaha. It is our most powerful, most capable and best selling ATV. It features all of our best technologies including On-Command 4-wheel drive, the Ultramatic fully automatic transmission, independent suspension with wide-arc front a-arms and powerful 4-wheel disc brakes. And like any Yamaha, the Grizzly’s reputation for reliability and durability is poven year after year.

Yamaha has always been a leader in developing new technologies that not only improve performance, but also enhance the riding experience.

Take EPS for example. Yamaha was the first to bring Electric Power Steering to market on an ATV. Of course this feature improves performance and handling, but more importantly it makes the Grizzly 700 much easier to ride. Steering effort is reduced along with rider fatigue. It takes a lot less effort to ride, which means you can relax and focus on the experience, instead of concentrating on the conditions and wrestling around each corner or obstacle. It makes the Grizzly feel like a smaller ATV. When you get home, you won’t be as tired or sore with EPS, even though you may find you’ve ridden more miles than ever before. The same goes for our fully automatic Ultramatic transmission, available on all Grizzlies and Kodiaks. Continuously variable Ultramatic transmissions provide ideal gear ratios regardless of conditions or speed, while maintaining constant belt tension to ensure maximum reliability and belt longevity. The Ultramatic design also helps maintain consistent engine braking when off the throttle, which can help control and even reduce speeds when descending hills, or slowing for a corner. Just another example of Yamaha’s commitment to enhancing the ride experience.



Big bore fuel injcted engine.

The Grizzly 700 is powered by a fuel injected 686cc 4-stroke engine derived from the class leading Raptor 700R. It is fuel injected for easy starting and crisp throttle response, but has been re-worked for even more low-end torque to match this bear’s personality.



With EPS we’ve been able to dramatically reduce steering effort, especially in 4WD. At the same time, EPS helps isolate you the rider from external forces acting on the front wheels. This means you can worry less about what the terrain looks like, and focus on enjoying the ride. Did we mention it’s speed and torque sensitive? EPS could be the single most important improvement to your off road experience in decades!

reduces steering effort in all situations, helping to reduce rider fatigue while enhancing rider confidence and ease of operation

speed and torque sensitive

improves stability on virtually all types of terrain at a wide range of speeds

helps isolate the rider from external feedback from obstacles that come in contact with the front wheels.


Incredible power to weight ratio

Increased power is nothing if it comes with a bunch of additional weight. Considering the Grizzly 700 can be as much as 150 lbs lighter than the competitors 800’s, this bear’s power to weight ratio offers some hefty advantages over some of the bigger and bulkier ATVs. Less weight has an effect on everything from handling and acceleration to hill climbing and mud prowess. Imagine if you will adding six or seven cinder blocks to the racks of this Grizzly, and you get the idea of how heavy some of those 800’s are!


4-Wheel disc brakes

Slowing your big-bore ATV down shouldn’t involve standing on the brake pedal while squeezing the lever with all your might. 4-wheel disc brakes combined with full-time engine braking means slowing this Grizzly down requires less effort. And since the front and rear brakes can be operated independently, you have more control over how you brake depending on the situation.


Ultramatic transmission

Revolutionary Ultramatic™ fully automatic transmission is the first automatic transmission to feature true engine braking. All four wheels receive engine braking in 4WD mode. Dual-range transmission with reverse. Low range has approximately 1.5 times the pulling power of high range.


Mass centralization and lower center of gravity

A full tank of fuel carries a lot of weight with it. So we located the tank under the seat and the airbox up high where the tank used to be. This lowers the center of gravity which improves handling, stability and hill climbing capability. But it also raises the airbox reducing the chance of water and debris from getting into the engine.


V-Belt ducting

High mounted airbox, V-belt intake and exhaust ducts, reduce the opportunity for water and debris to enter the V-Belt housing.


Reverse mounted rear suspension

The wheel center does not change but allows for a shorter frame which improves approach/departure angles, and allows the use of stronger ball joints (more clearance)


TRIC fairing

This quick release fairing provides added protection from the elements. Very handy in the rain, or during those cold winter rides, it can easily be removed when the weather gets warm. On the LE Grizzly we have added the new short smoke wind screen. This smoke screen not only looks cool, but still offers plenty of protection from the elements.


Additional Features

Roller bearing rocker arms for reduced friction and improved engine performance

Carburized Chrome-Moly connecting rod for improved durability

Airbox design has centrifugal debris trap to improve air flow

Flat type foam air filter for easy cleaning

Straight drive shaft layout for reduced vibration and improved durability

Gull-wing front a-arms for improved ground clearance

Air cushion seat to provide comfort on those long rides.

Floor boardwith large holes for mud evacuation, and special rugs to avoid buildup from underneath.

Water resistant storage

Centralize wiring layout, positioned for improved protection against the elements.

LCD Gauge includes Odometer, Trip 1, Trip 2, Clock, Fuel gauge and Gear position

Warning indicators: Engine, Water Temp., Reverse, Neutral, Parking, High Range, Low Range and LCD Drive / Differential Lock map .

35W Halogen headlight bulbs

Neodymium hi-power magnet for improved output, charging capacity and light weight.

Forged Aluminum steering knuckle

Gate type transmission shifter for improved shift feel.

Cartridge type oil filter located to the front of the engine for improved cooling and simplified maintenance

Carburized Chrome-Moly connecting rod for improved durability



2010 Yamaha Grizzly 700 FI EPS LE – USA Specifications

Model not available in the USA



2010 Yamaha Grizzly 700 FI EPS LE – Canada Specifications
Canadian MSRP* $13,499 CDN

Engine 4-stroke, SOHC, liquid cooled, 4-valve, single
Displacement 686 cc
Bore and Stroke 102 x 84 mm
Compression Ratio 9.2: 1
Carburetion Mikuni Electronic Fuel Injection w/44mm Big Bore throttle bodies and TPS
Ignition computerized DC-CDI
Starting electric w/auto-decompression
Lubrication wet sump
Oil Capacity 2.4L
Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine
Final Drive direct shaft drive front and rear

Suspension (Front) independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
Suspension (Rear) independent, reverse mounted dual A-arm with sway bar. Adjustable shocks
Brakes (Front) Hydraulic Discs
Brakes (Rear) Hydraulic Discs
Tires (Front) Dunlop KT421 tubeless, AT25 x 8-12
Tires (Rear) Dunlop KT425 tubeless, AT25 x 10-12

Length 2065 mm (81.3″)
Width 1180 mm (46.5″)
Height 1240 mm (48.8″)
Wheelbase 1250 mm (49.2″)
Ground Clearance 300 mm (11.8″)
Seat Height 905 mm (35.6″)
Dry Weight 272 kg (600 lb)
Wet Weight 297 kg (655 lb) – ready to ride full of fuel and oil
Fuel Capacity 20 litres (5.3 U.S. gal)
Colour(s) White/Black Gothic




ATV Safety Notes

– ATVs with engines 70 to 90cc are recommended for use only by riders 12 years and older and always with adult super vision. ATVs with engines 90cc or greater are recommended for use only by riders ages 16 years and older.

– Yamaha recommends that all ATV riders take an approved training course. For safety and training information, see your dealer or call the ATV Safety Institute at 1-800-887-2887.

– ATVs can be hazardous to operate. For your safety, always avoid paved surfaces. Never ride on public roads. Always wear a helmet, eye protection and protective clothing.

Never carry passengers. Never engage in stunt riding. Riding and alcohol/drugs don’t mix. Avoid excessive speed. And be particularly careful on difficult terrain. There are few joys in life equal to the free-spirited thrill and experience of ATV riding. And that’s why it’s important for all of us to do
our part as responsible riders. By following logical, common-sense rules, we can maintain season after season of unparalleled enjoyment of our sport.

– Please remember to “tread lightly.” Always ride in a responsible manner, respecting the environment as well as all state and local laws. The riders in this brochure are professionals; don’t attempt to emulate them. Prices and specifications subject to change without notice. Please read your Owner’s Manual and all labels before operation. All ATVs come with a six-month Limited Factory Warranty. See your dealer for details.
