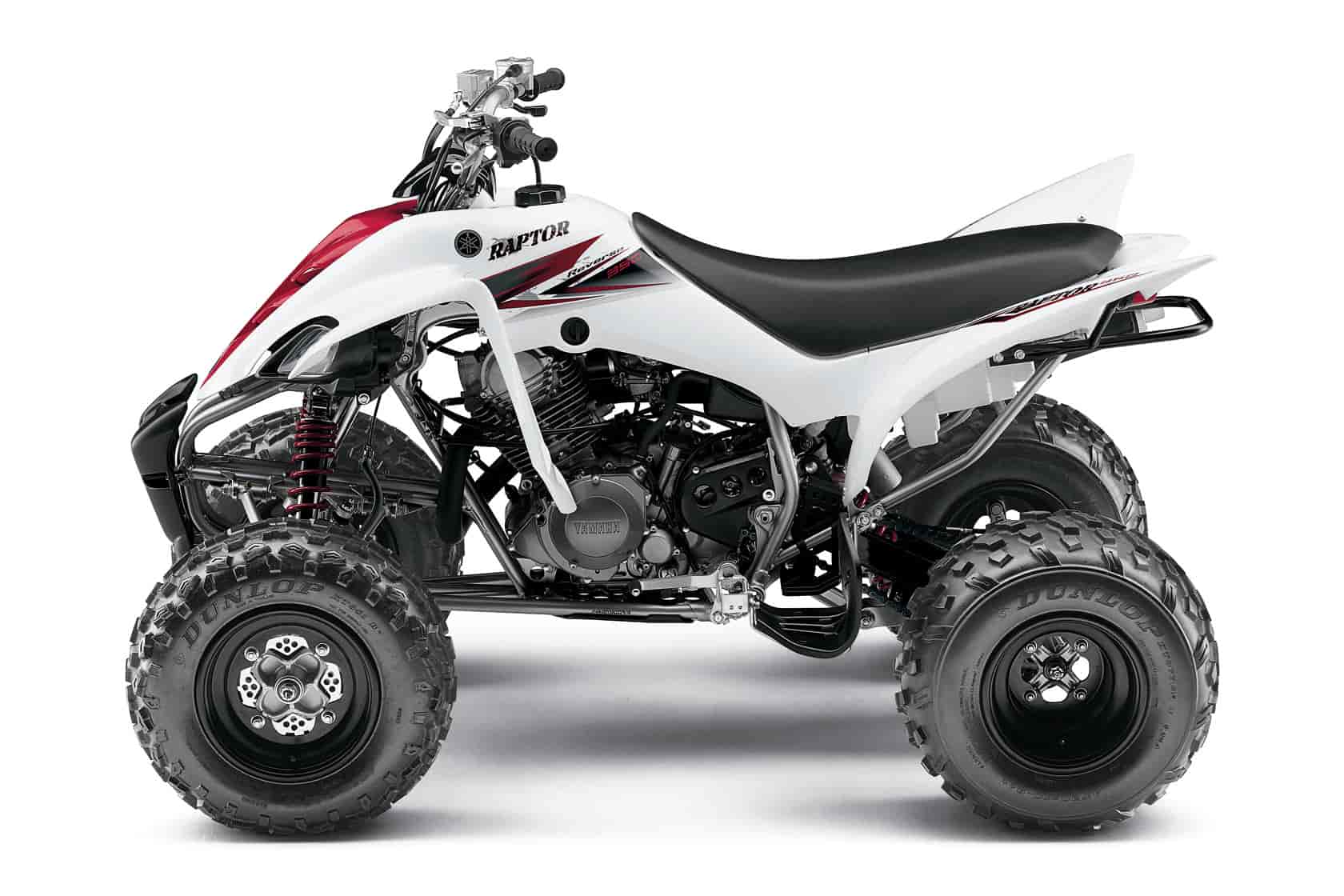

2010 Yamaha Raptor 350
2010 Yamaha Raptor 350
2010 Yamaha Raptor 350
2010 Yamaha Raptor 350
– 2010 Yamaha Raptor 350
2010 Yamaha Raptor 350
Styled after its big brother, a fully-featured, performance-focused, sport ATV.
Mid-sized machine, big-time performance.
The 2010 Yamaha Raptor 350 features a torquey, powerful and super-durable air-cooled SOHC four-stroke engine, and a smooth-shifting wide ratio six speed transmission with reverse. Plus a 375-pound dry weight for superior overall Sport ATV performance.
Features and Specifications:
Key Features:
” Torquey, powerful and super-durable air-cooled SOHC four-stroke single puts out a wide, deep powerband and starts with the push of a button.
” With a rugged and smooth-shifting wide-ratio six-speed transmission, keeping that powerful engine purring is nearly effortless, whatever the terrain.
” Reverse gear is just the thing for getting yourself out of tight spots.
” Light, 396-pound wet weight boosts performance and handling and makes all-day rides even more enjoyable.
” Big Raptor style and Raptor-inspired seat mean maximum rider comfort and movement with excellent sport-riding ergonomics.
Engine:
” Light and powerful 348cc, air-cooled, SOHC, four-stroke single produces great torque down low, as well as a serious top-end rush.
” A big, 36mm BSR Mikuni® carburetor provides light throttle pull and excellent throttle response across the entire rpm range.
” Electric starting is standard equipment and works in any gear.
” Shift into reverse from any gear; convenient shift lever allows easy access to reverse, no matter what gear you’re in.
” DC-CDI ignition system delivers consistent spark at all rpm levels-for quick throttle response and a smooth, broad powerband.
” High, snorkel-type intake ensures airflow to the engine while riding in mud or water.
” Automatic cam chain tensioner reduces engine maintenance and ensures optimal performance.
” Easy-to-use, handlebar-mounted choke lever.
Chassis/Suspension:
” Light and strong chassis creates a quick, super-responsive high-performance package.
” Low, 32.3-inch seat height enhances rider comfort and provides optimal rider movement.
” Independent double-wishbone front suspension with preload-adjustable dual-rate shocks and 7.9 inches of travel.
” Lightweight aluminum wheels reduce unsprung weight for excellent suspension performance, acceleration, deceleration and handling.
” Large-diameter ventilated hydraulic front and rear disc brakes deliver excellent stopping power even in wet conditions.
” Extra-wide, 45mm footpegs straight off the awesome YFZ450 provide excellent grip and rider comfort.
” Easy-to-use, toggle link-type handlebar-mounted parking brake can be set with one hand.
” Rigid and light swingarm with Raptor-type linkage rear end is controlled by a piggyback reservoir shock with adjustable preload and 8.3 inches of wheel travel; the result is consistent performance during aggressive sport riding.
” Specially designed low-profile tires deliver outstanding traction for razor-sharp handling in a variety of terrain.
” Easy-adjust chain adjustment feature means hassle-free chain maintenance.
” Composite skid plates and 4.5-inch ground clearance (measured at the rear disc) mean maximum underbelly protection.
” Composite front grab bar won’t dent or rust and helps protect the front end from debris and damage.
Additional Features:
” Dual 30-watt multireflector Krypton headlights straight off the potent YFZ450 add the perfect menacing appearance. Taillight has an incorporated brake light for added convenience.
” Easy-access grease fittings on all chassis lubrication points simplify maintenance and help extend the life of the Raptor 350.
” The 2.4-gallon fuel tank means less filling up and longer, more enjoyable rides.
2010 Yamaha Raptor 350 – USA Specifications
MSRP* $5,399 (White/Red) Available from November 2009
Engine
Type 348cc air-cooled 4-stroke; SOHC, 2 valves
Bore x Stroke 83.0mm x 64.5mm
Compression Ratio 9.2:1
Fuel Delivery Mikuni 36mm BSR
Ignition DC – CDI
Starting System Electric
Transmission 6-speed w/reverse; wet multiplate clutch
Drive Train 2WD; sealed O-ring chain
Chassis
Suspension/Front Independent double wishbone; 5-way preload-adjustable shocks, 7.9-in travel
Suspension/Rear Swingarm; preload-adjustable, 8.3-in travel
Brakes/Front Dual hydraulic discs
Brakes/Rear Hydraulic disc
Tires/Front AT21x7-10
Tires/Rear AT20x10-9
Dimensions
L x W x H 69.7 x 43.1 x 42.5 in
Seat Height 32.3 in
Wheelbase 47.6 in
Ground Clearance 4.5 in
Fuel Capacity 2.4 gal
Wet Weight 396 lb
Other
Lighting Dual 30W Krypton multireflector headlights & 21/5W brakelight
Warranty 6 Month (Limited Factory Warranty)
2010 Yamaha Raptor 350 – Canada Specifications
Canadian MSRP* $NA
Model not available in Canada
ATV Safety Notes
– ATVs with engines 70 to 90cc are recommended for use only by riders 12 years and older and always with adult super vision. ATVs with engines 90cc or greater are recommended for use only by riders ages 16 years and older.
– Yamaha recommends that all ATV riders take an approved training course. For safety and training information, see your dealer or call the ATV Safety Institute at 1-800-887-2887.
– ATVs can be hazardous to operate. For your safety, always avoid paved surfaces. Never ride on public roads. Always wear a helmet, eye protection and protective clothing.
Never carry passengers. Never engage in stunt riding. Riding and alcohol/drugs don’t mix. Avoid excessive speed. And be particularly careful on difficult terrain. There are few joys in life equal to the free-spirited thrill and experience of ATV riding. And that’s why it’s important for all of us to do
our part as responsible riders. By following logical, common-sense rules, we can maintain season after season of unparalleled enjoyment of our sport.
– Please remember to “tread lightly.” Always ride in a responsible manner, respecting the environment as well as all state and local laws. The riders in this brochure are professionals; don’t attempt to emulate them. Prices and specifications subject to change without notice. Please read your Owner’s Manual and all labels before operation. All ATVs come with a six-month Limited Factory Warranty. See your dealer for details.
