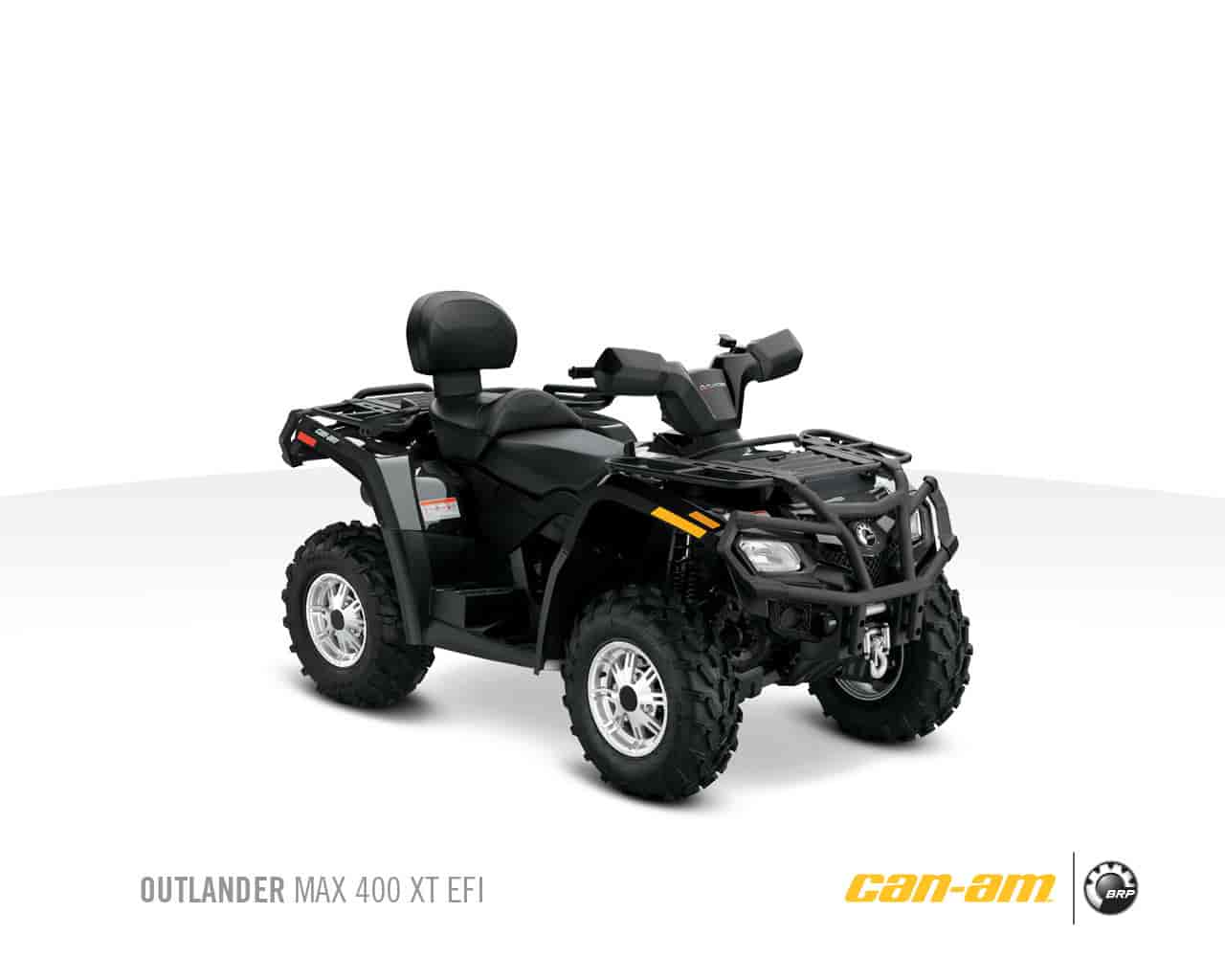

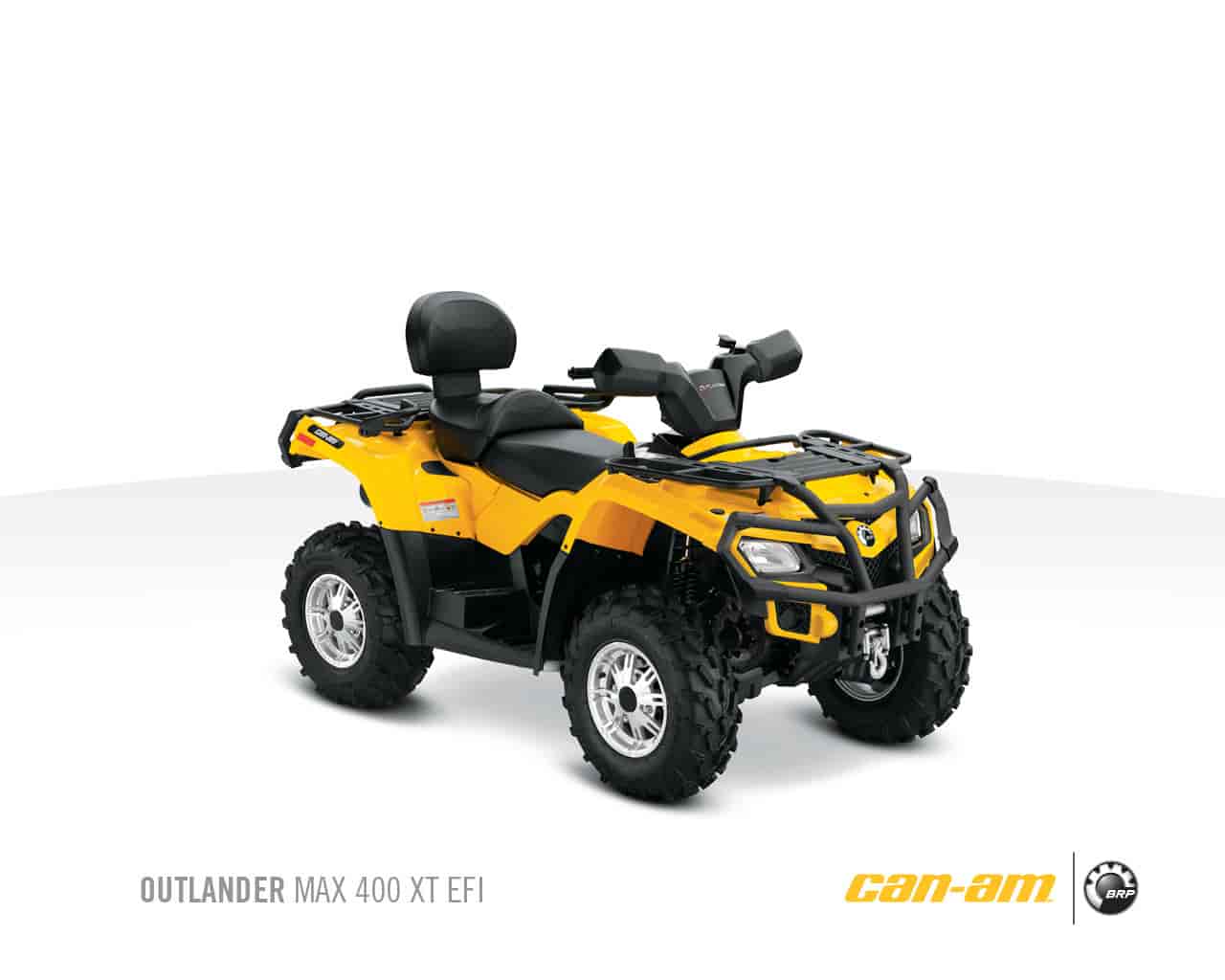

2011 Can-Am Outlander Max 400 XT
2011 Can-Am Outlander Max 400 XT
2011 Can-Am Outlander Max 400 XT
– 2011 Can-Am Outlander Max 400 XT
2011 Can-Am Outlander Max 400 XT
READ ABOUT IT. THINK ABOUT IT. THEN LET THE TRAIL DECIDE.
The 2011 Outlander™ MAX 400 XT delivers two-up capability with the most powerful engine in its class, a 32-hp Rotax 400 cc EFI. Complete with passenger-friendly features like a comfortable raised rear seat, sturdy ergonomic passenger handgrips and raised floorboards. Better hurry. The trails are waiting.
Key Features:
Outlander MAX 400 Features
Rotax 400 EFI engine
TTI independent rear suspension
Visco-Lok† 4×4 with front differential
MacPherson front suspension
CVT transmission
Multi-function digital gauge
Center skid plate
MAX chassis
Convertible Rack/Seat System
XT Added Features
BRP XL3000 winch
XT cast-aluminum wheels
Heavy-duty bumpers
Carlisle‡ 25-inch ACT radial tires
Handlebar wind deflectors
Other Features
Digitally Encoded Security System (D.E.S.S.)
Steel racks with 300-pound [136 kg] capacity
Available Colors: Yellow, Black
Suggested Price: $8,699 US
2011 Can-Am Outlander Max 400 XT – Specifications
American MSRP $$8,699 US
Canadian MSRP $10,349 CDN
Engine
Type
400 cc, single-cylinder, liquid-cooled, SOHC, 4-valve
Bore & Stroke
91 x 61.5 mm
EFI System / Carburetor
46-mm Throttle Body, Siemens? VDO injector
Starting System
Electric
Transmission
CVT, sub-transmission with high, low, park, neutral & reverse. Standard engine braking
Drive Train
Selectable 2w/4w shaft driven with Visco-lok† front differential
Chassis
Frame
SST
Front Suspension Type
MacPherson?
Front Suspension Travel
7 in (178 mm)
Rear Suspension Type
TTI independent
Rear Suspension Travel
8 in (203 mm)
Front Brake
2 inboard hydraulic discs
Rear Brake
1 inboard hydraulic disc
Tires/Front
25 x 8 x 12 in
635 x 203 x 305 mm
Tires/Rear
25 x 11x 12 in
635 x 279 x 305 mm
Wheels
Steel
Dimensions
L x W x H (in)
94 x 46 x 45 in
L x W x H (mm)
2,387 x 1,168 x 1,143 mm
Wheelbase
57 in (1,447 mm)
Seat Height
35 in (889 mm)
Ground Clearance
9.3 in (236 mm)
Dry Weight
680 lbs (308 kg)
Towing Capacity
1,100 lbs (500 kg)
Rack Capacity
Front: 100 lbs (45 kg)
Rear: 200 lbs (90 kg)
Storage
Rear storage 5.3 US gal (20 L) CRS (Convertible Rack System)
Fuel Capacity
4.3 US gal (16.3 L)
Features
Instrumentation
Multi-function digital LCD gauge: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4×4 indicator, temperature and engine lights, fuel gauge, clock, auto shut off after 15 minutes
Anti-Theft
D.E.S.S. (Digital Encoded Security System)
Electrical
Prewired for winch
Lighting
2 fender mounted headlamps (35W) with tail light / brake light
DC Outlet
Lighter type in console, standard connector in the back (15A)
Color(s) available
Black, Yellow
Warranty
Basic
6 months limited factory warranty
Extended
B.E.S.T. available from 12 to 36 months
Package
XT package:
BRP XL3000 winch with roller fairlead and wired remote control
XT cast-aluminum wheels
Carlisle? ACT radial tires
Heavy-duty front and rear bumpers
Handlebar wind deflectors
