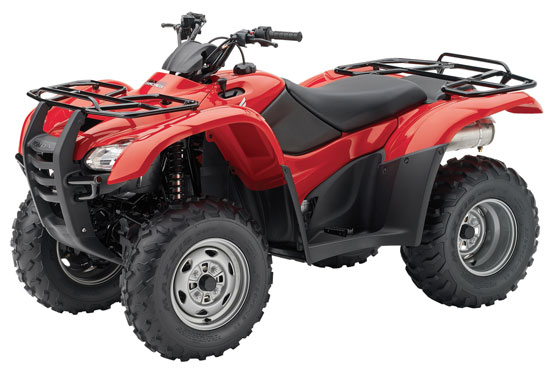

2011 Honda FourTrax Rancher 4X4 TRX420FM

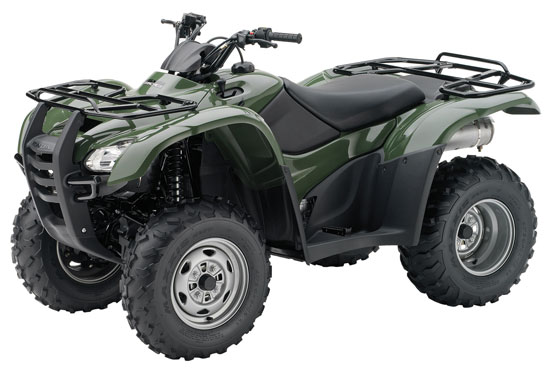

2011 Honda FourTrax Rancher 4X4 TRX420FM
– 2011 Honda FourTrax Rancher 4X4 TRX420FM
2011 Honda FourTrax Rancher 4X4 TRX420FM
Lightweight and nimble. Simple to operate and just the right size. Ready for chores around the farm or cottage or frisky trail riding. The Honda TRX420FM continues to make friends among ATV enthusiasts thanks to its appealing blend of premium features and do-anything performance. A liquid-cooled 420 cc engine that’s fuel-injected for consistently strong power in all conditions provides the TRX420 with its get-up-and-go — the engine sits longitudinally in the frame to keep weight low and to improve overall centre of gravity and balance, allowing you to ride over rough terrain with added confidence. You also get an easy-to-use 2WD/4WD shifter, front disc brakes with long-life pads and a special scraper system to prevent damage, and the option of NaturalGear™ camo bodywork. It’s a combination that’s awfully hard to beat.
FourTrax Rancher
Features & Options
– Programmed Fuel Injection (PGM-FI)
– America’s favorite ATV
– Five-speed manual transmission with reverse
FourTrax Rancher ES
Features & Options
– Programmed Fuel Injection (PGM-FI)
– Electric Shift Program
– Fully sealed rear driveshaft
FourTrax Rancher 4×4
Features & Options
– Programmed Fuel Injection (PGM-FI)
– TraxLok 2WD/4WD
– Five-speed manual transmission with reverse
FourTrax Rancher 4×4 ES
Features & Options
– Programmed Fuel Injection (PGM-FI)
– TraxLok 2WD/4WD
– Electric Shift Program
FourTrax Rancher 4×4 with Power Steering
Features & Options
– 420cc single-cylinder four-stroke
– Revolutionary Electric Power Steering
FourTrax Rancher 4×4 ES with Power Steering
Features & Options
– 420cc single-cylinder four-stroke
– TraxLok 2WD/4WD with 5-speed transmission and Electric Shift Program
Important Safety Information
Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner’s manual thoroughly.
2011 Honda FourTrax Rancher 4X4 TRX420FM Features:
Engine/Drivetrain
Powerful 420 cc longitudinally mounted engine eliminates 90-degree power transfers and boasts exceptional horsepower and torque.
Overhead-valve design provides compact engine dimensions for improved ground clearance while maintaining a broad, easy-to-use powerband.
Keihin fuel-injection system provides crisp performance and ensures trouble-free operation in cold conditions and changing altitudes.
Rubber-cushion engine mounting and gear-driven counterbalancer reduce vibration.
Super-heavy-duty automatic clutch with a low rpm engagement point for excellent driveability and towing capability.
Five-speed transmission with Reverse includes an ultra-low First gear.
4WD/2WD selector lever allows 4WD when needed for the tough stuff and 2WD when conditions permit.
Convenient electric starting, with back-up recoil starter and an automatic internal-decompression system.
Washable foam air filter for easy maintenance and consistent performance.
Stainless-steel exhaust header and muffler for superior corrosion resistance.
Three-chamber muffler baffling uses no packing material that can blow out.
Provides long-lasting performance.
Full transistor ignition with electronic advance for excellent performance and reliability.
Powerful 343-watt alternator.
Large 7.2-litre airbox with reusable foam air filter provides more air to the engine for increased performance.
Chassis/Suspension
Rugged frame and suspension provide an exceptional 165 mm (6.5 inches) of ground clearance.
Steering-mechanism design features light effort and a tight turning radius.
Independent double-wishbone front suspension uses premium shock absorbers to provide 160 mm (6.3 inches) of suspension travel for a plush, comfortable ride.
Steel swingarm and gas charged rear shock absorber provide 160 mm (6.3 inches) of suspension travel for superb comfort and compliance.
Tough, large-diameter 24 x 8-12 front, and wide 24 x 10-11 rear tires provide excellent ground clearance while maintaining precise handling.
Dual front hydraulic disc brakes and sealed mechanical rear drum brakes for strong stops.
Additional Features
Engine design meets EPA and California Air Resources Board (CARB) off-road emissions standards.
Optional waterproof accessory socket provides 12-volt, 10-amp power with a built-in temperature-type fuse.
Large cargo racks front and rear carry payloads of 30 kg (66 lb) and 60 kg (133 lb), respectively.
Heavy-duty trailer hitch with 385 kg (850 lb) towing capacity.
Large, lightweight plastic fuel tank with 13.3-litre capacity.
Snorkel-type air-intake system is specially designed to resist water.
Under-seat storage compartment allows access when rack is loaded.
Thickly padded seat provides excellent comfort.
Large fenders give excellent mud protection.
Twin-headlight system with 30-watt bulbs features multi-reflector lenses for optimal light distribution.
Combination LED stoplight and taillight.
Spark arrester/muffler designed for quiet operation without wool packing for long-lasting performance.
Constant-velocity-joint boot guards help prevent damage to boot covers.
Tough 12-amp-hour maintenance-free battery.
Durable, comfortable, easy-to-use controls.
Keyed ignition switch for added security.
Full-length synthetic lower skidplate with integrated front brush guard.
Easy-to-use parking brake.
Standard tool kit includes a tire-pressure gauge.
1 year, transferable limited warranty.
2011 Honda FourTrax Rancher 4X4 TRX420FM – Specifications
American MSRP: See Dealer for Details
Canadian MSRP: $6,999 CDN
Engine
Engine Type 420cc liquid-cooled fuel-injected OHV wet-sump longitudinally mounted single-cylinder four-stroke
Bore And Stroke 86.5mm x 71.5mm
Induction Keihin 34mm throttle-body fuel-injection system
Ignition Full-transistorized type with electronic advance
Starter Electric with optional auxiliary recoil
Drive Train
Clutch Automatic
Transmission Five-speed with Reverse
Driveline Direct front and rear driveshafts
Chassis / Suspension / Brakes
Front Suspension Independent double-wishbone; 6.3 inches travel
Rear Suspension Swingarm with single shock; 6.3 inches travel
Front Brakes Dual hydraulic disc
Rear Brakes Sealed mechanical drum
Front Tires 24 x 8-12
Rear Tires 24 x 10-11
Dimensions
Length 80.9 inches
Width 46.1 inches
Height 45.1 inches
Wheelbase 49.2 inches
Seat Height 32.4 inches
Ground Clearance 6.5 inches
Turning Radius 10.5 feet
Curb Weight 584 pounds (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity 3.5 gallons, including 1.0-gallon reserve
Other
Note No operator under age 16. Honda recommends that all ATV riders take a training course and read their owner’s manual thoroughly.
Emissions Meets current California Air Resources Board (CARB) and EPA off-road emissions standards.
Available Colors Red, Olive, Camo
Model Id TRX420FM
Factory Warranty Information
Duration One year
Description Transferable limited warranty; extended coverage available with a Honda Protection Plan.
