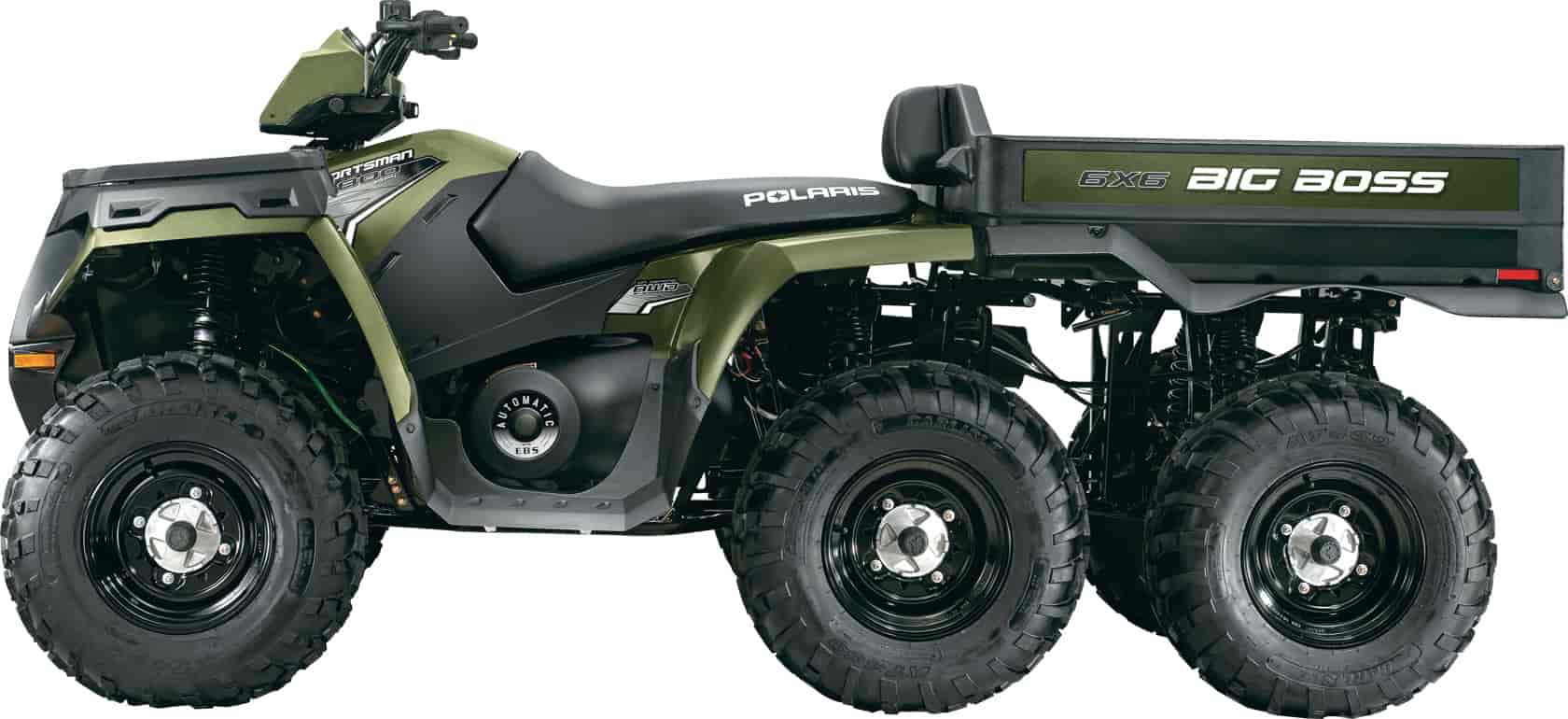

2011 Polaris Sportsman Big Boss 6x6 800
2011 Polaris Sportsman Big Boss 6×6 800

– 2011 Polaris Sportsman Big Boss 6×6 800

2011 Polaris Sportsman Big Boss 6×6 800

The 2011 Polaris Sportsman® Big Boss® 6×6 800 ATV is our Hardest Working 6×6 ATV ever. With unmatched traction and capacity, it’s perfect for farming, ranching and construction work.

Key features are:
– 760cc Twin-Cylinder EFI Engine
– On-Demand True Six-Wheel Drive (6WD)
– Six-Wheel Independent Suspension
– 800 lb. (362.9 kg) Haul & Dump Rear Cargo Box


2011 Polaris Sportsman Big Boss 6×6 800 Features:

Haul And Dump Up To 800 Lbs.
Large rear box moves and dumps up to 800 lbs. of equipment or material, so you can get big jobs done faster and easier.

New! Restyled Design With Raised Radiator
A restyled body gives the Sportsman 6×6 an aggressive new look and improved sight lines for the driver. And with a 3″-raised radiator, the cooling system stays out of the mud.

On-Demand True Six-Wheel Drive
True AWD keeps you moving, automatically engaging all six wheels when you need more forward traction and reverting back to the rear four wheels when you don’t. Six beefy drive shafts deliver consistent power to all six wheels.

High Ground Clearance
A full 10.5″ of obstacle-clearing ground clearance lets you tackle some of the tougher terrain that comes your way.

Active Descent Control (ADC) And Engine Braking System (EBS)
Work together to monitor and control downhill braking to give you optimum control and smooth, even deceleration during descents.

Six-Wheel Independent Suspension
All wheels articulate independently of one another for maximum traction in changing terrain, with long suspension travel (6.1″).



2011 Polaris Sportsman Big Boss 6×6 800 – Specifications
American MSRP $9,999 USD
Canadian MSRP $12,199 CDN

Engine Type 4-Stroke Twin Cylinder
Displacement 760cc
Fuel System Electronic Fuel Injected
Cooling Liquid

Transmission/Final Drive Automatic PVT P/R/N/L/H; Shaft
Drive System On-Demand True 6WD/Rear 4WD
Engine Braking System/ Active Descent Control Standard/Standard

Front Suspension MacPherson Strut With 8.2″ (20.8 cm) Travel
Rear Suspension Dual A-Arm, IRS 6.12″ (15.5 cm) Travel

Front/Rear Brakes Single Lever Hydraulic Disc Brake / Single Lever Hydraulic Rear Brake
Parking Brake Park in Transmission/Lockable Hand Lever

Tires Wheels
Front Tires / Model 25 x 8-12; 489
Rear Tires / Model 25 x 11-12; 489
Wheels Stamped Steel

Wheelbase 79.5″ (201.9 cm)
Dry Weight 1,060 lb (480.8 kg)
Overall Vehicle Size (LxWxH) 112 x 48 x 48″ (284.5 x 121.9 x 121.9 cm)
Ground Clearance 10.5″ (26.7 cm)
Seat Height 33.75″ (85.7 cm)

Fuel Capacity 4.1 gal (15.5 L)
Bed Box Dimensions (LxWxH) 38″L x 39″W x 8″H (96.5L x 99.1W x 20.3H cm)
Front/Rear Rack Capacity 100 lb (45.4 kg)/800 lb (362.8 kg)
Hitch Towing Rating 1,500 lb (680.4 kg)
Unbraked Trailer Towing Capacity “*Based on EU Directive 76/432/EC 2,127 lb (964.8 kg)
Hitch/Type Standard/1.25″ Receiver

Cargo System Lock & Ride
Lighting Dual 50w Low Beam Bumper Lights, Single 50w High Beam Pod Light; Dual

Instrumentation Digital Gauge, Analog Speedometer, Odometer, Tachometer, Tripmeter, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet
