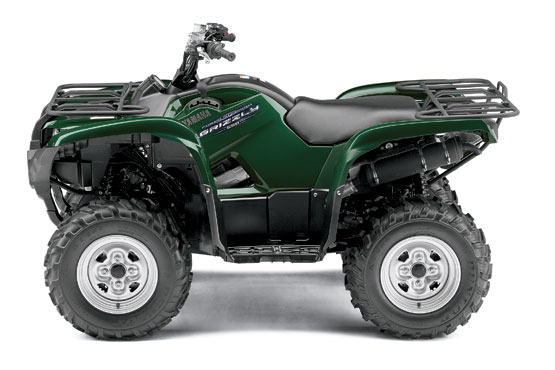

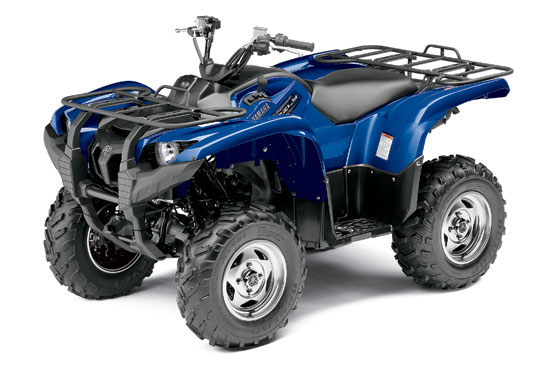

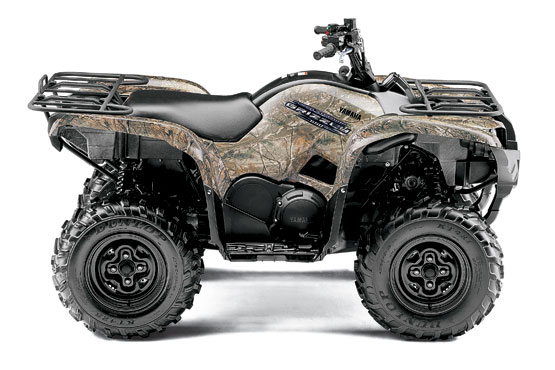

2011 Yamaha Grizzly 550 FI 4×4 EPS
2011 Yamaha Grizzly 550 FI 4×4 EPS
2011 Yamaha Grizzly 550 FI 4×4 EPS
2011 Yamaha Grizzly 550 FI 4×4 EPS
2011 Yamaha Grizzly 550 FI 4×4 EPS
– 2011 Yamaha Grizzly 550 FI 4×4 EPS
2011 Yamaha Grizzly 550 FI 4×4 EPS
The 550cc class leader with EPS, fuel injection, On Command 4WD, and IRS for excellent terrainability.
Featuring a 558cc fuel-injected 4-stroke engine, Yamaha’s EPS, Ultramatic Transmission, On-Command 4WD, 4-disk brakes and Yamaha’s unbeatable reliability and durability.
Right behind our Grizzly 700 FI EPS, you’ll find our Grizzly 550 FI EPS.
Featuring a powerful fuel injected 558cc 4-stroke engine, Electronic Power Steering, On-Command 4-wheel drive, 4-wheel disc brakes, and Yamaha’s fully automatic Ultramatic transmission. These key features combined with Yamaha’s proven durability and reliability, continue to make the Grizzly one of the best selling ATVs available today.
Highlights
Excellent Power-to-Weight Ratio
Electric Power Steering
Electronic Fuel Injection
Key Features:
” The 550cc class has a leader, with a fully featured package based on its best-selling bigger brother, the Grizzly 700 FI, with a largest-inclass 558cc powerplant, Electric Power Steering and excellent value.
” Steel Blue model includes cast aluminum wheels.
” Yamaha Fuel Injection means instantaneous cold starts and optimal performance in nearly any condition, from below sea level to 15,000 feet.
” Electric Power Steering system lightens steering for superior comfort and terrainability.
” Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATVing. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and sprag clutch for all-wheel downhill engine braking in 4WD mode.
” Three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and fully locked differential 4WD-all with a simple push of a button.
” Fully independent long-travel four-wheel suspension features double-wishbone suspension front and rear with five-way preload-adjustable shocks for maximum control and comfort over rough terrain. Smoothest-running and -riding Grizzly ever.
” Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter that counts the engine’s running hours, 4WD status, transmission position, clock and fuel gauge.
” The Grizzly 550 EPS boasts the lightest weight in its class at only 648 pounds wet weight.
Engine:
” This 558cc 4-stroke SOHC 4-valve liquid-cooled engine is derived directly from the industry-leading Grizzly 700 powerplant.
” Compact engine design features a 35-degree cylinder angle for ground clearance and lower seat height for quick steering and maneuverability.
” Ceramic-composite cylinder liner provides outstanding durability and heat dissipation; 92mm forged piston is light and strong and rides on a carburized chrome-moly connecting rod.
” Two-lobe overhead cam and a pair of needle-roller rocker arms reduce friction by 50 percent for increased fuel efficiency and torque.
” Gear-driven crankshaft balancer shaft and 4-position rubber engine mounts reduce vibration.
” Yamaha Fuel Injection uses a Mikuni® 40mm throttle body and idle speed control valve to provide easy cold starts and flawless fuel delivery in nearly any condition, from below sea level to 15,000 feet.
” Pushbutton electric start with seven-disc torque-limiting damper assembly to protect the starter motor.
” Straight driveshaft layout eliminates U-joints for reduced friction, noise, vibration, and maintenance.
” Stainless steel exhaust system features aluminum heat shields and a screen-type spark arrestor for great power with minimum noise output.
” High-capacity aluminum radiator with fan motor delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
” 5-position shift lever with L, H, N, R and P gates has a light shifting feel with easy engagement, providing positive Ultramatic® transmission control.
” Override button allows engine to make maximum rpm in full Diff. Lock mode.
” Electronic servo-activated 2WD/4WD/Diff. Lock via the On-Command® system.
” Sealed drive case keeps out water and debris to help increase durability.
Chassis/Suspension:
” Electric Power Steering. This assist feature, pioneered by Yamaha on the Grizzly 700 FI EPS, lightens steering for superior comfort and terrainability.
” 5.3-gallon fuel tank is located under the seat for excellent mass centralization and handling; there’s a 4.8-liter waterproof storage compartment under there, too.
” 11.8 inches of ground clearance and full-length composite skidplate deliver maximum underbelly protection while enhancing terrainability.
” 25×8-12 front and 25×10-12 rear Dunlop® tires provide responsive steering and handling and excellent comfort.
” Rugged injection-molded front bumper and CV joint guards protect against rock and debris damage.
” Full-size chassis provides the same high level of comfort enjoyed by Grizzly 700 riders.
” Five-way preload-adjustable shocks provide a comfortable ride, whatever the load or trail conditions.
” Front and rear lower A-arm guards offer excellent protection -and Grizzly 550 features WideArc™ front A-arms for outstanding ground clearance that’s 5 inches wider than that provided by ordinary designs.
” Four-wheel hydraulic disc brakes serve up consistent, long-lasting braking power.
” Direct driveshaft design efficiently transfers power while providing outstanding durability with less vibration.
Additional Features:
” Center-mounted, heavy-duty trailer hitch comes standard and can tow more than 1300 pounds.
” Rugged steel cargo racks with special, extra-durable wrinkle paint finish can pack a total of 286 pounds combined (99 front, 187 rear).
” Large, specially designed seat is extra plush and widely contoured for all-day rider comfort.
” Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter that counts the engine’s running hours, 4WD status, transmission position, clock and fuel gauge.
” Dual 35-watt multi-reflector halogen bulb headlights with high/ low beams provide bright illumination for nighttime work or play.
2011 Yamaha Grizzly 550 FI 4×4 EPS – USA Specifications
MSRP* $9,149 (Realtree AP Camo) Available from June 2010
$8,949 (Steel Blue) Available from July 2010
$8,699 (Hunter Green) Available from July 2010
Engine
Type 558cc, 4-stroke, liquid-cooled single; SOHC, 4 valves
Bore x Stroke 92.0 x 84.0mm
Compression Ratio 9.3:1
Fuel Delivery Yamaha Fuel Injection (YFI), 40mm
Ignition TCI, 32-bit ECU
Starting System Electric
Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
Chassis
Suspension/Front Independent double wishbone; 5-way preload adjustment, 7.1-in travel
Suspension/Rear Independent double wishbone; 5-way preload adjustment, 9.5-in travel
Brakes/Front Dual hydraulic disc
Brakes/Rear Dual hydraulic disc
Tires/Front AT25 x 8-12; aluminum wheels
Tires/Rear AT25 x 10-12; aluminum wheels
Dimensions
L x W x H 81.3 x 46.5 x 48.8 in
Seat Height 35.6 in
Wheelbase 49.2 in
Turning Radius 126 in
Ground Clearance 11.8 in
Fuel Capacity 5.3 gal
Wet Weight 648 lb
Rack Capacity 99 lb Fr./187 lb Rr.
Towing Capacity 1322 lb
Other
Instrumentation Digital LCD multifunction display; speedometer, odometer, dual tripmeter, hour meter, clock, fuel gauge and gear position
Lighting Dual 35W Halogen multi-reflector headlights & 21W/5W brakelight
Warranty 6 Month (Limited Factory Warranty)
2011 Yamaha Grizzly 550 FI 4×4 EPS – Canadian Specifications
Canadian MSRP* $11,249 CDN
Engine 4-stroke, SOHC, liquid cooled, 4-valve, single
Displacement 558 cc
Bore and Stroke 92mm x 84 mm
Compression Ratio 9.3 : 1
Carburetion Mikuni Electronic Fuel Injection w/40mm Big Bore throttle bodies and TPS
Ignition computerized DC-CDI with 32 bit ECU
Starting electric w/auto-decompression
Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, direct shaft drive
Suspension (Front) independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
Suspension (Rear) independent, reverse mounted dual A-arm with sway bar, adjustable shocks
Brakes (Front) hydraulic discs
Brakes (Rear) hydraulic discs
Tires (Front) Dunlop KT421 tubeless, AT25 x 8-12
Tires (Rear) Dunlop KT425 tubeless, AT25 x 10-12
Length 2065 mm (81.3″)
Width 1180 mm (46.5″)
Height 1240 mm (48.8″)
Wheelbase 1250 mm (49.2″)
Ground Clearance 300 mm (11.8″)
Seat Height 905 mm (35.6″)
Dry Weight 272 kg (600 lb)
Wet Weight 294 kg (648 lb) – ready to ride full of fuel and oil
Fuel Capacity 20 litres (5.3 U.S. gal)
Towing Capacity 600 kg (1,322 lb)
Colour(s) Dark Green
Realtree® AP HD™ Camouflage
Specifications, appearance, and price of product are subject to change without notice.
* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
