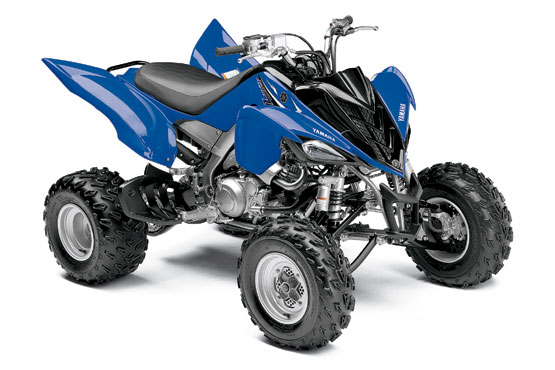

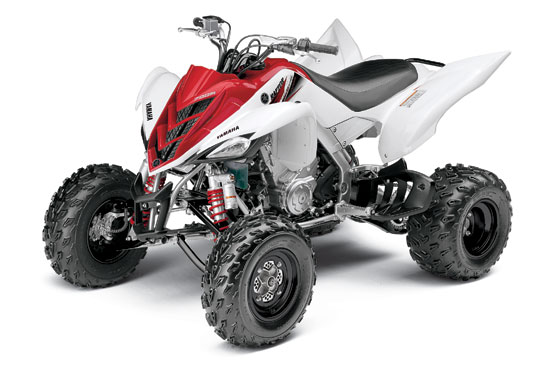

2011 Yamaha Raptor 700R
2011 Yamaha Raptor 700R

2011 Yamaha Raptor 700R
2011 Yamaha Raptor 700R

2011 Yamaha Raptor 700R
2011 Yamaha Raptor 700R

2011 Yamaha Raptor 700R
2011 Yamaha Raptor 700R

2011 Yamaha Raptor 700R
2011 Yamaha Raptor 700R

– 2011 Yamaha Raptor 700R

2011 Yamaha Raptor 700R

The big bore sport ATV leader boasts an FI 686cc engine, terrain-taming suspension and digital instrumentation.

Superior handling, potent big-bore power, ultra light design… The 2011 Yamaha Raptor 700R is up to the challenge.

Designed to dominate any terrain, the Raptor 700R draws power from the most potent big-bore engine ever – 668cc of liquid-cooled fuel-injected power.

The jaw dropping power is complemented by an ultra light design in the form of a hybrid chassis with aluminum rear section. The suspension design – borrowed from our YFZ450 – delivers superior handling that’s fully up to the task, whatever the task might be. Big, broad power. Light weight. Precise handling. Yamaha reliability. That’s the Yamaha advantage.



686cc of Liquid-Cooled Fuel-Injected Power

Lightweight Hybrid Chassis

Five-Way Adjustable Preload Kayaba Suspension


Key Features:

” A 686cc Yamaha fuel-injected engine makes this the most powerful Yamaha sport ATV ever, with big torque right off idle, transitioning into a fat mid-range and monstrous top end.
” America’s best-selling sport ATV comes standard with a digital meter. Riders have plenty of information available at a glance, including speedometer, dual trip meters, odometer, clock and engine warning indicators, plus neutral and reverse indicators.
” Sport-tuned piggyback shocks provide long stroke for excellent sport-riding comfort, and are fully adjustable with convenient adjustment knobs to fine-tune the ride.
” Hybrid steel and aluminum frame with a Controlled-Fill aluminum subframe and cast aluminum swingarm combine to produce a super-strong structure and the lightest ATV in its class.
” Aggressive styling reflects Raptor 700R’s intent, and YFZ-inspired handling means it walks the walk, too.
” Long-travel suspension-9.1 inches front, 10.1 rear-a cush seat and excellent ergonomics make the Raptor 700R comfortable to ride hard all day long.
New for 2011:
” New inner rolled wheel’s reduce weight while maintaining strength.

” Forged lightweight piston, connecting rod and crankshaft in the 686cc engine are light and strong, for a hard-hitting, quick-revving powerplant that revs all the way to 9000 rpm. Dual counterbalancers keep it smooth.
” Yamaha Fuel Injection (YFI) means consistently excellent engine performance in a wide range of conditions, elevations and temperatures.
” Competition-spec dry-sump lubrication system boosts usable horsepower and keeps overall engine size more compact.
” Digital TCI w/16-bit electronic control unit controls fuel injection and ignition systems for consistent performance and fantastic throttle response.
” Reliable pushbutton electric start in any gear adds extra convenience.
” Race-bred five-speed transmission with reverse, along with Raptor 700R’s monstrous powerband, means there’s a choice of gears in just about all situations.
” YZ-spec ratchet shifter ensures smooth, resistance-free shifting under power. Heavy-duty clutch features extra-sturdy basket and plates designed to harness the Raptor 700R’s power.
” Easy-to-reach oil filter and tool-free air filter provide added convenience.

” State-of-the-art chassis combines a steel front section with an aluminum rear section and detachable subframe to create a super-strong structure.
” Compact, CAD-designed chassis creates the ideal wheelbase for light, quick, super-accurate steering.
” Piggyback shocks provide excellent sport-riding comfort, with high- and low-speed compression adjustability, rebound and preload adjustability, and 9.1-inch travel.
” YZ-style piggyback rear shock gives 10.1-inch wheel travel with high- and low-speed compression adjustability for maximum sport versatility, along with preload and rebound adjustment.
” Front brake master cylinder features an adjustable lever for increased comfort and feel.
” Twin aluminum-piston front disc brakes deliver tremendous stopping power. Discs are drilled, which helps reduce unsprung weight for excellent suspension compliance.
” Cast aluminum swingarm carries an eccentric quick-adjust drive chain mechanism that takes most of the work out of that task.
” Handlebar-mounted flip-type parking brake lever and rear brake caliper adjust automatically.
” High-performance 21×7-10 front and 20×10-9 rear Dunlop® radials with a specially designed tread pattern deliver superb, class-leading traction for razor-sharp handling in a variety of terrain and conditions.
” Lightweight aluminum wheels help enhance suspension performance by reducing unsprung weight.
” Race-inspired 45mm serrated footpegs provide excellent boot traction.
” Controlled-fill aluminum subframe is light and strong. So is the composite front grab bar.

Additional Features:
” Raptor 700R features a digital meter with speedometer, dual trip meters, odometer, clock, warning indicators for coolant and low fuel, plus neutral and reverse indicators.
” Long, YZ-style seat allows maximum rider comfort and movement with superb sport-riding ergonomics.
” Multi-reflector 30-watt Krypton headlights set back in the front cowl add the perfect no-compromises sporting accent, and an LED taillight provides great visibility.
” Large-capacity, 2.9-gallon fuel tank and Yamaha Fuel Injection (YFI) mean more time on the trail between fill-ups.
” Thumb throttle lever has a smooth shape for a feel riders will appreciate, with less fatigue at the end of the day.
” Styling is sharp and aggressive.




2011 Yamaha Raptor 700R – USA Specifications
MSRP* $8,399 (Team Yamaha Blue/White) Available from April 2010
$8,399 (White/Red) Available from April 2010

Type 686cc liquid-cooled w/fan, 4-stroke; SOHC, 4 valves

Bore x Stroke 102.0mm x 84.0mm

Compression Ratio 9.2:1

Fuel Delivery Yamaha Fuel Injection (YFI) , 44mm

Ignition 16-Bit ECU

Starting System Electric

Transmission 5-speed w/reverse; wet multiplate clutch

Drive Train 2WD; sealed O-ring chain, eccentric adjustment

Suspension/Front Independent double wishbone w/piggy back High-/Lo-speed compression, rebound and threaded preload adjustment, 9.1-in travel

Suspension/Rear Cast aluminum swing arm w/rebound, High-/Lo-speed compression and threaded preload adjustment, 10.1-in travel

Brakes/Front Dual ventilated hydraulic disc, twin piston

Brakes/Rear Ventilated hydraulic disc, self adjusting park brake function

Tires/Front AT21 x 7-10 radial

Tires/Rear AT20 x 10-9 radial

L x W x H 72.6 x 46.1 x 44.5 in

Seat Height 32.0 in

Wheelbase 50.4 in

Ground Clearance 4.4 in

Fuel Capacity 2.9 gal

Wet Weight 422 lb

Lighting Dual 30W Krypton multi-reflector headlights & 3.9/0.5W LED brakelight

Warranty 6 Month (Limited Factory Warranty)



2011 Yamaha Raptor 700R – Canadian Specifications
Canadian MSRP* $10,799 CDN

Engine 4-stroke, SOHC, liquid-cooled, single
Displacement 686cc
Bore and Stroke 102 x 84mm
Compression Ratio 9.2:1
Carburetion Yamaha Fuel Injection (YFI), 44mm
Ignition 16 Bit ECU
Starting Electric
Transmission Wide-ratio 5-Speed Manual Clutch w/Reverse
Final Drive Sealed O-ring chain
Suspension (Front) Independent double wishbone, 9.1″ travel w/piggy back with high/low speed compression, rebound and threaded preload adjustment
Suspension (Rear) Cast aluminum swingarm, 10.1″ travel w/piggy back with high/low speed compression, rebound and threaded preload adjustment
Brakes (Front) Dual Hydraulic Disc, Twin Piston Caliper
Brakes (Rear) Hydraulic Disc, Self Adjusting park Brake Function
Tires (Front) AT21x7-10 Radial
Tires (Rear) AT20x10-9 Radial
Length 1,845mm (72.6″)
Width 1,170mm (46.1″)
Height 1,130mm (44.5″)
Wheelbase 1,280mm (50.4″)
Ground Clearance 112mm (4.4″)
Seat Height 815mm (32″)
Dry Weight 180kg (396 lb)
Wet Weight 192 kg (422 lb) – ready to ride full of fuel and oil
Fuel Capacity 11 litres
Colour(s) Team Yamaha Blue
