2011 Yamaha YFZ450R
Back to 2011 Yamaha ATV Quad Models Index Page

Click photos to enlarge.
They make great desktop images.

2011 Yamaha YFZ450R
2011 Yamaha YFZ450R

2011 Yamaha YFZ450R
2011 Yamaha YFZ450R

2011 Yamaha YFZ450R
2011 Yamaha YFZ450R

– 2011 Yamaha YFZ450R

2011 Yamaha YFZ450R

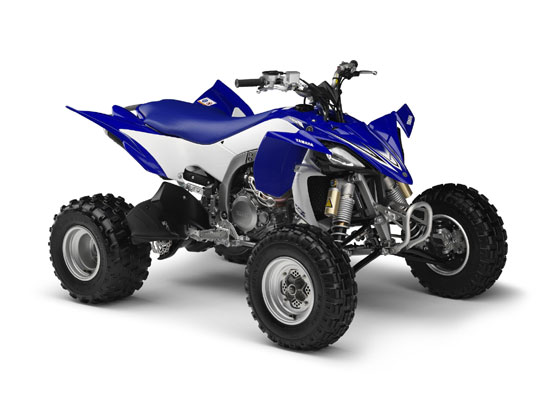

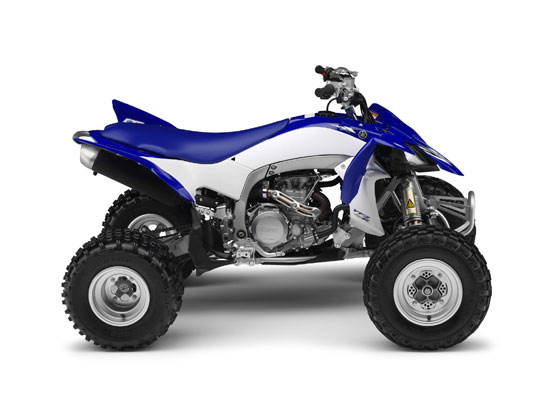

The 2011 Yamaha YFZ450R is a pure bred race machine. With a fuel injected 449cc 5-valve engine, an incredibly strong hybrid chassis with motocross-wide-track stance and super premium triple adjustable long travel suspension, the 2010 Yamaha 450R was made for the motocross track.

Designed to dominate the race track, the YFZ450R is sure to draw many checkered flags.

With a wide-track chassis and long travel suspension, the YFZ450R provides incredible stability, confidence and control. The poerful 5-valve 449cc race engine is fuel injected with many components developed from our motocross bikes including the cylinder, cylinder head, cams and crank designs. The engine is cradled by a hybrid aluminum chassis for optimized strength and rigidity, making the YFZ450R the most capable racer we’ve ever developed.



Wide-Track Chassis

Fuel injected 5-valve 4-stroke race engine

Lightweight Aluminum Frame


Key Features:

Race Engine

Awesome power comes from a fuel-injected 449cc, 4-stroke, 5-valve, DOHC engine, spinning optimum high RPMs. This YZ-inspired engine tuned to boost low- and midrange power for arm-straightening drive out of corners.

Incredible Performance

A compression ratio of 11.6:1 and optimizing port shapes help the YFZ450R make maximum power. Stout bearings and connecting rod add even more strength and reliability.

Fuel Injection

Yamaha’s Fuel Injection uses a 12-hole injector to provide exceptional atomization of the fuel for maximum combustion efficiency and power delivery. Idle Speed Control (ISC) and the large 42mm Mikuni® throttle body delivery easy, reliable starting, and continually monitor air temperature, intake pressure, engine temperature, throttle position and more, to ensure the right fuel delivery. So fiddling with the carburetor jetting is a thing of the past, all you have left to do is focus on the ride.

Lightweight Aliuminum Frame

The no-weld cast aluminum frame is light and strong, providing solid groundwork for the front and rear suspension systems. The wide track helps the YFZ450R achieve amazingly flat and precise cornering.

Wide Arc Design

The front a-arms “Wide Arc” design makes room for awesome ground clearance. The upper and lower a-arm pivot points are positioned close together to reduce the pivot angle to improve suspension control.

Professional Suspension

9.8 inches of front wheel travel, controlled by 44mm fully adjustable KYB shocks with Kashima coating, means precise handling and a smooth ride.

Racing Controls

ProTaper® handlebars are mounted on 4-way clamps for exceptional adjustability. There are two sets of holes in the handlebar crown, and eccentric clamps so the rider can choose the standard setting, 10mm or 20mm forward, or 10mm back. The thumb throttle is designed to minimize effort. The front flip-type parking brake is removable for racing. The front brake lever is adjustable and the clutch lever is adjustable on the fly.

Cushioned Panels

Easily replaceable panels in high wear areas will provide flex and grip for aggressive riding.

Exclusive 20″ Rear Tires

20″ rear tires offer extra ground clearance and the best all-round performance for track and trail.

Super Wide Foot Pegs

65mm wide foot pegs help ensure your feet have traction when you need it.

Additional Features

” LED tail light for improved visibility, longevity and reduced electric power consumption.
” Wave rear brake rotor for less unsprung weight
” The new throttle lever requires less effort, and it’s very comfortable to use. That means less fatigue during all-day riding.
” The instrumentation is all business. The discrete panel on the fender in front of the rider gives vital indicators about low fuel, coolant temperature, check engine, and neutral gear via a straightforward LED display.




2011 Yamaha YFZ450R – USA Specifications

Model not available in the USA.




2011 Yamaha YFZ450R – Canadian Specifications
Canadian MSRP* $11,449 CDN

Engine 4-Stroke Single, Liquid Cooled w/ Fan, Titanium 5-Valve DOHC
Displacement 449cc
Bore and Stroke 95mm x 63.4mm
Compression Ratio 11.6:1
Carburetion Yamaha Fuel Injection (YFI) , 42mm
Ignition TCI (Digital)
Starting Electric
Transmission 5-Speed, Manual Clutch
Final Drive 2WD; Sealed O-Ring Chain, Eccentric Adjustment
Suspension (Front) Independent Wide-Arc Double Wishbone, w/ 9.8″ of travel. Kashima coated Piggy Back shocks featuring High/Low Speed Compression, Rebound and Threaded Preload Adjustment
Suspension (Rear) Cast Aluminum Swing Arm, w/ 11.0″ of travel. Piggy Back shock featuring High/Low Speed Compression, Rebound and Threaded Preload Adjustment.
Brakes (Front) Dual Ventilated Hydraulic Disc , Twin Piston Calipers
Brakes (Rear) Wave Style Ventilated Hydraulic Disc, Twin Piston Caliper
Tires (Front) AT21x7-10 Dunlop KT351 Radial
Tires (Rear) AT20x10-9 Dunlop KT356 Radial
Length 1,795mm (70.7″)
Width 1,240mm (48.8″)
Height 1,065mm (41.9″)
Wheelbase 1,270mm (50.0″)
Ground Clearance 235mm (9.25″)
Seat Height 810mm (31.9″)
Wet Weight 184kg (405 lb)- ready to ride full of fuel and oil
Fuel Capacity 10.0 L
Colour(s) Team Yamaha Blue


Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
