2012 Polaris Sportsman X2 550
Back to 2012 Polaris ATV Quad Models Index Page

Click photos to enlarge. They make great desktop wallpaper.

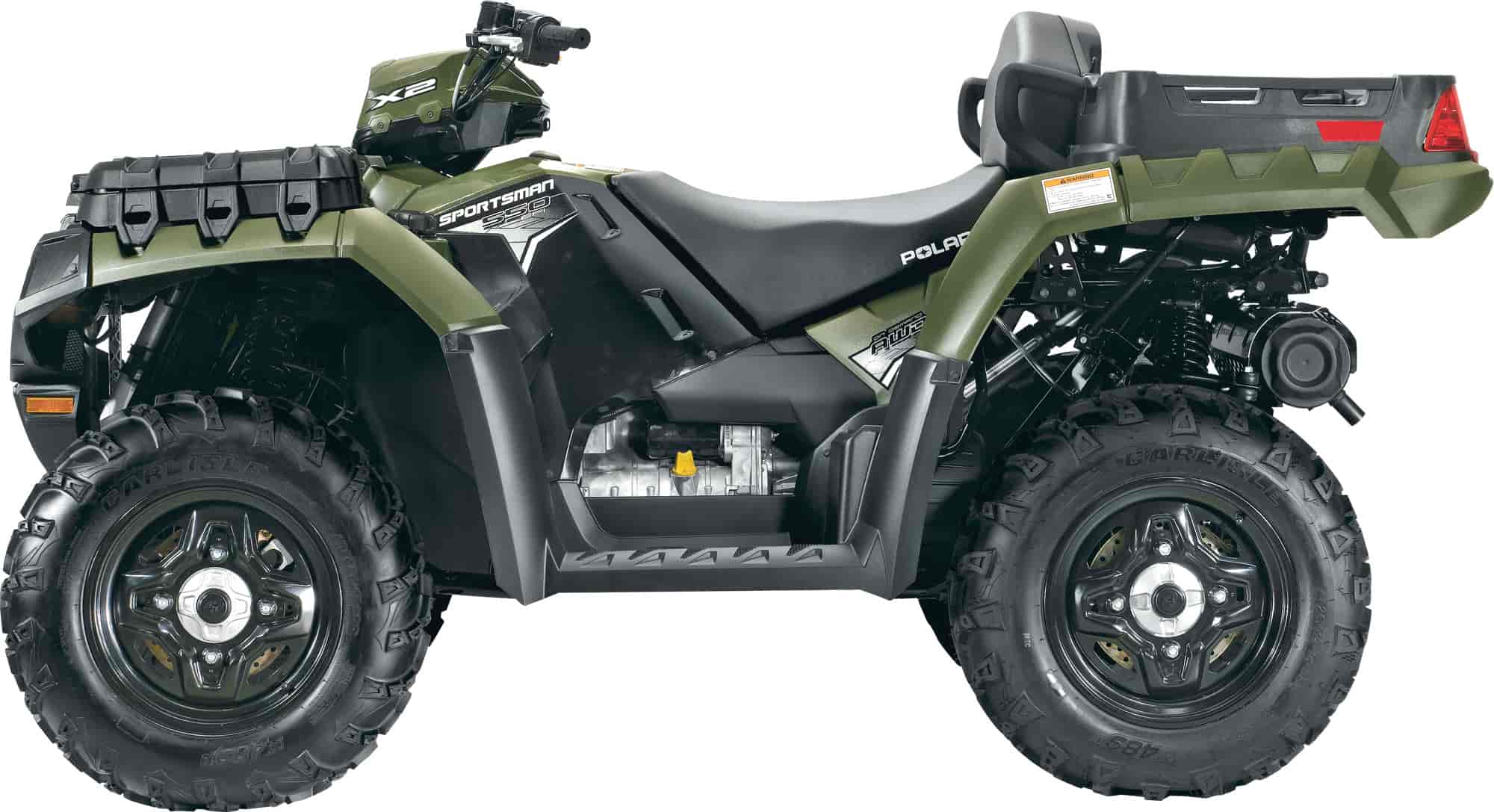

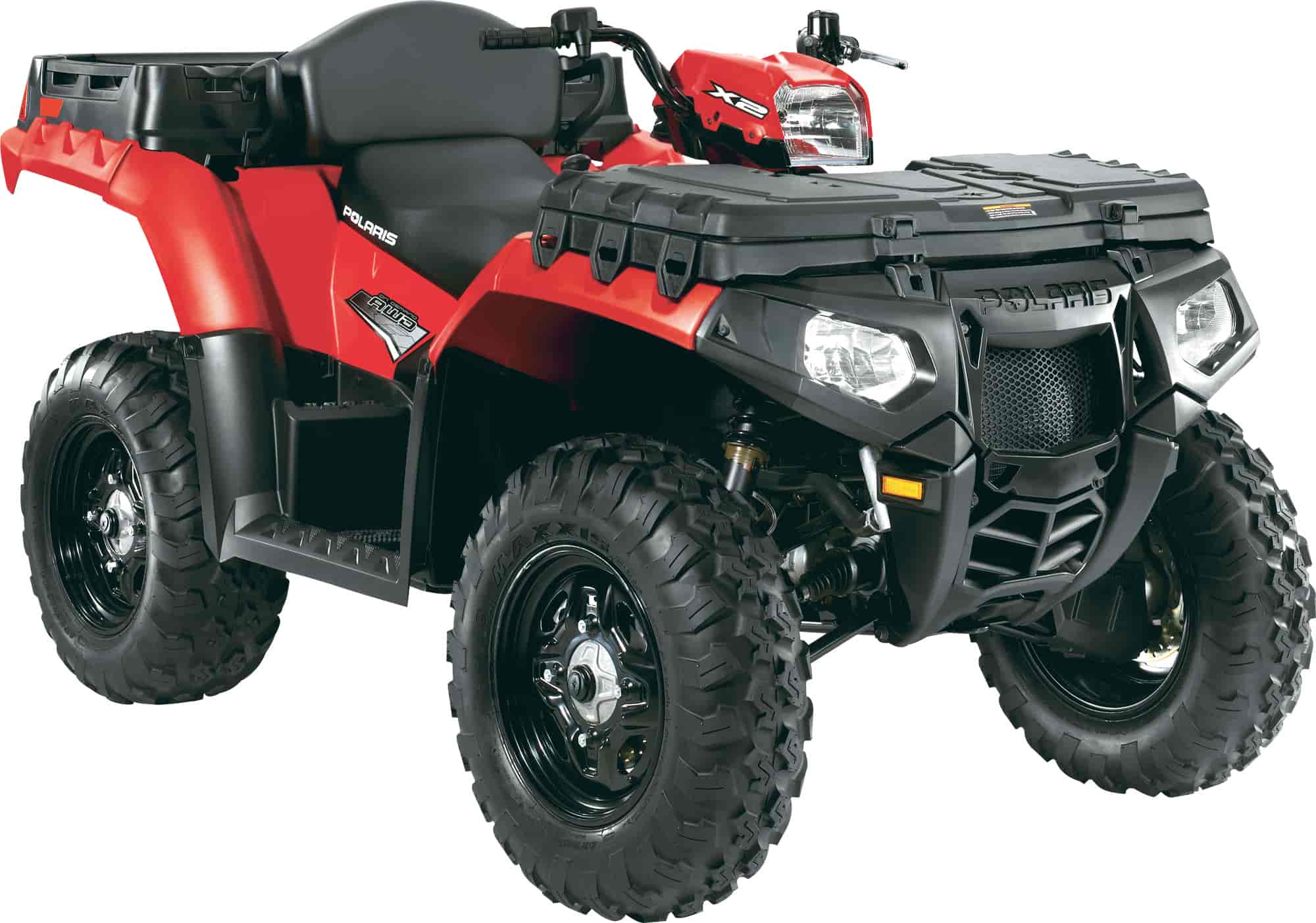

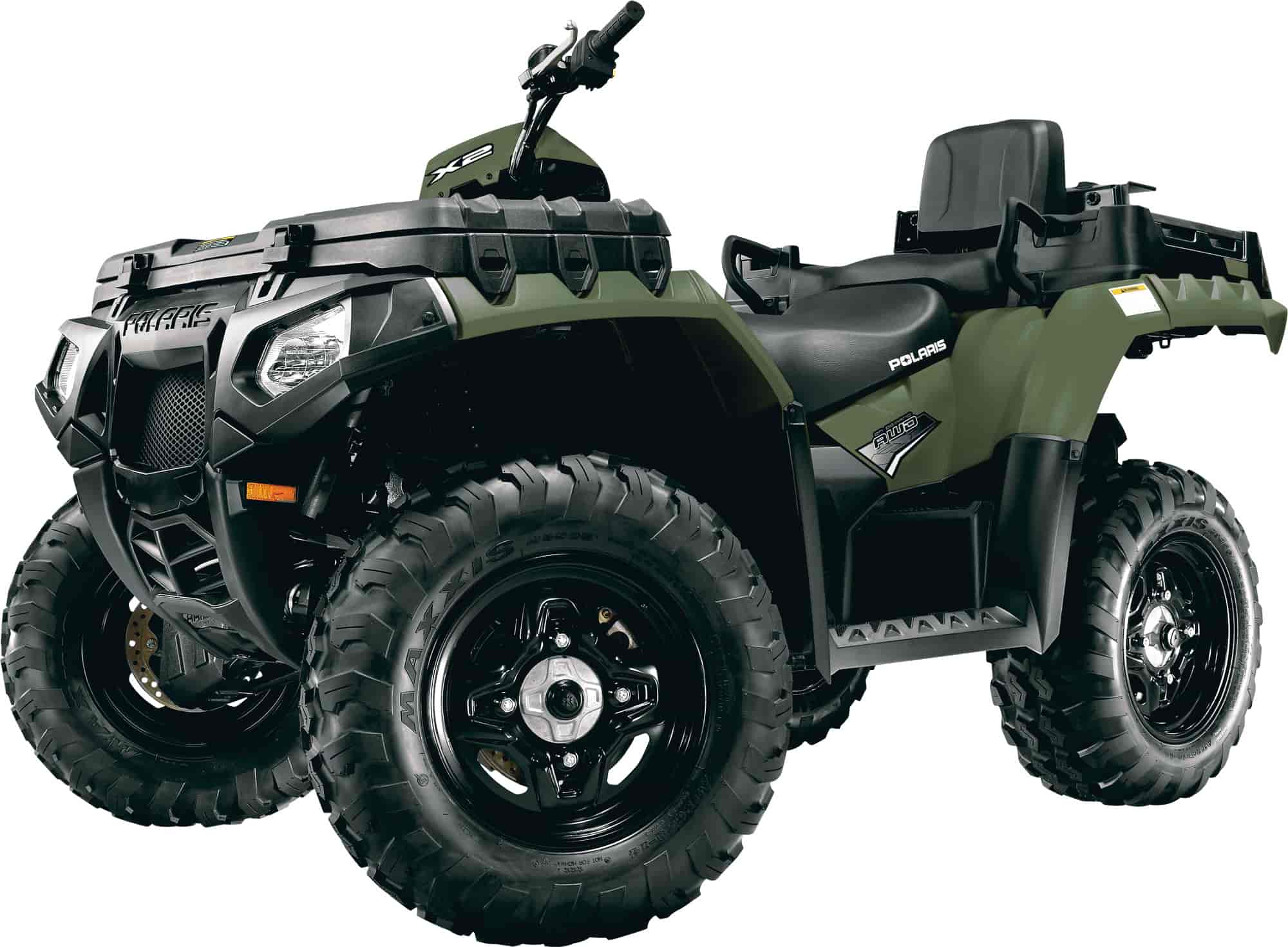

2012 Polaris Sportsman X2 550
2012 Polaris Sportsman X2 550

2012 Polaris Sportsman X2 550
2012 Polaris Sportsman X2 550

2012 Polaris Sportsman X2 550
2012 Polaris Sportsman X2 550


– 2012 Polaris Sportsman X2 550

2012 Polaris Sportsman X2 550 Review

Sportsman® X2 550 – Most Versatile

The 2012 Sportsman® X2 550 switches from work to play in seconds. The rear dump box features a 400 lb. capacity and, in three easy steps, goes from 1-Up work mode to 2-Up play mode in less than 10 seconds. If you’re looking for the most versatile ATV on the market today, this is it.




Highlights

– The 550 engine delivers smooth, efficient power and plenty of it.
– On-Demand True 4-Wheel Drive with VersaTrac Turf Mode.
– Rolled IRS has 10.25” travel, angled shocks for smooth ride.
– Active Descent Control and Engine Braking System.
– Two lights are located in the front bumper and one mounted in the handlebar pod. Maximize your lighting with the ability to have all three on at once for 150 W of power.






Key Features:

1-UP AND 2-UP VERSATILITY IN SECONDS
Switches from work to play in seconds. Rear dump box features a 400-lb. capacity and, in three easy steps, goes from 1-up work mode to 2-up play mode in less than 10 seconds.



ON-DEMAND TRUE ALL WHEEL DRIVE WITH VERSATRAC TURF MODE
True AWD keeps you moving, automatically engaging all four wheels when you need more forward traction and reverting back to 2WD when you don’t. When in 2WD, the VersaTrac Turf Mode switch unlocks the rear differential for easier, tighter turns to minimize damage to sensitive terrain.



UNRIVALED 550 ENGINE
The liquid-cooled, single-cylinder 550 engine delivers smooth, efficient power and plenty of it for working, hunting and trail riding.



ACTIVE DESCENT CONTROL (ADC) AND ENGINE BRAKING SYSTEM (EBS)
Work together to monitor and control downhill braking to give you optimum control and smooth, even deceleration during descents (less than 15 mph).



MAXIMUM POWER AND FUNCTIONALITY
With the power to tow 1,500 lbs. and carry a total of 120 lbs. on the front rack and 400 lbs in the box, plus the ability to accessorize in seconds with the Lock & Ride cargo system.



STANDARD FRONT STORAGE
Huge Front Storage Box With 8.2-Gallon Storage Capacity let’s you pack all your gear for those long rides, and keep it secure and out of the elements.



HIGH CAPACITY, HIGH-MOUNTED RADIATOR
The radiator is raised high to keep it out of the mud. It’s large surface area provides more cooling capacity to your machine. And with removable Lock & Ride® front box, it’s easily accessible and easier to clean.



LEGENDARY SMOOTH ROLLED IRS
Years of innovation and relentless tuning have refined the ride to a level unmatched in the industry. Rolled Independent Rear Suspension (IRS) angles the shocks rearward for 10.25″ of travel leading to a smoother ride and less squat during acceleration.



ANTI-KICKBACK STEERING
Placing the steering axis near the neutral center of the tire and having the long Dual A-Arm 9″ Front Suspension travel dramatically reduces kickback and minimizes rider fatigue that comes with jolts to the handlebars from trail and ground obstacle



PASSENGER SEAT COMFORT
4″ of seat padding, to increase passenger comfort on those long rides.










2012 Polaris Sportsman X2 550 – USA Specifications
US MSRP: $8,999 USD

ENGINES
Engine Type 4-Stroke SOHC Single Cylinder
Displacement 549cc
Fuel System Electronic Fuel Injected
Cooling Liquid

DRIVETRAIN
Transmission/Final Drive Automatic PVT P/R/N/L/H; Shaft
Drive System On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System/ Active Descent Control Standard/Standard

SUSPENSION
Front Suspension Dual A-Arm 9″ (22.9 cm) Travel
Rear Suspension Dual A-Arm, Rolled 10.25″ (26 cm) Travel

BRAKES
Front/Rear Brakes Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake Park in Transmission/Lockable Hand Lever

TIRES/WHEELS
Front Tires / Model 26 x 8-14; Maxxis M9805
Rear Tires / Model 26 x 10-14; Maxxis M9806
Wheels Stamped Steel

DIMENSIONS
Wheelbase 57″ (144.8 cm)
Dry Weight 799 lb (362.3 kg)
Overall Vehicle Size (LxWxH) 93.25 x 47.6 x 49.5″ (236.8 x 120.9 x 125.73 cm)
Ground Clearance 11.25″ (28.5 cm)
Seat Height 35.75″ (90.8 cm)

CAPACITIES
Fuel Capacity 5.25 gal (19.9 L)
Bed Box Dimensions (LxWxH) 37.5″x19.5″x6.5″ (95×49.5×16.5 cm)
Front/Rear Rack Box Capacity 120 lb (55 kg)/400 lb (180 kg)
Hitch Towing Rating 1,500 lb (680.4 kg)
Hitch/Type Standard/1.25″ Receiver

FEATURES
Cargo System Lock & Ride
Lighting Triple 50w High Beam, Dual 50w Low Beam Headlights; Dual Brakelights/Taillights
Instrumentation Analog Speedometer, Digital Odometer, Tachometer, Two Tripmeters, Hour Meter, Clock, Service Indicator, Diagnostic Indicator, Gear Indicator, Fuel Gauge, AWD Indicator, TURF Indicator, Hi-Temp/Low-Batt Lights, DC Outlet






2012 Polaris Sportsman X2 550 – Canadian Specifications
Canadian MSRP: $10,199 CDN

ENGINES
Engine Type 4-Stroke SOHC Single Cylinder
Displacement 549cc
Fuel System Electronic Fuel Injected
Cooling Liquid

DRIVETRAIN
Transmission/Final Drive Automatic PVT P/R/N/L/H; Shaft
Drive System On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System/ Active Descent Control Standard/Standard

SUSPENSION
Front Suspension Dual A-Arm 9″ (22.9 cm) Travel
Rear Suspension Dual A-Arm, Rolled 10.25″ (26 cm) Travel

BRAKES
Front/Rear Brakes Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake Park in Transmission/Lockable Hand Lever

TIRES/WHEELS
Front Tires / Model 26 x 8-14; Maxxis M9805
Rear Tires / Model 26 x 10-14; Maxxis M9806
Wheels Stamped Steel

DIMENSIONS
Wheelbase 57″ (144.8 cm)
Dry Weight 799 lb (362.3 kg)
Overall Vehicle Size (LxWxH) 93.25 x 47.6 x 49.5″ (236.8 x 120.9 x 125.73 cm)
Ground Clearance 11.25″ (28.5 cm)
Seat Height 35.75″ (90.8 cm)

CAPACITIES
Fuel Capacity 5.25 gal (19.9 L)
Bed Box Dimensions (LxWxH) 37.5″x19.5″x6.5″ (95×49.5×16.5 cm)
Front/Rear Rack Box Capacity 120 lb (55 kg)/400 lb (180 kg)
Hitch Towing Rating 1,500 lb (680.4 kg)
Hitch/Type Standard/1.25″ Receiver

FEATURES
Cargo System Lock & Ride
Lighting Triple 50w High Beam, Dual 50w Low Beam Headlights; Dual Brakelights/Taillights
Instrumentation Analog Speedometer, Digital Odometer, Tachometer, Two Tripmeters, Hour Meter, Clock, Service Indicator, Diagnostic Indicator, Gear Indicator, Fuel Gauge, AWD Indicator, TURF Indicator, Hi-Temp/Low-Batt Lights, DC Outlet




Specifications, appearance, and price of product are subject to change without notice.
