2012 Suzuki KingQuad 500AXi Power Steering Camo
Back to 2012 Suzuki ATV Quad Models Index Page

Click photos to enlarge. They make great desktop wallpaper.

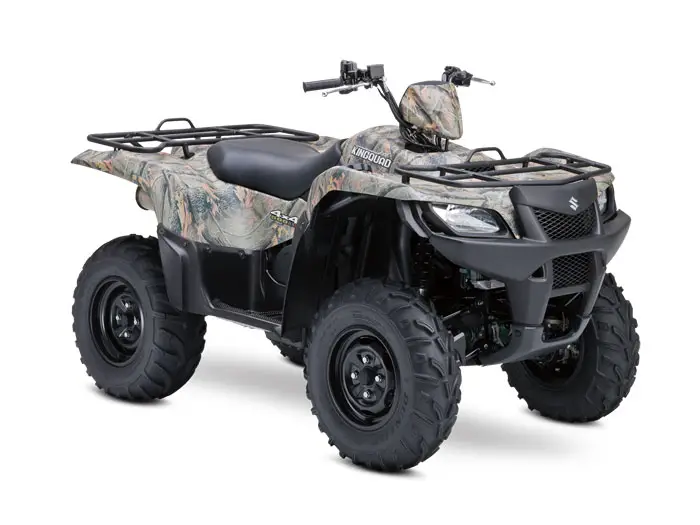

2012 Suzuki KingQuad 500AXi Power Steering Camo
2012 Suzuki KingQuad 500AXi Power Steering Camo

– 2012 Suzuki KingQuad 500AXi Power Steering Camo Review

2012 Suzuki KingQuad 500AXi Power Steering Camo

Boasting the same advanced technology as the extraordinary KingQuad 750AXi, the 2012 Suzuki KingQuad 500AXi Power Steering is engineered to help you cut the work day down to size – or conquer the toughest trails. The 500AXi offers plenty of class-leading features: advanced power steering provides lighter steering and more responsive handling, while its fuel-injected 493cc engine gives the 500AXi exceptional performance. Independent rear suspension, a locking front differential and a host of other valuable features place the KingQuad 500AXi at the front of the pack.



2012 Suzuki KingQuad 500AXi Power Steering Camo Features and Benefits

Tackle the toughest jobs in no time with the power and performance of a Suzuki Utility ATV. Time for a little fun on the job? With adventure-inspiring ergonomics, powerful engines, and suspension that is ready to climb over just about anything, we’ve got you covered there too.

New Features
RealTree Hardwoods HD Enhanced Camo


Key Features
Advanced electric power steering system gives the KingQuad 500 AXi lighter steering and even more responsive handling than ever.

Suzuki fuel injection system, featuring high-performance motorcycle technology, provides excellent throttle response, fuel efficiency and quick engine starts under all operating conditions.


Engine Features
A powerful 493cc, SOHC, single-cylinder, liquid-cooled, four-stroke engine designed for a wide powerband provides strong performance.

Lightweight aluminum cylinder bore is electro-plated with Suzuki’s own race proven SCEM (Suzuki Composite Electrochemical Material) for improved heat transfer and tighter piston clearance.

Uses a cylinder canted forward for lower center of gravity, reduced engine height and lower seat height.

Compact 4-valve cylinder head with large intake valves and straight intake ports for increased cylinder charging efficiency

Sportbike-derived chain-and-gear camshaft drive system allows a short/narrow cylinder head design and reduced overall engine height.

Engine counterbalancer shaft for smooth operation.

High capacity aluminum radiator with large diameter cooling fan for stable engine operating temperature.


Transmission Features
QuadMatic™ CVT-type automatic transmission designed for maximum versatility and convenience – fender-mounted gate-type shifter operation for high/low.

Compact torque-sensing limited-slip front differential offers more powerful traction plus light steering effort. A differential-lock system provides serious four-wheel-drive traction.

Convenient handlebar-mounted push-button controls allow the rider to easily select between 2WD, 4WD and differential-lock 4WD to get the right setting for any traction condition.

Advanced engine brake system minimizes free-wheeling to reduce downhill speed.


Chassis Features
Independent double A-arm front suspension (6.7 inches of wheel travel) includes large diameter shock absorbers with 5-way spring preload adjustment.

Fully independent, I-beam rear suspension with long suspension travel (7.7 inches of wheel travel), includes large diameter shock absorbers with 5-way spring preload adjustment and large diameter rear sway-bar.

Sealed, multi-plate rear brake system, with a clutch-type design provides high durability, offers reduced unsprung weight, and is low-maintenance

25-inch tires mounted on lightweight aluminum-alloy wheels.

Comfortable T-shaped seat with tapered design for rider mobility, plus thick padding for support.

Winch-ready chassis with flexible tube routing for wiring from winch mounting space to under the seat.

Polyethylene skid plate provides front-to-rear under carriage protection with minimal resistance over rocks and rough terrain. Durable plastic guards protect the front and rear half shafts.


Utility/Convenience Features
Digital instrumentation includes LCD readouts for speedometer, odometer, twin tripmeters, hour meter, clock, fuel gauge, driving range position and drive mode. LED indicator lamps for high, low, neutral, reverse and drive — 2WD/4WD and differential-locked 4WD.

LED indicator lamps for fuel injection and engine temperature.

Distinctively-styled 30W multi-reflector halogen headlights, and compact 5/21W tail light and brake light.

High output magneto generator system and large 18-amp maintenance-free battery provides extra power.

Large 4.6 gallon fuel tank, positioned for a low center-of-gravity, includes vacuum-operated petcock, ratchet-style fuel cap and convenient bar-type fuel gauge.

Large 2.8 liter water resistant front storage compartment includes new easy-to-open/close screw-on cap.

Rugged steel-tube racks with wrinkle paint finish for increased durability and scratch resistance


Minimum Age: 16 Years Old.




2012 Suzuki KingQuad 500AXi Power Steering Camo – USA Specifications / Technical Details
US MSRP: $8,499 USD

Overall Length 2115 mm (83.3 in)
Overall Width 1210 mm (47.6 in)
Wheelbase 1285 mm (50.6in)
Ground Clearance 260 mm (10.2 in)
Seat Height 920 mm (36.2 in)
Curb Weight 300 kg (661 lbs)
Transmission CVT (V-belt), with high-/low-range, and reverse
Final Drive Shaft drive
Suspension Front Independent, double wishbone, coil spring, oil damped
Brakes Front Disc brake, twin
Brakes Rear Sealed oil-bathed multi-disc
Tires Front AT25 x 8-12, tubeless
Tires Rear AT25 x 10-12, tubeless
Fuel Tank Capacity 17.5 L (4.6/3.8 US/Imp gal)
Color Realtree Hardwoods HD Enhanced camouflage
Suspension Rear Independent, double wishbone, coil spring, oil damped

Bore Stroke 87.5 mm x 82.0 mm (3.228 in)
Displacement 493cc, 4-Stroke, liquid-cooled, singe cylinder, OHC
Compression Ratio 10.0 : 1
Starter Electric
Lubrication Wet Sump
Ignition Electronic ignition (CDI)
Fuel System Suzuki fuel injection

Warranty 12 month limited warranty.


2012 Suzuki KingQuad 500AXi Power Steering Camo – Canada Specifications / Technical Details
Canadian MSRP: $NA

Model not available in Canada



2012 Suzuki KingQuad 500AXi Power Steering Camo – Australian Specifications / Technical Details
AU MSRP: See dealer for pricing.

Model not available in Australia

Specifications, appearance, and price of product are subject to change without notice.
