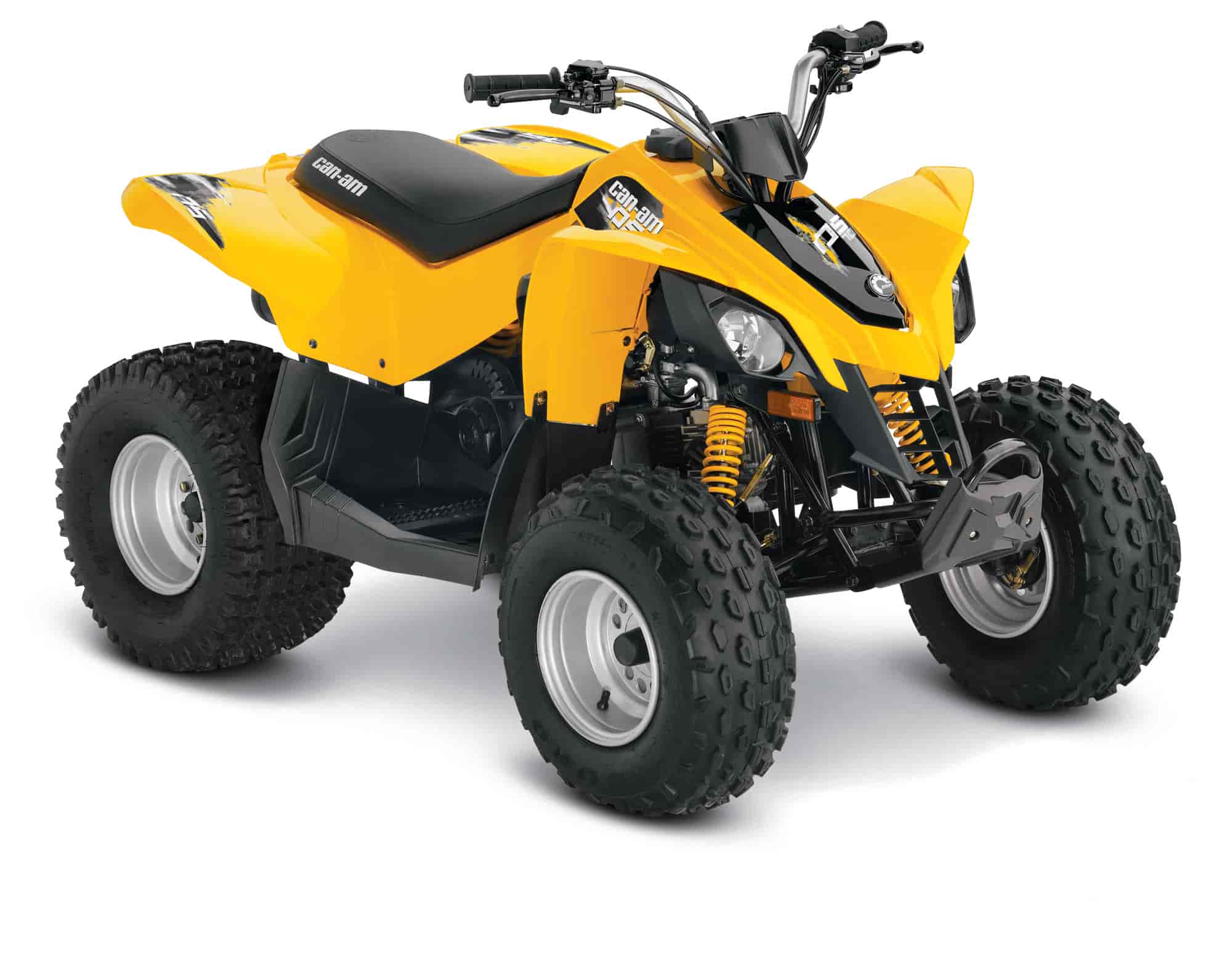

2013 Can-Am DS 70
– 2013 Can-Am DS 70 Review
2013 Can-Am DS 70
Your children’s fun won’t be compromised – and neither will your standards.
An ATV for riders age 14 and up, the DS 70 sports an energetic 250cc liquid-cooled engine with a Continuously Variable Transmission (CVT). It offers added control in hydraulic front and rear disc brakes. The DS 70 will give promising riders a chance to show even more of their stuff. All they need to do is ride it.
The Can-Am DS 90 (ages 10+) and the DS 70 (ages 6+) keep kids from worrying about shifting gears or getting off the vehicle to go in reverse because the CVT transmission is a forward-neutral-reverse design. And long travel suspension makes for a smoother ride. Your children’s fun won’t be compromised – and neither will your standards.
2013 Can-Am DS 70 Key Features
Built-in throttle limiter
Continuously Variable Transmission (CVT) with forward / neutral / reverse
Day lights
Electric start
Full floorboards
Key-operated ignition switch
Long travel suspension
2013 Can-Am DS 70 Features and Benefits
Continuously Variable Transmission (CVT) with forward / neutral / reverse – Continuously Variable Transmission means the DS is always in the right gear.
69cc 4-stroke engine – 69 cc 4-stroke engine certified CARB “Green Label”.
Electric start – Push-button electric start for added convenience
Long travel suspension – Smooth ride and more control in the bumps.
0.7 US gal (2.7 l) storage compartment – Front storage compartment that makes it easy to bring along what you need or take home what you find.
Built-in throttle limiter – Built-in throttle limiter so the parents stay in control.
Day lights – Day lights add visibility and looks of a full-size ATV.
Key-operated ignition switch
Full floorboards
Ensures secure footing and protection from debris, bumps and rocks.
2013 Can-Am DS 70 – United States of America Specifications / Technical Details
USA MSRP: $2,199.00 USD
ENGINE
Type
69cc, single, air-cooled, SOHC, 2-valve
Bore & Stroke
47 x 40 mm
EFI System/Carburetor
Carburetion, Keihin?
Starting System
Electric & kick start
Transmission
Automatic CVT w/forward, neutral & reverse
Drive Train
Chain driven/solid axle
CHASSIS
Frame
DS 70
Front Suspension Type/Shocks
Independent A-arm
Front Suspension Travel
3.4 in (86 mm)
Rear Suspension Type/Shocks
Swingarm
Rear Suspension Travel
6.3 in (160 mm)
Front Brake
Double drum
Rear Brake
Drum
Tires/Front
19 x 7 x 8 in (483 x 178 x 203 mm)
Tires/Rear
18 x 9.5 x 8 in (457 x 241 x 203 mm)
Wheels
Steel
DIMENSIONS
L x W x H (in)
59.8 x 35.6 x 36.8 in
L x W x H (mm)
1,520 x 905 x 935 mm
Wheelbase
39 in (1,000 mm)
Seat Height
27 in (685 mm)
Ground Clearance
8.3 in under frame/4.5 in under rear axle
Dry Weight
245 lb (111 kg)
Storage
Front storage 0.7 US gal. (2.7L)
Fuel Capacity
1.6 US gal. (6L)
FEATURES
Color(s) Available
Yellow
Instrumentation
Reverse, neutral
Lighting
Day lights
DC Outlet
N/A
Warranty
Basic
6 months limited factory warranty
Package
” Built-in throttle limiter
” Continuously Variable Transmission (CVT) with forward / neutral / reverse
” Day lights
” Electric start
” Full floorboards
” Key-operated ignition switch
” Long travel suspension
2013 Can-Am DS 70 – Canada Specifications / Technical Details
Canadian MSRP: $2,449.00 CDN
ENGINE
Type
69cc, single, air-cooled, SOHC, 2-valve
Bore & Stroke
47 x 40 mm
EFI System/Carburetor
Carburetion, Keihin?
Starting System
Electric & kick start
Transmission
Automatic CVT w/forward, neutral & reverse
Drive Train
Chain driven/solid axle
CHASSIS
Frame
DS 70
Front Suspension Type/Shocks
Independent A-arm
Front Suspension Travel
3.4 in (86 mm)
Rear Suspension Type/Shocks
Swingarm
Rear Suspension Travel
6.3 in (160 mm)
Front Brake
Double drum
Rear Brake
Drum
Tires/Front
19 x 7 x 8 in (483 x 178 x 203 mm)
Tires/Rear
18 x 9.5 x 8 in (457 x 241 x 203 mm)
Wheels
Steel
DIMENSIONS
L x W x H (in)
59.8 x 35.6 x 36.8 in
L x W x H (mm)
1,520 x 905 x 935 mm
Wheelbase
39 in (1,000 mm)
Seat Height
27 in (685 mm)
Ground Clearance
8.3 in under frame/4.5 in under rear axle
Dry Weight
245 lb (111 kg)
Storage
Front storage 0.7 US gal. (2.7L)
Fuel Capacity
1.6 US gal. (6L)
FEATURES
Color(s) Available
Yellow
Instrumentation
Reverse, neutral
Lighting
Day lights
DC Outlet
N/A
Warranty
Basic
6 months limited factory warranty
Package
” Built-in throttle limiter
” Continuously Variable Transmission (CVT) with forward / neutral / reverse
” Day lights
” Electric start
” Full floorboards
” Key-operated ignition switch
” Long travel suspension
Specifications, appearance, and price of product are subject to change without notice.
