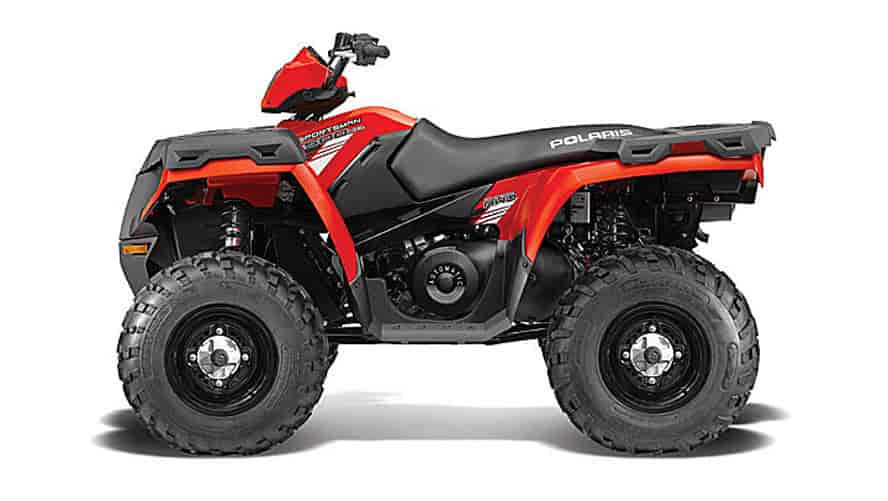

2013 Polaris Sportsman 500 HO Indy Red
2013 Polaris Sportsman 500 HO Indy Red
– 2013 Polaris Sportsman 500 HO Indy Red Review
2013 Polaris Sportsman 500 HO Indy Red
Beefy 800 EFI Power – The proven, big-bore 800 twin-cylinder engine gets the job done with 54 HP, and features EFI for fast, reliable starting in any temperature, plus automatic adjustments for altitude.
•Integrated front storage box has 6.5 gal. volume
•On-demand true AWD maximizes traction
•A full 11.25” of boulder-avoiding ground clearance
2013 Polaris Sportsman 500 HO Indy Red Key Features
•Hydraulic Disc Brakes All Around, With Braided Stainless-Steel Brake Lines
•Ten-Gauge Steel Skid Plates
•Single-Lever Braking
•50W Halogen – Handlebar mounted high beam light
2013 Polaris Sportsman 500 HO Indy Red Features and Benefits
Hardest Working
SPORTSMAN 500 H.O. BEST-SELLING AUTOMATIC 4X4 ATV* – With its legendary smooth Sportsman ride and long list of distinctive Polaris features, the Sportsman 500 H.O. is a great value. No wonder it’s still the best-selling automatic 4×4 ATV of all time.
ON-DEMAND TRUE ALL-WHEEL DRIVE (AWD) – True AWD keeps you moving, automatically engaging all four wheels when you need more forward traction and reverting back to 2WD when you don’t. Other ATVs use a limited-slip differential, engaging only three wheels.
AGGRESSIVE DESIGN WITH LOCK & RIDE – A new, more aggressive body style gives the Sportsman an intimidating look and clear sight lines for the driver. Integrated front stroage and Lock & Ride compatiable rear rack make it easy to carry gear.
INTEGRATED FRONT STORAGE – The most integrated storage of any ATV. The 6.5 gallon capacity lets you stow-away loads of gear and still have access to it, even with items tied to the deck.
RAISED RADIATOR PLACEMENT – Radiator is mounted 3″ higher in the chassis an angled rearward to keep it out of mud and you on the trail longer.
Big Towing Power – The Sportsman lives up to its Hard Working reputation with a 1,225 lb. towing capacity, so you can tow trailers loaded with material and equipment.
Smoothest Riding
HIGH GROUND CLEARANCE – A full 11.25″ of obstacle-clearing ground clearance lets you tackle some of the tougher terrain that comes your way.
LEGENDARY SMOOTH INDEPENDENT REAR SUSPENSION (IRS) – The Sportsman was the world’s first ATV with IRS, a feature that made it as popular as it is today. Its rock-solid design has 9.5″ of travel to minimize body roll and keep the ride smooth.
2013 Polaris Sportsman 500 HO Indy Red – United States of America Specifications / Technical Details
USA MSRP: $6,199 USD
Engine
Engine Type4-Stroke Single Cylinder
Displacement498cc High Output (H.O.)
Fuel SystemCarbureted
CoolingLiquid
Drivetrain
Transmission/Final DriveAutomatic PVT P/R/N/L/H; Shaft
Drive SystemOn-Demand True AWD/2WD
Engine Braking System / Active Descent ControlAccessory/N.A..
Suspension
Front SuspensionMacPherson Strut With 8.2″ (20.8 cm) Travel
Rear SuspensionDual A-Arm, IRS 9.5″ (24.1 cm) Travel
Brakes
Front/Rear BrakesSingle Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking BrakePark in Transmission/Lockable Hand Lever
Tires / Wheels
Front Tires25 x 8-12; 489
Rear Tires25 x 10-12; 489
WheelsStamped Steel
Dimensions / Capacities
Wheelbase50.5″ (128.3 cm)
Dry Weight696 lb (316 kg)
Overall Vehicle Size (L x W x H)83 x 48 x 48″ (210.8 x 121.9 x 121.9 cm)
Ground Clearance11.25″ (28.6 cm)
Seat Height33.75″ (85.7 cm)
Fuel Capacity4.1 gal (15.5 L)
Bed Box Dimensions (L x W x H)N.A.
Front/Rear Rack or Box Capacity90 lb(40.8 kg)/180 lb(81.6 kg)
Payload Capacity450 lb.(w/ 180 lb. person) / (204kg w/81.6kg person)
Hitch Towing Rating1,225 lb (555.7 kg)
Unbraked Trailer Towing Capacity1,786 lb (810.1 kg)
Hitch/TypeStandard/1.25″ Receiver
Features
Cargo SystemLock & Ride
LightingDual 50w Low Beam Bumper Lights, Single 50w High Beam Pod Light; Dual Brakelights/Taillights
Electronic Power SteeringNot Equipped
InstrumentationDigital Gauge, Analog Speedometer, Odometer, Tachometer, Tripmeter, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet
2013 Polaris Sportsman 500 HO Indy Red – Canada Specifications / Technical Details
Canadian MSRP: $6,999 CDN
Engine
Engine Type4-Stroke Single Cylinder
Displacement498cc High Output (H.O.)
Fuel SystemCarbureted
CoolingLiquid
Drivetrain
Transmission/Final DriveAutomatic PVT P/R/N/L/H; Shaft
Drive SystemOn-Demand True AWD/2WD
Engine Braking System / Active Descent ControlAccessory/N.A..
Suspension
Front SuspensionMacPherson Strut With 8.2″ (20.8 cm) Travel
Rear SuspensionDual A-Arm, IRS 9.5″ (24.1 cm) Travel
Brakes
Front/Rear BrakesSingle Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking BrakePark in Transmission/Lockable Hand Lever
Tires / Wheels
Front Tires25 x 8-12; 489
Rear Tires25 x 10-12; 489
WheelsStamped Steel
Dimensions / Capacities
Wheelbase50.5″ (128.3 cm)
Dry Weight696 lb (316 kg)
Overall Vehicle Size (L x W x H)83 x 48 x 48″ (210.8 x 121.9 x 121.9 cm)
Ground Clearance11.25″ (28.6 cm)
Seat Height33.75″ (85.7 cm)
Fuel Capacity4.1 gal (15.5 L)
Bed Box Dimensions (L x W x H)N.A.
Front/Rear Rack or Box Capacity90 lb(40.8 kg)/180 lb(81.6 kg)
Payload Capacity450 lb.(w/ 180 lb. person) / (204kg w/81.6kg person)
Hitch Towing Rating1,225 lb (555.7 kg)
Unbraked Trailer Towing Capacity1,786 lb (810.1 kg)
Hitch/TypeStandard/1.25″ Receiver
Features
Cargo SystemLock & Ride
LightingDual 50w Low Beam Bumper Lights, Single 50w High Beam Pod Light; Dual Brakelights/Taillights
Electronic Power SteeringNot Equipped
InstrumentationDigital Gauge, Analog Speedometer, Odometer, Tachometer, Tripmeter, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet
Specifications, appearance, and price of product are subject to change without notice.
