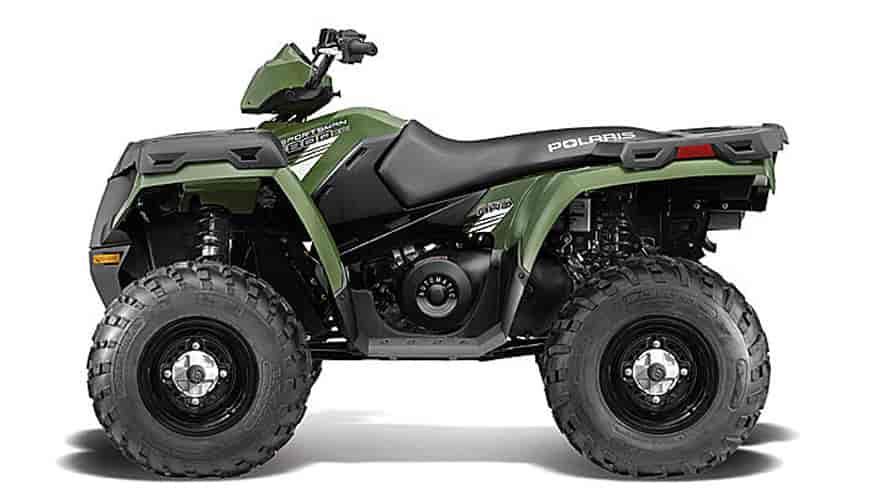

2013 Polaris Sportsman 800 EFI Sage Green
2013 Polaris Sportsman 800 EFI Sage Green
– 2013 Polaris Sportsman 800 EFI Sage Green Review
2013 Polaris Sportsman 800 EFI Sage Green
Beefy 800 EFI Power – The proven, big-bore 800 twin-cylinder engine gets the job done with 54 HP, and features EFI for fast, reliable starting in any temperature, plus automatic adjustments for altitude.
•Big-bore 800 twin-cylinder engine with 54 HP
•Integrated front storage box has 6.5 gal. volume
•Big 1,500 towing capacity moves gear & equipment
2013 Polaris Sportsman 800 EFI Sage Green Key Features
•Hydraulic Disc Brakes All Around, With Braided Stainless-Steel Brake Lines
•Ten-Gauge Steel Skid Plates
•Single-Lever Braking
•50W Halogen – Handlebar mounted high beam light
2013 Polaris Sportsman 800 EFI Sage Green Features and Benefits
Hardest Working
Beefy 800 EFI Power – The proven, big-bore 800 twin-cylinder engine gets the job done with 54 HP, and features EFI for fast, reliable starting in any temperature, plus automatic adjustments for altitude.
ON-DEMAND TRUE ALL-WHEEL DRIVE (AWD) – True AWD keeps you moving, automatically engaging all four wheels when you need more forward traction and reverting back to 2WD when you don’t. Other ATVs use a limited-slip differential, engaging only three wheels.
GREAT HANDLING – Engine placement more rearward for lighter steering effort and improved handling, letting you tackle the trail or chore you of your choice.
Impressive Towing Capacity – A big 1,500 lb. towing capacity gives you the power to move all the gear, equipment and material you need out to the job site or hunt camp.
RAISED RADIATOR PLACEMENT – Radiator is mounted 3″ higher in the chassis an angled rearward to keep it out of mud and you on the trail longer.
AGGRESSIVE DESIGN WITH LOCK & RIDE – A new, more aggressive body style gives the Sportsman an intimidating look and clear sight lines for the driver. Integrated front stroage and Lock & Ride compatiable rear rack make it easy to carry gear.
NEW! INTEGRATED FRONT STORAGE – The most integrated storage of any ATV. The 6.5 gallon capacity lets you stow-away loads of gear and still have access to it, even with items tied to the deck.
Smoothest Riding
LEGENDARY SMOOTH INDEPENDENT REAR SUSPENSION (IRS) – The Sportsman was the world’s first ATV with IRS, a feature that made it as popular as it is today. Its rock-solid design has 9.5″ of travel to minimize body roll and keep the ride smooth.
HIGH GROUND CLEARANCE – A full 11.25″ of obstacle-clearing ground clearance lets you tackle some of the tougher terrain that comes your way.
2013 Polaris Sportsman 800 EFI Sage Green – United States of America Specifications / Technical Details
USA MSRP: $7,499 USD
Engine
Engine Type4-Stroke Twin Cylinder
Displacement760cc
Fuel SystemElectronic Fuel Injected
CoolingLiquid
Drivetrain
Transmission/Final DriveAutomatic PVT P/R/N/L/H; Shaft
Drive SystemOn-Demand True AWD/2WD
Engine Braking System / Active Descent ControlAccessory/N.A..
Suspension
Front SuspensionMacPherson Strut With 8.2″ (20.8 cm) Travel
Rear SuspensionDual A-Arm, IRS 9.5″ (24.1 cm) Travel
Brakes
Front/Rear BrakesSingle Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking BrakePark in Transmission/Lockable Hand Lever
Tires / Wheels
Front Tires25 x 8-12; K590
Rear Tires25 x 11-12; K590
WheelsStamped Steel
Dimensions / Capacities
Wheelbase50.5″ (128.9 cm)
Dry Weight741 lb (336 kg)
Overall Vehicle Size (L x W x H)83 x 48 x 48″ (210.8 x 121.9 x 121.9 cm)
Ground Clearance11.25″ (28.6 cm)
Seat Height33.75″ (85.7 cm)
Fuel Capacity4.1 gal (15.5 L)
Bed Box Dimensions (L x W x H)N.A.
Front/Rear Rack or Box Capacity100 lb (45.4 kg)/200 lb (90.7 kg)
Payload Capacity480 lb (w/180 lb person) / 217.7 kgw/81.6 kg person)
Hitch Towing Rating1,500 lb (680.4 kg)
Unbraked Trailer Towing Capacity1,914 lb (868.2 kg)
Hitch/TypeStandard/1.25″ Receiver
Features
Cargo SystemLock & Ride
LightingDual 50w Low Beam Bumper Lights, Single 50w High Beam Pod Light; Dual Brakelights/Taillights
Electronic Power SteeringNot Equipped
InstrumentationDigital Gauge, Analog Speedometer, Odometer, Tachometer, Tripmeter, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet
2013 Polaris Sportsman 800 EFI Sage Green – Canada Specifications / Technical Details
Canadian MSRP: $8,499 CDN
Engine
Engine Type4-Stroke Twin Cylinder
Displacement760cc
Fuel SystemElectronic Fuel Injected
CoolingLiquid
Drivetrain
Transmission/Final DriveAutomatic PVT P/R/N/L/H; Shaft
Drive SystemOn-Demand True AWD/2WD
Engine Braking System / Active Descent ControlAccessory/N.A..
Suspension
Front SuspensionMacPherson Strut With 8.2″ (20.8 cm) Travel
Rear SuspensionDual A-Arm, IRS 9.5″ (24.1 cm) Travel
Brakes
Front/Rear BrakesSingle Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking BrakePark in Transmission/Lockable Hand Lever
Tires / Wheels
Front Tires25 x 8-12; K590
Rear Tires25 x 11-12; K590
WheelsStamped Steel
Dimensions / Capacities
Wheelbase50.5″ (128.9 cm)
Dry Weight741 lb (336 kg)
Overall Vehicle Size (L x W x H)83 x 48 x 48″ (210.8 x 121.9 x 121.9 cm)
Ground Clearance11.25″ (28.6 cm)
Seat Height33.75″ (85.7 cm)
Fuel Capacity4.1 gal (15.5 L)
Bed Box Dimensions (L x W x H)N.A.
Front/Rear Rack or Box Capacity100 lb (45.4 kg)/200 lb (90.7 kg)
Payload Capacity480 lb (w/180 lb person) / 217.7 kgw/81.6 kg person)
Hitch Towing Rating1,500 lb (680.4 kg)
Unbraked Trailer Towing Capacity1,914 lb (868.2 kg)
Hitch/TypeStandard/1.25″ Receiver
Features
Cargo SystemLock & Ride
LightingDual 50w Low Beam Bumper Lights, Single 50w High Beam Pod Light; Dual Brakelights/Taillights
Electronic Power SteeringNot Equipped
InstrumentationDigital Gauge, Analog Speedometer, Odometer, Tachometer, Tripmeter, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet
Specifications, appearance, and price of product are subject to change without notice.
