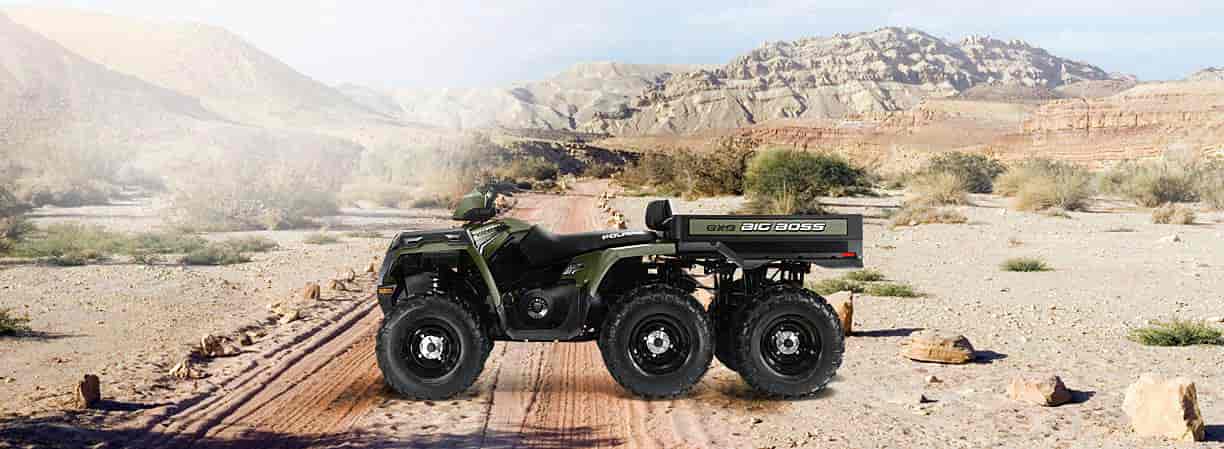

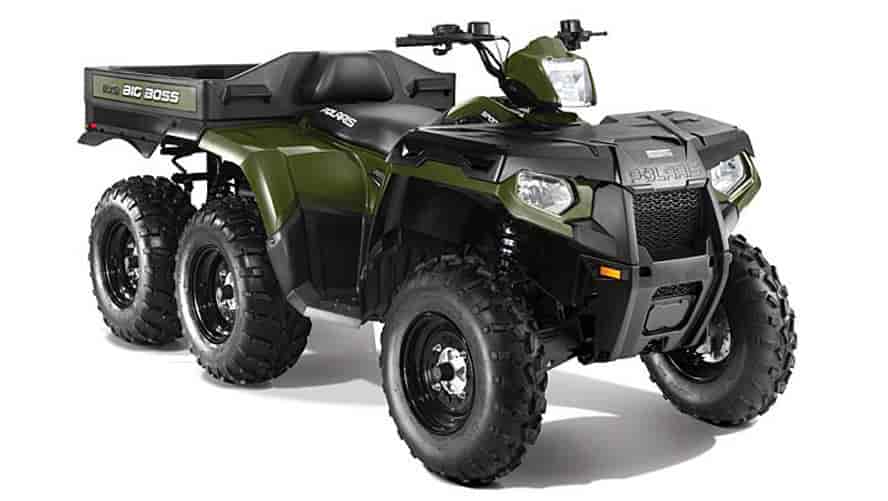

2013 Polaris Sportsman Big Boss 6×6 800 Sage Green
2013 Polaris Sportsman Big Boss 6×6 800 Sage Green
2013 Polaris Sportsman Big Boss 6×6 800 Sage Green
– 2013 Polaris Sportsman Big Boss 6×6 800 Sage Green Review
2013 Polaris Sportsman Big Boss 6×6 800 Sage Green
True AWD keeps you moving, automatically engaging all size wheels when you need more forward traction and reverting back to the rear four wheels when you don’t. Six beefy drive shafts deliver consistent power to all six wheels…
•Integrated front storage box has 6.5 gal. volume
•Large rear box hauls and dumps up to 800 lbs. of material
•6-wheel independent suspension maximizes traction
2013 Polaris Sportsman Big Boss 6×6 800 Sage Green Key Features
•Hydraulic Disc Brakes on Six Wheels
•50W Halogen – Handlebar mounted high beam light
2013 Polaris Sportsman Big Boss 6×6 800 Sage Green Features and Benefits
Hardest Working
ON-DEMAND TRUE SIX-WHEEL DRIVE – True AWD keeps you moving, automatically engaging all size wheels when you need more forward traction and reverting back to the rear four wheels when you don’t. Six beefy drive shafts deliver consistent power to all six wheels.

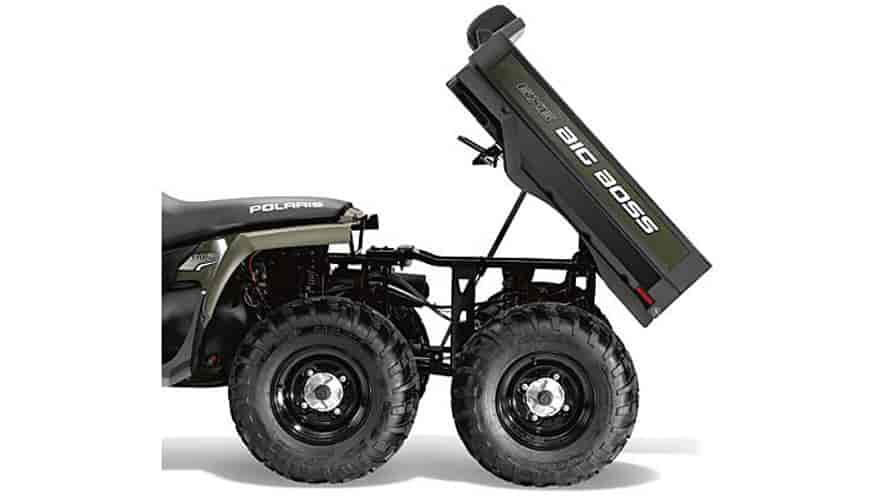

HAUL AND DUMP UP TO 800 LBS. – Large rear box moves and dumps up to 800 lbs. of equipment or material, so you can get big jobs done faster and easier.
Impressive Towing Capacity – A big 1,500 lb. towing capacity gives you the power to move all the gear, equipment and material you need out to the job site.
Beefy 800 EFI Power – The proven, big-bore 800 twin-cylinder engine gets the job done with 50 HP, and features EFI for fast, reliable starting in any temperature, plus automatic adjustments for altitude.
AGGRESSIVE DESIGN WITH LOCK & RIDE – A new, more aggressive body style gives the Sportsman an intimidating look and clear sight lines for the driver. Integrated front stroage and Lock & Ride compatiable rear rack make it easy to carry gear.
RAISED RADIATOR PLACEMENT – Radiator is mounted 3″ higher in the chassis an angled rearward to keep it out of mud and you on the trail longer.
NEW! INTEGRATED FRONT STORAGE – The most integrated storage of any ATV. The 6.5 gallon capacity lets you stow-away loads of gear and still have access to it, even with items tied to the deck.
Smoothest Riding
SIX-WHEEL INDEPENDENT SUSPENSION – All wheels articulate independently of one another for maximum traction in changing terrain, with long suspension travel (6.1″).
Unmatched Loaded Ground Clearance – A full 10.5” of ground clearance helps keep the ride smooth, clearing obstacles and reducing high-centering on rough terrain, even when hauling heavy loads.
Engine Braking System (EBS) and Active Descent Control (ADC) – Our Engine Braking System (EBS) and Active Descent Control (ADC) work together to monitor and control downhill braking, optimizing control and delivering smooth, even deceleration during descents less than 15 mph.
2013 Polaris Sportsman Big Boss 6×6 800 Sage Green – United States of America Specifications / Technical Details
USA MSRP: $9,999 USD
Engine
Engine Type4-Stroke Twin Cylinder
Displacement760cc
Fuel SystemElectronic Fuel Injected
CoolingLiquid
Drivetrain
Transmission/Final DriveAutomatic PVT P/R/N/L/H; Shaft
Drive SystemOn-Demand True 6WD/Rear 4WD
Engine Braking System / Active Descent ControlStandard/Standard
Suspension
Front SuspensionMacPherson Strut With 8.2″ (20.8 cm) Travel
Rear SuspensionDual A-Arm, IRS 6.12″ (15.5 cm) Travel
Brakes
Front/Rear BrakesSingle Lever Hydraulic Disc Brake / Single Lever Hydraulic Rear Brake
Parking BrakePark in Transmission/Lockable Hand Lever
Tires / Wheels
Front Tires25 x 8-12; K590
Rear Tires25 x 11-12; K590
WheelsStamped Steel
Dimensions / Capacities
Wheelbase79.5″ (201.9 cm)
Dry Weight1,060 lb (480.8 kg)
Overall Vehicle Size (L x W x H)112 x 48 x 48″ (284.5 x 121.9 x 121.9 cm)
Ground Clearance10.5″ (26.7 cm)
Seat Height33.75″ (85.7 cm)
Fuel Capacity4.1 gal (15.5 L)
Bed Box Dimensions (L x W x H)38″L x 39″W x 8″H (96.5L x 99.1W x 20.3H cm)
Front/Rear Rack or Box Capacity100 lb (45.4 kg)/800 lb (362.8 kg)
Payload Capacity1080lb (w/ 180lb person) (489.9kg w/81.6kg person)
Hitch Towing Rating1,500 lb (680.4 kg)
Unbraked Trailer Towing Capacity2,127 lb (964.8 kg)
Hitch/TypeStandard/1.25″ Receiver
Features
Cargo SystemLock & Ride
LightingDual 50w Low Beam Bumper Lights, Single 50w High Beam Pod Light; Dual Brakelights/Taillights
Electronic Power SteeringNot Equipped
InstrumentationDigital Gauge, Analog Speedometer, Odometer, Tachometer, Tripmeter, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet
2013 Polaris Sportsman Big Boss 6×6 800 Sage Green – Canada Specifications / Technical Details
Canadian MSRP: $11,399 CDN
Engine
Engine Type4-Stroke Twin Cylinder
Displacement760cc
Fuel SystemElectronic Fuel Injected
CoolingLiquid
Drivetrain
Transmission/Final DriveAutomatic PVT P/R/N/L/H; Shaft
Drive SystemOn-Demand True 6WD/Rear 4WD
Engine Braking System / Active Descent ControlStandard/Standard
Suspension
Front SuspensionMacPherson Strut With 8.2″ (20.8 cm) Travel
Rear SuspensionDual A-Arm, IRS 6.12″ (15.5 cm) Travel
Brakes
Front/Rear BrakesSingle Lever Hydraulic Disc Brake / Single Lever Hydraulic Rear Brake
Parking BrakePark in Transmission/Lockable Hand Lever
Tires / Wheels
Front Tires25 x 8-12; K590
Rear Tires25 x 11-12; K590
WheelsStamped Steel
Dimensions / Capacities
Wheelbase79.5″ (201.9 cm)
Dry Weight1,060 lb (480.8 kg)
Overall Vehicle Size (L x W x H)112 x 48 x 48″ (284.5 x 121.9 x 121.9 cm)
Ground Clearance10.5″ (26.7 cm)
Seat Height33.75″ (85.7 cm)
Fuel Capacity4.1 gal (15.5 L)
Bed Box Dimensions (L x W x H)38″L x 39″W x 8″H (96.5L x 99.1W x 20.3H cm)
Front/Rear Rack or Box Capacity100 lb (45.4 kg)/800 lb (362.8 kg)
Payload Capacity1080lb (w/ 180lb person) (489.9kg w/81.6kg person)
Hitch Towing Rating1,500 lb (680.4 kg)
Unbraked Trailer Towing Capacity2,127 lb (964.8 kg)
Hitch/TypeStandard/1.25″ Receiver
Features
Cargo SystemLock & Ride
LightingDual 50w Low Beam Bumper Lights, Single 50w High Beam Pod Light; Dual Brakelights/Taillights
Electronic Power SteeringNot Equipped
InstrumentationDigital Gauge, Analog Speedometer, Odometer, Tachometer, Tripmeter, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet
Specifications, appearance, and price of product are subject to change without notice.
