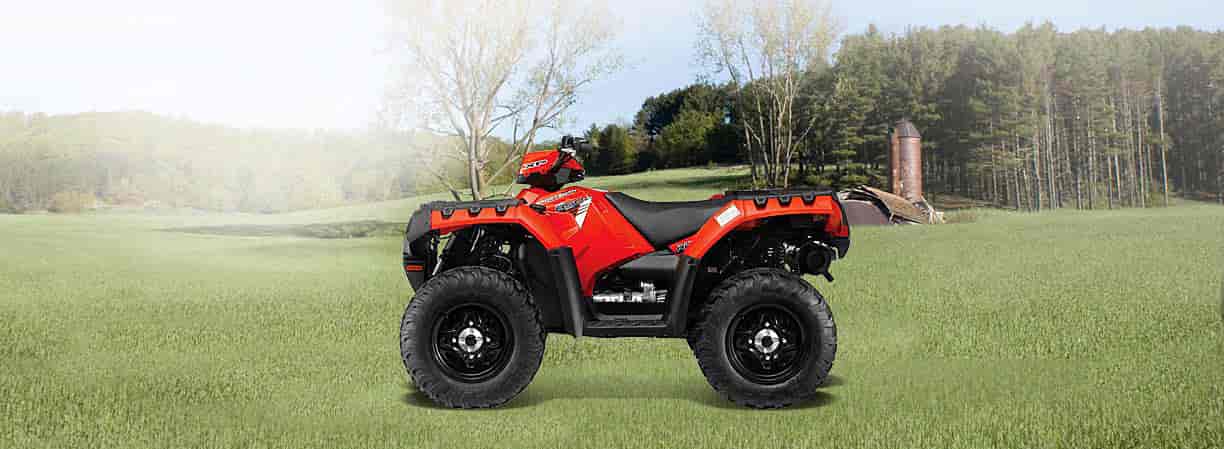

2013 Polaris Sportsman XP850 HO Indy Red
2013 Polaris Sportsman XP850 HO Indy Red

2013 Polaris Sportsman XP850 HO Indy Red
2013 Polaris Sportsman XP850 HO Indy Red


– 2013 Polaris Sportsman XP850 HO Indy Red Review

2013 Polaris Sportsman XP850 HO Indy Red

Class-Leading 12″ Ground Clearance – With 12″ of ground clearance, clear bigger rocks, navigate deeper ruts, and go where other ATVs can’t.

•Powerful 850 EFI high output engine

•Class-leading 12″ ground clearance

•Active descent control and engine braking system






2013 Polaris Sportsman XP850 HO Indy Red Key Features

•The radiator is raised high to keep it out of the mud. It’s large surface area provides more cooling capacity to your machine. And with removable Lock & Ride® front rack, it’s easily accessible and easier to clean.

•Premium Maxxis tires feature durable construction and a tire-cleaning pattern that maximizes traction in mud and on loose terrain.

•Two lights are located in the front bumper and one mounted in the handlebar pod. Maximize your lighting with the ability to have all three on at once for 150 W of power.







2013 Polaris Sportsman XP850 HO Indy Red Features and Benefits

Hardest Working

Powerful 850 EFI High Output Engine – The High-Output 850 Twin EFI engine with a SOHC cranks out 77 HP. It delivers outstanding acceleration off the line with incredible power to the ground. Add-in a clean fuel burn and smooth power delivery with dual-balanced shafts and you’ve got the power you’re looking for to trail ride and hunt.

ON-DEMAND TRUE ALL WHEEL DRIVE (AWD) – Still the best automatic 4×4 system out there, the AWD engages all four tires when the rear wheels slip and you need more forward traction. Reverts back to 2WD when you don’t.

ACTIVE DESCENT CONTROL (ADC) AND ENGINE BRAKING SYSTEM (EBS) – Work together to monitor and control downhill braking to give you optimum control and smooth, even deceleration during descents (less than 15 mph).

MAXIMUM POWER AND FUNCTIONALITY – With the power to tow 1,500 lbs. and carry a total of 360 lbs. on racks, plus the ability to accessorize in seconds with the Lock & Ride cargo system.

HUGE RACK CAPACITY – Lock & Ride front and rear racks can carry an industry-leading combined 360 lbs and boast 100 tie-down points on strong, rust-free composite racks. Letting you carry all of your gear securely and easily.



Smoothest Riding

ERGONOMICS FOR YOUR COMFORT – With the engine rotated 90 degrees, riders enjoy 33% wider floorboards and narrow vehicle width at the knees and ankles. The narrower seat reduces leg fatigue and increases rider comfort.

Class-Leading 12″ Ground Clearance – With 12″ of ground clearance, clear bigger rocks, navigate deeper ruts, and go where other ATVs can’t.

ANTI-KICKBACK STEERING – Placing the steering axis near the neutral center of the tire and having the long Dual A-Arm Front Suspension dramatically reduces kickback and minimizes rider fatigue that comes with jolts to the handlebars from trail and ground obstacles.

LEGENDARY SMOOTH ROLLED IRS – Years of innovation and relentless tuning have refined the ride to a level unmatched in the industry. Rolled Independent Rear Suspension (IRS) angles the shocks rearward for 10.25″ of travel leading to a smoother ride and less squat during acceleration.








2013 Polaris Sportsman XP850 HO Indy Red – United States of America Specifications / Technical Details
USA MSRP: $8,799 USD

Engine

Engine Type4-Stroke SOHC Twin Cylinder
Displacement850cc High Output (H.O)
Fuel SystemElectronic Fuel Injected
CoolingLiquid

Drivetrain

Transmission/Final DriveAutomatic PVT P/R/N/L/H; Shaft
Drive SystemOn-Demand True AWD/2WD
Engine Braking System / Active Descent ControlStandard/Standard

Suspension

Front SuspensionDual A-Arm 9″ (22.9 cm) Travel
Rear SuspensionDual A-Arm, Rolled 10.25″ (26 cm) Travel

Brakes

Front/Rear BrakesSingle Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking BrakePark in Transmission/Lockable Hand Lever

Tires / Wheels

Front Tires26 x 8-14; Maxxis M9805
Rear Tires26 x 10-14; Maxxis M9806
WheelsStamped Steel

Dimensions / Capacities

Wheelbase53″ (134.6 cm)
Dry Weight759 lb (345 kg)
Overall Vehicle Size (L x W x H)83.25 x 47.6 x 50.75″ (211.4 x 120.9 x 128.9 cm)
Ground Clearance12″ (30.5 cm)
Seat Height37″ (94 cm)
Fuel Capacity5.25 gal (19.9 L)
Bed Box Dimensions (L x W x H)N.A.
Front/Rear Rack or Box Capacity120 lb (55 kg)/240 lb (110 kg)
Payload Capacity575 lbs (261 kg)
Hitch Towing Rating1,500 lb (680.4 kg)
Unbraked Trailer Towing Capacity1,914 lb (868.2 kg)
Hitch/TypeStandard/1.25″ Receiver

Features

Cargo SystemLock & Ride
LightingTriple 50w High Beam, Dual 50w Low Beam Headlights; Dual Brakelights/Taillights
Electronic Power SteeringNot Equipped
InstrumentationAnalog Speedometer, Digital Odometer, Tachometer, Two Tripmeters, Hour Meter, Clock, Service Indicator, Diagnostic Indicator, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet





2013 Polaris Sportsman XP850 HO Indy Red – Canada Specifications / Technical Details
Canadian MSRP: $9,999 CDN

Engine

Engine Type4-Stroke SOHC Twin Cylinder
Displacement850cc High Output (H.O)
Fuel SystemElectronic Fuel Injected
CoolingLiquid

Drivetrain

Transmission/Final DriveAutomatic PVT P/R/N/L/H; Shaft
Drive SystemOn-Demand True AWD/2WD
Engine Braking System / Active Descent ControlStandard/Standard

Suspension

Front SuspensionDual A-Arm 9″ (22.9 cm) Travel
Rear SuspensionDual A-Arm, Rolled 10.25″ (26 cm) Travel

Brakes

Front/Rear BrakesSingle Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking BrakePark in Transmission/Lockable Hand Lever

Tires / Wheels

Front Tires26 x 8-14; Maxxis M9805
Rear Tires26 x 10-14; Maxxis M9806
WheelsStamped Steel

Dimensions / Capacities

Wheelbase53″ (134.6 cm)
Dry Weight759 lb (345 kg)
Overall Vehicle Size (L x W x H)83.25 x 47.6 x 50.75″ (211.4 x 120.9 x 128.9 cm)
Ground Clearance12″ (30.5 cm)
Seat Height37″ (94 cm)
Fuel Capacity5.25 gal (19.9 L)
Bed Box Dimensions (L x W x H)N.A.
Front/Rear Rack or Box Capacity120 lb (55 kg)/240 lb (110 kg)
Payload Capacity575 lbs (261 kg)
Hitch Towing Rating1,500 lb (680.4 kg)
Unbraked Trailer Towing Capacity1,914 lb (868.2 kg)
Hitch/TypeStandard/1.25″ Receiver

Features

Cargo SystemLock & Ride
LightingTriple 50w High Beam, Dual 50w Low Beam Headlights; Dual Brakelights/Taillights
Electronic Power SteeringNot Equipped
InstrumentationAnalog Speedometer, Digital Odometer, Tachometer, Two Tripmeters, Hour Meter, Clock, Service Indicator, Diagnostic Indicator, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet



Specifications, appearance, and price of product are subject to change without notice.
