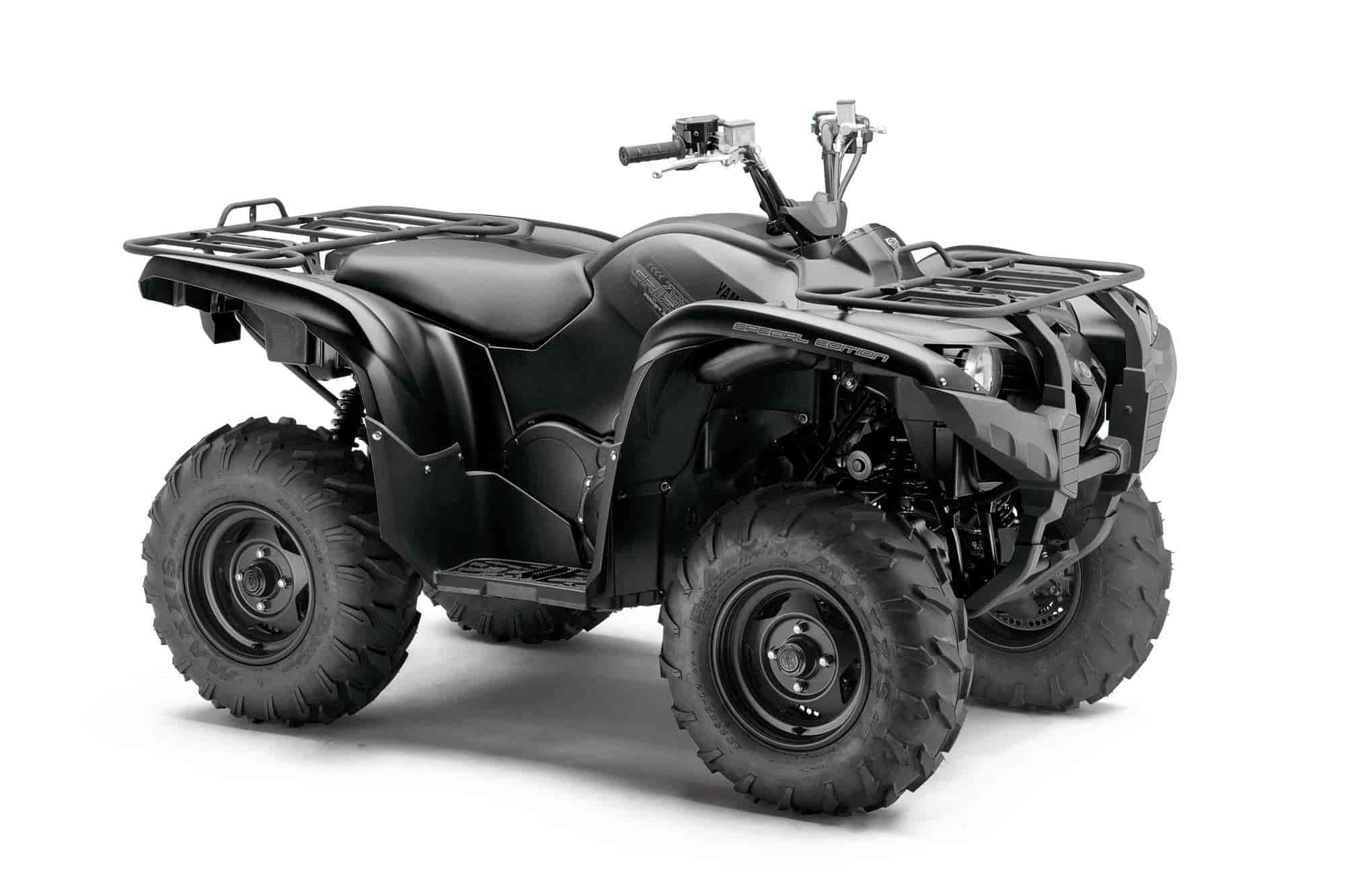

2013 Yamaha Grizzly 700 FI Auto 4x4 EPS SE
2013 Yamaha Grizzly 700 FI Auto 4×4 EPS SE

2013 Yamaha Grizzly 700 FI Auto 4x4 EPS SE
2013 Yamaha Grizzly 700 FI Auto 4×4 EPS SE

2013 Yamaha Grizzly 700 FI Auto 4x4 EPS SE
2013 Yamaha Grizzly 700 FI Auto 4×4 EPS SE


– 2013 Yamaha Grizzly 700 FI Auto 4×4 EPS SE Review

2013 Yamaha Grizzly 700 FI Auto 4×4 EPS SE

Stealth Edition Grizzly…

The Grizzly 700 4×4 SE boasts tactical-inspired good looks with top-of-class performance to match.

As the top performer in its class, it’ll be hard to ride under the radar with the new 2013 Yamaha Grizzly 700 4×4 SE and its awesome tractical black paint job, special cast aluminum wheels and discreet yet aggressive graphics.

The Special Edition version of our famed Grizzly 700 EPS includes all the features of the standard model, plus cast aluminum wheels and special colour and graphics.

We took our most powerful fuel-injected engine and wrapped it in our toughest, most advanced chassis. The result? An ATV with one of the best power-to-weight ratios around.

Add in Yamaha’s industry-first electric power steering system, Ultramatic Transmission, On-Command System, a thick seat and long-travel four-wheel independent suspension and you can hear the competition trembling. The SE model gets the special treatment with cast aluminum wheels, and special colour and graphics!





2013 Yamaha Grizzly 700 FI Auto 4×4 EPS SE Key Features:

•The Grizzly 700 Special Edition is coated with Tactical Black paint and includes cast aluminum wheels and special graphics.
•The most powerful Grizzly ever: 686cc liquid-cooled, four-stroke engine and light weight has the best power-to-weight ratio of any Yamaha utility ATV.
•Yamaha Fuel Injection means instantaneous cold starts and optimal performance in nearly any condition, from sea level to 15,000 feet.
•Industry first: Electric Power Steering system lightens steering for superior comfort and terrainability.
•Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATVs. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and uses a sprag clutch for all-wheel downhill engine braking in 4WD mode and reverse.
•Three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD—all with the simple push of a button. Override button allows engine to make maximum rpm in full Diff. Lock mode.
•Fully independent long-travel four-wheel suspension features double-wishbone suspension front and rear with five-way preload-adjustable shocks for maximum control and comfort over rough terrain. Smoothest-running and -riding Grizzly ever.
•Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter that counts the engine’s running hours, 4WD status, transmission position, clock and fuel gauge.





2013 Yamaha Grizzly 700 FI Auto 4×4 EPS SE Features and Benefits:

•Raptor®-based four-valve combustion chamber design produces a potent combination of low-rev torque, instant throttle response and high horsepower.
•Compact engine design features a 35-degree cylinder angle for ground clearance and lower seat height for quick steering and maneuverability.
•Gear-driven crankshaft balancer shaft and rubber-damper engine mounts reduce vibration.
•Ceramic-composite cylinder liners provide outstanding durability and heat dissipation; forged piston is light and strong and rides a carburized, chrome-moly connecting rod.
•Two-lobe overhead cam and a pair of needle-roller rocker arms reduce friction by 50 percent for increased fuel efficiency and torque.
•Mikuni® fuel injection with 44mm bore and throttle position sensor means easy cold starts and flawless fuel delivery in nearly any condition.
•Pushbutton electric start with seven-disc torque-limiting damper assembly protects the starter motor.
•Straight driveshaft layout eliminates U-joints for reduced friction, noise, vibration and maintenance.
•Stainless steel exhaust system features aluminum heat shields and a screen-type spark arrestor for great power with minimum noise output.
•High-capacity radiator with fan-assist delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
•Automatic cam chain tensioner reduces engine maintenance and helps extend engine life.
•Override button allows engine to make maximum rpm in full Diff. Lock mode.
•Sealed drive case keeps out water and debris to help increase durability.
•Oil access cover allows easy access to check oil level.


Chassis/Suspension:

•WideArc™ front suspension A-arms provide outstanding ground clearance.
•Five-way preload-adjustable shocks provide a comfortable ride, whatever the load or trail conditions.
•Gas charged rear shocks offer a quality damping feel and excellent performance over a long period of time.
•Four-wheel hydraulic disc brakes serve up consistent, long-lasting braking power under all sorts of nasty conditions.
•Electric power steering varies assist according to speed and torque for increased comfort and incredible maneuverability— even in 4WD.
•5.3-gallon fuel tank is located under the seat for excellent mass centralization and handling; there’s a 4.8-liter water-resistant storage compartment under there, too.
•11.8 inches of ground clearance and full-length composite skidplate deliver maximum underbelly protection while enhancing terrainability.
•25×8-12 front and 25×10-12 rear Maxxis® tires provide responsive steering and handling along with excellent comfort.
•Rugged injection-molded front bumper and CV joint guards protect against rock and debris damage.


Additional Features:

•Center-mounted, heavy-duty trailer hitch comes standard and can tow more than 1300 pounds.
•LCD instrument display contains fuel injection and electric power steering information, as well as bar-type fuel gauge, speedometer, odometer, trip meter, clock, and Diff. Lock indicator.
•Rugged steel cargo racks with special, extra-durable wrinkle paint finish can pack a total of 286 pounds combined (99 front, 187 rear).
•Fenders have a textured finish that resist scratching and scuffing.
•Dual 35-watt multireflector halogen bulb headlights with high/low beams light up the night.
•Assembled in Newnan, GA, U.S.A.






2013 Yamaha Grizzly 700 FI Auto 4×4 EPS SE – Unitied States of America Specifications / Technical Details
USA MSRP: $10,099 (Tactical Black) Available from July 2012

Engine
Type 686cc, 4-stroke, liquid-cooled single; SOHC, 4 valves
Bore x Stroke 102.0mm x 84.0mm
Compression Ratio 9.2:1
Fuel Delivery Yamaha Fuel Injection (YFI), 44mm
Ignition 32-Bit ECU
Starting System Electric
Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive

Chassis
Suspension / Front Independent double wishbone; 5-way preload adjustment, 7.1-in travel
Suspension / Rear Independent double wishbone; 5-way preload adjustment, 9.5-in travel
Brakes / Front Dual hydraulic disc
Brakes / Rear Dual hydraulic disc
Tires / Front AT25 x 8-12 w/aluminum wheels
Tires / Rear AT25 x 10-12 w/aluminum wheels

Dimensions
L x W x H 81.3 x 46.5 x 48.8 in
Seat Height 35.6 in
Wheelbase 49.2 in
Turning Radius 126 in
Ground Clearance 10.8 in
Fuel Capacity 5.3 gal
Wet Weight 648 lb
Rack Capacity 99 lb Fr./187 lb Rr.
Towing Capacity 1322 lb

Other
Instrumentation Digital LCD multifunction display: speedometer, odometer, dual tripmeter, hour meter, clock, fuel gauge, gear position, EPS and EFI function
Lighting Dual 35W Halogen multireflector headlights & 21W/5W brakelight
Warranty 6 Month (Limited Factory Warranty)





2013 Yamaha Grizzly 700 FI Auto 4×4 EPS SE – Canada Specifications / Technical Details
Canadian MSRP: $11,199 CDN

Engine 4-stroke, SOHC, liquid cooled, 4-valve, single
Displacement 686 cc
Bore and Stroke 102 x 84 mm
Compression Ratio 9.2: 1
Carburetion Mikuni Electronic Fuel Injection w/44mm Big Bore throttle bodies and TPS
Ignition computerized DC-CDI
Starting electric w/auto-decompression
Lubrication wet sump
Oil Capacity 2.4L
Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, direct shaft drive

Suspension (Front) independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
Suspension (Rear) independent, reverse mounted dual A-arm with sway bar, adjustable shocks
Brakes (Front) Hydraulic Discs
Brakes (Rear) Hydraulic Discs
Tires (Front) Maxxis, AT25 x 8-12
Tires (Rear) Maxxis, AT25 x 10-12

Length 2065 mm (81.3″)
Width 1180 mm (46.5″)
Height 1240 mm (48.8″)
Wheelbase 1250 mm (49.2″)
Ground Clearance 300 mm (11.8″)
Seat Height 905 mm (35.6″)
Wet Weight 294 kg (648 lb) – ready to ride full of fuel and oil
Fuel Capacity 20 litres (5.3 U.S. gal)
Towing Capacity 600 kg (1,322 lb)
Colour(s) Matte Black
Warranty One year (unlimited mileage)


Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less. See your local dealer for out the door pricing.

** Provincial regulations may require additional equipment for use on public trails.
