Honda Motorcycle Dyno Charts
Performance, Tuning, Horsepower, Torque, Racing, Speed…

1994 – 2004 Honda VF750C Magna

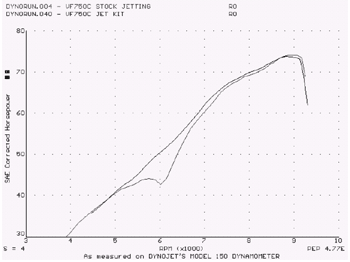

Click to Enlarge

2003 GSF600 Bandit


General Honda 1994 – 2004 VF750C Magna specifications

Engine Type 748cc liquid-cooled 90-degree V-4

Bore and Stroke 70.0mm x 48.6mm

Compression Ratio 10.8:1

Valve Train DOHC; four valves per cylinder

Carburetion Four 34mm CV

Ignition Solid-state digital


Transmission Five-speed

Final Drive O-ring-sealed chain


Front Suspension 41mm cartridge fork; 5.9-inch travel

Rear Suspension Dual shocks with five-position spring-preload adjustability; 3.9-inch travel

Front Brake Single disc with twin-piston caliper

Rear Brake Drum

Front Tire 120/80-17 tubeless

Rear Tire 150/80-15 tubeless


Wheelbase 65.0 inches

Seat Height 28.0 inches

Dry Weight 505.0 pounds

Fuel Capacity 3.6 gallons, including 0.8-gallon reserve


Emissions California version differs slightly due to emissions equipment.

Available Colors Candy Blue

Model ID VF750C
