2012 BMW K1300S

Back to 2012 BMW Motorcycle Model Review Page

Click photos to enlarge. They make great desktop wallpaper.

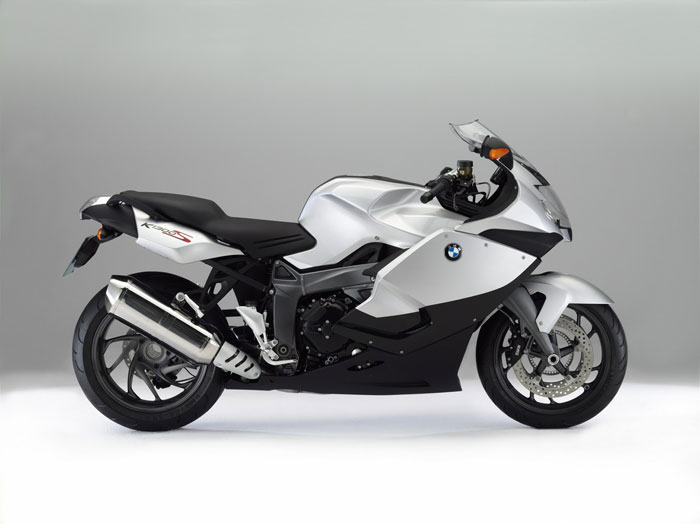

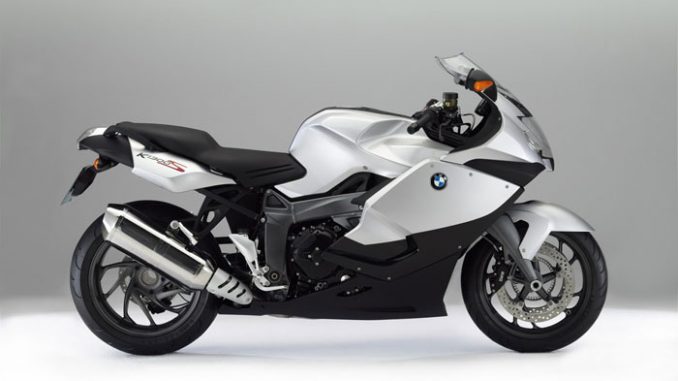

2012 BMW K1300S
2012 BMW K1300S



2012 BMW K1300S Review

2012 BMW K1300S

Conceived consistently as a sports machine, the K1300S has not only maintained, but in many areas even enhanced, the qualities of its predecessor. This high-performer combines fascinating and innovative technology of the highest calibre with outstanding all-round qualities and safety. On the road this means even greater riding precision and agility, even more dynamic power and performance, and, at the same time, the superior safety and ease of control in all situations so typical of a BMW.

The interceptor. The athlete. Aerodynamic, avant-garde. Do you know of another sporty bike with this profile? A bike that develops such pulling power with 175 hp that it take the heat out of many a 200 hp bike? But a bike you can still take out on a quick trip simply because it has great everyday suitability? At the same time a technological treat?

The reasons: 103 ft-lb of torque from 1,293 cc – and at 8,250 rpm too. With a throaty sound from a cool, hexagonal tube. With catalytic converter and exhaust valve. And with fuel consumption and exhaust emission values which would suit many a machine with half the dynamic performance.

With this jet, the whole concept of speed moves into a new dimension. This in-line 4-cylinder delivers its power in such a way that you can almost feel it when standing still. That’s because within the engine speed ranges in which you move more than 80% of the time – i.e. the lower and medium speed ranges – it delivers performance from the first yard. The real thing. And in terms of safety features, this machine is unique: ABS as standard with ASC and ESA optional. And the extras are amazing: race through the gears with the automatic shift function, pure racing in view with the 2D HP dashboard.

The BMW K 1300 S: supreme power with the sportiest of understatement. Why not try it out right away!

Extreme power. Thrilling acceleration. Instant responses across the rev range. Welcome to the ultimate sports tourer – the new BMW K 1300 S.

Its styling alone promises speed and performance. And with an output of 175hp and 140Nm of torque, speed and performance is exactly what you get. Your heart races with the engine all the way up to 11,000 rpm. And yet you remain completely calm, thanks­ to a highly practical design, outstanding safety features and a chassis that is a marvel of precision engineering. If you want to be the best, there’s no room for half measures.

The designers of the BMW K 1300 S were very clear about their aims: even more power, even more performance. The result is a machine that combines the excitement of a track bike with the practical features needed for long-distance riding on the road, such as the famous BMW Motorrad Duolever and BMW Motorrad ABS.

The K 1300 S is also available with ESA II Electronic Suspension Adjustment as an option, allowing you to modify the suspension set-up depending on the load you are carrying.

The new K 1300 S is the most powerful and fastest BMW the world has ever seen. With an engine output of 129 kW (175 hp), combined with a kerbside weight of 254 kg, this supreme motorcycle offers the utmost in dynamic performance and sports riding. But that’s not the only attraction of the K 1300S. It also combines innovative technology of the highest calibre with outstanding safety features, creating the ultimate real world sport machine.






2012 BMW K1300S Model Highlights

Standard Factory Equipment:

Engine/Driveline
4 Cylinder in line engine, mounted across the frame and inclined at 55 Deg.
4 Valve cylinder heads
6 Speed gearbox
Stainless steel exhaust system
Digital engine management
Closed loop 3 way catalytic converter with oxygen sensor
Shaft drive

Running Gear
Prop stand with starter inhibit
Continuously adjustable rear rebound damping
BMW Motorrad duolever front suspension and paralever (EVO) rear suspension
Cast Aluminium wheels
Twin disk front brake (EVO, 320mm dia.)
Cast Aluminium single swing arm
Single disk rear brake
Sports wheel, 190/55 ZR17
Hydraulic rear spring preload adjuster

Electronics
Info flat screen (digital clock, gear indicator, fuel gauge, coolant temperature and cruising range indicator, total and 2 trip odometers, service interval indicator)
Power socket
Hazard warning flasher
Permanent headlamp beam
Free-form surface headlights
Electronic immobiliser

Equipment
Adjustable handbrake and clutch lever
Integral ignition switch and steering lock
One piece seat
One key system for ignition, steering, fuel filler cap and seat lock
Storage compartment with tool kit






2012 BMW K1300S Model Features

You’ve got to have this!
Enjoying dynamics requires safety down to the last detail. And that is something that BMW Motorrad has been constantly reinventing for more than 20 years. The K 1300 S enjoys an excellent reputation when it comes to the fastest connection from A to B – and it fully deserves to:

High tech for everyday use
The K 1300 S is a unique interpretation of the speedbike theme. It represents a union of fascinating and innovative high-performance engineering combined with excellent all-round and everyday suitability, not to mention excellent safety.


175 hp and 140 Nm: power and understatement
Not that this jet was ever slow, but in comparison with its predecessor, its engine performance and torque specifications have been increased even more, something which, this being a genuine BMW, it bears discreetly. After all, it is a superior pioneer in its class.


The very latest streamline shape.
Maybe there is such a thing as perfect aerodynamics. And perfect design. The K 1300 S combines both of these with its own line, one which others will spend a long time searching for.


The seat of speed.
Like barely any other speedbike, the K 1300 S has managed to make the connection between the stable chassis characteristics of a supersport machine and ergonomic design for thousands of kilometres. Of course. It is a BMW.


Individual safety.
The diverse optional extras make the K 1300 S even more individual. In particular, the new ESA II, which allows the rider to configure his chassis settings on the move, once again underlines BMW Motorrad’s innovative lead – and not only in terms of safety.












2012 BMW K1300S – American Specifications/Technical Details
US MSRP Price: $15,555 USD

Engine
Type Water-cooled 4-stroke in-line four-cylinder-engine, four valves per cylinder, two overhead camshafts, dry sump lubrication
Bore x stroke 80 mm x 64,3 mm
Capacity 1.293 ccm
Rated output 129 kW (175 hp) at 9,250 rpm
Max. torque 140 Nm at 8,250 rpm
Compression ratio 13,0 : 1
Mixture control / engine management Electronic intake pipe injection/digital engine management including knock sensor (BMS-K)
Emission control Closed-loop 3-way catalytic converter, emission standard EU-3
Performance / fuel consumption
Maximum speed Over 200 km/h
Fuel consumption per 100 km at constant 90 km/h 4,7 l
Fuel consumption per 100 km at constant 120 km/h 5,3 l
Fuel type Unleaded premium, octane number 98 (RON), automatic knock control permits operation with minimum octane number 95 (RON).

Electrical system
Alternator three-phase alternator 580 W
Battery 12 V / 12 Ah, maintenance-free
Power transmission
Clutch Multiple-disc clutch in oil bath, hydraulically operated
Gearbox Constant mesh 6-speed gearbox
Drive Shaft drive

Chassis / brakes
Frame Bridge-type frame, cast aluminium, load-bearing engine
Front wheel location / suspension BMW Motorrad Duolever; central spring strut
Rear wheel location / suspension Cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut with lever system, spring pre-load adjustable hydraulically (continuously variable) at handwheel, adjustable rebound damping
Suspension travel front / rear 115 mm / 135 mm
Wheelbase 1.585 mm
Castor 104,4 mm
Steering head angle 60,4°
Wheels Cast aluminium
Rim, front 3,50 x 17″
Rim, rear 6,00 x 17″
Tyres, front 120/70 ZR 17
Tyres, rear 190/55 ZR 17
Brake, front Twin disc, floating brake discs, diameter 320 mm, 4-piston fixed calipers
Brake, rear Single disc brake, diameter 265 mm, double-piston floating caliper
ABS Standard equipment: BMW Motorrad Integral ABS (part-integral)

Dimensions / weights
Length 2.182 mm
Width (incl. mirrors) 905 mm
Height (excl. mirrors) 1.221 mm
Seat height, unladen weight 820 mm (low seat: 790 mm)
Inner leg curve, unladen weight 1,810 mm (low seat: 1,750 mm)
Unladen weight, road ready, fully fuelled 1) 254 kg
Dry weight 2) 228 kg
Permitted total weight 460 kg
Payload (with standard equipment) 206 kg
Usable tank volume 19 litres
Reserve approx. 4.0 litres
” Technical data relate to the unladen weight (DIN)
” 1) According to guideline 93/93/EWG with all fluids, fuelled with at least 90% of usable tank volume
” 2) Unladen weight without fluids








2012 BMW K1300S – Specifications/Technical Details
CDN MSRP Price: $16,999

Technical Specifications:
Engine Type: In-line 4-cylinder, DOHC, 16 valve, liquid cooled
Displacement: 1293 cc
Output: 175 bhp at 9,250 rpm
Transmission: 6-speed
Seat Height: 820 mm
Optional Seat Height: 790 mm
Dry Weight: 228 kg (503 lbs)
Fuel Tank Capacity: 19 l
Consumption (l/100km at 120km/h): 5.3 l
Warranty Coverage: 36 months, unlimited kilometres
Roadside Assistance: 36 months






2012 BMW K1300S – UK Specifications/Technical Details
UK MSRP Price: £11,280.00

Engine
Type Water-cooled 4-stroke in-line four-cylinder-engine, four valves per cylinder, two overhead camshafts, dry sump lubrication
Bore x stroke 80 mm x 64,3 mm
Capacity 1.293 cc
Rated output 129 kW (175 hp) at 9,250 rpm
Max. torque 140 Nm at 8,250 rpm
Compression ratio 13,0 : 1
Mixture control / engine management Electronic intake pipe injection/digital engine management including knock sensor (BMS-K)
Emission control Closed-loop 3-way catalytic converter, emission standard EU-3
Performance / fuel consumption
Maximum speed Over 200 km/h
Fuel consumption per 100 km at constant 90 km/h 4,7 l
Fuel consumption per 100 km at constant 120 km/h 5,3 l
Fuel type Unleaded premium, octane number 98 (RON), automatic knock control permits operation with minimum octane number 95 (RON).
Electrical System
Alternator three-phase alternator 580 W
Battery 12 V / 14 Ah, maintenance-free
Power transmission
Clutch Multiple-disc clutch in oil bath, hydraulically operated
Gearbox Constant mesh 6-speed gearbox
Drive Shaft drive

Chassis / brakes
Frame Bridge-type frame, cast aluminium, load-bearing engine
Front wheel location / suspension BMW Motorrad Duolever; central spring strut
Rear wheel location / suspension Cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut with lever system, spring pre-load adjustable hydraulically (continuously variable) at handwheel, adjustable rebound damping
Suspension travel front / rear 115 mm / 135 mm
Wheelbase 1.585 mm
Castor 104,4 mm
Steering head angle 60,4°
Wheels Cast aluminium
Rim, Front 3,50 x 17″
Rim, rear 6,00 x 17″
Tyre, front 120/70 ZR 17
Tyre, rear 190/55 ZR 17
Brake, front Twin disc, floating brake discs, diameter 320 mm, 4-piston fixed calipers
Brake, rear Single disc brake, diameter 265 mm, double-piston floating caliper
ABS Standard equipment: BMW Motorrad Integral ABS (part-integral)

Dimensions / weights
Length 2.182 mm
Width (incl. mirrors) 905 mm
Height (excl. mirrors) 1.221 mm
Seat height, unladen weight 820 mm (low seat: 790 mm)
Inner leg curve, unladen weight 1,810 mm (low seat: 1,750 mm)
Unladen weight, road ready, fully fueled 254 kg
Dry weight 228 kg
Permitted total weight 460 kg
Payload (with standard equipment) 206 kg
Usable tank volume 19 litres
Reserve approx. 4.0 litres






2012 BMW K1300S – Australia Specifications/Technical Details
AUS MSRP Price: $NA

Engine K 1300 S
Type: Water-cooled 4-stroke in-line four-cylinder-engine, four valves per cylinder, two overhead camshafts, dry sump lubrication
Bore Stroke: 80 mm x 64,3 mm
Capacity: 1.293 ccm
Rated Output: 129 kW (175 hp) at 9,250 rpm
Maximum Torque: 140 Nm at 8,250 rpm
Compression Ratio: 13,0 : 1
Carburetion: Electronic intake pipe injection/digital engine management including knock sensor (BMS-K)
Emission Control: Closed-loop 3-way catalytic converter
Performance/Fuel Consumption K 1300 S
Maximum Speed: Over 200 km/h
Fuel Consumption Over 100km @ 90kph: 4.7 l
Fuel Consumption Over 100 km @ 120kph: 5.3 l
Fuel Type: Unleaded premium, octane number 98 (RON), automatic knock control permits operation with minimum octane number 95 (RON).
Electrical System K 1300 S
Generator: three-phase alternator 580 W
Battery: 12 V / 14 Ah, maintenance-free
Power Transmission K 1300 S
Clutch: Multiple-disc clutch in oil bath, hydraulically operated
Gearbox: Constant mesh 6-speed gearbox
Drive: Shaft drive
Chassis/brakes K 1300 S
Frame: Bridge-type frame, cast aluminium, load-bearing engine
Front Wheel Location/Suspension: BMW Motorrad Duolever; central spring strut
Rear Wheel Location/Suspension: Cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut with lever system, spring pre-load adjustable hydraulically (continuously variable) at handwheel, adjustable rebound damping
Travel Front/Rear: 115 mm / 135 mm
Wheelbase: 1,585 mm
Caster: 104,4 mm
Steering Head Angle: 60.4°
Wheels: Cast aluminium
Rim Front: 3.50 x 17
Rim Rear: 6.00 x 17″
Tyres Front: 120/70 ZR 17
Tyres Rear: 190/55 ZR 17
Brake Front: Twin disc, floating brake discs, diameter 320 mm, 4-piston fixed calipers
Brake Rear: Single disc brake, diameter 265 mm, double-piston floating caliper
ABS: Standard equipment: BMW Motorrad Integral ABS (part-integral)
Dimensions/Weights K 1300 S
Seat Height Unladen: 820 mm (low seat: 790 mm)
Unladen Road Ready Fully Fuelled: 254 kg
Dry Weight: 228 kg
Permitted Total Weight: 460 kg
Payload With Standard Equipment: 206 kg
Usable Tank Volume: 19 l
Reserve: approx. 4.0 l
Length: 2,182 mm
Height Not Including Mirrors:
Width Including Mirrors: 905 mm
