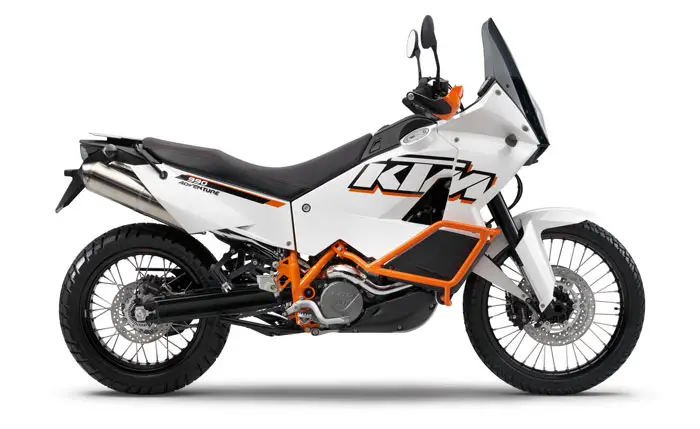

2012 KTM 990 Adventure

2012 KTM 990 Adventure

2012 KTM 990 Adventure

2012 KTM 990 Adventure

– 2012 KTM 990 Adventure Review

2012 KTM 990 Adventure

THE PERFECT BRIDGE BETWEEN TWO WORLDS

Launching the Adventure series, in 2003 KTM presented its vision of a modern, long-distance dualsport motorcycle. Balking neither at tough terrain nor quick flicks through the twisties nor even at extended desert exploration thanks to its genuine rally DNA, the Adventure series has since been continuously enhanced.

A rigid trellis frame, fully adjustable, longstroke WP suspension and a powerful braking system prove their value on any short trip as well as on the longest of journeys. A standard, two-channel Bosch ABS sets new safety standards with its sensitive brake control.

Ambitious off-road riders also welcome the option of disengaging it as needed. At 115 hp and 100 Nm of torque, the dynamic, 75° V-twin now has even more power to eat up the miles, also with a pillion. The powerful engine, the low weight and the fantastic
agility make the Adventure a truly great ride.

The comprehensive, sensible equipment includes a practical storage compartment, an immobilizer, hazard warning lights and a 12 V accessory socket.







2012 KTM 990 Adventure Features and Benefits

– Powerful LC8 4-stroke V-Twin, electronic fuel injection, balancer shaft, hydraulic multi-disc wet clutch, 6-speed gearbox

– Increased power: 85 kW/115 hp, max.torque 100 Nm, emissions: Euro 3

– ABS (can be disengaged)

– Orange trellis frame, load-bearing engine

– Fully adjustable WP suspension front and rear

– Swingarm, rear subframe, footrest mountings, callipers and other components coated black

– Integrated multi-functional cockpit

– New 2K Handguards

– Lockable storage compartment between the tanks

– Immobilizer and hazard warning lights

– 12 V accessory socket

– A ttractive new graphics and colours

ENGINE 2-CYLINDER, 4-STROKE, V 75° · DISPLACEMENT 999 CC
STARTER ELECTRIC STARTER · TRANSMISSION 6 GEARS · TANK CAPACITY APPROX. 19.5L
WEIGHT (READY TO RACE) APPROX. 209 KG (WITHOUT FUEL)

---



2012 KTM 990 Adventure – International Specifications/Technical Details
MSRP Price: See KTM dealer for pricing.

ENGINE Displacement Bore/stroke Power Torque Compression ratio Starter/battery Transmission Fuel system Control Lubrication Engine oil Primary drive Final drive Cooling Clutch Engine management/ignition   CHASSIS Frame Subframe Handlebar Front suspension Rear suspension Suspension travel front/rear Font brake Rear brake ABS Wheels front/rear Tires front/rear Chain Silencer Steering head angle Trail Wheel base Ground clearance Seat height Tank capacity Weight (ready to race)

2-cylinder, 4-stroke, V 75° 999 cc, 101/62.4 mm 85 kW (115 hp) @ 8750 rpm 100 Nm @ 6750 rpm 11.5:1 Electric starter/12V 11.2Ah 6 gears Keihin Electronic fuel injection 4 V/DOHC Pressure lubrication Motorex, SAE 10W-50 35:67 16:42 Liquid cooling Wet multi-disc clutch, hydraulically operated Keihin EMS     Chromium-Molybdenum trellis frame, powder-coated Aluminium Aluminium, tapered, Ø 28/22 mm WP-USD Ø 48 mm WP-PDS shock absorber with hydraulic spring pre-load 210/210 mm 2 x Brembo two piston, floating caliper, floating brake disc Ø 300mm Brembo two piston, floating caliper, floating brake disc Ø 240 mm Bosch two channel ABS 2.15 x 21”; 4.25 x 18” 90/90-21”; 150/70 R 18″ X-Ring 5/8 x 5/16″ Twin stainless steel silencer with regulated catalytic converter 63.4° 119 mm 1,570 ± 10 mm 261 mm 860 mm approx. 19.5 litres/4 litres reserve approx. 209,5 kg (without fuel)





---



2012 KTM 990 Adventure – American Specifications/Technical Details
US MSRP Price: See KTM dealer for pricing and availability

To be annouced. See International Specifications.



---



2012 KTM 990 Adventure – Canada Specifications/Technical Details
Canadian MSRP Price: See KTM dealer for pricing and availability

To be annouced. See International Specifications.
