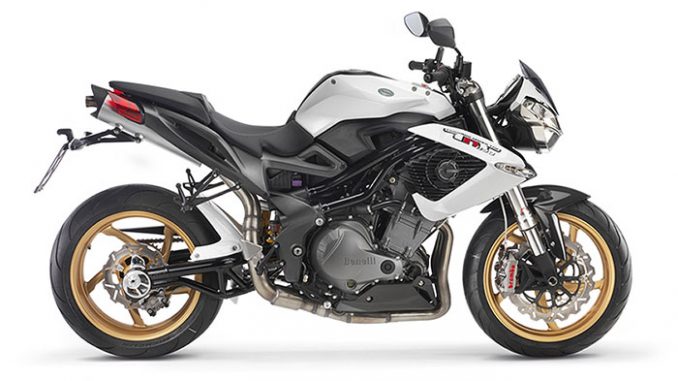

2013 Benelli Tornado Naked TRE1130
2013 Benelli Tornado Naked TRE1130

2013 Benelli Tornado Naked TRE1130
2013 Benelli Tornado Naked TRE1130

2013 Benelli Tornado Naked TRE1130
2013 Benelli Tornado Naked TRE1130


2013 Benelli Tornado Naked TRE1130 Review

2013 Benelli Tornado Naked TRE1130

Rebel Nature…

A sports motorcycle with no compromises. Benelli TNT 1130 has no need of presentations. Loved for its rebel character and top performances, in 2013, debuts with a whole new looks white with black frame and red with black frame, which makes it even more unconventional, even more appealing.


The Benelli in line triple is a guarantee of riding experience and thrilling results. The TNT 1130 data confirms it: max. power of 129 hp (95 kW) @ 8500 rpm and torque of 110 Nm (11,2 kgm)@ 5250 rpm. This Benelli can also rely on a distinctive element not present on its little sister, TNT 899: a fully adjustable fork.


The preload hydraulic spring and the ZF Sachs fully adjustable rear absorber allow the rider to adapt the bike to his needs. The suspension is even more efficient and the motorcycle can express fully all the power of its triple.


TNT 1130 has unique accessories such as: carbon muffler, front and rear carbon mudguards, carbon belly pans, carbon chain casing, adjustable brake/clutch levers in ergal, handlebar ends in ergal, dry clutch kit, frame sliders, racing tank filler, carbon single-seat tail, motorbike covers and semi-rigid panniers.


TNT 1130 waits all the funs of the brand and all the bikers at the Benelli Dealers from the next year.



2013 Benelli Tornado Naked TRE1130 Features and Benefits

ENGINE
In line 3 cylinders, 4-stroke, liquid cooled , 4 valves per cylinder double overhead camshaft, with balancer shaft

RATED OUTPUT
95 kW (129 cv) @ 8500 rpm MAX. TORQUE
110 Nm (11.2 kgm) @ 5250 rpm







2013 Benelli Tornado Naked TRE1130 – International Specifications/Technical Details
MSRP Price: See dealer for pricing

ENGINE

TYPE In line 3 cylinders, 4-stroke, liquid cooled , 4 valves per cylinder double overhead camshaft, with balancer shaft
DISPLACEMENT 1131 cm3
BORE x STROKE 88 x 62 mm
COMPRESSION RATIO 11,2:1
RATED OUTPUT 95 kW (129 cv) @ 8500 rpm
MAX. TORQUE 110 Nm (11.2 kgm) @ 5250 rpm
LUBRICATION Wet sump
OIL CAPACITY 4 lt
FUEL SUPPLY Electronic injection with three throttle bodies ø53 mm
EXHAUST SYSTEM With catalytic converter and oxygen sensor
CERTIFICATION Euro 3
CLUTCH Wet clutch
GEARBOX 6 speeds
PRIMARY DRIVE 44/79
GEAR RATIO 1°- 14/39
2°- 18/35
3°- 21/32
4°- 23/30
5°- 24/28
6°- 25/27
FINAL DRIVE Chain drive, ratio 16:36



ELECTRIC EQUIPMENT

IGNITION WALBRO ECUA-1
SPARK PLUG NGK CR9EB
STARTING ELECTRIC



CHASSIS

FRAME Decomposable, front steel trestle, rear aluminium alloy casting
FRONT SUSPENSION Ø50 mm upside-down fork, with hydraulic extension / compression and spring preload adjustments
FRONT SUSPENSION STROKE 120 mm
REAR SUSPENSION Steel tube trestle swingarm, rear dumper with hydraulic adjustment (extension, high and low speed compression) and spring preload assembled with progressive link
REAR SUSPENSION STROKE 120 mm
FRONT BRAKE Twin floating Wave disk Ø320 mm with radial monoblock 4 pistons calipers
REAR BRAKE Single Wave disk Ø240 mm with double piston caliper
FRONT RIM TYPE Aluminum alloy
FRONT RIM DIMENSIONS E 17” x 6.00” DOT-D
REAR RIM TYPE Aluminum alloy
REAR RIM DIMENSION E 17” x 6.00” DOT-D
FRONT TYRE 120/70-ZR17 (58W) 120/65-ZR17 (56W)
REAR TYRE 190/50-ZR17 (73W) 180/55-ZR17 (73W);
190/55-ZR17 (75W) 200/50-ZR17 (75W)




DIMENSIONS

LENGHT 2100 mm
WIDHT EXCLUDING MIRRORS 790 mm
HEIGHT EXCLUDING MIRRORS 1050 mm
PILOT SEAT HEIGHT 830 mm
PASSENGER SEAT HEIGHT 975 mm
WHEELBASE 1443 mm
GROUND CLEARANCE** 135 mm
TRAIL N.D.
STEERING PIPE ANGLE N.D.
UNLADEN WEIGHT** 205 kg
ROAD READY WEIGHT** 215 kg
PERMITTED TOTAL WEIGHT 400 kg
USABLE TANK VOLUME 16 lt
RESERVE 4 lt


* without fluids
** According to guideline 93/93/CEE with all fluids, fuelled with at least 90% of usable tank volume


Benelli reserves the right to make any kind of modifications to the technical charateristics, equipments and outfits without prior notice.
