2013 Ducati Monster 696 Review
2013 Ducati Monster 696
Naked essentiality
When you choose to ride the Monster, you are not just choosing a bike, but an entire lifestyle. A desire to experience the exhilaration of naked power from an iconic motorcycle.
DUCATI MONSTER 696
Everyday usability
With its thin waistline and wide handlebars, the Monster 696 provides unrivalled ergonomics, striking a carefully designed balance between performance and everyday usability that will appeal to a wide range of riders. Sport-derived chassis technology and the proven power and flexibility of the legendary Ducati L-Twin engine, make the Monster 696 as comfortable in city traffic as on the open road. Enhancing the “less-ismore” philosophy that has made the Monster a global legend, the Monster 696 continues to redefine expectations. Every finely engineered element of the chassis and engine is on display, allowing its true beauty to be showcased for all to see.
Riding the 696
The riding position of the Monster 696 has been specifically designed to put the rider firmly in control. With its low 770mm (30.3in) seat height, easy-to-reach handlebars and user-friendly 4-point adjustable levers, every rider will find it easy to master.
The beautifully sculpted fuel tank cover allows maximum comfort and control and the narrowing of the “waist” area of the 696 has the same effect as lowering the seat height, making it easier to get both feet flat on the ground. Careful attention to every detail has led to a substantial weight saving, making the Monster 696 the lightest in its class at an impressive 161kg (355lb) (dry weight).
Passenger comfort and safety arealso carefully considered, with neat, under-seat grab handles moulded into the seat unit maximising pillion security without detracting from the legendary Monster 696 styling, or external grab-handles available as an accessory from Ducati Performance.
696 power trip
The 696 engine produces 80hp (59kW) and 50.6lb-ft (7kgm) of torque ensuring a smooth and powerful delivery for a relaxed and enjoyable ride as well competitive and owner-friendly service intervals of 7,500 miles (12,000 kilometres).
The highly efficient, lightweight engine uses a bore and stroke of 88×57.2mm and, like the 796, features an advanced APTC ‘wet’ clutch. With a ‘slipper’ type action that prevents destabilising of the rear-end under aggressive down-shifting, the APTC clutch also gives the extra benefit of a super-light feel at the lever, a great benefit in stop-start city traffic. The oil-bath clutch represents a power-enhancing weight reduction over the ‘dry’ system as well as having a considerably quieter operation.
Providing a deep and rich exhaust tone within current regulations is no mean feat, but the Monster 696 definitely provides Ducati’s famous L-Twin sound. Its bold, high-level twin mufflers not only make a striking style statement, but also provide a healthy increase in power and torque and ideal positioning for two lambda exhaust gas sensors, crucial for the optimisation of fuelling and emissions.
696 chassis
Outstanding handling and control is provided by 43mm Kayaba forks offering 120mm (4.7in) of finely controlled travel. At the rear, a progressive Sachs monoshock unit provides adjustability in both spring preload and damping.
Lightweight 3-spoke aluminium alloy wheels increase agility and reduce rider effort and use 120/60ZR front and 160/60ZR rear Pirelli Angel ST tyres. The end result provides a light, predictable and confidenceinspiring “feel” with outstanding stability at a wide range of speeds.
The Brembo brakes deliver exceptional braking power front and rear, enhancing rider safety. 320mm front floating discs are gripped by 4-piston, radially mounted callipers, while a 245mm rear disc works in combination with a twin-piston calliper. This powerful braking set-up offers unrivalled feel and feedback that inspires confidence across a broader spectrum of riding abilities. Riders looking for even more security will benefit from the optional ABS system.
Every carefully selected component of the Monster 696 has a net benefit to the overall weight of the machine and not only enhances manoeuvrability and ease of use, but also contributes directly to increased performance of both braking and acceleration.
DUCATI MONSTER 696+
Factory-personalised
Throughout its long and established history, the Monster’s cult following has always attracted personalisation. With Ducati’s tempting in-house accessory range offering so many custom-fit parts, nearly every Monster is different.
The 696+ is a factory-personalised model featuring some neat designer touches. A beautiful single seat cover creates the clean look of a racing seat and easily unclips to allow room for a passenger while the neat micro-bikini fairing adds a custom touch to the front end.
696 colours

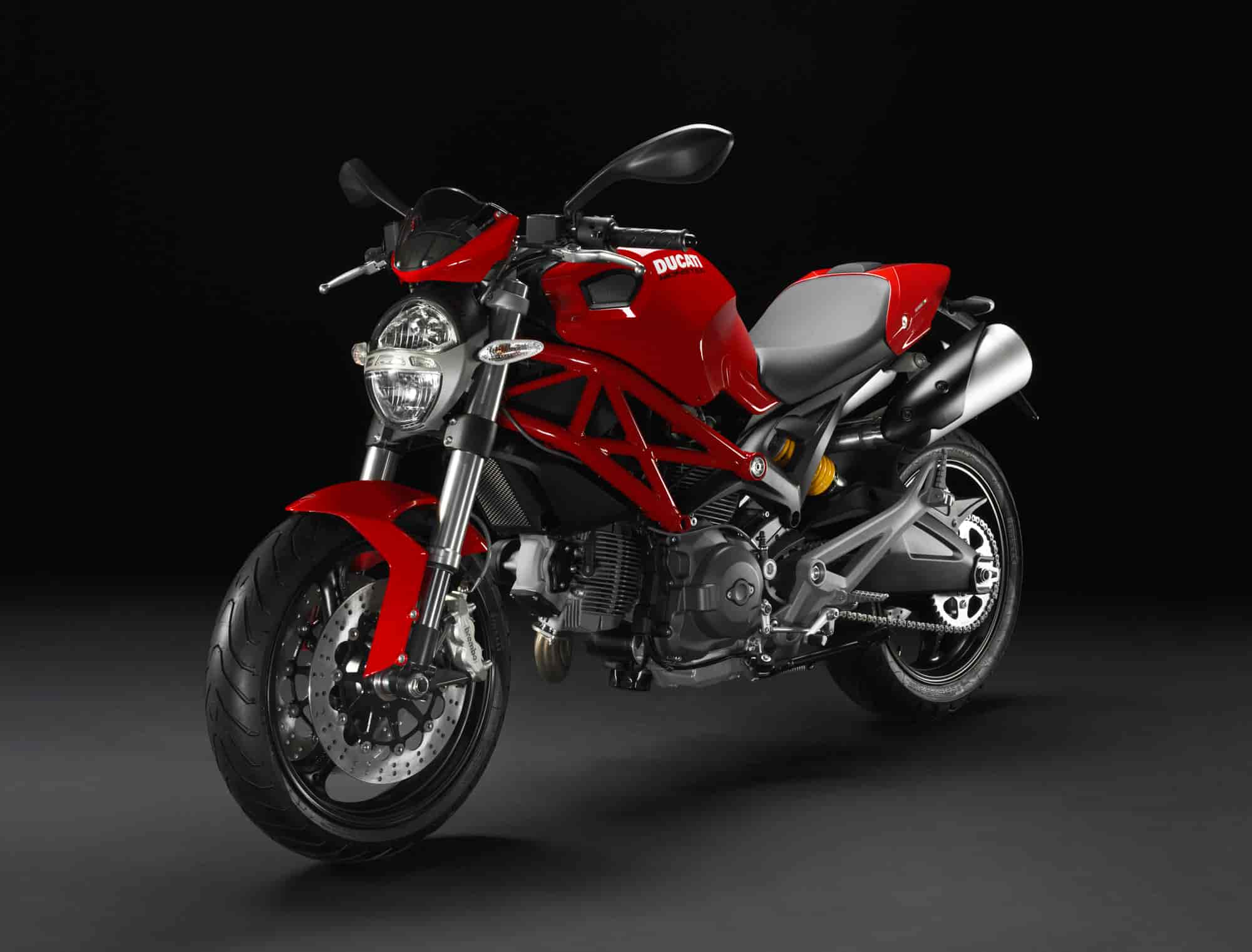

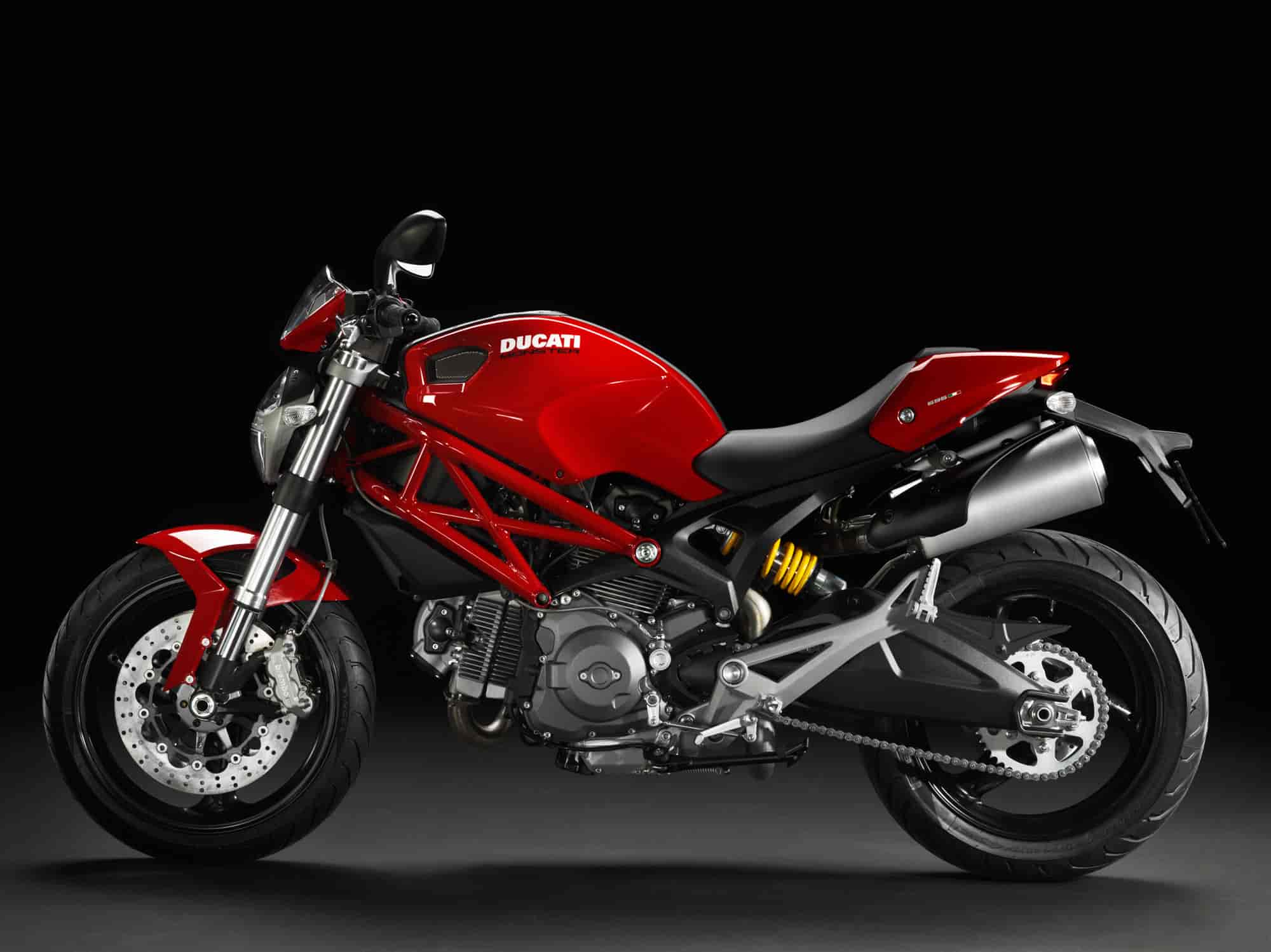

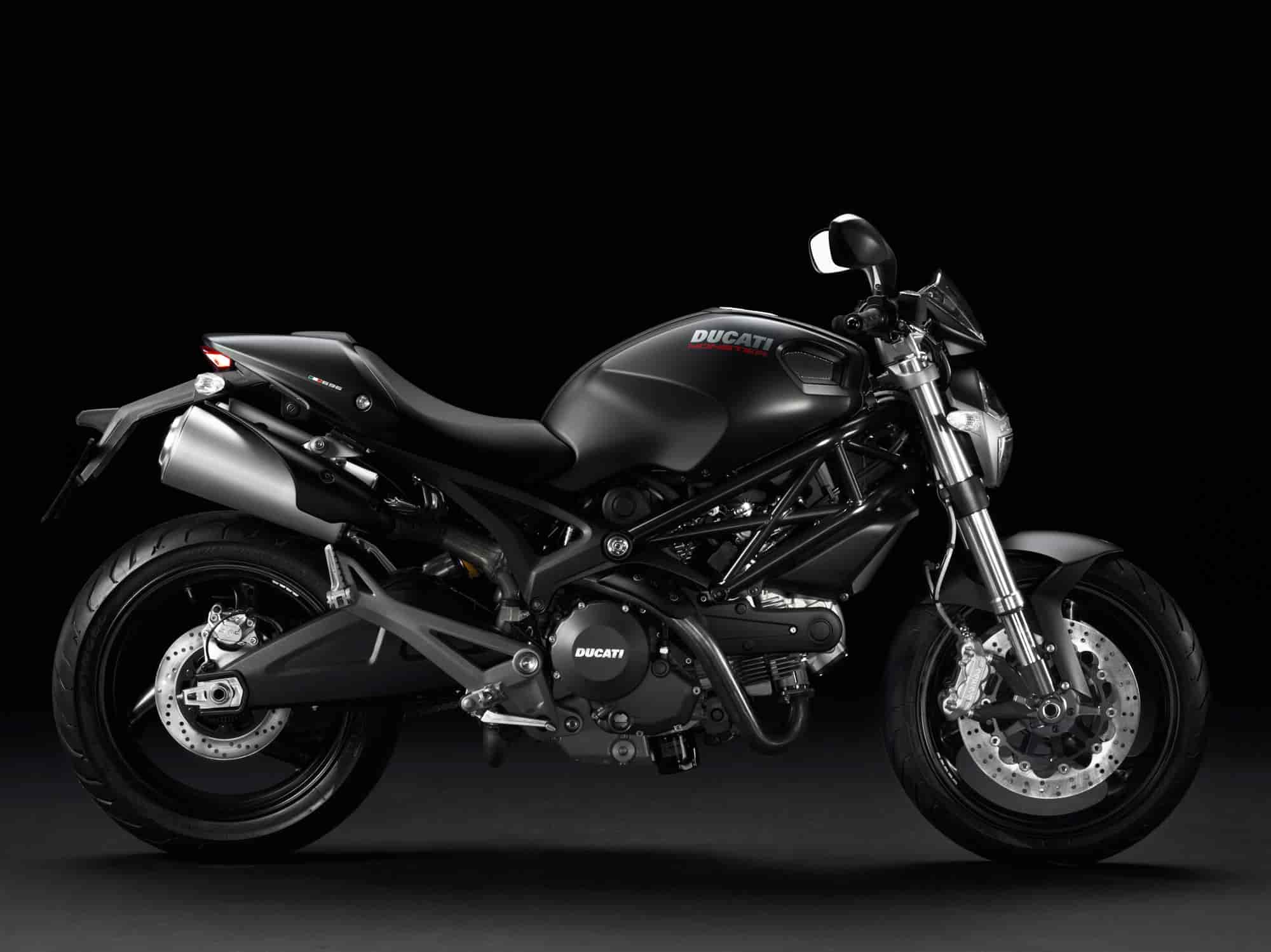

The 2013 Monster 696 is available in red with red Trellis frame and black wheels or two choices of dark stealth or stone white, both with matte black frames and black wheels. The Monster 696 can be further personalised from a wide range of additional colour schemes available within the innovative Monster Art program.
The essence of naked
The Monster has revolutionized the world of motorcycling, becoming more than just a simple motorcycle: it’s a way of life, it’s what makes its riders feel unique. Its customised versions owned by 250,000 enthusiasts have made it a true and proper icon that transcends time. Twenty years after its birth, Ducati celebrates this symbol of style and personality, presenting a unique model: the very first one. An unmistakable style coupled with latest-generation performance: here’s the Monster 20th Anniversary, the motorcycle that continues to write history.
2013 Ducati Monster 696 Key Features
Concept
Less is Monster
The ‘less-is-more’ philosophy behind all Monsters underlines Ducati’s never-ending pursuit of genuinely compact, high performance motorcycles, but these new models have succeeded in being even more ‘pared down’ than their predecessors. Every single component has been redesigned and redeveloped so now more than ever, form follows function. With any details detracting from the Monster concept being eliminated, ‘less-is-more’ also means ‘less-is-Monster’. Less weight plus more torque equals fun-filled riding.
Monster Story
In 1992 Ducati unveiled a new prototype that was to become an icon. Ducati’s creation awed the crowds and the world’s media of that year’s Cologne International Motorcycle show. The 900 Monster was a motorcycle that created a truly new niche – dramatically styled, minimalist in stature yet bristling with innovative engineering solutions. The Monster’s radical styling has also provided the inspiration for an entire after-market sector specialising in hot-rod parts for this legendary machine. For this reason, rarely do you see two Monsters the same. This radical and refreshing design departure also influenced other manufacturers but, as the old adage states: imitation is the highest form of flattery… The Monster is characterised by a long and successful history, by its introduction during the years of numerous cylinders and uncountable colour options, but above all by a constant technological evolution that this year brings us to the birth of the last version: the Monster 1100EVO, “The Ultimate Monster”.
Engine
APTC clutch
The APTC ‘wet’ clutch gives a ‘slipper’ type action that prevents destabilizing of the rear-end under aggressive down-shifting and also gives the extra benefit of a super-light feel at the lever, a great benefit in stop-start city traffic or during longer journeys. The 21-plate oil-bath clutch (11 friction and 10 steel) represents a power-enhancing weight reduction over the ‘dry’ system as well as having a quieter operation and requiring less maintenance.
Lightweight crankcases
The new crankcases hug the gearbox internals much closer to create a smaller and more compact outer profile and achieve considerable weight savings over previous cases.
Exhaust system
The 2-1-2 catalytic exhaust system uses an efficient pre-silencer configuration with twin lambda probes providing finer fuel mapping and Euro 3 conformity. The system’s lightweight and compact design is achieved by using 1mm thick tubing and terminates in Ducati’s trademark twin under-seat, black exhaust mufflers, stylishly contrasted with great looking aluminium end caps.
Desmodue
The engine of the Monster 696 is the legendary Desmodue, 696cc, air cooled, L-Twin engine whose 80hp gives it that unmistakable Ducati sound. Developed for an incredibly flexible power delivery, the 696 Desmodromic engine provides enough torque to exit the most challenging of corners. The impressive torque, typical of the Ducati L-Twin engines, will excite with every twist of the throttle.
Power & torque curves
The Monster 696 produces 80hp (58,8kW) @ 9000rpm and 50,6 lb-ft (7,0kgm) of torque @ 7750rpm
Chassis
Monster Trellis
An immensely strong but light tubular steel Trellis frame with aluminium rear sub-frame is the visual and structural backbone of the Monster. Delivering unparalleled rigidity with minimal mass, the chassis design is pure Ducati in its ingenuity and simplicity. A separate, all aluminium sub-frame saves weight and adds a pleasing continuity with the aluminium footrest hangers and matte finished swingarm.
Sachs rear suspension
At the rear, a Sachs monoshock unit with progressive linkage provide a wide spectrum of both spring and damping settings.
Lightweight 3-spoke wheels
Lightweight 3-spoke aluminium alloy wheels increase agility and reduce rider effort. The 3.50×17 front wheel wears a 120/60ZR tyre while the 4.50×17 rear wheel runs 160/60ZR rubber. By resisting the temptation to over-tyre the 696 for styling’s sake, the end result is light, predictable and confidence inspiring steering qualities at a wide range of speeds with truly outstanding stability.
Aluminium swingarm
The GP-style swingarm is chill-cast using aluminium in its most noble form. Gravity cast and heat treated, the component achieves the best mechanical characteristics as well as reduced final weight for improved handling.
Seat height
The riding position of the Monster 696 has been specifically designed to put you firmly in control. The seat height is only 770mm (30.3in), making it easier for get both feet firmly planted on the ground.
Marzocchi forks
Outstanding grip and unbeatable riding comfort are ensured by a 43 mm Marzocchi upside down stanchion fork, which provides 120 mm of suspension travel.
Lightweight construction
Every carefully selected component of the Monster 696 has a net benefit to the overall light weight of the machine. The dry weight of 161kgs (355lb) has dramatic effects on not just manoeuvrability and ease of use, but also by contributing directly to increased performance, braking and acceleration.
Ergonomics
The heavily tapered and deeply sculpted fuel tank cover allows maximum comfort and control. The narrowing of the bike’s ‘waist’ has the same effect as lowering the seat height, making it easier for more riders to get both feet flat on the floor. The steering-lock is vastly improved with a useful 64 degrees of lock-to-lock steering travel. Incredible attention to detail has gone into maximising the effective steering-lock.
Brembo brakes
The latest in Brembo braking hardware delivers exceptional braking power front and rear to improve rider safety. At the front, 320mm floating discs are gripped by four-piston, radially mounted callipers, while a 245mm floating rear disc works in combination with a twin-piston calliper. This powerful braking set-up offers unrivalled feel and feedback making the 696 safer across a broader spectrum of riding abilities.
Equipment
Stopwatch
The digital display is programmed with a stopwatch function that, when enabled, can be triggered by using the high-beam flash button and each recorded time stored in a memory. After your journey or track session, the times or lap times can be recalled from the memory and scrolled through by using the instrumentation buttons on the left-hand switchgear.
LED taillight
An LED rear light unit satisfies the minimalist, weight-saving design ethos found throughout the Monster 696. The specially designed strip of LED are enhanced by a special diffuser lens to deliver outstanding light clarity and incredible longevity.
For the Monster 1100EVO, even the license plate light uses LED technology.
Headlight
The triple-parabola headlight on the Monster utilises the latest optical technology and advanced construction techniques to provide an incredibly compact lighting package. In spite of its compact size, the headlight throws a broad and deep beam to provide excellent visibility and make night riding safer. Viewed from the side, its discrete silhouette mimics the radical shape of the fuel tank.
DDA ready
The instrument display also doubles as a control panel for the activation of the Ducati Data Analyser (DDA) system, which is available as an accessory from Ducati Performance. The bike has been built ‘system-ready’ for the data acquisition kit, which consists of special DDA software and a memory key that slots into a plug under the seat. The same plug also doubles as the connection for a handy new battery charger available as an accessory from Ducati Performance.
Silencer covers
The new silencer guards feature a longer shape and provide improved heat protection
Instrumentation
Visually simple digital instrumentation provides an array of data on command or, at a glance, just speed and revs. Information available at your fingertip include: scheduled maintenance warning, oil temperature, trip odometer, lap time, fuel reserve, warning light for low oil pressure, turn signals, over-rev warning, immobilizer and neutral warning light.
Adjustable levers
The new user-friendly brake and clutch with 4-point adjustable levers provide easy-to-reach control for all hand sizes.
M696 ABS
For the first time since its debut, the Ducati Monster is available with ABS (anti-lock braking system). Unlike the majority of motorcycle ABS set-ups, this system has the advantage of ensuring a more natural braking ‘feel’ for the rider. The Monster 696 ABS is equipped with ABS, the single seat cover and the neat micro-bikini fairing.
M696+
The 696+ is a factory-personalised model featuring some neat designer touches to help you stand out from the crowd. A beautiful single seat cover creates the clean look of a racing seat. The cover easily unclips to allow room for your favourite passenger while the neat micro-bikini fairing adds a custom touch to the front end.
2013 Ducati Monster 696 Features and Benefits
MONSTER FAMILY FEATURES
Monster frame
An immensely strong but light tubular steel Trellis frame with aluminium rear sub-frame is the visual and structural backbone of all Monsters. Delivering unparalleled rigidity with minimal mass, the frame design is pure Ducati in its ingenuity and simplicity and enables a useful 64 degrees of lock-to-lock steering travel.
The lightweight aluminium sub-frame maintains visual continuity with the footrest hangers and swingarm, and is designed to accept a passenger-friendly grab-rail kit available as an accessory from Ducati Performance. The kit further enhances passenger ride comfort without compromising the Monster’s stylish lines.
Monster ABS
The 2013 Monster family offers all 696 and 796 models with optional anti-lock braking system (ABS), while the 1100EVO and Monster Diesel has ABS fitted as standard equipment.
Designed to reduce the risk of wheel-lock under heavy braking or when braking in low grip conditions, the system reads wheel speed data from phonic wheel sensors to detect potential wheel lock. If the wheel speed differential falls below a specific safety limit, the control unit immediately reduces the brake system pressure to the appropriate calliper to avoid wheel lock. The pressure reduction on each individual braking circuit is activated by electronically controlled valves, which then close as the wheel speed differential moves away from a locking scenario.
Monster instrumentation
Looking clean and minimalist in true Monster style, the brightly illuminated display provides all essential data by default, and even more by scrolling with the left-hand switchgear. Data includes speed, revs, time, scheduled maintenance, oil temperature, ABS status (when applicable), DTC status (1100EVO and Monster Diesel only) and battery voltage, while warning lights illuminate for oil pressure, fuel reserve, turn indicators, high beam and neutral selection. In addition, the instruments present a reserve fuel trip, immobiliser status and automatic light-off function after 60 seconds with the key on as well as a memory to store lap times recorded by using the high-beam flash button as a stopwatch.
For the Monster 1100EVO and Monster Diesel, the display also doubles as a control panel for the 4-level Ducati Traction Control system included in the Ducati Safety Package (DSP), in addition to the Ducati Data Analyser (DDA) system, which is available as an accessory from Ducati Performance. All Monsters are built “system-ready” for the data acquisition kit, which consists of a special DDA software and memory key that slots into USB style plug under the seat. The same plug also doubles as the connection for a handy “battery maintainer” available as an accessory from Ducati Performance.
Monster Desmo
The incredible valve performances of the Desmodue engine are made possible because of Ducati’s unique Desmodromic system, where valve closure is activated mechanically. At high rpm it would be almost impossible for the valves to follow the steep closure profiles of the cam lobes if they were relying upon normal valve springs. With the Desmo system, the valves are closed mechanically with the same accuracy as they are opened, enabling steep cam profiles and radical cam timings. This system is used on every single Ducati power unit including the race-winning Superbike and Desmosedici GP engines.
Monster quality
Having more experience with twin-cylinder high performance engines than any other manufacturer, the aircooled L-Twin remains central to Ducati’s philosophy of motorcycling. This experience, plus constant investment in quality by design, advanced materials and engineering techniques has enabled a distance between service intervals of 7,500 miles (12,000km) making Ducati ownership even more enjoyable.
Monster Art – ‘Logomania’
Every model in the Monster family can be personalised using ‘Logomania’, the second collection of the innovative Monster Art project and a stunning tribute to famous Ducati logos and colour schemes that span more than 50 years of authentic brand heritage.
Changing the colour and character of any model in the current Monster line-up in just 15 minutes is the genius of the Monster Art program, and a feature that passionately supports the Monster culture of customisation. Consisting of tank panels, micro-bikini fairing, single-seat cover and front mudguard, the kits have now become a modern canvas in the world of motorcycle art and a unique method of Monster personalisation.
First introduced in 2009, the Monster Art project offered a range of colours over the 3 standard factory options with a collection called ‘Colour Therapy’. The latest chronologically organised collection, ‘Logomania’ introduces schemes that effectively enable a 50 year style shift in just 15 minutes.
Ducati Sport 100
Built in the race-driven mid-1950s, the Ducati Sport 100 used engineering solutions that had taken Ducati to victory in the Motogiro D’Italia. The Monster Art scheme of the same name, in blue and silver and proudly presenting the Ducati Meccanica tank logo, stands as a tribute to Fabio Taglioni’s Ducati Sport 100.
Ducati Mach 1
The 1960s saw Ducati’s single-cylinder engines continue to develop even more sports oriented specifications, and it all started with the Ducati 250 Mach 1. Some 50 years later, the style is captured in this distinctive scheme of red and white and, again, carrying the historic Ducati Meccanica tank logo.
Imola 72
This scheme celebrates the historic Imola 200 race in 1972, when Paul Smart and Bruno Spaggiari proved Ducati’s L-Twin engine with a victorious 1-2 finish. In replica metaflake silver with the classic 70s Ducati logo, the tank also sports a fibreglass colour strip that mimics the simple fuel level indicator typical of that era.
IOM78
Multiple World Champion, Mike Hailwood®, came out of retirement in 1978 to race in the Isle of man TT aboard a Ducati 900 SS. His historic victory there and the subsequent production of the Mike Hailwood Replica Ducati in 1979 is relived in this memorable colour scheme of red, white and green complete with period Ducati tank logo.
Pantah
The Pantah took Ducati into the 1980s in its own particular style, sporting a Trellis frame and the first Ducati engine to use belt-driven camshafts. Recreating the typical Pantah graphics of that era, this Monster Art scheme presents a grey finish with bold angled flashes of red and blue across the tank.
Darmah
The Ducati Darmah of the 70s and 80s was a naked model that used basic colours and stripes that captured the very essence of that era. The black and gold used to great effect during those years has been combined with the period Ducati logo and remembered in ‘Logomania’.
Ducati Corse
2010 was the first year of competition with the new Ducati Corse logo and the official Ducati Corse colours
are celebrated with their own ‘Logomania’ scheme within the Monster Art collection.
2013 Ducati Monster 696 – USA Specifications/Technical Details
US MSRP Price: See dealer for pricing in USD
Engine
TYPE
L-Twin cylinder, 2 valve per cylinder Desmodromic, air cooled
DISPLACEMENT
696cc
BORE X STROKE
88 x 57.2mm
COMPRESSION RATIO
10.7:1
POWER
58.8kW – 80hp @ 9000rpm
TORQUE
7.0kgm – 50.6lb-ft @ 7750rpm
FUEL INJECTION
Siemens electronic fuel injection, 45mm throttle body
EXHAUST
2 aluminum mufflers
Transmission
GEARBOX
6 speed
PRIMARY DRIVE
Straight cut gears; Ratio 1.85:1
RATIO
1st 32/13, 2nd 30/18, 3rd 28/21, 4th 26/23, 5th 22/22, 6th 24/26
FINAL DRIVE
Chain; Front sprocket 15; Rear sprocket 45
CLUTCH
APTC wet multiplate with hydraulic control
Chassis
FRAME
Tubular steel Trellis frame
FRONT SUSPENSION
Marzocchi 43mm upside-down forks
FRONT WHEEL
3-spoke light alloy 3.50 x 17
FRONT TYRE
Pirelli Angel ST 120/60 17″
REAR SUSPENSION
Progressive linkage with preload and rebound Sachs adjustable monoshock
REAR WHEEL
3-spoke light alloy 4.50 x 17
REAR TYRE
Pirelli Angel ST 160/60 17″
FRONT WHEEL TRAVEL
120mm (4.7in)
REAR WHEEL TRAVEL
148mm (5.8in)
FRONT BRAKE
2 x 320mm discs, 4-piston radial caliper
REAR BRAKE
245mm disc, 2-piston caliper
INSTRUMENTATION
Digital unit displaying: Speedometer, rev counter, clock, scheduled maintenance warning, oil temperature, trip fuel, air temperature, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, overrev, immobilizer. Ready for DDA system
Dimensions and weight
DRY WEIGHT
161kg (355lb) / 163kg (359lb) ABS version
WET WEIGHT
185Kg (407lb)
ABS WET WEIGHT
186kg (410,1lb)
SEAT HEIGHT
770mm (30.3in)
WHEELBASE
1450mm (57.1in)
RAKE
24°
TRAIL
87mm (3,42 in)
FUEL TANK CAPACITY
15l – 3.8 gallon (US) 13.5l – 3.6 gallon (US) ABS version
VERSIONS
Dual seat
Warranty
WARRANTY
2 years unlimited mileage
VALVE CLEARANCE CHECK
7.500m
Emissions and Consumption
STANDARD
follows the US Federal Regulation
2013 Ducati Monster 696 – Canadian Specifications/Technical Details
Canada MSRP Price: See dealer for pricing in CDN
Engine
TYPE
L-Twin cylinder, 2 valve per cylinder Desmodromic, air cooled
DISPLACEMENT
696cc
BORE X STROKE
88 x 57.2mm
COMPRESSION RATIO
10.7:1
POWER
58.8kW – 80hp @ 9000rpm
TORQUE
7.0kgm – 50.6lb-ft @ 7750rpm
FUEL INJECTION
Siemens electronic fuel injection, 45mm throttle body
EXHAUST
2 aluminum mufflers
Transmission
GEARBOX
6 speed
PRIMARY DRIVE
Straight cut gears; Ratio 1.85:1
RATIO
1st 32/13, 2nd 30/18, 3rd 28/21, 4th 26/23, 5th 22/22, 6th 24/26
FINAL DRIVE
Chain; Front sprocket 15; Rear sprocket 45
CLUTCH
APTC wet multiplate with hydraulic control
Chassis
FRAME
Tubular steel Trellis frame
FRONT SUSPENSION
Marzocchi 43mm upside-down forks
FRONT WHEEL
3-spoke light alloy 3.50 x 17
FRONT TYRE
Pirelli Angel ST 120/60 17″
REAR SUSPENSION
Progressive linkage with preload and rebound Sachs adjustable monoshock
REAR WHEEL
3-spoke light alloy 4.50 x 17
REAR TYRE
Pirelli Angel ST 160/60 17″
FRONT WHEEL TRAVEL
120mm (4.7in)
REAR WHEEL TRAVEL
148mm (5.8in)
FRONT BRAKE
2 x 320mm discs, 4-piston radial caliper
REAR BRAKE
245mm disc, 2-piston caliper
INSTRUMENTATION
Digital unit displaying: Speedometer, rev counter, clock, scheduled maintenance warning, oil temperature, trip fuel, air temperature, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, overrev, immobilizer. Ready for DDA system
Dimensions and weight
DRY WEIGHT
161kg (355lb) / 163kg (359lb) ABS version
WET WEIGHT
185Kg (407lb)
ABS WET WEIGHT
186kg (410,1lb)
SEAT HEIGHT
770mm (30.3in)
WHEELBASE
1450mm (57.1in)
RAKE
24°
TRAIL
87mm (3,42 in)
FUEL TANK CAPACITY
15l – 3.8 gallon (US) 13.5l – 3.6 gallon (US) ABS version
VERSIONS
Dual seat
Warranty
WARRANTY
2 years unlimited mileage
VALVE CLEARANCE CHECK
7.500m
Emissions and Consumption
STANDARD
follows the US Federal Regulation
2013 Ducati Monster 696 – Europe/UK Specifications/Technical Details
European MSRP Price: See individual EU country dealer for pricing.
UK RRP: £TBA (Prices are recommended and inclusive of VAT @ 20% and delivery)
Engine
TYPE
L-Twin cylinder, 2 valve per cylinder Desmodromic, air cooled
DISPLACEMENT
696cc
BORE X STROKE
88 x 57.2mm
COMPRESSION RATIO
10.7:1
POWER
58.8kW – 80hp @ 9000rpm
TORQUE
7.0kgm – 50.6lb-ft @ 7750rpm
FUEL INJECTION
Siemens electronic fuel injection, 45mm throttle body
EXHAUST
2 aluminum mufflers
Transmission
GEARBOX
6 speed
PRIMARY DRIVE
Straight cut gears; Ratio 1.85:1
RATIO
1st 32/13, 2nd 30/18, 3rd 28/21, 4th 26/23, 5th 22/22, 6th 24/26
FINAL DRIVE
Chain; Front sprocket 15; Rear sprocket 45
CLUTCH
APTC wet multiplate with hydraulic control
Chassis
FRAME
Tubular steel Trellis frame
FRONT SUSPENSION
Marzocchi 43mm upside-down forks
FRONT WHEEL
3-spoke light alloy 3.50 x 17
FRONT TYRE
Pirelli Angel ST 120/60 17″
REAR SUSPENSION
Progressive linkage with preload and rebound Sachs adjustable monoshock
REAR WHEEL
3-spoke light alloy 4.50 x 17
REAR TYRE
Pirelli Angel ST 160/60 17″
FRONT WHEEL TRAVEL
120mm (4.7in)
REAR WHEEL TRAVEL
148mm (5.8in)
FRONT BRAKE
2 x 320mm discs, 4-piston radial caliper
REAR BRAKE
245mm disc, 2-piston caliper
INSTRUMENTATION
Digital unit displaying: Speedometer, rev counter, clock, scheduled maintenance warning, oil temperature, trip fuel, air temperature, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, overrev, immobilizer. Ready for DDA system
Dimensions and weight
DRY WEIGHT
161kg (355lb) / 163kg (359lb) ABS version
WET WEIGHT
185Kg (407lb)
ABS WET WEIGHT
186kg (410,1lb)
SEAT HEIGHT
770mm (30.3in)
WHEELBASE
1450mm (57.1in)
RAKE
24°
TRAIL
87mm (3,42 in)
FUEL TANK CAPACITY
15l – 3.8 gallon (US) 13.5l – 3.6 gallon (US) ABS version
VERSIONS
Dual seat
Warranty
WARRANTY
2 years unlimited mileage
VALVE CLEARANCE CHECK
7.500m
Emissions and Consumption
STANDARD
Euro 3
2013 Ducati Monster 696 – Australia Specifications/Technical Details
Australia MSRP Price: See dealer for pricing in AU
Engine
TYPE
L-Twin cylinder, 2 valve per cylinder Desmodromic, air cooled
DISPLACEMENT
696cc
BORE X STROKE
88 x 57.2mm
COMPRESSION RATIO
10.7:1
POWER
58.8kW – 80hp @ 9000rpm
TORQUE
7.0kgm – 50.6lb-ft @ 7750rpm
FUEL INJECTION
Siemens electronic fuel injection, 45mm throttle body
EXHAUST
2 aluminum mufflers
Transmission
GEARBOX
6 speed
PRIMARY DRIVE
Straight cut gears; Ratio 1.85:1
RATIO
1st 32/13, 2nd 30/18, 3rd 28/21, 4th 26/23, 5th 22/22, 6th 24/26
FINAL DRIVE
Chain; Front sprocket 15; Rear sprocket 45
CLUTCH
APTC wet multiplate with hydraulic control
Chassis
FRAME
Tubular steel Trellis frame
FRONT SUSPENSION
Marzocchi 43mm upside-down forks
FRONT WHEEL
3-spoke light alloy 3.50 x 17
FRONT TYRE
Pirelli Angel ST 120/60 17″
REAR SUSPENSION
Progressive linkage with preload and rebound Sachs adjustable monoshock
REAR WHEEL
3-spoke light alloy 4.50 x 17
REAR TYRE
Pirelli Angel ST 160/60 17″
FRONT WHEEL TRAVEL
120mm (4.7in)
REAR WHEEL TRAVEL
148mm (5.8in)
FRONT BRAKE
2 x 320mm discs, 4-piston radial caliper
REAR BRAKE
245mm disc, 2-piston caliper
INSTRUMENTATION
Digital unit displaying: Speedometer, rev counter, clock, scheduled maintenance warning, oil temperature, trip fuel, air temperature, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, overrev, immobilizer. Ready for DDA system
Dimensions and weight
DRY WEIGHT
161kg (355lb) / 163kg (359lb) ABS version
WET WEIGHT
185Kg (407lb)
ABS WET WEIGHT
186kg (410,1lb)
SEAT HEIGHT
770mm (30.3in)
WHEELBASE
1450mm (57.1in)
RAKE
24°
TRAIL
87mm
FUEL TANK CAPACITY
15l – 3.8 gallon (US) / 13.5l – 3.6 gallon (US) ABS version
VERSIONS
Dual seat
Warranty
WARRANTY
2 years unlimited mileage
VALVE CLEARANCE CHECK
7.500m
Emissions and Consumption
STANDARD
Euro 3 (Europe) – USA: follows the US Federal Regulation
Be the first to comment
