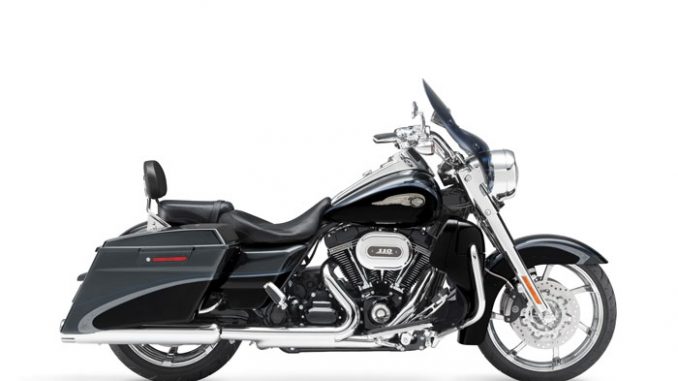

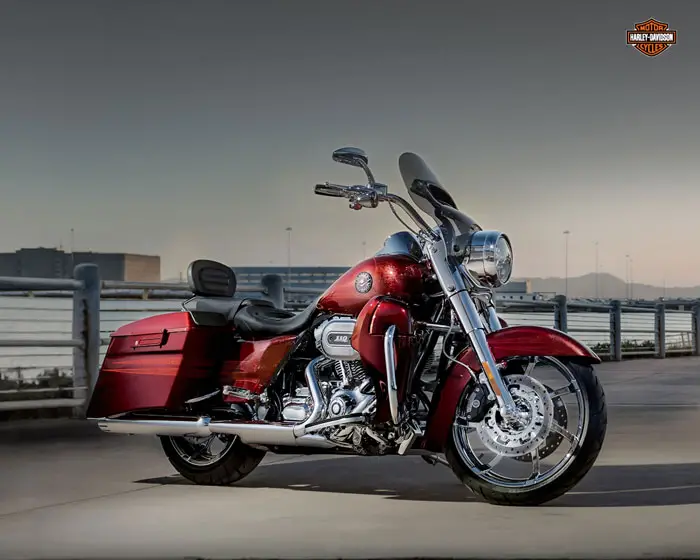

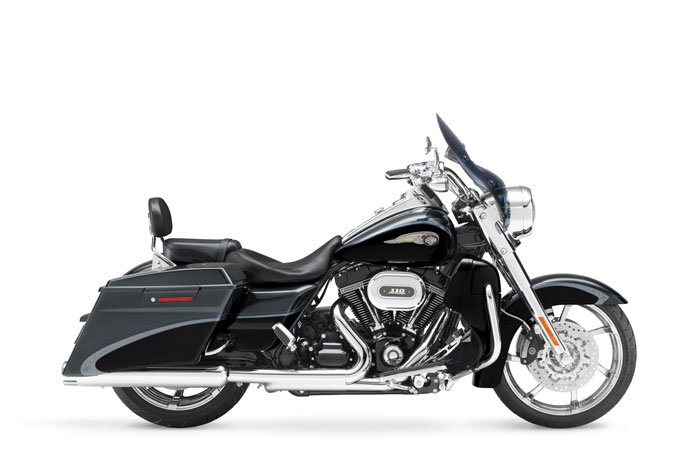

2013 Harley-Davidson FLHRSE5 CVO Road King 110th Anniversary
2013 Harley-Davidson FLHRSE5 CVO Road King 110th Anniversary

2013 Harley-Davidson FLHRSE5 CVO Road King 110th Anniversary
2013 Harley-Davidson FLHRSE5 CVO Road King

2013 Harley-Davidson FLHRSE5 CVO Road King 110th Anniversary Review

2013 Harley-Davidson FLHRSE5 CVO Road King 110th Anniversary

Cruise with class and tour in comfort—brash boom bagger style, sound and plenty of premiums give this light tourer some heavy street swagger.

Each of the CVO Anniversary Edition models will feature an exclusive Diamond Dust and Obsidian paint scheme.

CVO Road King 110th Anniversary Edition model (limited to 900 motorcycles).

The first factory-installed Road King audio system includes a 200-watt amplifier and an interface module for an included 8GB Apple® iPod® controlled by buttons on the handlebar. The system drives two 5×7-inch speakers with bridged tweeters located on the saddlebag lids, and two 5.25-inch speakers with bridged tweeters mounted in the fairing lowers. The new detachable Vented Wind Splitter windshield was developed by Harley-Davidson and tested in the Wichita State University wind tunnel to relieve low pressure behind the windshield and significantly reduce buffeting at the rider position. A vane within the vent should be adjusted to match air flow to the rider’s height. A low-profile console holds a combination speedometer/tachometer with programmable back-light colors.

Other CVO Road King features include a chrome billet-style extended reach heel shifter, Mirror Chrome Agitator Custom wheels, extended saddlebag bottoms with a custom fascia and LED lighting, a new chromed handlebar with an ergonomic bend, and Slipstream Collection hand and foot controls. A new solo touring seat and the removable passenger pillion and backrest have a tuck-and-roll leather insert. A new painting process features hand-finished graphics created with textures and solvents in a multi-step process that results in unique detailing on each motorcycle. Three color options are available, including the 110th anniversary scheme.

A highlight of each 110th Anniversary Edition model are solid bronze fuel tank badges, plated in black nickel and then distressed to highlight the bronze. A bright gold-tone Bar and Shield cloisonné is inserted in the main body of the “single wing” badge while each motorcycle will carry other model-specific anniversary badging, trim and a serialization badge.





2013 Harley-Davidson FLHRSE5 CVO Road King 110th Anniversary Key Features

New for 2013, Harley-Davidson launches Hard Candy Custom , a styling movement rooted in themes first seen in the chopper era of the late 1960s that embraces dazzling metal flake paint, brilliant chrome, and styling details in accessories, gear and apparel. Hard Candy Custom elements include “big flake” paint finishes, three of which will be selectively offered as a solid-color option on five Harley-Davidson production motorcycles for 2013.

Three exclusive paint schemes:
– Burgundy Blaze with Hot Fusion Graphics
– Crushed Sapphire with Cold Fusion Graphics
– 110th Anniversary Edition Diamond Dust/

Obsidian with Palladium Graphics
• 110th Anniversary Edition includes serialized 110th Anniversary cloisonné on the tank console insert, Midnight Pearl 110th Anniversary tank medallion, Black engine with Gloss Black covers, Midnight Pearl engine cover inserts, and exclusive paint scheme

• Assist & Slip Clutch Pack provides a slip feature on downshifts to reduce loading of the driveline; hydraulic actuation with reduced
effort and reshaped lever

• Four-speaker audio system with a 200-watt amplifier and interface for an 8GB Apple® iPod® controlled by buttons on the handlebar

• Detachable Vented Wind Splitter windshield with an adjustable vane to match air flow to the rider’s height

• Low-profile chrome console holds a combination speedometer/tachometer with programmable back-light colors

• Chrome billet-style extended reach heel shifter

• Solo seat and detachable passenger pillion and backrest with tuck-and-roll leather inserts and laser etched “Road King” panel

• Chrome 1.25-inch-diameter, internally-wired handlebar

• Slipstream Collection hand grips, rider floorboard inserts, shifter pegs, brake pedal pad and passenger footpegs

• Mirror Chrome Agitator Custom wheels with matching Agitator floating front brake rotors

• Chrome billet muffler end caps with black spears

• Injection-molded, extended hard saddlebags; color-matched rear fascia with LED brake/turn lights

• Color-matched saddlebag latches, rear fender strut covers, license plate light cover and rear fascia





2013 Harley-Davidson FLHRSE5 CVO Road King 110th Anniversary Features and Benefits

The CVO™ Road King® combines the largest displacement V-Twin engine offered by Harley-Davidson with the innovative Vented Wind Splitter windshield and the first audio system offered on a Road King® model, for unmatched touring performance, comfort and custom exclusivity.

Production will be limited to approximately 3,650 units assembled at the Harley-Davidson Vehicle Operations facility in York, Pa.

The CVO™ Road King® is built on the innovative Harley-Davidson® Touring chassis, based on a single-spar, rigid backbone frame and a stout swingarm developed to withstand the demands of long-haul touring riders and today’s morepowerful engines.

• Anti-Lock Brakes
• Electronic Cruise Control
• Chrome Accessories
• Black high-torque 1.4kW starter
• Braided stainless steel brake and clutch lines
• Harley-Davidson® Smart Security System with siren
• Commemorative CVO™ ignition key with display box
• Customer Care package that includes a tool kit, microfiber detail cloth, H-D® jiffy stand coaster, and indoor/outdoor motorcycle storage cover with embroidered CVO™ logo


Exclusive CVO™ Enhancements

All the quality. All the legacy of the Harley-Davidson name. Plus custom touches and performance that distinguish you from every other bike on the road. This is the CVO™ Road King® for 2013: everything that makes this a timeless cruiser equipped for long-run touring, now scaled up to pure, exclusive excellence. Premium custom style. Big, tricked-out wheels. Deep attention to details. The perfect storm of engineering and style you’ll only find on a custom machine. And you’ll spoil yourself with the accessories—from comfort to electronics to chrome. But the real signature of a Harley-Davidson® Custom Vehicle Operations™ motorcycle is the explosive power and sleek detailing of the huge Twin Cam 110™ with Screamin’ Eagle® engine badges. It’s custom-built, not just for anyone, but for true connoisseurs of the road.

High-Impact Paint and Graphics

Individually crafted and hand finished paint and graphics come standard on all Harley-Davidson® Custom Vehicle Operations™ motorcycles, balancing style and premium appeal to create one-of-a-kind custom motorcycle masterpieces. For 2013, the new CVO™ Road King® motorcycle offers two exclusive color schemes (and a 110th Anniversary treatment—see separate Key Feature) with hand-painted “Fusion” graphics and pin-stripes adorning the gas tank and plenty of matching paint on the fairing-lowers, fenders, saddlebags, and more. Plus, the fuel tank sports true custom melted-glass-look cloisonné emblems. Skimping? The word’s simply not in our vocabulary.

110th Anniversary Edition CVO™ Styling

To commemorate 110 years of epic road adventures, we’ve crafted the absolute acme of custom style and premium features in our 110th Anniversary CVO™ models. Our CVO™ Road King® Anniversary Edition motorcycle goes to the extremes of quality with unique top-of-the-line custom treatments, including: an ultra-premium Diamond Dust, Obsidian and Palladium paint scheme with Filigree graphics; Midnight Pearl Anniversary badging and medallions; a custom power train finish; and custom seating with exclusive inserts. If you’re looking for rare treasures, these are the ultimate masterpieces of motorcycle art.

110th Anniversary CVO™ Gas Tank Medallion

Each Anniversary Edition Harley-Davidson® motorcycle is a unique masterpiece marked as part of this historic celebration by its very own work of art: a 110th Anniversary commemorative cloisonné medallion featuring the Harley-Davidson Bar & Shield in bold black with Midnight Pearl finish. (Available only on CVO™ 110th Anniversary Edition models)

110th Anniversary Serialization Plaque

Our Anniversary Edition bikes are exclusive and produced in limited quantities and they proudly bear the proof of it: placed in a different location on each model, this tastefully crafted cloisonné holds the Serialization Plaque that displays the bike’s Anniversary Edition production number, marking your ride as an exclusive part of motorcycle history, one of a rare breed and a true one of kind. (Available only on CVO™ 110th Anniversary Edition models)

Slammed Instrument Console

Brilliant in every sense, this console is your chromed-out command module, newly designed specifically for the CVO™ Road King® model. Slammed low on the tank, it’s packed with a programmable speedo/odometer gauge and multiple LED indicators and ignition button. Instruments include gear/RPM tach, time clock, dual trip meter, engine diagnostics, and fuel level, pressure and countdown—all set in a sleek, shining unit that adds a powerful touch of custom class.

New Slipstream Collection Controls

The new 2013 Slipstream controls add a touch of top-of-the-line custom to the CVO™ Road King® model. With a new design for 2013, the hand grips, brake pedal, foot pegs and footboard inserts all feature that characteristic modern Slipstream look and quality. It’s premium custom touches like this—stylish and comfortable—that set our Custom Vehicle Operations™ models on a higher level.

Custom saddlebags and rear fascia with LED signal lights

This motorcycle may be a masterpiece, but it’s no museum piece—it’s ready to go the distance and its rear assembly’s a big part of that. Sure, the custom rear fascia with its dark, smoked-lens signals, and the saddlebags with their extended styling and color-matched finishes all add to the bike’s premium custom look. But there’s plenty of space in those hard-case bags to secure your loot, the speakers in their locking lids help surround you with your tunes, and the LED stop/turn/tail lights deliver crisp, reliable visibility in all conditions, mile after mile after mile.

Custom Agitator Wheels

Gorgeous in every way, the bold 19-inch front and 18-inch rear wheels deliver a dramatic profile. Plus, you’ll still get that custom Agitator style—seven spoke design, mirror-chrome finish, and matching full-floating brake rotor and chrome center hub on the front wheel.

Twin Cam 110™ Engine Heritage

The knowledge of what makes an engine truly move a rider runs deep at The Motor Company, and it was put to good use when we created the Twin Cam 110™ engine. We sweated bullets perfecting every cubic inch, pushing design and technology forward. And we did it all without compromising one bit of Harley-Davidson’s unique styling. Evolved, yet carrying on the legacy of the Flathead, Knucklehead, Panhead, Shovelhead, Evolution® and Twin Cam 88® engines that came before. The performance and durability are a direct result of the untold miles logged on the V-Twin since 1909, and the proud heritage that comes from a century’s worth of commitment to life on two wheels.

Twin Cam 110™ Engine Innovation

Fire up the Twin Cam 110™ engine and feel the low-end torque unleashed. The colossal 110™ cubic inches provide seemingly endless torque with adrenaline-pumping pull through all six gears. Boasting the largest-displacement V-Twin engine by Harley-Davidson, the Twin Cam 110™ engine produces 118 ft. lbs. of torque at 3750 rpm. Six speeds. A strong driveline and a low cruising rpm couldn’t feel better.

Pure Harley-Davidson® Styling

Pure. Dripping with power. A jewel machined out of metal. There’s no mistaking the roots of the Twin Cam 110™ with Screamin’ Eagle® engine badges: authentic Harley-Davidson style through and through, with an attention to detail you’ll get from no other motorcycle company. Its granite-colored heads and cylinders feature machined cooling fin tips and are highlighted by chrome rocker covers and Twin Cam 110™ engine badging. The 110th Anniversary Edition model brings the celebration in distinguished style, adding an exclusive custom black power train with gloss black covers. From the cooling fins’ classic edges to the clean lined cases and covers, it’s a pure, powerful declaration of the value of staying true to what satisfies the rider.

Six-Speed Cruise Drive®

You want a ride that rumbles—not begs for mercy—when you lean on it a little, and it’s the rare ride that responds like this. The Six-Speed Cruise Drive® transmission provides smooth, quiet shifting and reduces engine speed on the highway, giving you a better match between engine RPM and road speed. And the Isolated Drive System makes acceleration flow in a smooth, steady stream from your wrist right down to the pavement, for control and response that go a long way when you’re opening up the road ahead.

Hydraulic Clutch

Performance gets the custom treatment on Custom Vehicle Operations™ motorcycles. The addition of a high-performance clutch with hydraulic actuation helps make sure you’re getting a smooth, confident feel with just the right amount of effort and a hands-off reliability that’s only fitting. And you’ll love the confidence and control it lends when harnessing those 110 cubic inches of Twin Cam power.

Ventilator’ Intake with Screamin’ Eagle® 110™ badge

Everything about the Twin Cam 110™ Engine is a testament to the premium styling and performance you get with a limited Custom Vehicle Operations™ motorcycle. Right smack between the engine jugs rests the ‘ventilator’ intake with high-flow filter element, back plate, diamond-cut, Midnight Pearl finish Screamin’ Eagle® badge and protective rain sock. Your bike will breathe easy while the increased air flow boosts the raw power. Unique and exclusive. That is what Custom Vehicle Operations is all about.

High Performance Audio System

This is the boom in your bagger and an innovative new dimension in customization—premium sound on a non-fairing bike. A high output, 200 watt amplifier delivers high quality, high output audio from speakers in the fairing lowers in front and the saddlebag lids behind. The controller puts music command at your glove-tips, making it easy to match your tunes to your cruise. And with the iPod® connector and included, Harley-Davidson®-branded 8GB iPod Nano you’ll always have plenty of boom to move.

Anti-Lock Brakes

When it comes to the CVO™ Road King® model with optional ABS, “stopping power” has a double meaning. We’ve incorporated the components of our ABS within the wheel hub without sacrificing any of the bike’s iconic custom style, so you’ll still turn heads with a clean, streamlined design. More importantly, though, you get certainty in the saddle knowing your bike’s going to behave when you need it.

Intuitive Controls

Hand controls on a Harley-Davidson® motorcycle are incredibly intuitive. The turn signals are self-canceling and, based on the speed and angle of the motorcycle, they know how long to stay on. Engaging the controls quickly becomes second nature so you can focus less on turning off your signal and more on basking in the freedom of the ride.

Artfully Hidden Technology

Harley-Davidson leverages the latest in technology without compromising style and function. That means we hide electronics. The whole wiring harness is skillfully routed behind the jewels of the bike—the tank, engine and all the other eye-popping features you want to see. It’s just another way The Motor Company goes the extra mile to give its bikes that premium, top-of-the-line fit and finish.

Frame and Swingarm

This is the game-changer: instead of stamped and welded parts and bent tubing, this frame and swingarm boast strong castings and forgings—just like the legendary Harley-Davidson® frames of years past—so the acceleration is strong and the ride is tight and responsive.

Legendary Low Speed Maneuverability

At The Motor Company, we believe you don’t make innovative, next-generation Touring motorcycles without shedding a little blood, sweat and tears. And when you get it right—like with the low speed maneuverability on our Touring models—all the other upgrades in the ride combine to create a big-boned bike that is light and nimble while carving up tight turns or if you find yourself riding in a parade or group ride.

Fine-Tuned Front End Geometry

H-D® might as well stand for ‘handling details.’ Here’s another key engineering innovation we added because we refuse to settle. We took an already royal ride and fine-tuned the front end, making it even more responsive. You might not fully appreciate the difference until you’re tucked into a long twisty, sewn to the saddle and fully in tune with every curve of the road.

Brembo® Brakes

Confidence. Control. High-performance dual disc Brembo® front brakes with Anti-Locking Brake System (ABS) offer consistent stopping power at all speeds. The 4-piston front and rear caliper with dual front rotor brake system is state of the art and top of the line. It’s just another way The Motor Company puts a high level of detail into their bikes to give you peace of mind throughout your journey.

Tuned to Be Ridden

Harley-Davidson® motorcycles are different than any other bike out on the road. There’s a balance to them. The steering, the maneuverability—it’s all in concert. And each Harley-Davidson® model is tuned differently to create a unique riding experience for each individual no matter which bike they swing their leg over. Let’s face it, we didn’t get to where we are by being like everyone else.

Low Profile Saddle

Ride in luxury, style and confidence with this 2-piece solo seat and matching pillion, newly developed for the CVO™ Road King® model. You sit low (26.5-inches) and wrapped in sculpted comfort with your boots easily reaching the ground. Custom Tuck-n’-Roll leather inserts and laser-etched Road King® emblem add an unmistakable touch of top-of-the-line custom styling.

Full-Length Footboards with Extended Heel Shift Lever

Your boots were made for riding, in comfort, and any way you see fit. Our full-length footboards boast a tried and true design that’s stood the test of time with rubber isolation that spares you from vibration and passenger footpegs for a custom look. New for 2013, we’ve added even more comfort with a redesigned extended reach heel shift lever that makes getting through the gears quick and easy and gives your foot more room on the left-side board.

Engine Idle Temperature Management System

Our motorcycles are built to be ridden. A lot. So that means that rider comfort is top of mind. Always. The Engine Idle Temperature Management System (EITMS) feature shuts off fuel to the rear cylinder when the bike is at idle and the engine reaches a certain temperature, so it can cool off as the engine idles only on the front cylinder. Best part, you can easily turn this feature on or off yourself whenever the bike is stopped.








2013 Harley-Davidson FLHRSE5 CVO Road King 110th Anniversary – USA Specifications/Technical Details
US MSRP Price: Custom Color Option $30,999 USD

DIMENSIONS
Length 96.7 in. (2455 mm)
Overall Width 39 in. (990 mm)
Overall Height 52.4 in. (1330 mm)

Seat Height:
• Laden2 26.5 in. (673 mm)
• Unladen 27.4 in. (695.9 mm)

Ground Clearance 4.9 in. (125 mm)
Rake (steering head) 26°
Fork Angle 29.2°
Trail 6.69 in. (170 mm)
Wheelbase 64 in. (1625 mm)

Tires (Dunlop® Harley-Davidson® Series, bias blackwall front and rear):
• Front – D408F 130/60B19 61H
• Rear – D407 180/55B18 80H

Fuel Capacity 6 gal. (22.7 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 4 qts. (3.8 L)
Transmission Capacity 1 qt. (1 L)
Primary Chain
Case Capacity 1.4 qts. (1.3 L)

Weight:
• As Shipped 809 lbs. (367 kg)
• In Running Order 838 lbs. (380 kg)
• Gross Vehicle Weight Rating 1360 lbs. (617 kg)
• Gross Axle Weight Rating:
• Front 500 lbs. (227 kg)
• Rear 927 lbs. (420 kg)

Luggage Capacity – Volume
2.36 cu. ft. (0.0661 m3)

ENGINE
Engine Air-cooled, Twin Cam 110™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 4 in. x 4.38 in. (101.6 mm x 111.1 mm)
Displacement 110 cu. in. (1802 cc)
Compression Ratio 9.2:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Ventilator intake with chrome cover, fiberglass media, washable exposed element with rain sock
Lubrication System Pressurized, dry-sump with oil cooler

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Hydraulically actuated, 9-plate wet, with high-performance spring
Transmission 6-speed Cruise Drive®

Gear Ratios (overall): U.S.
• 1st 9.593
• 2nd 6.65
• 3rd 4.938
• 4th 4
• 5th 3.407
• 6th 2.875

CHASSIS
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded

Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Forks 41.3 mm telescopic
Rear Shocks Hydraulic rear shock with hand adjustable pre-load

Wheels4: Mirror Chrome Agitator Custom wheels front, Black, 28-spoke Cast Aluminum rear
• Front 19 in. x 3.5 in. (483 mm x 89 mm)
• Rear 18 in. x 5 in. (457 mm x 127 mm)

Brakes:
• Caliper Type 32 mm, 4-piston fixed front and rear
• Rotor Type (diameter x width): Dual floating rotors (front), fixed rotor (rear)
• Front (dual) 11.81 in. x .2 in. (300 mm x 5.1 mm)
• Rear 11.81 in. x .28 in. (300 mm x 7.1 mm)
• Anti-lock Braking System Standard

Suspension Travel:
• Front Wheel 4.6 in. (117 mm)
• Rear Wheel 2 in. (51 mm)

PERFORMANCE
Engine Torque5 (per J1349):
• North America 118 ft. lbs. @ 3750 RPM (160 Nm @ 3750 RPM)

Lean Angle (per J1168):
• Right 32°
• Left 30°

Fuel Economy6 (EPA urban/highway test)
41 mpg (5.7 L/100 km)

ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 28-amp/hour, 370 cca
Charging Three-phase, 50-amp system (585W @ 13V, 2000 RPM, 650W max power @ 13V)
Starting 1.4 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (dual bulb halogen) 55-watt low beam, 120-watt high beam
• Tail/Stop Lights Combination LED
• Turn Signal Lights 28W (21W) self-canceling
• Indicator Lamps: High beam, running lights, neutral, low oil pressure, engine diagnostics, turn signals, security system7, 6-speed, low fuel warning, cruise control, ABS

WARRANTY
Warranty8 24 months (unlimited mileage)
Service Interval9 First 1000 miles (1600 km), every 5000 miles (8000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (V-Rod® models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.

2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 The combined fuel economy numbers were derived using a combination of estimated city and highway values. Fuel economy estimates are derived from US EPA exhaust emission certification data on a sample motorcycle from the corresponding family under ideal laboratory conditions. Your actual fuel economy will vary depending on your personal riding habits, road and driving conditions, vehicle condition and maintenance, tire pressure, vehicle configuration (parts and accessories), and vehicle loading (cargo, rider and passenger weight). Break-in mileage may vary.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner’s manual for complete details.
9 Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details.








2013 Harley-Davidson FLHRSE5 CVO Road King 110th Anniversary – Canadian Specifications/Technical Details
Canada MSRP Price: Anniversary Edition $ 35,209 CDN

DIMENSIONS
Length 2,445 mm
Seat Height, Unladen 695 mm
Ground Clearance 125 mm
Rake (steering head) (deg) 26
Trail 170 mm
Wheelbase 1,625 mm
Tires, Front Specification 130/80B17 65H
Tires, Rear Specification (180/65B16 81H
Fuel Capacity 22.7 l
Oil Capacity (w/filter) 3.8 l
Weight, As Shipped 367 kg
Weight, In Running Order 380 kg
Luggage Capacity -Volume 0.066 m3 (0.063 m3)
Luggage Capacity -Weight NA

ENGINE
Engine 1 Air cooled, Twin Cam 110™
Bore 101.6 mm
Stroke 111.1 mm
Displacement 1,802 cc
Compression Ratio 9.2:1
Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)

DRIVETRAIN
Primary DriveChain, 34/46 ratioChain, 34/46 ratio
Gear Ratios (overall) 1st 9.593
Gear Ratios (overall) 2nd 6.65
Gear Ratios (overall) 3rd 84.938
Gear Ratios (overall) 4th 4.0
Gear Ratios (overall) 5th 73.407
Gear Ratios (overall) 6th 2.875

CHASSIS
Diamond Dust & Obsidian with Palladium graphics
Wheels, Front Type Black, 28-spoke Cast Aluminum)
Wheels, Rear Type Black, 28-spoke Cast Aluminum)
Brakes, Caliper Type 32 mm, 4-piston fixed front and rear

PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 160 Nm
Engine Torque (rpm) 3,750
Lean Angle, Right (deg.) 32
Lean Angle, Left (deg.) 30
Fuel Economy: Combined City/Hwy 5.7l/100 km

PRICING
Anniversary Edition$ 35,209

ELECTRIC
Lights (as per country regulation), Indicator Lamps 7High beam, running lights, neutral, low oil pressure, engine diagnostics, turn signals, security system, 6-speed, low fuel warning, cruise control , ABSHigh beam, running lights, front fender running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)
GaugesNew-Tank-mounted electronic speedometer with: New-Tank-mounted electronic speedometer with odometer

1Recommended 91 octane or higher fuel (R+M)/2.
2Values shown are nominal. Performance may vary by country and region.
3Standard and optional fuel systems may vary by country.
4See motorcycle owner’s manual for complete details.
5Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6Measurement reflects 180 lb. (81.7 kg) operator weight.
7North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8Standard and optional wheels may vary by country and region.





2013 Harley-Davidson FLHRSE5 CVO Road King 110th Anniversary – UK/Europe Specifications/Technical Details
UK/European MSRP Price: Anniversary Edition £ 26,295 GBP

DIMENSIONS
Length 2,445 mm
Seat Height, Unladen 695 mm
Ground Clearance 125 mm
Rake (steering head) (deg) 26
Trail 170 mm
Wheelbase 1,625 mm
Tires, Front Specification 130/60B19 61HNW (130/80B17 65H)
Tires, Rear Specification 180/55B18 80HNW (180/65B16 81H)
Fuel Capacity22.7 l
Oil Capacity (w/filter) 3.8 l
Weight, As Shipped 367 kg
Weight, In Running Order 380 kg

ENGINE
Engine 2Air-cooled, Twin Cam 103™ with Integrated Oil-Cooler
Bore 101.6 mm
Stroke 111.1 mm
Displacement 1,802 cc
Compression Ratio 9.2:1
Fuel SystemElectronic Electronic Sequential Port Fuel Injection (ESPFI)

DRIVETRAIN
Primary DriveChain, Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.593
Gear Ratios (overall) 2nd 6.65
Gear Ratios (overall) 3rd 4.938
Gear Ratios (overall) 4th 4.0
Gear Ratios (overall) 5th 3.407
Gear Ratios (overall) 6th 2.875

CHASSIS
Diamond Dust & Obsidian with Palladium graphics
Wheels, Front Type 7 Mirror Chrome Agitator Custom Wheels
Wheels, Rear Type Black, 28-spoke Cast Aluminum
Brakes, Caliper Type 32 mm, 4-piston fixed front and rear

PERFORMANCE
Engine Torque Testing Method EEC/95/1
Engine Torque 156 Nm
Engine Torque (rpm) 4,000
Lean Angle, Right (deg.) 32
Lean Angle, Left (deg.) 30
Fuel Economy: Combined City/Hwy 5.6 l/100 km

PRICING
Anniversary Edition£ 26,295


ELECTRIC
Lights (as per country regulation), Indicator Lamps 6High beam, running lights, neutral, low oil pressure, engine diagnostics, turn signals, security system, 6-speed, low fuel warning, cruise control , ABSHigh beam, running lights, front fender running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)
GaugesNew-Tank-mounted electronic speedometer (KPH) with: New-Tank-mounted electronic speedometer (KPH)with odometer
1Availability of colours may vary from dealer to dealer and is subject to change without further notice.
2Recommended 95 octane or higher fuel (R+M)/2.
3Values shown are nominal. Performance may vary by country and region.
4See motorcycle owner’s manual for complete details.
5Measurement reflects 81.7 kg operator weight.
6Security system includes immobiliser and siren.
7Standard and optional wheels may vary by country and region.






2013 Harley-Davidson FLHRSE5 CVO Road King 110th Anniversary – Australia Specifications/Technical Details
Australian MSRP Price: $TBA AUD

More information to follow shortly





Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.








2013 Harley-Davidson FLHRSE5 CVO Road King 110th Anniversary – Press Release 1

HARLEY-DAVIDSON OFFERS LIMITED-PRODUCTION ANNIVERSARY MODELS
110th Anniversary Editions Feature Exclusive Paint and Commemorative Fuel Tank Badges

CONCORD (August 20, 2012) – In 2013, from Milwaukee to Rome and in dozens of other cities all across the globe, Harley-Davidson is celebrating 110 years of classic motorcycles and classic good times. As a rolling tribute to this milestone, Harley-Davidson will produce a limited run of 110th Anniversary Editions of select 2013 Harley-Davidson® motorcycles that continue a tradition of commemorating the history of the Motor Company. Each 110th Anniversary Edition Harley-Davidson® model will be serialized and feature exclusive paint and commemorative fuel tank badges. Production will vary by model and will be strictly limited to ensure exclusivity.

The Harley-Davidson 110th Anniversary celebration will climax in Milwaukee, Wisconsin, August 29 to September 1, 2013.

One highlight of each 110th Anniversary Edition model is the solid bronze fuel tank badge, plated in black nickel and then distressed to highlight the bronze. A bright gold-tone Bar and Shield cloisonné is inserted in the main body of the “single wing” badge. In addition to the Anniversary tank badge, each model will carry other model-specific Anniversary badging and trim. Each motorcycle will carry a serialization badge on the fuel tank.

Each of the following 110th Anniversary models will feature an exclusive Anniversary Vintage Bronze/Anniversary Vintage Black paint scheme. These models come with all available Factory-installed options as standard equipment.


o 1200 Custom 110th Anniversary Edition model (limited to 1,500 motorcycles) includes Smart Security System.

o Super Glide Custom 110th Anniversary Edition model (limited to 1,450 motorcycles) includes Smart Security System, ABS, and Chrome Aluminum Profile Laced wheels.

o Fat Boy Lo 110th Anniversary Edition model (limited to 1,750 motorcycles) includes Smart Security System and ABS.

o Heritage Softail Classic 110th Anniversary Edition model (limited to 1,900 motorcycles) includes Smart Security System, ABS, and Chrome Profile Laced Aluminum wheels with Wide Whitewall tires.

o Road King 110th Anniversary Edition model (limited to 1,750 motorcycles) includes Smart Security system, ABS, Cruise Control, and Contrast Chrome, 28-Spoke Cast-Aluminum Wheels.

o Electra Glide Ultra Limited 110th Anniversary Edition model (limited to 3,750 motorcycles).

o Tri Glide Ultra Classic 110th Anniversary Edition model (limited to 1,450 motorcycles) includes Smart Security System.

Each of the CVO Anniversary Edition models will feature an exclusive Diamond Dust and Obsidian paint scheme.

o CVO Ultra Classic Electra Glide 110th Anniversary Edition model (limited to 1,100 motorcycles).

o CVO Road King 110th Anniversary Edition model (limited to 900 motorcycles).

o CVO Road Glide Custom 110th Anniversary Edition model (limited to 900 motorcycles).



2013 Harley-Davidson FLHRSE5 CVO Road King 110th Anniversary – Press Release 2

HARLEY-DAVIDSON® CVO OFFERS TWO NEW PREMIUM MODELS FOR 2013
CVO Also Introduces Daymaker LED Headlamp and Vented Wind Splitter Windshield

MILWAUKEE (August 20, 2012) – Four models from Harley-Davidson® Custom Vehicle Operations (CVO) take limited-production, factory-custom motorcycles to the highest level of performance, style and exclusivity in 2013. New models include the CVO Breakout , a high-performance Softail® model with exciting new surface finish options and custom details, and the CVO Road King®, fitted with an innovative vented windshield and high-output audio system. Returning for 2013 with new custom features and finishes are the CVO Ultra Classic® Electra Glide® and the CVO Road Glide® Custom.

Serialized 110th Anniversary Editions of 2013 CVO Road King, CVO Ultra Classic Electra Glide and CVO Road Glide Custom will also be available, with 110th Anniversary badging and fuel tank medallions, and an exclusive Diamond Dust and Obsidian paint scheme.

CVO motorcycles are designed using premium accessories and paint treatments combined with numerous items from Harley-Davidson® Genuine Motor Accessories. The CVO program is often used to introduce new custom components and techniques before they are offered as individual accessories. Harley-Davidson CVO motorcycles are backed by a two-year, unlimited mileage warranty.

All 2013 CVO models are powered by the Screamin’ Eagle® Twin Cam 110 V-Twin engine. Rated at up to 122 ft. lbs. of torque, the 110-cid air-cooled Twin Cam 110 is the most-powerful engine offered in a Harley-Davidson motorcycle, and is only available in CVO models. The new Assist & Slip Clutch Pack provides a slip feature on downshifts to reduce loading of the driveline. A new internal design significantly improves the life of the clutch pack in test cycles. Hydraulic clutch actuation has been updated to reduce lever effort; peak force required is reduced by 10 percent and hold-in force is reduced 17 percent. Finally, a new clutch lever shape reduces reach and optimizes lever control. All 2013 Harley-Davidson CVO models also feature electronic cruise control, Anti-Lock Braking System (ABS), the Harley-Davidson® Smart Security System, and a new indoor/outdoor storage cover with CVO logo.

Harley-Davidson is offering two all-new CVO models for 2013:

2013 CVO Breakout®: This bold new Softail® model is muscle in motion, projecting a tough attitude and boasting the highest power-to-weight ratio of any current CVO model. Taking production motorcycle finishes to a new level, the CVO Breakout is offered in two paint schemes that feature hand-polished steel sections on the fuel tank and fenders. A third paint option incorporates hand-laid lace stenciling. New polished chrome Turbine wheels feature dramatic spoke ridges on the rims. Fenders are chopped to expose the tires. A new wide front end is fully chromed and topped with a new mini-nacelle and chromed headlamp bucket. A chrome fuel tank console has been trimmed so low that braided-steel lines house the exposed tank vent. The CVO Breakout also features a new chrome internally-wired handlebar, an integral riser with a low-mount speedometer/tachometer, chromed cast aluminum oil tank, and leather seating surfaces embossed with a horn-back gator hide pattern. Three color options will be offered. (See separate release for more CVO Breakout details)

2013 CVO Road King®: The first factory-installed Road King audio system includes a 200-watt amplifier and an interface module for an included 8GB Apple® iPod® controlled by buttons on the handlebar. The system drives two 5×7-inch speakers with bridged tweeters located on the saddlebag lids, and two 5.25-inch speakers with bridged tweeters mounted in the fairing lowers. The new detachable Vented Wind Splitter windshield was developed by Harley-Davidson and tested in the Wichita State University wind tunnel to relieve low pressure behind the windshield and significantly reduce buffeting at the rider position. A vane within the vent should be adjusted to match air flow to the rider’s height. A low-profile console holds a combination speedometer/tachometer with programmable back-light colors. Other CVO Road King features include a chrome billet-style extended reach heel shifter, Mirror Chrome Agitator Custom wheels, extended saddlebag bottoms with a custom fascia and LED lighting, a new chromed handlebar with an ergonomic bend, and Slipstream Collection hand and foot controls. A new solo touring seat and the removable passenger pillion and backrest have a tuck-and-roll leather insert. A new painting process features hand-finished graphics created with textures and solvents in a multi-step process that results in unique detailing on each motorcycle. Three color options are available, including the 110th anniversary scheme.

Two CVO models return for 2013 with new paint schemes and features:

2013 CVO Ultra Classic® Electra Glide®: This super-premium touring motorcycle is fully equipped and stylishly appointed. New features for 2013 include the chrome and rubber Slipstream Collection heated hand grips, rider and passenger footboard inserts, brake lever pad, shifter and highway pegs and windshield trim. The suspended, dual-control heated, two-up seat and adjustable passenger backrest have a new perforated leather insert. A new chrome billet-style extended reach heel shifter creates more boot room on the left-side footboard. The CVO Ultra is equipped with a high-performance Harman/Kardon® Advanced Audio system that includes BOOM! Audio High Performance BOOM! Bagger speakers. Four new color combinations are available, including the 110th anniversary scheme.

2013 CVO Road Glide® Custom: This distinctive shark-nose bagger now features the Daymaker LED headlamp, and is the first production Harley-Davidson equipped with this very bright and precise headlamp system. The high-output Harman/Kardon® Advanced Audio system is upgraded with a second 200-watt amplifier and a pair of 5×7-inch speakers with bridged tweeters located in the saddlebag lids in addition to 5×7-inch fairing-mount speakers and two-inch dash-mount tweeters. The audio system features CD/AM/FM/WB, an 8GB Apple® iPod® nano located in the right-side saddlebag, and a new, more-sensitive hidden AM/FM antenna located within the fairing. Other new CVO Road Glide Custom features include a smoked Wind Splitter windscreen with a ghosted Harley-Davidson graphic, a chrome billet-style extended reach heel shifter, a low-profile, two-piece seat with diamond pattern leather inserts, a black 1.25-inch handlebar, and Slipstream Collection hand grips and foot controls. Three new color combinations will be offered for 2013, including the 110th anniversary scheme.



2013 Harley-Davidson FLHRSE5 CVO Road King 110th Anniversary – Press Release 3

NEW MODELS AND NEW OPTIONS FROM HARLEY-DAVIDSON FOR 2013
110th Anniversary Editions, Hard Candy Custom Styling, and a Restyled Street Bob

MILWAUKEE (August 20, 2011) – Harley-Davidson rolls into its 110th model year with a line of authentic American motorcycles that includes 110th Anniversary Editions of select Harley-Davidson® motorcycle models and a restyled Dyna® Street Bob® model. Harley-Davidson Custom Vehicle Operations (CVO) offers two new models, the CVO Breakout , a high-performance Softail® model with exciting new finish options, and the CVO Road King®, fitted with an innovative vented windshield and high-output audio system.

Also new for 2013, Harley-Davidson launches Hard Candy Custom , a styling movement rooted in themes first seen in the chopper era of the late 1960s that embraces dazzling metal flake paint, brilliant chrome, and styling details in accessories, gear and apparel. Hard Candy Custom elements include “big flake” paint finishes, three of which will be selectively offered as a solid-color option on five Harley-Davidson production motorcycles for 2013.

H-D1 Factory Customization expands with the Street Bob joining the 1200 Custom as Harley-Davidson models in the web-based program that allows customers to select factory-installed options in more than 2,000 combinations, build a bike on the screen, and then order it through an authorized Harley-Davidson dealer.

More than a century of experience, knowledge and riding passion lies behind each 2013 Harley-Davidson.

Highlights of the 2012 Harley-Davidson line include:

Ten Harley-Davidson models are offered as 110th Anniversary Editions, each serialized and featuring exclusive paint and commemorative solid bronze fuel tank badges. Production will vary by model and will be strictly limited to ensure exclusivity. These models come with all available factory-installed options as standard equipment. (See separate release for more details on the 110th Anniversary Editions.)

The Harley-Davidson® Street Bob® gets a tougher profile for 2013 with new blacked-out triple clamps and powertrain, and a chopped rear fender with side-mounted license plate and stop/turn/tail lights. This rowdy Dyna bobber features a solo seat and mini-ape handlebar mounted on new risers that make it easier to customize the Street Bob. New paint options include Hard Candy Custom metalflake and a scalloped two-tone option. (See separate release for more details on the 2013 Street Bob.)

The Street Bob serves as a great starting point for customization, and now along with the 1200 Custom it can be personalized through H-D1 Factory Customization with options selected by the customer using the online Bike Builder on Harley-Davidson.com, and installed as the motorcycle is assembled by the Harley-Davidson Motor Company. By choosing from different wheels, paint and engine finishes, the customer can dramatically alter the look of the motorcycle. Different combinations of foot-control location, seat choices and handlebar can be selected to adjust the fit of the motorcycle to rider stature.

Hard Candy Custom embraces a trend that’s reemerged from garages around the globe. Now the sparkle of Hard Candy Big Red Flake, Hard Candy Lucky Green Flake and Hard Candy Coloma Gold Flake can be ordered as Original Equipment paint and serve as the foundation for personal customization. At least one Hard Candy Custom color will be offered on these Harley-Davidson motorcycle models: Seventy-Two , Street Bob®, Blackline®, Softail® Deluxe, and Forty-Eight . New and recently introduced Genuine Motor Accessory and Harley-Davidson® MotorClothes® items extend the Hard Candy Custom theme. (See separate release for more details on Hard Candy Custom.)

The 2013 CVO series of limited-production premium custom motorcycles features the new CVO Breakout®, a bold Softail® model that takes production motorcycle finishes to a new level with two paint schemes that feature hand-polished steel sections on the fuel tank and fenders. The CVO Road King® offers the first factory-installed Road King® audio system, and the new detachable Vented Wind Splitter windshield. The super-premium touring CVO Ultra Classic® Electra Glide® and shark-nose CVO Road Glide® Custom bagger return with new features for 2013. (See separate release for more details on the 2013 CVO line.)

The versatile Harley-Davidson® Sportster® line includes five models, plus the Sportster® 1200 Custom Anniversary Edition. New colors and graphics are offered on all Sportster® models.

The traditional “hard tail” lines of the Harley-Davidson Softail® platform are offered on six models, including the Softail® Slim , a back-to-basics 1950’s-style bobber introduce mid-year 2012. The 2013 Fat Boy® now features Mirror Chrome Aluminum Bullet Hole Disc wheels as standard equipment. The Softail® line also includes Heritage Softail® Classic Anniversary Edition and the Fat Boy® Lo Anniversary Edition.

Eight Harley-Davidson® Touring models, from the slammed-and-trimmed Street Glide® to the fully equipped Electra Glide® Ultra Limited, are ready to tackle the long road with fresh color and graphics options. The Road King® Anniversary Edition and Electra Glide® Ultra Limited Anniversary Edition are available in limited quantities for 2013.
The smooth-handling 2013 Dyna® line includes the re-styled Street Bob and four more models, plus the Super Glide® Custom Anniversary Edition.

The aggressive Harley-Davidson® V-Rod® power-cruiser line features the Night Rod® Special and V-Rod Muscle®, each available in new colors for 2013.

Riders looking for a Trike option with Harley-Davidson quality can turn to the Tri Glide® Ultra Classic®, also available Tri Glide® Ultra Classic® Anniversary Edition to celebrate a milestone.



About Michael Le Pard 1297 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle. Supporting Motorcyclists and Motorcycling for 18 great years.

Be the first to comment

Leave a Reply
