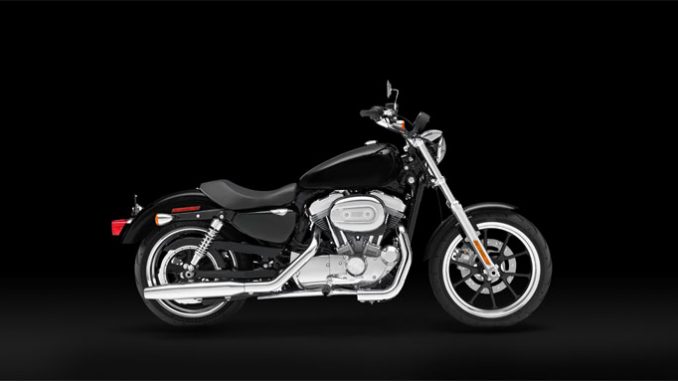

2013 Harley-Davidson XL883L Sportster Police
2013 Harley-Davidson XL883L Sportster Police

2013 Harley-Davidson XL883L Sportster Police
2013 Harley-Davidson XL883L Sportster Police

2013 Harley-Davidson XL883L Sportster Police
2013 Harley-Davidson XL883L Sportster Police




2013 Harley-Davidson XL883L Sportster Police Review

2013 Harley-Davidson XL883L Sportster Police

Proposed XL 883 L Sportster motorcycles to be in full compliance as follows:

A. Engine
Piston displacement of not less than 883cc Electronic Sequential Port Fuel Injection V-Twin, air-cooled, with two cylinders equipped with overhead valves, producing minimal vibration frequencies and magnitudes. Engine and transmission isolated from motorcycle frame through a rubber mounting system.
– Powertrain silver powder coated engine with polished treatment.
– Chrome, staggered dual exhausts

B. Clutch / Transmission
– Clutch shall be of the latest multiple plate design, wet.
– Transmission to be of latest design, manual type, with not less than five (5) forward speeds.
– Primary Drive, chain.
– Final belt drive.
– Gear Ratios
1st 10.782
2nd 7.702
3rd 5.728
4th 4.478
5th 4.071

C. Brakes
Hydraulic disc brakes for both front and rear wheels. Front brake having a single11.5-inch diameter disc; rear brake shall be single disc. Brakes shall be relatively free of heat fade, with dual piston front and single piston rear, featuring patented, uniform expanding rotors.

D. Suspension
– System permitting optimum handling as required in law enforcement.
– Front forks, 39 mm.
– Rear shocks, coil over type, dual adjustable preload.
– Rear suspension shall have swing arms having mild steel, rectangular tube sections, stamped junctions, MIG welded.

E. Wheels / Tires
– Black, Aluminum Cast Alloy wheels required; rim material shall be impermeable to compressed air.
– Tubeless type tires to have non-skid tread, designed to operate on paved roads.
– Manufacturer, front Michelin® “Scorcher 11″™ 120/70 ZR18, rear Michelin® “Scorcher 11” ™150/60 ZR17 blackwall tires.

F. Fuel Tank
Fuel tank to have a capacity of not less than three and three tenths (4.5) U.S. gallons (or 17 liters). Must provide reserve fuel capacity of 1.0 gallons (or 3.8 liters) when low fuel warning light illuminates.

G. Electrical System
Electrical system shall be nominal 12-volt as follows:
– Battery. Sealed, heavy-duty maintenance-free, 12-volt, minimum rated capacity – 12 ampere hours per Battery Council International (BCI) rating, 200 cold cranking amps.
– Ignition. Non-waste spark, alpha control.
– Charging System. Single-phase 30-amp high output alternator and solid state regulator.
– Connectors. Industrial grade throughout.
– Hand Controls. Water-resistant switches.
– Starting System. 1.2 kW electric with solenoid shift starter motor engagement required.
– Horn. Sound level audible above motorcycle and traffic-generated noise.

H. Lighting
Each motorcycle shall be provided with the following lighting equipment:
– Headlamp. Quartz halogen 55-watt low beam and a 60-watt high beam.
– Tail light.
– Turn Signals, self-canceling system.

I. Visual Displays
– Speedometer. Analog speedometer, to indicate 0-120 mph
– Odometer. Calibrated, cumulative.
– Re-settable trip meter and diagnostic readout.
– Neutral light
– Turn signals.
– High beam indicator.

J. Feature Requirements
– Seat. Latest solo saddle.
– Handlebars. Stainless steel, low-rise handlebars.
– Side Stand. Jiffy stand, rubber bumper design.
– Final belt drive
– Mirrors. Two (2) standard mirrors.
– Wheelbase. 59.3 in
– Dry Weight. 536 lbs
– Gross Vehicle Weight Rating. 1000 lbs
– Service Intervals. 1st 1000 miles and then every 5000 miles thereafter.
– Warranty. 24 months, unlimited mileage.

K. Additional Options-Dealer Installed
– Pursuit Lamp Kit (Red and blue pursuit lights; works with Detachable Windshield (law enforcement application only)
– Birch White Saddlebags or Vivid Black Saddlebags
– Windshield Docking Hardware
– Detachable Windshield
– Engine Guard Bar
– Luggage Rack
– Jiffy Stand Extension





The key to building a legacy is remembering where you came from.

Performance. Reliability. Value.

These are the foundation of our company. That’s why Harley-Davidson® Police motorcycles have been the gold standard for law
enforcement departments around the world for 105 years.

Looking at our history together, it is clear that the demands of the street have changed, and so have our motorcycles. But one thing hasn’t. We’ve always stood by our belief that there’s no room for compromise when it comes to serving the needs of police officers.

It is our mission to protect and serve those who protect and serve our communities. We do it with our actions through our support of Concerns of Police Survivors (C.O.P.S.), National Fallen Firefighters Foundation and the National Law Enforcement Memorial Fund. We do it by telling the stories of those who protect and serve in The Motor Officer™ magazine.

And we do it with our motorcycles by building each one to deliver unparalleled performance and reliability in the line of duty. Without fail. Without exception. Every time. This is how we built our legacy.

Our legendary past was forged by constantly meeting the demands of the present

The challenges that motor officers face never stay the same for long. through our special formal advisory Board, Harley-Davidson® engineers work with active motor officers to ensure our Police motorcycles are delivering the performance necessary to meet the ever-changing needs of law enforcement departments around the world.

Today, with more vehicles on the road than ever, performance is measured by delivering the power and control necessary for rapid response. that starts with our powerful and reliable twin cam 103™ engine. With 102 ft. lbs. of torque and electronic sequential port fuel injection, it transitions from patrol to pursuit in an instant, giving officers the advantage.

Of course, all that power means nothing without the control to harness it. our motorcycles combine a 33/31-degree right/left lean angle for sharp turning, with a finely tuned suspension and a low center of gravity for superior tactical maneuverability at any speed. Plus, each motorcycle comes equipped with our premium independent anti-lock Brakes, which perform up to the most rigorous demands, time and time again.



Our motorcycles have changed with the times, but the confidence you’ll feel on one never will.

The presence is legendary. From the first roar of the engine, cops can’t help but feel larger than life in the saddle of a Harley-Davidson® motorcycle. But confidence doesn’t just come from the power and mystique. It also comes from knowing you have
a motorcycle you can count on like a true partner. A motorcycle that not only gives you performance and reliability, but also helps you perform your best time and time again.

Our motorcycles have constantly evolved to give officers the comfort they need to stay at their best during long shifts. In recent years, we’ve added the Isolated Drive System to cut excess noise and vibration. Adding even more comfort is our unique Engine Idle Temperature Management System, which runs cooler to protect the officer’s legs from the heat of the motor. And this year, we’re introducing a newly redesigned seat that helps absorb shock and reduce overall fatigue during the shift.

An officer’s confidence and ability to act at a moment’s notice are critical in the line of duty. And nobody helps officers be at their best like Harley-Davidson.



We didn’t make it 105 years without giving folks some peace of mind about the future.

These days, it’s more important than ever to ensure your motorcycles have both high durability and low operating costs to keep in line with tight departmental budgets.

Harley-Davidson® motorcycles deliver on both counts. When it comes to measuring the performance of the fleet, nobody comes close to Harley-Davidson. With durable construction, reliable components and exceptional fuel economy, Harley-Davidson® fl Police motorcycles offer the lowest estimated operating cost per mile — less than Honda and nearly half that of BmW.* Plus, our motorcycles have always had exceptionally high resale value, so the fi nancial benefi ts of a Harley-Davidson® motorcycle continue
even after the bike has been retired from service.

And you can rest easy knowing our commitment to your department continues long after your fleet hits the road. When your officers saddle up on Harley-Davidson® motorcycles, you’re getting the most comprehensive support on the road. from our 24-month factory-backed warranty to advanced training courses, nobody backs their bikes, and the officers who ride them, quite like us.



A worldwide symbol of authority and respect. This is the legacy of a cop on a harley-davidson® motorcycle.

Brazilian Federal Highway Police – The Brazilian federal Highway Police have relied on Harley-Davidson® motorcycles since the
department’s inception in 1928. These elite officers patrol over 42,000 miles of roads, enough to wrap around the entire planet nearly two times. they trust in Harley-Davidson to deliver on-demand performance in pursuit, provide lasting comfort during escorts
and command respect while officers patrol large-scale events such as the upcoming 2014 World cup and 2016 olympic Games.
patrol area: 42,000 Miles – population: 192 Million – police motorcycle fleet size: 300

Sao Paulo – As the world’s seventh largest city, São Paulo, Brazil hosts thousands of events every year. the motor officers of São Paulo first began using Harley-Davidson® motorcycles borrowed from their fire department to provide escort and keep the peace at these events in 1930. Since then, our relationship has grown, and now a full fleet of Harley-Davidson® motorcycles ensures
that these international events run smoothly and peacefully in this South american epicenter for arts, business and culture.
patrol area: 588 Sq. Miles – population: 19 Million – police motorcycle fleet size: 42

Beirut – The motor officers of Beirut have been using Harley-Davidson® motorcycles since 1974. in that time, our motorcycles have seen the city survive a 15-year civil war and rise again into one of the cultural and intellectual capitals of the middle east. With approximately 38,000 people per square mile, Beirut is one of the world’s most densely populated capital cities. motor officers rely on the tactical precision of our police motorcycles to navigate the masses and keep the peace in this bustling metropolis.
patrol area: 33 Sq. Miles – population: 1.2 Million – police motorcycle fleet size: 600







2013 Harley-Davidson XL883L Sportster Police Key Features

Law enforcement – Saddlebags, Special latches provide easy access while seated on the motorcycle

Longer travel rear suspension with updated tuning – Provides greater comfort

883 cc evolution® engine – Provides 55 ft. lbs. of torque at 3750 RPM

Light and agile sportster® chassis -Ideal for special duty policing Revised front-end geometry and wider lock to lock steering angle – For more confident handling

Solo seat – Features new bucket shape, more foam and easier straddling

4.5-gallon fuel tank – Provides greater range and lower center-of-gravity

Final drive ratio – For smooth, off-the-line acceleration

18-inch front and 17-inch rear wheels – More confident slow speed maneuverability





2013 Harley-Davidson XL883L Sportster Police Features and Benefits

Optional equipment

LED lighting systems – Bright lamps feature blue, red and clear lenses and selectable flashing pattern.

Pursuit lamp kit – Kit includes 1 red and 1 blue incandescent pursuit lamp, housings, mounting brackets, switches and wiring harness.

Detachable compact windshield – Whether it’s for keeping bugs off your face or warmth in your body, a windshield has a huge impact on a rider. By diverting air pressure past your chest and over your helmet, a windshield can add hours of riding comfort.

NEW VENTILATOR WINDSHIELD – If you ride in a warm climate, or spend time at low speeds stuck in traffic, you need to keep some air circulating around your body to stay comfortable. Ventilator Windshields feature clear injection-molded vents that allow you to adjust the air flow to match the riding conditions. Opening the vents redirects the air across your chest for a cooling effect, and closing the vents provides maximum wind and weather protection.

AD JUSTABLE AIR DEFLECTORS – The Adjustable Air Deflectors feature an infinitely adjustable friction pivot that holds the wing in position to direct the air where you need it. Close the vent to direct airflow around the fairing, or open the vent to maximize airflow on hot days.

REPLACEMENT WINDSCREENS – Match your windshield height to your riding preference. Replacement clear polycarbonate screens are available in tall and low-profile shapes that maximize your view and weather protection.

SOFT LOWERS – Install on Engine Guard for protection against the elements. Easy installation and removal. Should not be used when air temperature is above 50 degrees.

FAN KIT FOR TOURING MODELS – This handsome Chrome Fan Kit is great for parade duty, rush hour traffic or anytime you are sitting still on your aircooled V-twin engine. Lab results show a 20-degree reduction in oil temperature (measured at the oil tank) when using the fan. Kit includes all hardware and wiring for fan installation and horn relocation.

Auxiliary Power Port – Saddlebag-mounted 12-volt power port accepts most 12-volt automotive power adaptor plugs. Kit includes power port, mounting bracket, wiring harness and all mounting hardware.

MULTI-POCKET WINDSHIELD POUCH – Add convenient storage space with easily accessible pouches mounted inside the
windscreen. Hook-and-loop closures provide grab-and-go access to pens, glasses and other small items you need every day.

GUARD BAG AND WATER BOTTLE HOLDER – Storage section features a convenient hook-and-loop outer closure and a
zippered inner closure to provide easy access to the small items you need for a day on patrol. Sling pouch holds a tightfitting removable water bottle. Will not fit with saddlebag guard rail-mounted equipment.

JIFFY STAND EXTENSION KIT – The extension is shaped to simplify locating the tab with your boot, and aid in swinging the jiffy stand into position. The move feels natural, and adds confidence when parking your motorcycle in a tight spot. Kit mounts
to Original Equipment jiffy stand.

SHORT-STEM “TRUE IMAGE ” MIRRORS – These mirrors are designed to eliminate the mirror geometry that makes following
objects appear further away than they really are. You get a true picture of your surroundings in tight situations.

1.25 AMP BATTERY CHARGING STATION – Harley-Davidson® Battery Charger Stations are designed to fully charge lead-acid motorcycle batteries and maintain them at proper voltage. The 4-Step Supersmart Charging Process (Initialization, Bulk, Absorption, Float) helps to prevent sulfation and reduces the effects of overcharging. Status indicator lights allow you to monitor
the charging state of each connected battery. The Charging Station accepts worldwide voltage 100 to 240 VAC @ 50 to 60 Hz. Maximum charge rate of 1.25 Amperes. The charger is spark-proof and reverse polarity protected, and features short-circuit protection to prevent damage from incorrect terminal connections. Kit includes quick-disconnect 7.5 Amp fused Battery Charging Harness with ring terminals and 7.5 Amp fused alligator clip charging harness for each battery output. 2 year manufacturer’s warranty.

ENGINE REMANUFACTURING – Keep your fleet on the road longer. When the miles start to add up, the Harley-Davidson
Engine Remanufacturing Program can put the rumble back into your power plant simply, quickly, and affordably. Unlike the
repair shop down the street, this isn’t a side job for us – our technicians live it every day, and work with the precision tools and
equipment required to restore your engine to factory-fresh condition.

No matter what your fleet’s model mix, we can make your 1340cc Evolution,® Twin Cam 88,® 95, 96, or 103 equipped model
run like new again – with a fresh 12-month unlimited mileage warranty. Fast and easy: Working with your authorized Harley-Davidson dealership, they will remove the engine and send it in a specialized container to be remanufactured to factory specifications by our team of trained technicians. Factory turn-around time: just two weeks. Better than ever: 1999-2006 Twin Cam engines will now be upgraded with a factory-installed Screamin’ Eagle® Hydraulic Cam Chain Tensioner Plate and Oil Pump Kit.






2013 Harley-Davidson XL883L Sportster Police – International Specifications/Technical Details in US Units
MSRP Price: See dealer for special pricing.


Dimensions

U.S. UNITS

Length

87.2 in.

Overall Width

33.3 in.

Overall Height

43.9 in.

Seat Height

Laden

25.5 in.

Unladen

27.4 in.

Ground Clearance

3.9 in.

Rake (steering head)

31.1 (deg)

Fork Angle

29.7 (deg)

Trail

5.7 in.

Wheelbase

59 in.

Tires

Type 3

Michelin® Scorcher™ “11” front and rear

Front Model

Scorcher™ “11F”

Front Specification

120/70 ZR-18 59W

Rear Model

Scorcher™ “11”

Rear Specification

180/55 ZR-17 66W

Fuel Capacity

4.5 gal.

Reserve Fuel Capacity, Fuel Injection (warning light)

0.9 gal.

Oil Capacity (w/filter)

2.7 qts.

Transmission Capacity

0.95 l

Weight

As Shipped

553 lbs.

Weight, In Running Order

573 lbs.

Gross Vehicle Weight Rating

1,000 lbs.

Front

339 lbs.

Rear

661 lbs.


Powertrain 1

Engine 4 5 6

Air-cooled, Evolution®

Valves

Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two-valves per cylinder

Bore

3 in.

Stroke

3.812 in.

Displacement

53.9 cu in.

Compression Ratio

9.0:1

Fuel System 7

Electronic Sequential Port Fuel Injection (ESPFI)

Air Cleaner

Paper Cartridge Type

Lubrication System

Dry-sump


Drivetrain 1

Primary Drive

Chain, 57/34 ratio

Final Drive 8

Belt, 68/29 ratio

Clutch

multi-plate, wet

Transmission

5-speed

Gear Ratios (overall)

1st

10.41

2nd

7.436

3rd

5.531

4th

4.584

5th

3.931


Chassis 1

Frame

Mild steel, tubular frame, circular sections, cast junctions

Swingarm

Mild steel, rectangular tube sections, stamped junctions, MIG welded

Front Fork

39 mm Showa®

Rear Shocks

Coil-over, preload dual-adjustable

Wheels

Front Type

Black, Split 5-Spoke with Machined Rim

Wheels, Front Width

3.5 in.

Front Height

18 in.

Rear Type

Black, Split 5-Spoke with Machined Rim

Rear Width

4.5 in.

Rear Height

17 in.

Brakes

Caliper Type

Dual-piston front; single-piston rear

Rotor Type

patented, uniform expansion rotors

Front Diameter

11.5 in

Front Width

0.2 in.

Front Dual

No

Rear Diameter

10.2 in.

Rear Width

0.28 in.

Anti-Lock Braking System

N/A

Suspension Travel, Front

4.3 in.

Suspension Travel, Rear

2.1 in.


Performance 1

Engine Torque (Per SAE)

J1349

North America (ft. lbs.) 9

55 ft-lb

North America (rpm)

3,750

Lean Angle, Right

24.7 deg

Lean Angle, Left

24.4 deg

Fuel Economy: Combined City/Hwy

51 mpg


Electric 1

Battery

Sealed lead acid, maintenance-free, 12V, 12-amp/hour, 200 cca

Charging

30-amp, permanent magnet, single-phase alternator with solid-state regulator (405W @3000 rpm, 405W peak)

Starting

1.2 kW electric with solenoid shift starter motor engagement

Lighting

Headlamp

Quartz halogen, 55-watt low beam, 60-watt high beam

Tail/Stop

8W/28W

Turn Signal

28W (21W) self-canceling

Pursuit Lamps

Optional emergency lighting kit available

Indicator Lamps

High beam, turn signals, hazard signals, neutral, low oil pressure, engine diagnostics, low fuel, police emergency light activation, 6-speed, ABS light (optional)



Warranty 10

24 months (unlimited mileage)

Service Interval 11

First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter


1Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.

2Measurement reflects 180 lb. (81.7 kg) operator weight.

3Standard and optional wheels may vary by country and region.

4Recommended 91 octane or higher fuel (R+M)/2.

5Thermostatically controlled oil cooler standard equipment.

6Automatic compression release.

7Standard and optional fuel systems may vary by country and region.

8U.S. and HDI markets, except Japan: Belt, 32/64 ratio.

9Values shown are nominal. Performance may vary by country and region.

10See motorcycle owner’s manual for complete details.

11Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details.







2013 Harley-Davidson XL883L Sportster Police – International Specifications/Technical Details in Metric
MSRP Price: See dealer for special pricing.


Dimensions

METRIC UNITS

Length

2,215 mm

Overall Width

845 mm

Overall Height

1,115 mm

Seat Height

Laden

648 mm

Unladen

695 mm

Ground Clearance

100 mm

Rake (steering head)

31.1 (deg)

Fork Angle

29.7 (deg)

Trail

145 mm

Wheelbase

1,500 mm

Tires

Type 3

Michelin® Scorcher™ “11” front and rear

Front Model

Scorcher™ “11F”

Front Specification

120/70 ZR-18 59W

Rear Model

Scorcher™ “11”

Rear Specification

180/55 ZR-17 66W

Fuel Capacity

17 l

Reserve Fuel Capacity, Fuel Injection (warning light)

3.8 l

Oil Capacity (w/filter)

2.7 qts. 2.6 l

Transmission Capacity

1 qts.

Weight

As Shipped

251 kg

Weight, In Running Order

260 kg

Gross Vehicle Weight Rating

454 kg

Front

154 kg

Rear

300 kg


Powertrain 1

Engine 4 5 6

Air-cooled, Evolution®

Valves

Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two-valves per cylinder

Bore

76.2 mm

Stroke

96.8 mm

Displacement

883 cc

Compression Ratio

9.0:1

Fuel System 7

Electronic Sequential Port Fuel Injection (ESPFI)

Air Cleaner

Paper Cartridge Type

Lubrication System

Dry-sump


Drivetrain 1

Primary Drive

Chain, 57/34 ratio

Final Drive 8

Belt, 68/29 ratio

Clutch

multi-plate, wet

Transmission

5-speed

Gear Ratios (overall)

1st

10.41

2nd

7.436

3rd

5.531

4th

4.584

5th

3.931


Chassis 1

Frame

Mild steel, tubular frame, circular sections, cast junctions

Swingarm

Mild steel, rectangular tube sections, stamped junctions, MIG welded

Front Fork

39 mm Showa®

Rear Shocks

Coil-over, preload dual-adjustable

Wheels

Front Type

Black, Split 5-Spoke with Machined Rim

Wheels, Front Width

89 mm

Front Height

457 mm

Rear Type

Black, Split 5-Spoke with Machined Rim

Rear Width

114 mm

Rear Height

432 mm

Brakes

Caliper Type

Dual-piston front; single-piston rear

Rotor Type

patented, uniform expansion rotors

Front Diameter

292 mm

Front Width

5.1 mm

Front Dual

No

Rear Diameter

260 mm

Rear Width

7.1 mm

Anti-Lock Braking System

N/A

Suspension Travel, Front

108 mm

Suspension Travel, Rear

54 mm


Performance 1

Engine Torque (Per SAE)

J1349

North America (ft. lbs.) 9

74 Nm

North America (rpm)

3,750

Lean Angle, Right

24.7 deg

Lean Angle, Left

24.4 deg

Fuel Economy: Combined City/Hwy

4.6 l/100 km


Electric 1

Battery

Sealed lead acid, maintenance-free, 12V, 12-amp/hour, 200 cca

Charging

30-amp, permanent magnet, single-phase alternator with solid-state regulator (405W @3000 rpm, 405W peak)

Starting

1.2 kW electric with solenoid shift starter motor engagement

Lighting

Headlamp

Quartz halogen, 55-watt low beam, 60-watt high beam

Tail/Stop

5W/21W

Turn Signal

28W (21W) self-canceling

Pursuit Lamps

Optional emergency lighting kit available

Indicator Lamps

High beam, turn signals, hazard signals, neutral, low oil pressure, engine diagnostics, low fuel, police emergency light activation, 6-speed, ABS light (optional)

Warranty 10

24 months (unlimited mileage)

Service Interval 11

First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter


1Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.

2Measurement reflects 180 lb. (81.7 kg) operator weight.

3Standard and optional wheels may vary by country and region.

4Recommended 91 octane or higher fuel (R+M)/2.

5Thermostatically controlled oil cooler standard equipment.

6Automatic compression release.

7Standard and optional fuel systems may vary by country and region.

8U.S. and HDI markets, except Japan: Belt, 32/64 ratio.

9Values shown are nominal. Performance may vary by country and region.

10See motorcycle owner’s manual for complete details.

11Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details.



Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.

About Michael Le Pard 858 Articles

“Mr. Totalmotorcycle”. Owner and Founder of Total Motorcycle. Supporting Motorcyclists and Motorcycling for 18 great years.

Be the first to comment

Leave a Reply
