2013 Honda CRF110F
Back to 2013 Honda Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

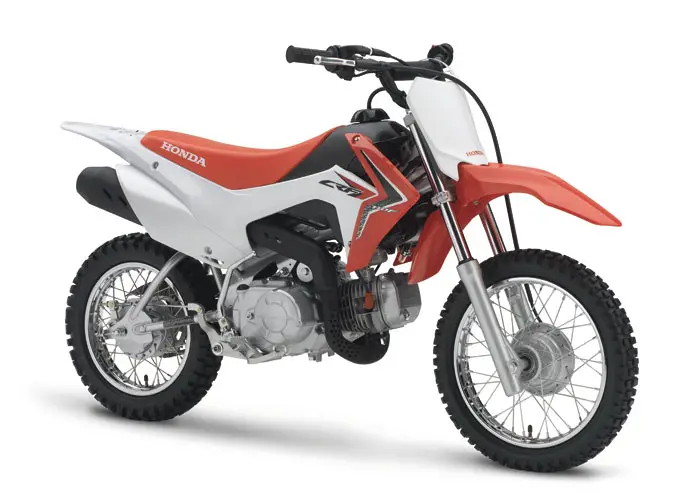

2013 Honda CRF110F

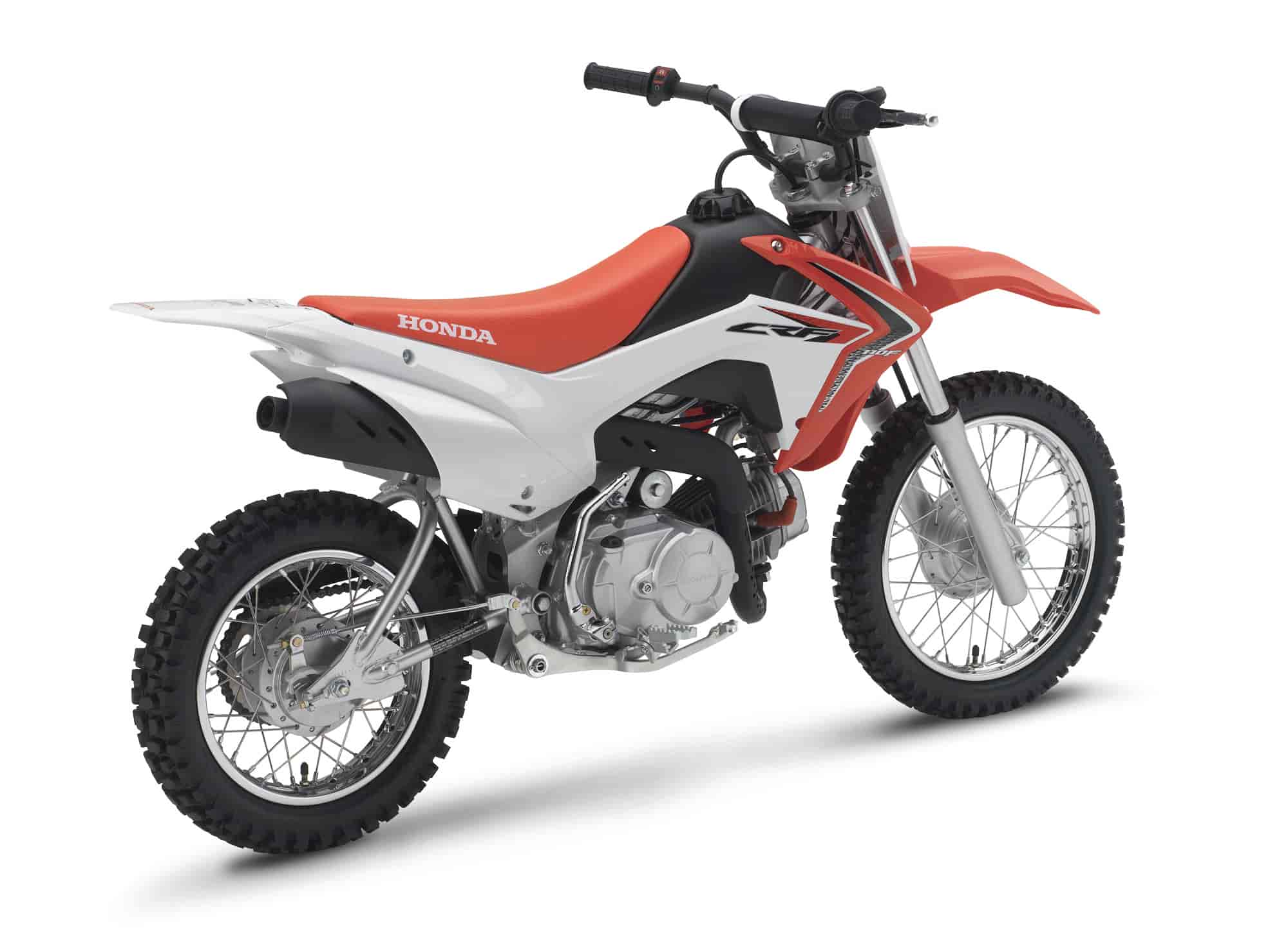

2013 Honda CRF110F

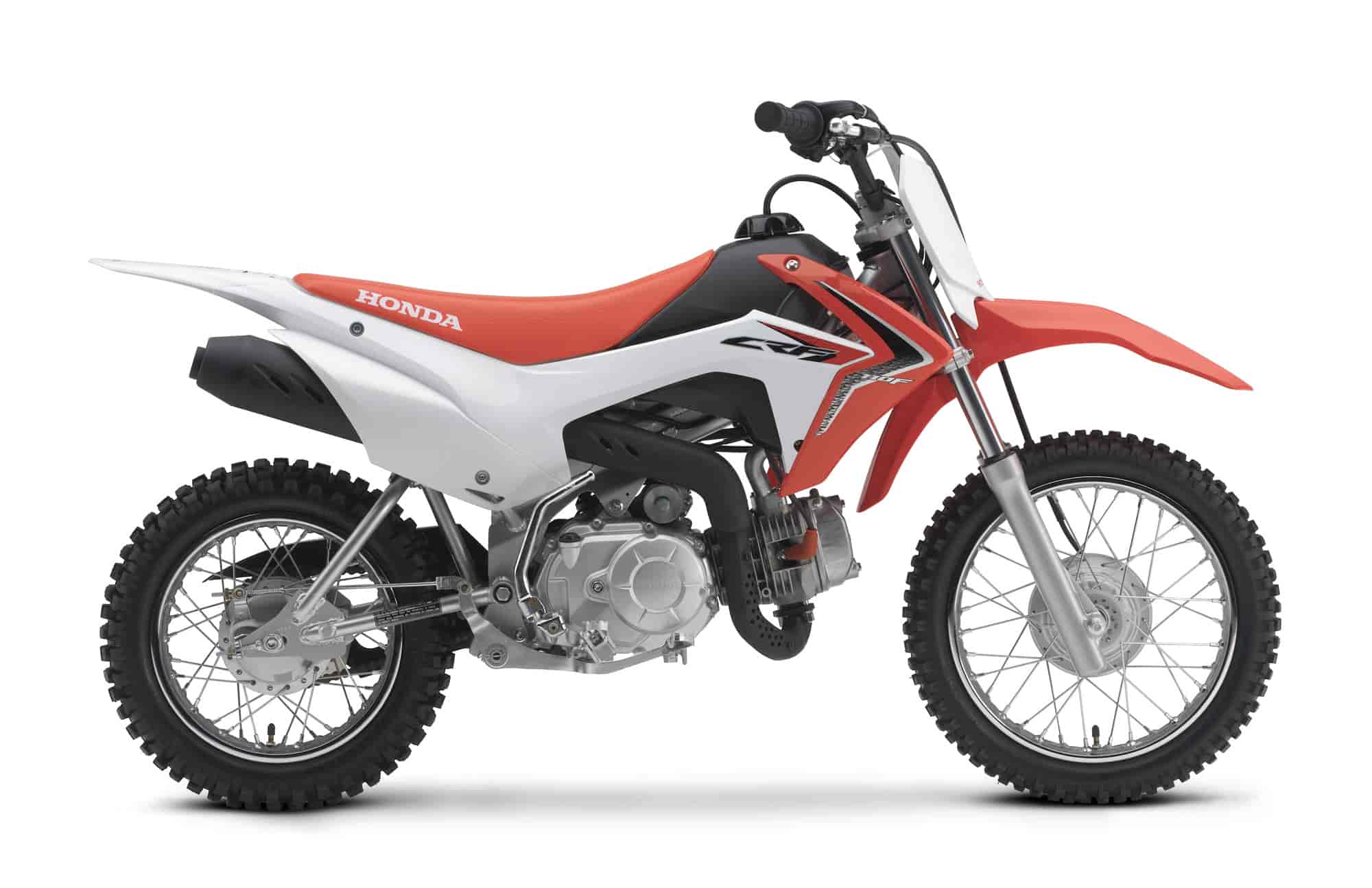

2013 Honda CRF110F
2013 Honda CRF110F

2013 Honda CRF110F
2013 Honda CRF110F


2013 Honda CRF110F Review

2013 Honda CRF110F

The youth market for off-road motorcycles is growing, and looks set to do so for the foreseeable future. These days riding off-road, in trail parks, motocross tracks or even back yards, can be very much a family activity that involves everyone.

It’s also a great, and enjoyable, introduction to motorcycling and readily builds skills and machine control, so useful later on whether out on the road or in competition. For Honda, acquiring young riders early in their careers is a great introduction to the brand, its core values and most importantly, its motorcycles.

The new CRF110F takes over the place of honor long held by the popular CRF70F among Honda’s family of fun, entry-level off-road bikes. The CRF110F features a low seat height, modest size, and a four-speed transmission with an automatic clutch on par with the CRF70F that it replaces. The new 110cc powerplant is tuned to meet the needs of those new to riding, and with a new throttle-limiter feature it offers additional tuning options to suit a variety of riders. Also, the CRF110F gets a new, convenient electric starter. Toss in race-inspired styling evocative of the hot new CFR450R, and you have a great new option that expands the family of entry-level dirt bikes from Honda.

About the same size as our CRF70F, the new CRF110F offers a bigger 110cc air-cooled engine that’s just as reliable and built to deliver the kind of power your young Red Rider needs.

In addition, the new CRF110F features both an effortless electric starter and a kick starter as well. And it all teams up with our four-speed transmission with automatic clutch that’s been proven in thousands of bikes, so your riders never have to worry about stalling or a handlebar-mounted clutch.

The CRF110F is a great off-road fun bike that your kids are going to love. And, better than that, they’re going to remember all the fun they had riding it—and with you—for the rest of their lives.

Important Safety Information
Parents need to consider their youngster’s age, size, ability and maturity before allowing them to ride. See owner’s manual for additional safety and supervisory information. Designed exclusively for off-road operator-only use. Always wear a helmet, eye protection and protective clothing whenever you ride. Never ride under the influence of drugs or alcohol. Always obtain written permission before riding on private land. Whenever you ride off-road, follow the “Tread Lightly” guidelines, and always keep on established trails in approved riding areas. Use common sense, keep your riding area clean, respect the rights of others when you ride. Operating your motorcycle with a modified engine, emission control system, or noise control system may be illegal.

Plenty of Power.

The CRF110F’s new 110cc engine offers a generous, wide powerband without revving too high—perfect for young riders to learn on. Plus, the CRF110F offers a throttle limiter to allow parents to choose the appropriate amount of available power.

No Clutch Lever, No Worries.

With our proven four-speed transmission with automatic clutch, riders can concentrate on shifting gears without the worry of a manual clutch or stalling.

Get Them Off To A Great Start.

The CRF110F includes an effortless electric starter. We’ve even included a backup kick starter, so getting underway is a cinch, even if the battery charge gets low.

Model Overview

Honda’s CRF110F is a brand new motorcycle, and replaces the popular CRF70F. It is aimed squarely at the 8-11 year old age range, and happily accommodates heights between 120-145cm and weights between 30-50kg. Primarily designed for leisure riding, it also provides a valuable stepping-stone up to more competition-focused motocross and enduro machines in the Honda range.

The CRF110F’s engine offers more power and torque, and also features an electric starter; a brand new steel frame with improved suspension also adds to the ‘big-bike’ feel and performance. With styling inspired by the 2013 CRF450R, the family resemblance is more than passing, further reinforcing the CRF110F’s appeal.






2013 Honda CRF110F Features and Benefits

Engine

With a bore and stroke of 50mm x 55.6 (as opposed to the CRF70F’s 47mm x 41.4mm) the CRF110F’s air-cooled two-valve SOHC engine now displaces 109cc, rather than 72cc. Power and torque figures rise from 3.6kW/5Nm to 5.35kW/8.85Nm; power is up 49%, torque 77%. The result is greatly improved performance everywhere in the rev-range, and much stronger and more consistent drive out of corners.

The automatic twin clutch system features two types of independent clutch – one for starting, the other for shifting – that makes changing gears easier and smoother than a conventional system. The transmission now also has four gears, instead of three. The engine start switch is on the right hand side of the handlebar, the engine stop switch is on the left.

A 1.2L airbox (the CRF70F used a 0.25L airbox) provides the much greater airflow that the larger capacity engine requires. The exhaust muffler cover is all new; partly for aesthetic reasons but also for improved protection. For more reliable performance digital ignition now gives the engine optimum ignition timing.


Chassis

To make best use of the CRF110F’s extra power and torque a new chassis was required. The new steel backbone frame and swingarm blends a high balance of rigidity with a certain amount of tuned flex, allowing the rider to fully exploit the engine’s capabilities. The frame also incorporates safety covers at heat points, and carrying handles for easy transport.

The suspension has been completely uprated, for better traction and stability. The telescopic front fork diameter is 31mm, 4mm larger than the CRF70F and has 100mm of travel, while the rear shock absorber features a 28mm piston damper, up 7mm, with 90mm travel. Drum brakes front and rear provide ample, and measured braking force. The front wheel size is 14in with a 2.5 x 14 tyre; the rear 12in with 3 x 12 tyre.

A completely new body kit, with echoes of the CRF450R’s ‘triangle proportion’ gives the CRF110F a crisp and modern appearance. The newly designed chain cover looks great and with the addition of a handlebar pad aids safety. Wide-set footpegs increase control, and the redesigned kick-starter is easier to use. Seat height is 660mm, 5mm taller than the CRF70F – but the lowest in class – and the wheelbase is 7mm longer at 1070mm. Fuel capacity is 4.9L, and wet weight of the CRF110F is 72.2kg.





2013 Honda CRF110F Key Features

– New air-cooled single-cylinder four-stroke 110cc engine tuned for the beginning rider.

– Four-speed gearbox with automatic clutch.

– Adjustable Throttle Limiter Screw to match rider abilities.

– Convenient electric starter with kickstart backup.

– Low seat height of only 26.3 inches.

– Handlebar pad.

– Race-inspired styling evocative of the hot new CRF450R.







2013 Honda CRF110F – USA Specifications/Technical Details
US MSRP Price: $TBD USD

Model: CRF110F

Engine Type: 110cc air-cooled single-cylinder four-stroke

Bore and Stroke: 50mm x 55.6mm

Compression ratio: 9.0:1

Valve Train: SOHC; two-valve

Induction: 13mm piston-valve carburetor

Ignition: CD

Transmission: Four-speed with automatic clutch

Final Drive: #420 chain; 14T/38T

Suspension
Front: Telescopic fork; 3.9 inches travel
Rear: Single shock; 3.43 inches travel

Brakes
Front: Drum
Rear: Drum

Tires
Front: 70/100-14
Rear: 80/100-12

Wheelbase: 41.9 inches

Rake (Caster Angle): 24°25′

Trail: 52mm (2.0 inches)

Seat Height: 26.3 inches

Ground Clearance: 6.9 inches

Fuel Capacity: 1.1 gallons, including 0.3-gallon reserve

Color: Red

Curb Weight*: 163 pounds

*Includes all standard equipment, required fluids and full tank of fuel-ready to ride.

Meets current EPA and CARB off-road emissions standards.









2013 Honda CRF110F – Canadian Specifications/Technical Details
Canada MSRP Price: TBA CDN

TBA





2013 Honda CRF110F – Europe/UK Specifications/Technical Details
European MSRP Price: See dealer for Pricing.
UK RRP: £TBA (Prices are recommended and inclusive of VAT @ 20% and delivery)

ENGINE
Type Single cylinder four stroke

Bore x Stroke 50 x 55.6

Compression Ratio 9.0 : 1

Max. Power Output 5.35KW @ 7500 r/min

Max. Torque 8.85Nm @ 3500 r/min

FUEL SYSTEM
Carburation Carburetor

Fuel Tank Capacity 5L incl. reserve (1L)

ELECTRICAL SYSTEM
Ignition System DC-CDI

Ignition Timing Kick

DRIVETRAIN
Clutch Multiplate wet

Transmission 4 speed, constant mesh

Primary Reduction 4,059

Gear Ratios
1st 2,615
2nd 1,555
3rd 1,136
4th 0,916

Final Reduction 2.714 (38/14)

Final Drive Chain


FRAME
Type Steel backbone


CHASSIS
Dimensions (LxWxH) 1,560 x 686 x 912

Wheelbase 1,064mm

Caster Angle 24?

Trail 52mm

Turning Radius 2.0m

Seat Height 667mm

Ground Clearance 175mm

Kerb Weight 74kg

SUSPENSION
Type Front: 31mm fork, 100mm stroke, 90mm axle travel
Rear: Mono shock, 59mm stroke

WHEELS
Type Wire spoke

Rim Size Front: 14 x 1.4
Rear: 12 x 1.6

Tyre Size Front: 70/100-14
Rear: 80/100-12

BRAKES
Type Front: 95mm Drum
Rear: 95mm Drum


All specifications are provisional and subject to change without notice.






2013 Honda CRF110F – Australia Specifications/Technical Details
Australia MSRP Price: $TBA AU

TBA
