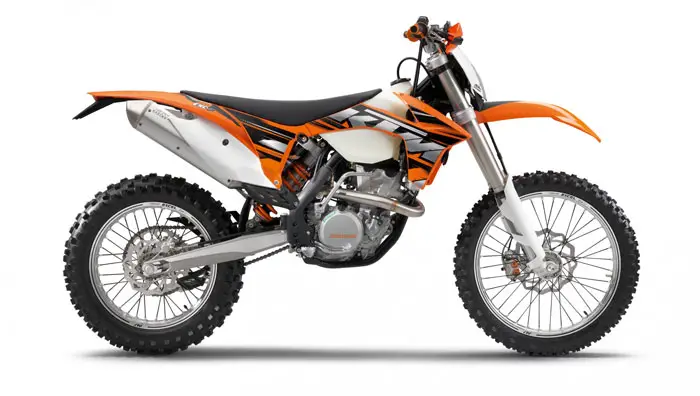

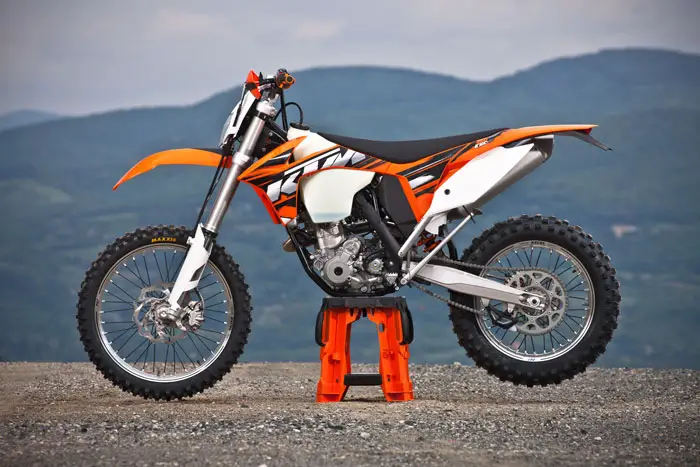

2013 KTM 350EXC-F
2013 KTM 350EXC-F

2013 KTM 350EXC-F
2013 KTM 350EXC-F

2013 KTM 350EXC-F
2013 KTM 350EXC-F

2013 KTM 350EXC-F
2013 KTM 350EXC-F



2013 KTM 350EXC-F Review

2013 KTM 350EXC-F

The 2013 KTM 350 EXC-F is the most capable mid-size street legal dual-sport bike available that can also handle demands of the enduro racing. Ultra-compact, with 57.5 mm (2.264 in) stroke and 88 mm (3.46 in) bore, and equipped with state-of-the-art electronic fuel injection, the engine offers a broad usable rev range. This delivers extremely efficient rideability and controllable traction on all terrain.

The power of a 450! The handling of a 250! With peak power of more than 45 hp, the KTM 350 EXC-F is mixing it with the E2 class. Ultra-compact, with 57.5 mm stroke and 88 mm bore, and equipped with state-of-the-art electronic fuel injection, the engine offers a broad usable rev range. This delivers extremely efficient rideability and easily controllable traction on all terrain.





2013 KTM 350EXC-F Features and Benefits

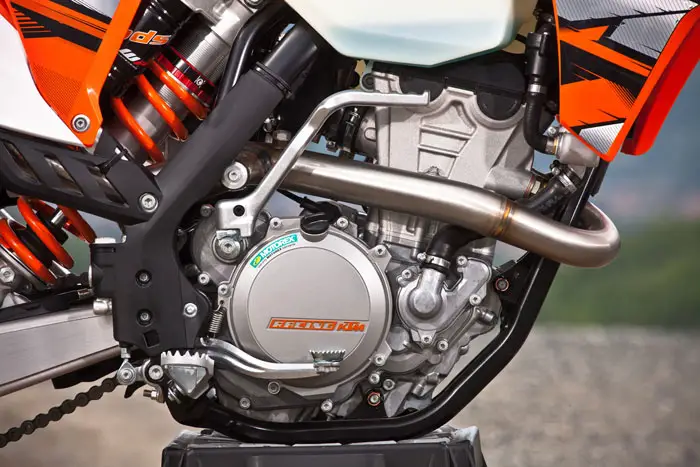

ENGINE

The dimensions and weight of the KTM 350cc engine are virtually the same as the 250! Its superlative performance results from reducing the moving masses to a minimum. The 350 EXC-F utilizes the highest technology available for maximum performance in a street-legal package!

ENGINE MANAGEMENT

The EMS from Keihin is state-of-the-art. Along with electronic fuel injection and a 42 mm (1.65 in) throttle body, it delivers spontaneous, powerful responsiveness and handling. Automatic temperature and altitude compensation are also to be found on board.

LIGHTER ENGINE CASE

Slimmed down: Die-cast instead of sand-cast engine case! This noticeably reduces wall thickness with no reduction in stability. A lighter engine creates better handling. A special, high-strength aluminum alloy provides maximum resistance to damage.

VALVE TRAIN

Alongside the very small, lightweight (only 8 mm (0.31 in)) cam followers with DLC (diamond-like carbon) coating, the DOHC cylinder head is equipped with four ultra-light titanium valves, allowing very high engine speeds of up to 12,000 rpm. Compared with the SX-F power unit, the camshafts are designed less for maximum power and more enduro-specifically for a broad usable rev range.

FRAME

The 2013 350 EXC-F’s lightweight frame made from high-quality chromoly steel is distinguished by an extremely high level of lateral stiffness. It is also excellent at absorbing jolts introduced by the suspension system, whereby the playful handling and comfort of the KTM 350 EXC-F have been further optimized.

NEW DDS CLUTCH

The new DDS clutch (Damped Diaphragm Steel): The one-piece outer clutch hub with primary gear is machined from a single piece of high-strength steel. Unbeatable reliability is the result. It also allows the use of thin steel discs. This results in an extremely compact construction for a narrow engine width. A diaphragm spring enables the implementation of an additional hub damping mechanism – an invaluable benefit in terms of traction and gearbox durability. In conjunction with the diaphragm spring, the hydraulic clutch actuation system from Brembo ensures very smooth and very precise clutch control.

INDIVIDUAL SUSPENSION SETTING

Flexibility foremost: 48 mm (1.89 in) open-cartridge fork with fully adjustable spring preload, rebound and compression damping. Each model is individually tuned. Newly developed high-performance fork oil and new seal rings provide improved responsiveness with more constant damping properties.

HIGH QUALITY WHEELS

High quality, CNC-machined hubs are standard on all KTM wheels. The now black coated spokes increase corrosion resistance and center the new, extremely stable, 7050 aluminum rims from GIANT. New MAXXIS dual sport tires – provide excellent traction, very precise directional control and a long service life.

BODYWORK

The 2013 KTM 350 EXC-F has bodywork with extremely slim ergonomics and excellent contact points between rider and machine. It provides unlimited freedom of movement. Newly styled graphics give the models a fresher appearance.

HANDLEBAR

Tapered, extremely stable aluminum handlebars from Neken are standard equipment on the 2013 enduro bikes. For the 2013 model year, new 2-component grips with KTM logo deliver excellent feeling and improved grip.








2013 KTM 350EXC-F – USA Specifications/Technical Details
US MSRP Price: See dealer for pricing.

ENGINE
Design 1-cylinder 4-stroke engine, water-cooled
Displacement 349.7 cm³ (21.34 cu in)
Bore 88 mm (3.46 in)
Stroke 57.5 mm (2.264 in)
Starting aid Kick starter and electric starter
Engine lubrication Pressure circulation lubrication with two Eaton pumps
Primary transmission 24:73
Final drive 14:45
Cooling Water cooling, permanent circulation of coolant by water pump
Clutch Multidisc clutch in oil bath/hydraulically activated
Ignition Contactless controlled fully electronic ignition with digital ignition adjustment
CHASSIS
Frame Central tube frame made of chrome molybdenum steel tubing
Fork WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC
Suspension travel Front 300 mm (11.81 in)
Suspension travel Rear 335 mm (13.19 in)
Brake system Disc brakes, brake calipers on floating bearings
Brake discs – diameter Front 260 mm (10.24 in)
Brake discs – diameter Rear 220 mm (8.66 in)
Chain 5/8 x 1/4″
Steering head angle 63.5°
Wheelbase 1,482±10 mm (58.35±0.39 in)
Ground clearance unloaded 345 mm (13.58 in)
Seat height unloaded 970 mm (38.19 in)
Total fuel tank capacity, approx. 8.5 l (2.25 US gal)
Super unleaded (ROZ 95/RON 95/PON 91)
Weight without fuel, approx. 109.5 kg (241.4 lb.)








2013 KTM 350EXC-F – Canadian Specifications/Technical Details
Canada MSRP Price: See dealer for pricing.

ENGINE
Design 1-cylinder 4-stroke engine, water-cooled
Displacement 349.7 cm³ (21.34 cu in)
Bore 88 mm (3.46 in)
Stroke 57.5 mm (2.264 in)
Starting aid Kick starter and electric starter
Engine lubrication Pressure circulation lubrication with two Eaton pumps
Primary transmission 24:73
Final drive 14:45
Cooling Water cooling, permanent circulation of coolant by water pump
Clutch Multidisc clutch in oil bath/hydraulically activated
Ignition Contactless controlled fully electronic ignition with digital ignition adjustment
CHASSIS
Frame Central tube frame made of chrome molybdenum steel tubing
Fork WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC
Suspension travel Front 300 mm (11.81 in)
Suspension travel Rear 335 mm (13.19 in)
Brake system Disc brakes, brake calipers on floating bearings
Brake discs – diameter Front 260 mm (10.24 in)
Brake discs – diameter Rear 220 mm (8.66 in)
Chain 5/8 x 1/4″
Steering head angle 63.5°
Wheelbase 1,482±10 mm (58.35±0.39 in)
Ground clearance unloaded 345 mm (13.58 in)
Seat height unloaded 970 mm (38.19 in)
Total fuel tank capacity, approx. 8.5 l (2.25 US gal)
Super unleaded (ROZ 95/RON 95/PON 91)
Weight without fuel, approx. 109.5 kg (241.4 lb.)

Prices and specifications subject to change without notice.



2013 KTM 350EXC-F – UK/Europe Specifications/Technical Details
UK/European MSRP Price: £ See dealer for Pricing.

ENGINE
Design Single-cylinder, 4-stroke, spark-ignition engine, liquid-cooled
Displacement 349.7 cm³
Bore 88 mm
Stroke 57.5 mm
Starting aid Kick starter and electric starter
Engine lubrication Forced oil lubrication with 2 Eaton pumps
Primary gear ratio 24:73
Secondary ratio 14:52 (13:52)
Cooling system Liquid cooling system, continuous circulation of cooling liquid with water pump
Clutch Wet multi-disc clutch / hydraulically operated
Ignition system Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
CHASSIS
Frame Central tube frame made of chrome molybdenum steel tubing
Forks WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC
Suspension travel Front 300 mm
Suspension travel Rear 335 mm
Brake system Disc brakes, brake calipers on floating bearings
Brake discs – diameter Front 260 mm
Brake discs – diameter Rear 220 mm
Chain 5/8 x 1/4″
Steering head angle 63.5°
Wheelbase 1,482±10 mm
Ground clearance, unloaded 345 mm
Seat height, unloaded 970 mm
Total fuel tank capacity, approx. 9 l
Unleaded premium fuel (95 RON)
Weight without fuel, approx. 108.5 kg

Prices and specifications subject to change without notice.




2013 KTM 350EXC-F – Australian Specifications/Technical Details
AU MSRP Price: See dealer for Pricing AUD

Engine
Engine Type1-cylinder 4-stroke spark-ignition engine, liquid-cooled
Displacement349.7cm³
Bore / Stroke88/57.5mm
Compression Ratio12.3:1
Starter / BatteryKick & Electric Start / 12V 4Ah
Transmission6 gear, claw shifted
Fuel ManagementKeihin EFI, flow restrictor 42mm
Control4 V / DOHC with finger followers
LubricationPressure lubrication with 2 oil pumps
Primary Ratio24:73
Final Drive14:52
CoolingLiquid cooling system
ClutchWet multi-disc clutch / hydraulically operated
IgnitionKeihin EMS

Chassis
FrameCentral tube frame of chrome molybdenum steel tubing
Sub-Frame aluminium
HandlebarNeken aluminium
Front SuspensionWP Suspension USD 4860 MXMA PA
Rear SuspensionWP Suspension PDS 5018 DCC
Suspension Travel – Front / Rear300/335mm
Front / Rear BrakesDisc brake 260mm front / 220mm rear
Front / Rear Rims1.60 x 21″ / 2.15 x 19″ Excel
Front / Rear Tyres90/90-21″ / 140/80-18″
ChainX-Ring 5/8 x 1/4″
Silenceraluminium
Steering Head Angle63.5º
Wheel Base1482 ± 10mm
Ground Clearance345mm
Seat Height970mm
Tank Capacity approx.9.5l
Weight Without Fuel approx.107.2kg

Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
