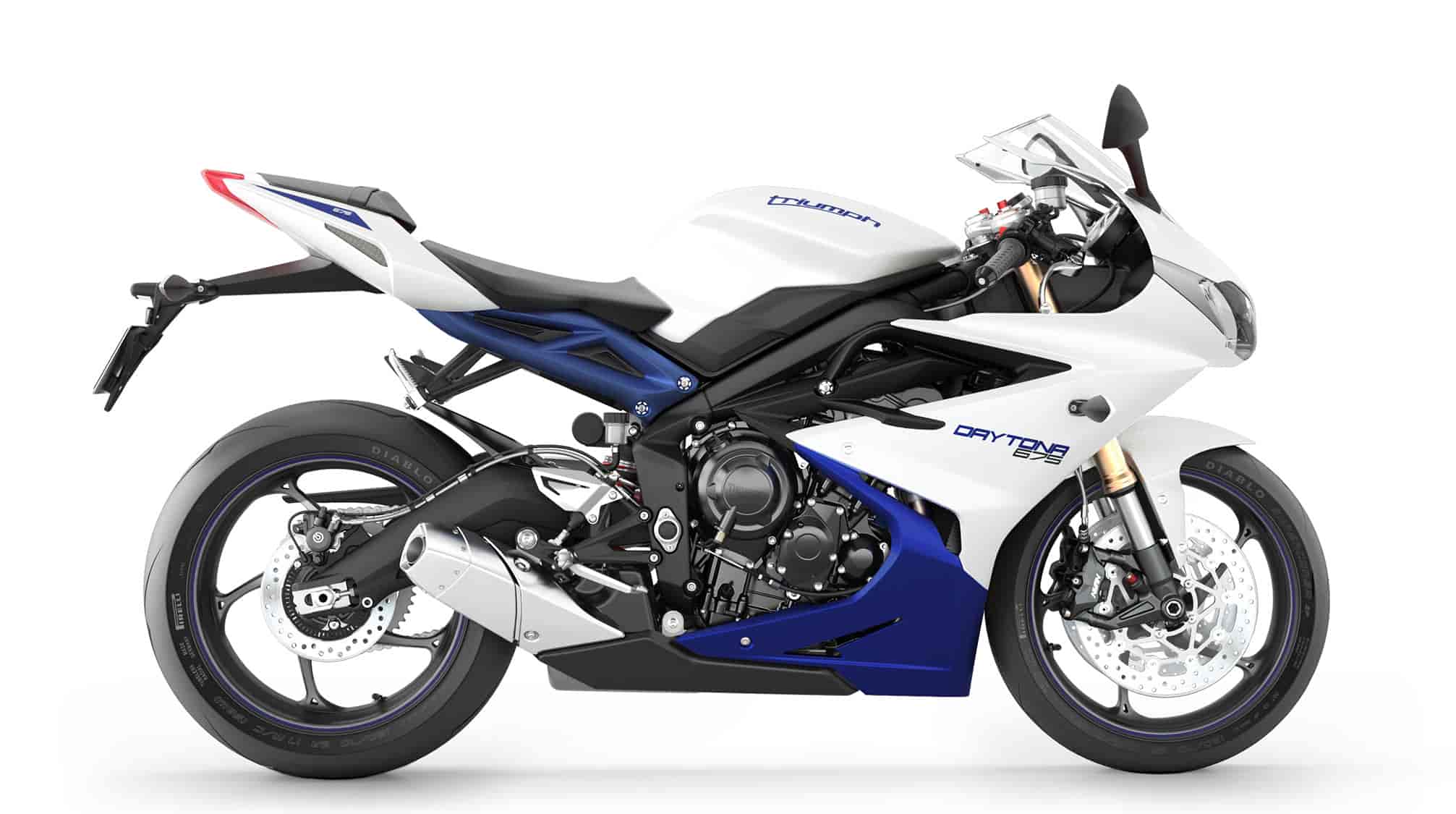

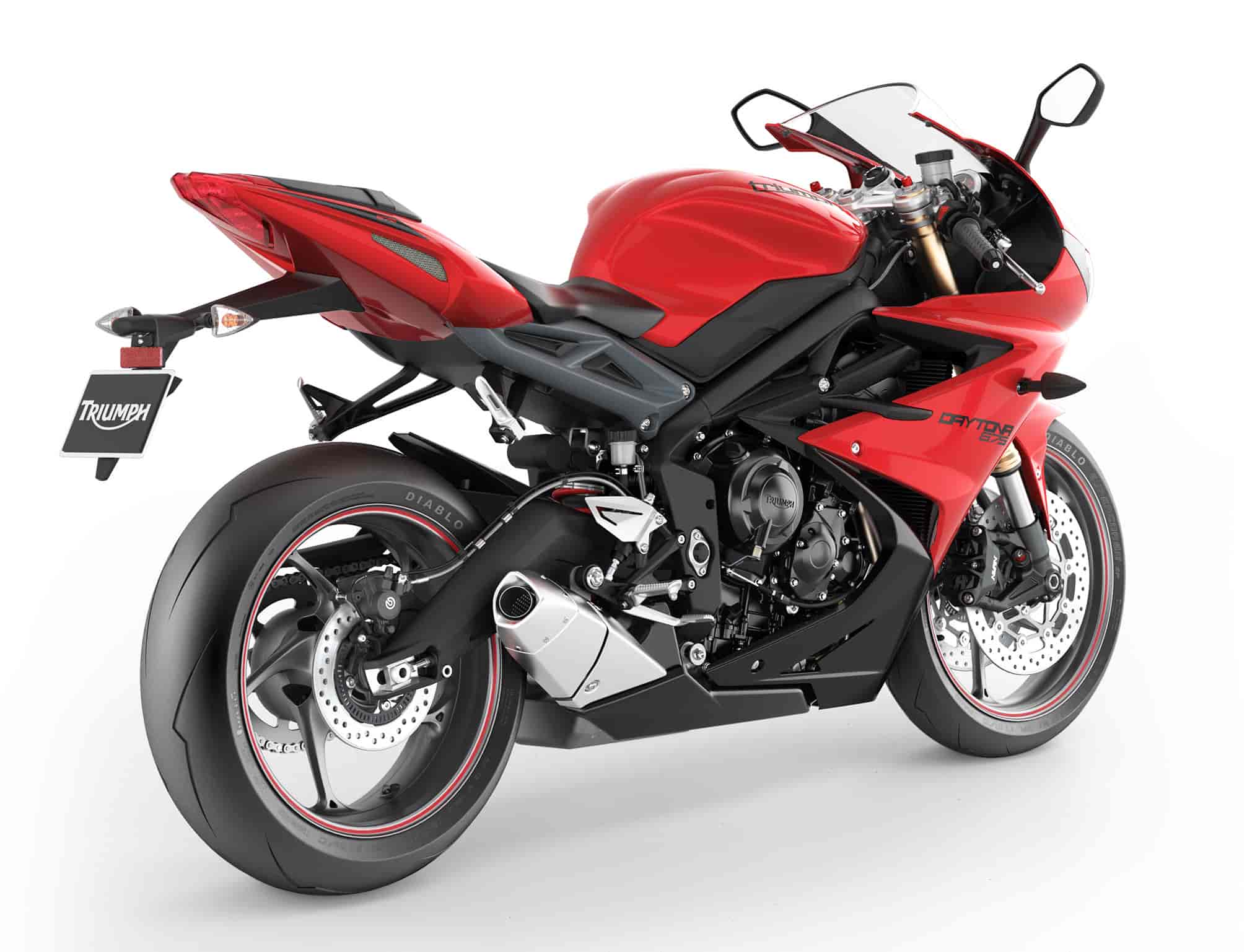

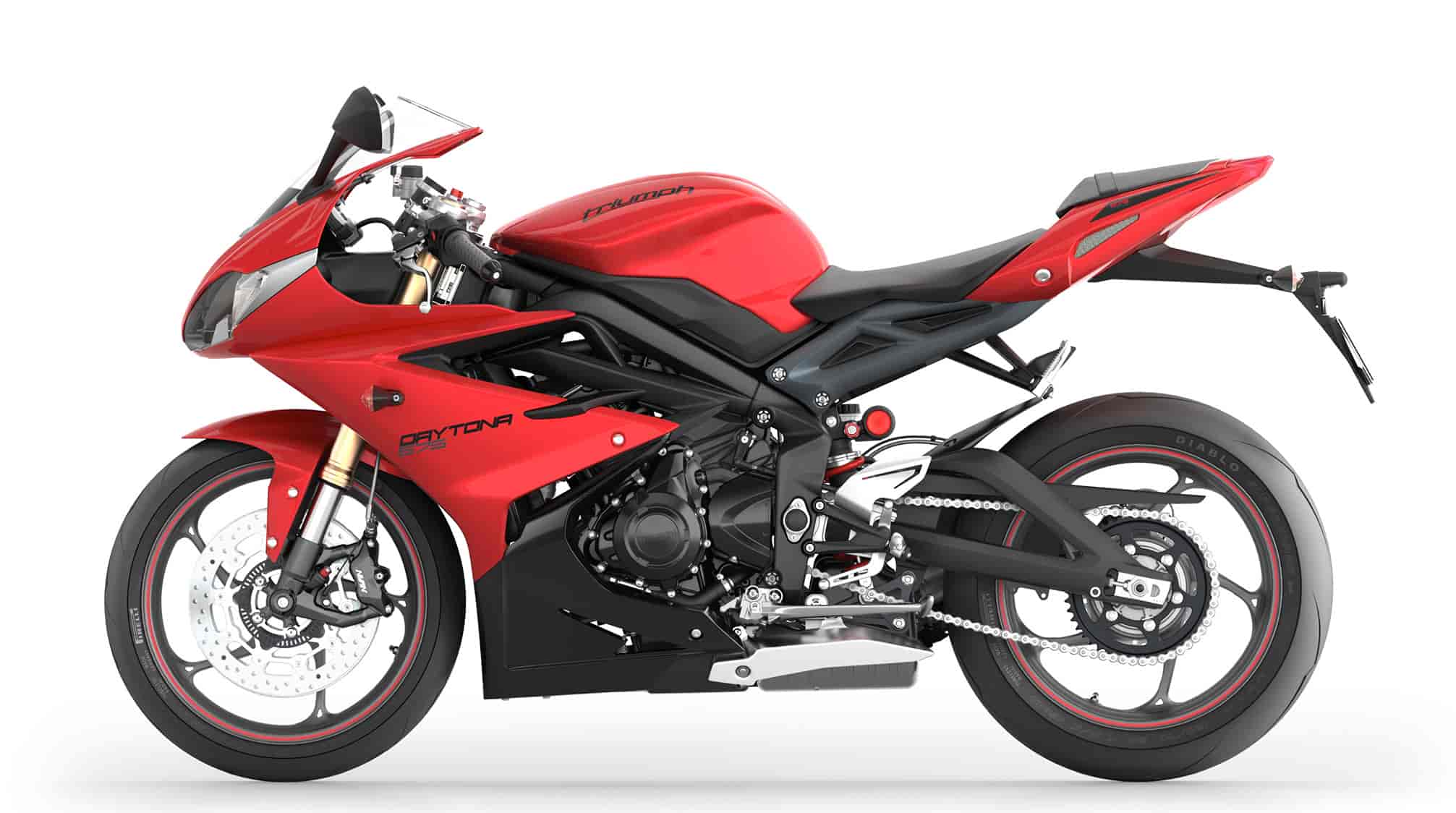

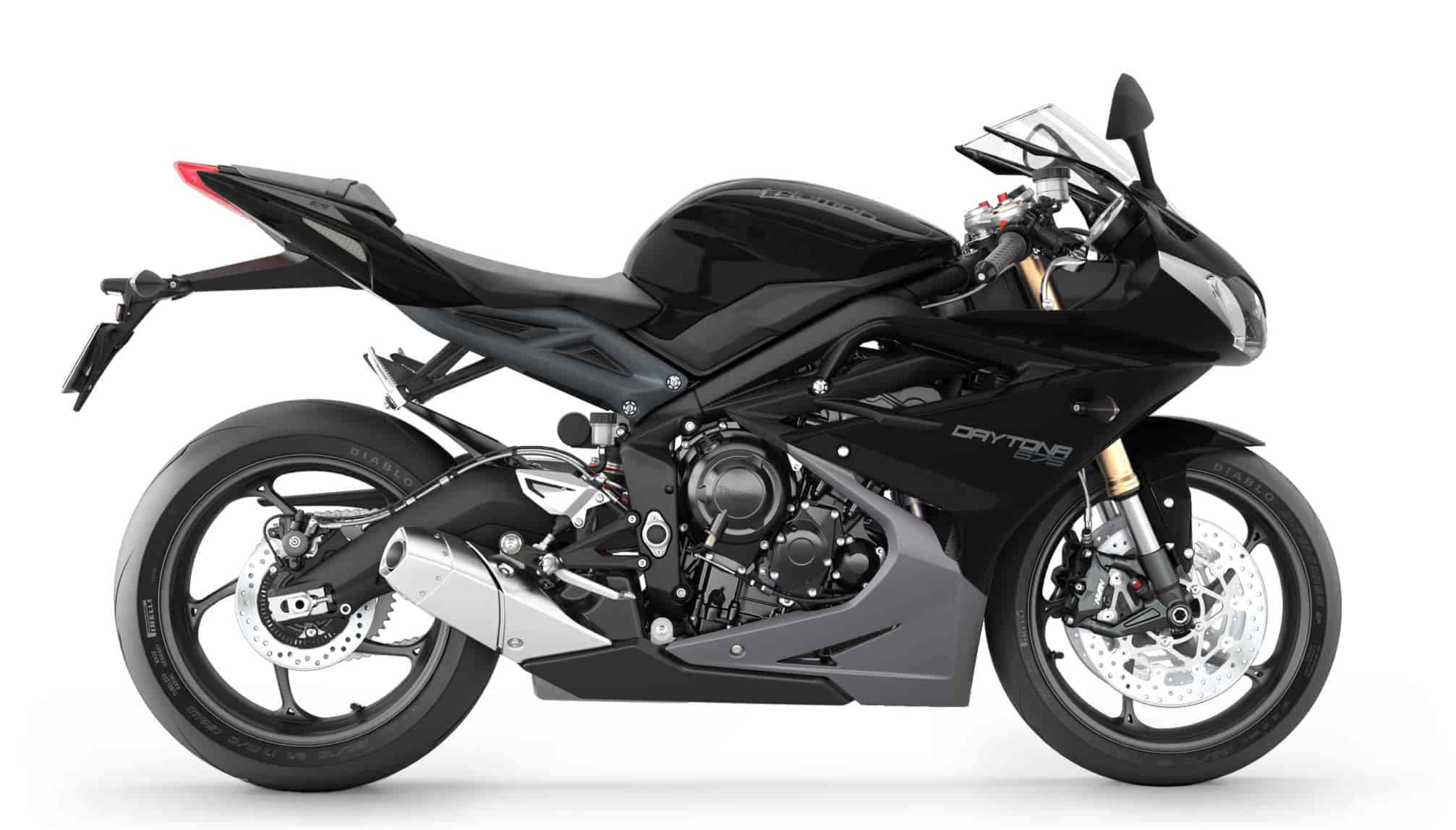

2013 Triumph Daytona 675

Back to 2013 Triumph Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

2013 Triumph Daytona 675
2013 Triumph Daytona 675

2013 Triumph Daytona 675
2013 Triumph Daytona 675

2013 Triumph Daytona 675
2013 Triumph Daytona 675

2013 Triumph Daytona 675
2013 Triumph Daytona 675

2013 Triumph Daytona 675
2013 Triumph Daytona 675

2013 Triumph Daytona 675
2013 Triumph Daytona 675

2013 Triumph Daytona 675
2013 Triumph Daytona 675

2013 Triumph Daytona 675
2013 Triumph Daytona 675

2013 Triumph Daytona 675 Review

2013 Triumph Daytona 675

On balance, our best-ever supersports bike.

The all-new Dayonta 675. More agile, more responsive, and more forgiving than ever before.

The Daytona 675 is generally regarded as the worlds finest supersports bike, winner of the title “King of Supersports” four years running. But what you’re looking at right now is the all-new Daytona 675. And this one’s even better. It’s lighter, sharper, even more focused. It boasts a brand new triple motor that gives more power and revs harder. It has a bigger airbox and re-designed frame. We moved the exhaust to help with mass centralisation. And we wrapped it all in brand new, even sharper bodywork. The result is a motorcycle built without compromise and, we believe, without equal. On balance, our best ever.

Triumph’s Daytona 675 shook up supersport convention with its three-cylinder, 675cc format when it first appeared in 2006, then it did the same to the established order by setting new class performance standards.

Ever since its debut the Daytona has consistently topped comparison tests, won awards around the world and even trounced high-specification superbikes in the prestigious international Masterbikes shootout, winning this toughest and most comprehensive test of all sports bikes two years in a row. Race versions have taken titles around the world and six years later it’s still a winner on the track. Yet it’s the Daytona’s razor-sharp style and growling, muscle-packed character which has appealed just as much to its dedicated owners.

Now for 2013 Triumph has unleashed an all-new Daytona 675 and Daytona 675R, with a brand-new engine, new frame, fresh and sophisticated new bodywork and a host of other changes built on everything Triumph has learned from the enormously successful outgoing model. A few tweaks and modifications would have kept the 675 on the pace, but the 2013 Daytona is set to raise the bar once again.

The result is a bike which is 3lbs. lighter than the old model, with more power, an extended rev range, greater precision, feel and agility. It’s faster on the track, better on the road and even more satisfying to own.

The heart of the new Daytona is its new engine, which brings more performance and a subtly new character, too. The key change is the wider bore and shorter stroke dimensions, allowing a higher 14,400rpm rev limit to gain more power and a broader spread of usable revs. Facilitating this is the new block, separate from the upper crankcase and with ceramic coated aluminum bores so it can be made stronger to cope with the higher pressures. Power is up 2bhp to 126bhp, peaking earlier at 12,600rpm and revving on for longer. The torque maximum is 2ft.lbs higher at 55.3lb.ft, with an increase across the rev range.

On the intake side are new twin injectors per cylinder, aiding the power and torque gains as well as improving fueling accuracy and efficiency. For the first time, titanium valves are fitted, helping the engine achieve higher revs and allowing Triumph’s engineers room to reshape them to improve gas flow. This has been so effective there has been no need to increase the valve diameter, despite the wider bore. It’s further helped by the new larger section intake, which flows air straight into the center of the bike, right through the headstock, and as a major bonus this increases the quality and volume of the signature three-cylinder snarling intake roar for the rider.

The exhaust system is a clear change as the compact and purposeful new unit now sits beneath the engine rather than beneath the rear seat. This is a consequence of the mission by Triumph’s engineers to centralize the bike’s mass as much as possible and move the weight forward, key factors in making the new Daytona even more agile and yet more stable at speed.

The transmission features a new slip-assist clutch to provide a lighter lever action and help prevent rear wheel hop under heavy braking. This is aided by the engine management which opens the throttle butterflies to reduce engine braking.

As well as incorporating the new, innovative intake duct, the frame uses fewer sections in its construction for a cleaner, stronger design and has sharper geometry and a shorter wheelbase to make full use of the revised mass distribution. The rear subframe, constructed from high pressure die cast aluminium, not only looks fantastic but contributes to the slim, sharp design at the rear of the bike.

The suspension is new and includes the latest fixed-cartridge forks from KYB (formerly Kayaba) and revised rear shock. High-performance Pirelli Supercorsa tyres are fitted as standard. The new switchable ABS system, which weighs just 3lbs., includes a late intervention track setting which allows rear wheel drift.

The ergonomics are altered slightly, with a 10mm reduction in seat height and a little less weight placed on the wrists, but the riding position is still designed for the best control at high speed and on the track.

The new bodywork has a sharper, leaner look that also reflects the higher quality of the new bike. Features such as the deliberately split upper fairing add an air of class, while the attention to detail has moved to a new level and includes a highly attractive upper yoke, machined engine mounting bolts, plugged swingarm mounting plate, a revised cockpit area and quickly detachable number plate/tail-light unit for easy track day conversion.

New lightweight wheels provide lower inertia which assists the speed of turn and the speed of acceleration. It all adds up to a more involved ride.

The comprehensive LCD multi-functional instrument pack features digital speedometer, fuel gauge, trip computer, analog tachometer, lap timer, gear position indicator, programmable gear change lights, and a clock. The unit is able to report tire pressures when Triumph’s accessory Tire Pressure Monitoring System (TPMS) is fitted, while switchable ABS (compatible models) can be easily configured via the display.

For added security, an electronic immobilizer is included as standard.






2013 Triumph Daytona 675 Features and Benefits

On balance, even better to ride – The previous Daytona 675 certainly is a tough act to follow. So just how did we improve on it? The all-new triple motor is more compact, and more powerful, which allowed us to re-design the frame to be smaller, lighter and narrower than before. That, combined with a bigger airbox, new swingarm, lighter wheels and new, sharper, bodywork means we’ve succeeded in making the new Daytona 675 more agile, more responsive, and more forgiving than ever before.

Engine: Power is up from 125ps to 128ps and from 73Nm to 75Nm

Mass centralisation: Rider input is rewarded with an incredibly controlled response.

Suspension: Front and rear KYB suspension is, of course, fully adjustable.

Instruments: LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, lap timer, gear position indicator and programmable gear change lights

Rear Brakes : Single 220mm disc, Nissin single piston caliper





2013 Triumph Daytona 675 Key Features

To ensure the new Daytona 675 had the perfect balance of power and performance, we looked at every component. From the motor to the frame to the wheels to the lights, even to individual nuts and bolts, we made them lighter, stronger, smaller, smoother. We did whatever we had to do to make this bike, above all bikes, perfect.


Engine

The Daytona’s triple engine is completely new. The cylinder block is now solid aluminium with ceramic coated liners, making the whole unit inherently stronger. This allowed us to increase the torque and engine speed, giving you more power. Amazingly, we could achieve all this whilst maintaining an overall narrow and compact package. Power is up from 125ps to 128ps and from 73Nm to 75Nm.

By increasing the rev limit to 14,400 rpm, with a larger bore and shorter stroke, the engine is now even more responsive to rider input. Peak power is now at 12,600rpm running up to that new redline, and with more power delivered more smoothly throughout the rev range – roll the throttle and you’ll be rewarded with instant drive.

To give the motor more air to breathe, we increased the size of the air intake and channelled the airflow through the headstock, so we can force even more air in and create more power.

The new engine now operates with twin injectors per cylinder, which are both compact and provide more accurate fuelling. Revised mapping has helped boost the torque throughout the rev range. But we’ve also made this Daytona engine cleaner and therefore more fuel-efficient .

A more powerful triple engine, revving at higher speeds, demanded the highest specification valves. We chose titanium for the new Daytona 675. Not only are they stronger, they’re lighter and have been reshaped to provide a smoother gas flow , resulting in performance boosts throughout the rev range.


Mass centralisation

The closer to the centre a bike it carries its weight, the better handling the bike will be. By relocating the silencer to under the engine, rapid direction changes are now more fluid and more controlled. Rider input is rewarded with an incredibly controlled response.


Suspension

Front and rear KYB suspension is, of course, fully adjustable. Both front and rear suspension have the added advantage of separate low- and high-speed compression damping adjustment, making the Daytona as forgiving on the road as it is focused on the track.

The Daytona 675R goes one step further, boasting race-spec Öhlins suspension, front and rear.


Brakes

Nissin radial calipers on the front, give amazing stopping power and confidence-inspiring feel through the lever. The rear Nissin caliper is lighter than before, helping to reduce the unsprung mass, which further improves handling and agility.


Wheels and tyres

Something as simple as reducing the weight of the wheels can have a dramatic effect on handling. Lighter wheels reduce unsprung mass and minimize the gyroscopic effect of a spinning wheel. This makes it easier to turn the bike in and hold a line through the corner.

We’ve put race-derived Pirelli SuperCorsa tyres on to give you the grip to match the potential lean angles.








2013 Triumph Daytona 675 – USA Specifications/Technical Details
US MSRP Price: $11,599 USD


Engine and Transmission

Type Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity 675cc
Bore/Stroke 76.0 x 49.6mm
Fuel System Multipoint sequential electronic fuel injection with forced air induction and SAI
Exhaust Stainless steel 3 into 1 system with valve in secondary and under engine silencer
Final Drive O ring chain
Clutch Wet, multi-plate, slipper.
Gearbox 6-speed, close ratio
Oil Capacity 3.6 litres (1.0 US gals)

Chassis, Running Gear and Displays

Frame Front – Aluminium beam twin spar. Rear – 2 piece high pressure die cast
Swingarm Braced, twin-sided, aluminium alloy with adjustable pivot position
Wheel Front Cast aluminium alloy 5-spoke 17 x 3.5in
Rear Cast aluminium alloy 5-spoke 17 x 5.5in
Tire Front 120/70 ZR 17
Rear 180/55 ZR 17
Suspension Front
KYB 41mm upside down forks with adjustable preload, rebound and high/low speed compression damping, 110mm travel

Rear
KYB monoshock with piggy back reservoir adjustable for preload, rebound and high/low speed compression damping, 130mm rear wheel travel

Brakes Front
Twin 308mm floating discs, Nissin 4-piston radial mono-block calipers (Switchable ABS model available)

Rear
Single 220mm disc, Nissin single piston caliper (Switchable ABS model available)

Instrument Display/Functions
LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, lap timer, gear position indicator and programmable gear change lights and clock, coded key immobiliser, TPMS ready and switchable ABS (where fitted).

Dimensions and Capacities

Length 2045mm (80.4in)
Width (handlebars) 695mm (27.3in)
Height without mirrors 1112mm (43.7in)
Seat Height 820mm (32.3in)
Wheelbase 1375mm (54.1in)
Rake/Trail 22.9º/87.2mm
Fuel Tank Capacity / Efficiency 17.4 litres (4.6 US gals)
Wet Weight (ready to ride) 184kg (405lbs)

Performance (measured at crankshaft to 95/1/EC)

Maximum Power 128PS / 126bhp / 94kW @ 12500rpm
Maximum Torque 74Nm / 55ft.lbs @ 11900rpm
Fuel Efficiency

Price

MSRP $11,599 *Price is MSRP, and excludes tax, title, license, options, handling, pre-delivery, and destination charges. Specifications and MSRP are subject to change without notice. Actual price determined by dealer.








2013 Triumph Daytona 675 – Canadian Specifications/Technical Details
Canada MSRP Price: On The Road $12,599


Engine and Transmission

Type Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity 675cc
Bore/Stroke 76.0 x 49.6mm
Fuel System Multipoint sequential electronic fuel injection with forced air induction and SAI
Exhaust Stainless steel 3 into 1 system with valve in secondary and under engine silencer
Final Drive O ring chain
Clutch Wet, multi-plate, slipper.
Gearbox 6-speed, close ratio
Oil Capacity 3.6 litres (1.0 US gals)

Chassis, Running Gear and Displays

Frame Front – Aluminium beam twin spar. Rear – 2 piece high pressure die cast
Swingarm Braced, twin-sided, aluminium alloy with adjustable pivot position
Wheel Front Cast aluminium alloy 5-spoke 17 x 3.5in
Rear Cast aluminium alloy 5-spoke 17 x 5.5in
Tyre Front 120/70 ZR 17
Rear 180/55 ZR 17
Suspension Front
KYB 41mm upside down forks with adjustable preload, rebound and high/low speed compression damping, 110mm travel

Rear
KYB monoshock with piggy back reservoir adjustable for preload, rebound and high/low speed compression damping, 130mm rear wheel travel

Brakes Front
Twin 308mm floating discs, Nissin 4-piston radial mono-block calipers (Switchable ABS model available)

Rear
Single 220mm disc, Nissin single piston caliper (Switchable ABS model available)

Instrument Display/Functions
LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, lap timer, gear position indicator and programmable gear change lights and clock, coded key immobiliser, TPMS ready and switchable ABS (where fitted).

Dimensions and Capacities

Length 2045mm (80.4in)
Width (handlebars) 695mm (27.3in)
Height without mirrors 1112mm (43.7in)
Seat Height 820mm (32.3in)
Wheelbase 1375mm (54.1in)
Rake/Trail 22.9º/87.2mm
Fuel Tank Capacity 17.4 litres (4.6 US gals)
Wet Weight (ready to ride) 184kg (405lbs)

Performance (measured at crankshaft to 95/1/EC)

Maximum Power 128PS / 126bhp / 94kW @ 12500rpm
Maximum Torque 74Nm / 55ft.lbs @ 11900rpm
Fuel Efficiency

Price

On The Road $12,599 *Price is MSRP, and excludes tax, title, license, options, handling, pre-delivery, and destination charges. Specifications and MSRP are subject to change without notice.





2013 Triumph Daytona 675 – Europe/UK Specifications/Technical Details
European MSRP Price: See dealer for Pricing.
UK RRP: On The Road £8,899, Daytona 675 ABS £9,249


Engine and Transmission

Type Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity 675cc
Bore/Stroke 76.0 x 49.6mm
Fuel System Multipoint sequential electronic fuel injection with forced air induction and SAI
Exhaust Stainless steel 3 into 1 system with valve in secondary and under engine silencer
Final Drive O ring chain
Clutch Wet, multi-plate, slipper.
Gearbox 6-speed, close ratio
Oil Capacity 3.6 litres (1.0 US gals)

Chassis, Running Gear and Displays

Frame Front – Aluminium beam twin spar. Rear – 2 piece high pressure die cast
Swingarm Braced, twin-sided, aluminium alloy with adjustable pivot position
Wheel Front Cast aluminium alloy 5-spoke 17 x 3.5in
Rear Cast aluminium alloy 5-spoke 17 x 5.5in
Tyre Front 120/70 ZR 17
Rear 180/55 ZR 17
Suspension Front
KYB 41mm upside down forks with adjustable preload, rebound and high/low speed compression damping, 110mm travel

Rear
KYB monoshock with piggy back reservoir adjustable for preload, rebound and high/low speed compression damping, 130mm rear wheel travel

Brakes Front
Twin 308mm floating discs, Nissin 4-piston radial mono-block calipers (Switchable ABS model available)

Rear
Single 220mm disc, Nissin single piston caliper (Switchable ABS model available)

Instrument Display/Functions
LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, lap timer, gear position indicator and programmable gear change lights and clock, coded key immobiliser, TPMS ready and switchable ABS (where fitted).

Dimensions and Capacities

Length 2045mm (80.4in)
Width (handlebars) 695mm (27.3in)
Height without mirrors 1112mm (43.7in)
Seat Height 820mm (32.3in)
Wheelbase 1375mm (54.1in)
Rake/Trail 22.9º/87.2mm
Fuel Tank Capacity 17.4 litres (4.6 US gals)
Wet Weight (ready to ride) 184kg (405lbs)

Performance (measured at crankshaft to 95/1/EC)

Maximum Power 128PS / 126bhp / 94kW @ 12500rpm
Maximum Torque 74Nm / 55ft.lbs @ 11900rpm
Fuel Efficiency

Price

On The Road £8,899, Daytona 675 ABS £9,249


All specifications are provisional and subject to change without notice.






2013 Triumph Daytona 675 – Australia Specifications/Technical Details
Australia MSRP Price: TBA


Engine and Transmission

Type Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity 675cc
Bore/Stroke 76.0 x 49.6mm
Fuel System Multipoint sequential electronic fuel injection with forced air induction and SAI
Exhaust Stainless steel 3 into 1 system with valve in secondary and under engine silencer
Final Drive O ring chain
Clutch Wet, multi-plate, slipper.
Gearbox 6-speed, close ratio
Oil Capacity 3.6 litres (1.0 US gals)

Chassis, Running Gear and Displays

Frame Front – Aluminium beam twin spar. Rear – 2 piece high pressure die cast
Swingarm Braced, twin-sided, aluminium alloy with adjustable pivot position
Wheel Front Cast aluminium alloy 5-spoke 17 x 3.5in
Rear Cast aluminium alloy 5-spoke 17 x 5.5in
Tyre Front 120/70 ZR 17
Rear 180/55 ZR 17
Suspension Front
KYB 41mm upside down forks with adjustable preload, rebound and high/low speed compression damping, 110mm travel

Rear
KYB monoshock with piggy back reservoir adjustable for preload, rebound and high/low speed compression damping, 130mm rear wheel travel

Brakes Front
Twin 308mm floating discs, Nissin 4-piston radial mono-block calipers (Switchable ABS model available)

Rear
Single 220mm disc, Nissin single piston caliper (Switchable ABS model available)

Instrument Display/Functions
LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, lap timer, gear position indicator and programmable gear change lights and clock, coded key immobiliser, TPMS ready and switchable ABS (where fitted).

Dimensions and Capacities

Length 2045mm (80.4in)
Width (handlebars) 695mm (27.3in)
Height without mirrors 1112mm (43.7in)
Seat Height 820mm (32.3in)
Wheelbase 1375mm (54.1in)
Rake/Trail 22.9º/87.2mm
Fuel Tank Capacity 17.4 litres (4.6 US gals)
Wet Weight (ready to ride) 184kg (405lbs)

Performance (measured at crankshaft to 95/1/EC)

Maximum Power 128PS / 126bhp / 94kW @ 12500rpm
Maximum Torque 74Nm / 55ft.lbs @ 11900rpm


All specifications are provisional and subject to change without notice.
