2013 Triumph Tiger Explorer XC Review

2013 Triumph Tiger Explorer XC

The new Tiger Explorer XC is ready for your next adventure

Tiger Explorer. All-new bike. All-new excitement.

The ultimate choice for the long haul adventurer. Class-leading handling. The journey doesn’t have to end when the Tarmac does. Brand new, 1215cc engine, with shaft drive of course. A Triumph to take on the world.

Looking for even more adventure?

The new Tiger Explorer XC is ready for your next adventure. The XC isn’t just designed to get you noticed. It’s designed to go the distance on road or off the beaten track. That’s because it has the Explorer’s incredible dynamic handling, plus all the kit you need to keep going when things get challenging, including new aluminium rimmed, steel spoked wheels with tubeless tyres, hand guards, engine bars and fog lights. That’s on top of the shaft-driven 1,215cc triple that produces 137PS and 121Nm of torque, the cruise control and switchable ABS.




2013 Triumph Tiger Explorer XC Features and Benefits

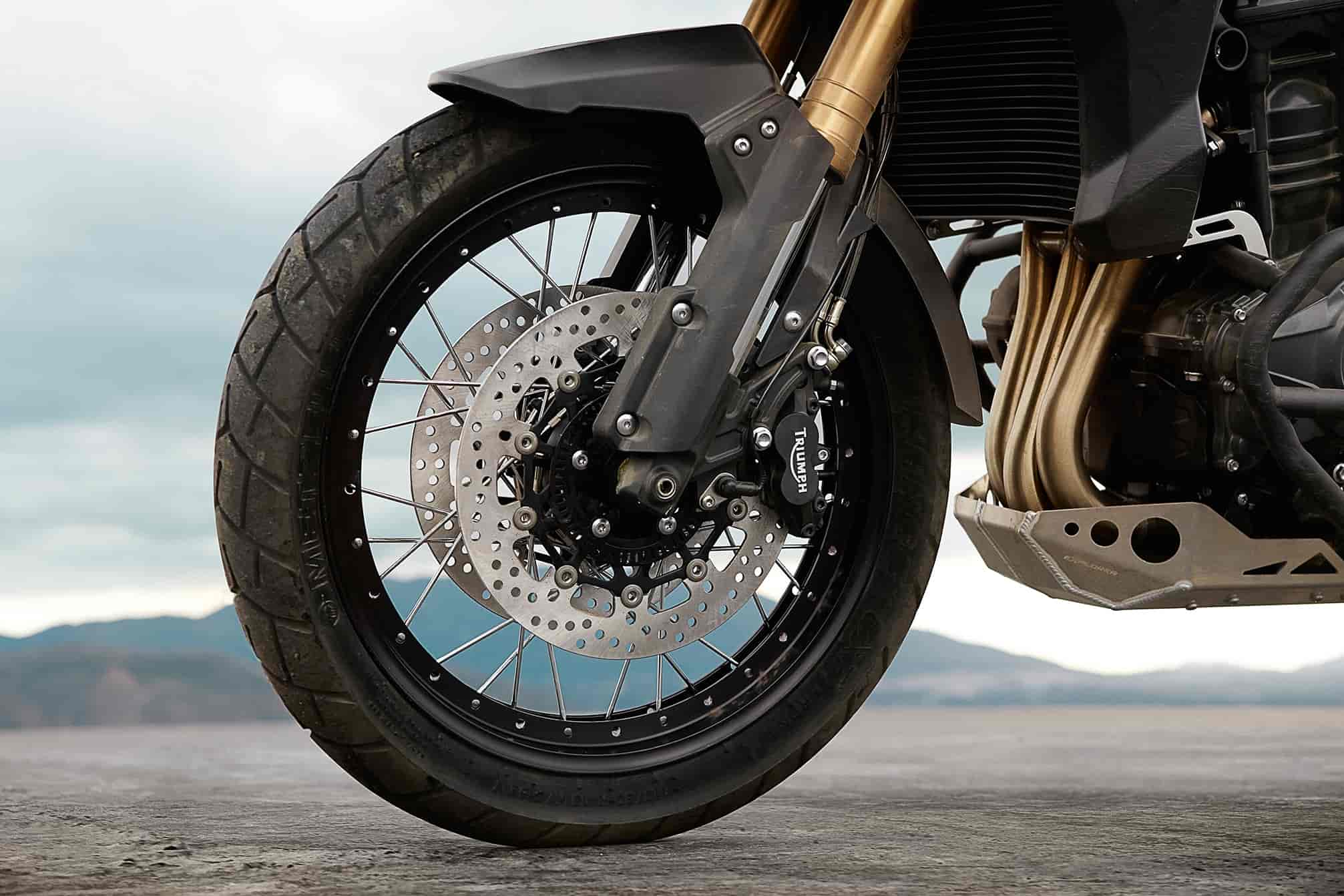

The new Tiger Explorer XC gets new, aluminium rimmed, steel spoked wheels – 19 inch front and 17 inch rear, with tubeless tyres for ease of repair should your adventure get the better of your tyres. It gets engine bars, hand guards, a sump guard and fog lights, while its tough Mat Khaki Green paint finish leaves no doubt that it’s ready for adventure. And if that doesn’t go far enough for you, there’s a full range of Genuine Triumph Accessories that let you really make it your Tiger Explorer XC.





2013 Triumph Tiger Explorer XC Key Features

Aluminium rimmed, steel spoked wheels with tubeless tyres

Dynamic handling and off-road durability plus tubeless tyres for easy puncture repair in remote situations.


Sump Guard

Robust, heavy gauge aluminium sump guard for maximum protection on the rough tracks and passes.


Engine Bars

Tough 22mm steel tube engine bars for added protection when riding off-road.


Hand Guards

Designed to protect you from off-road debris and to keep you warm and dry, these high impact hand guards keep you out of harm’s way on and off-road.


Fog light kit

High performance 55w dual fog lights increase visibility for added security in poor riding conditions.


Mat Khaki Green paint

It’s says rugged, it says off-road, it says adventure. This distinctive Khaki Green paint is the perfect finishing touch and complement for Tiger Explorer XC’s tough good looks.








2013 Triumph Tiger Explorer XC – USA Specifications/Technical Details
US MSRP Price: $17,199


Engine and Transmission

Type Liquid-cooled, 12 valve, DOHC, in-line three-cylinder
Capacity 1215cc
Bore/Stroke 85 x 71.4mm
Fuel System Ride by wire, fuel injection
Exhaust Stainless steel 3 into 1 , side mounted stainless steel silencer
Final Drive Shaft
Clutch Wet, multi-plate
Gearbox 6-speed
Oil Capacity 4.0 litres (1.1 US gals)

Chassis, Running Gear and Displays

Frame Tubular steel trellis frame
Swingarm Single-sided, cast aluminium alloy with shaft drive
Wheel Front 32-spoke 19 x 2.5in, aluminium rim
Rear 32-spoke 17 x 4.0in, aluminium rim
Tire Front 110/80 R 19
Rear 150/70 R 17
Suspension Front
KYB 46mm upside down forks, 190mm travel

Rear
KYB monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment, 194mm rear wheel travel

Brakes Front
“Twin 305mm floating discs, Nissin 4-piston calipers, Switchable ABS

Rear
Single 282mm disc, Nissin 2-piston sliding caliper, Switchable ABS

Instrument Display/Functions
LCD instrument pack with digital speedometer, analogue tachometer, gear position indicator, fuel gauge, range to empty, service indicator, clock, air temperature, frost warning, hazard warning lights, trip computer, Tyre pressure monitoring system

Dimensions and Capacities

Length 2248mm (88.4in)
Width (handlebars) 962mm (37.9in)
Height without mirrors 1410mm (55.5in)
Seat Height 837mm (32.9) – 857mm (33.7in)
Wheelbase 1530mm (60.2in)
Rake/Trail 23.9º / 105.5mm
Fuel Tank Capacity / Efficiency 20 litres (5.3 US gals)
Wet Weight (ready to ride) 266.5kg (586lbs)

Performance (measured at crankshaft to 95/1/EC)

Maximum Power 137PS / 135bhp / 101kW @ 9300rpm
Maximum Torque 121Nm / 89ft.lbs @ 6400rpm
Fuel Efficiency

Price

MSRP $17,199. Price is MSRP, and excludes tax, title, license, options, handling, pre-delivery, and destination charges. Specifications and MSRP are subject to change without notice. Actual price determined by dealer.


Specifications and MSRP are subject to change without notice. Actual price determined by dealer.








2013 Triumph Tiger Explorer XC – Canadian Specifications/Technical Details
Canada MSRP Price: On The Road $18,999


Engine and Transmission

Type Liquid-cooled, 12 valve, DOHC, in-line three-cylinder
Capacity 1215cc
Bore/Stroke 85 x 71.4mm
Fuel System Drive by wire, fuel injection
Exhaust Stainless steel 3 into 1 , side mounted stainless steel silencer
Final Drive Shaft
Clutch Wet, multi-plate
Gearbox 6-speed
Oil Capacity 4.0 litres (1.1 US gals)

Chassis, Running Gear and Displays

Frame Tubular steel trellis frame
Swingarm Single-sided, cast aluminium alloy with shaft drive
Wheel Front 32-spoke 19 x 2.5in, aluminium rim
Rear 32-spoke 17 x 4.0in, aluminium rim
Tyre Front 110/80 R 19
Rear 150/70 R 17
Suspension Front
KYB 46mm upside down forks, 190mm travel

Rear
KYB monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment, 194mm rear wheel travel

Brakes Front
Twin 305mm floating discs, Nissin 4-piston calipers, Switchable ABS

Rear
Single 282mm disc, Nissin 2-piston sliding caliper, Switchable ABS

Instrument Display/Functions
LCD instrument pack with digital speedometer, analogue tachometer, gear position indicator, fuel gauge, range to empty, service indicator, clock, air temperature, frost warning, hazard warning lights, trip computer, Tyre pressure monitoring system

Dimensions and Capacities

Length 2248mm (88.4in)
Width (handlebars) 962mm (37.9in)
Height without mirrors 1410mm (55.5in)
Seat Height 837mm (32.9) – 857mm (33.7in)
Wheelbase 1435mm (56.5in)
Rake/Trail 22.8º / 90.9mm
Fuel Tank Capacity 20 litres (5.3 US gals)
Wet Weight (ready to ride) 267kg (586lbs)

Performance (measured at crankshaft to 95/1/EC)

Maximum Power 137PS / 135bhp / 101kW @ 9300rpm
Maximum Torque 121Nm / 89ft.lbs @ 6400rpm
Fuel Efficiency

Price

On The Road $18,999. Price is MSRP, and excludes tax, title, license, options, handling, pre-delivery, and destination charges. Specifications and MSRP are subject to change without notice. Actual price determined by dealer.




2013 Triumph Tiger Explorer XC – Europe/UK Specifications/Technical Details
European MSRP Price: See Dealer
UK RRP: On The Road £12,139


Engine and Transmission

Type Liquid-cooled, 12 valve, DOHC, in-line three-cylinder
Capacity 1215cc
Bore/Stroke 85 x 71.4mm
Fuel System Drive by wire, fuel injection
Exhaust Stainless steel 3 into 1 , side mounted stainless steel silencer
Final Drive Shaft
Clutch Wet, multi-plate
Gearbox 6-speed
Oil Capacity 4.0 litres (1.1 US gals)

Chassis, Running Gear and Displays

Frame Tubular steel trellis frame
Swingarm Single-sided, cast aluminium alloy with shaft drive
Wheel Front 32-spoke 19 x 2.5in, aluminium rim
Rear 32-spoke 17 x 4.0in, aluminium rim
Tyre Front 110/80 R 19
Rear 150/70 R 17
Suspension Front
KYB 46mm upside down forks, 190mm travel

Rear
KYB monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment, 194mm rear wheel travel

Brakes Front
“Twin 305mm floating discs, Nissin 4-piston calipers, Switchable ABS

Rear
Single 282mm disc, Nissin 2-piston sliding caliper, Switchable ABS

Instrument Display/Functions
LCD instrument pack with digital speedometer, analogue tachometer, gear position indicator, fuel gauge, range to empty, service indicator, clock, air temperature, frost warning, hazard warning lights, trip computer, Tyre pressure monitoring system

Dimensions and Capacities

Length 2248mm (88.4in)
Width (handlebars) 962mm (37.9in)
Height without mirrors 1410mm (55.5in)
Seat Height 837mm (32.9) – 857mm (33.7in)
Wheelbase 1530mm (60.2in)
Rake/Trail 23.9º / 105.5mm
Fuel Tank Capacity 20 litres (5.3 US gals)
Wet Weight (ready to ride) 267kg (586lbs)

Performance (measured at crankshaft to 95/1/EC)

Maximum Power 137PS / 135bhp / 101kW @ 9300rpm
Maximum Torque 121Nm / 89ft.lbs @ 6400rpm
Fuel Efficiency

Price

On The Road £12,139


All specifications are provisional and subject to change without notice.






2013 Triumph Tiger Explorer XC – Australia Specifications/Technical Details
Australia MSRP Price: NA

Model Not Available. See 2013 Triump Explorer

All specifications are provisional and subject to change without notice.
