2013 Yamaha BWs 50 Review

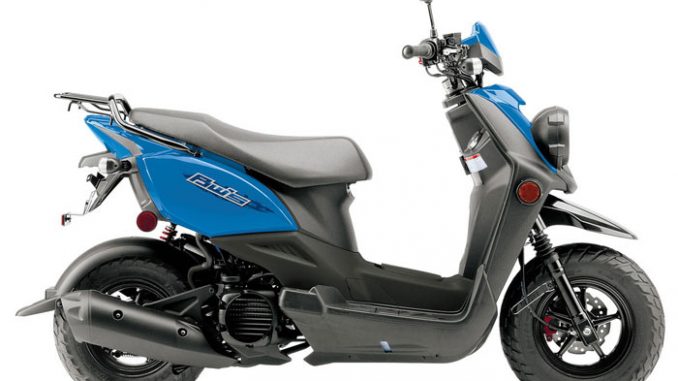

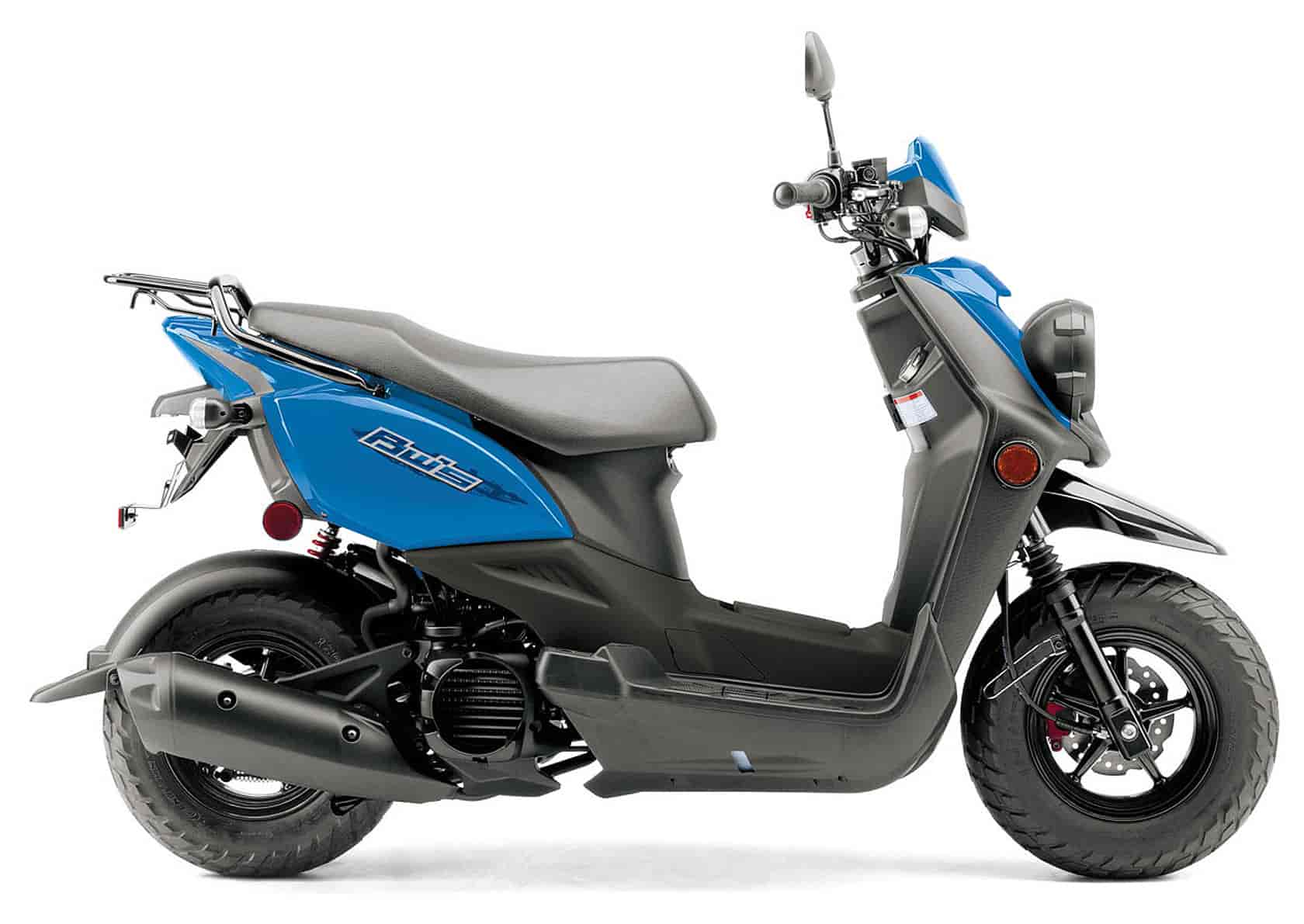

2013 Yamaha BWs 50
Reliable, fuel efficient, uncomplicated fun.
Big on fun and easy on the wallet, the gas sipping 4-stroke 2013 Yamaha BW’s 50 is your ticket to an independent city lifestyle. It’s designed to take the urban mobility concept to an exciting new level. Love the ride, enjoy the freedom and fun.
Regardless that the BW’s 50 is super fuel efficient, inexpensive to purchase and cheap to operate, the most impressive thing about the BW’s is how much fun it is to ride.
It’s a classic ‘start it, ride it, park it’ scooter. Featuring a peppy, clean running 4-stroke engine, fully automatic transmission, large under seat storage and wide 10″ tires, the smallest BW’s offers incredible value in a distinctively styled machine.
2013 Yamaha BWs 50 Key Features
Fuel Consumption ± 55kpl/158mpg(Imp)
49cc liquid-cooled, SOHC, 3-valve fuel injected 4-stroke engine
Spacious 23-litre, lockable under seat storage
2013 Yamaha BWs 50 Features and Benefits
•49cc, liquid-cooled, SOHC, 3-valve, fuel injected, 4-stroke engine produces peppy, easy to use power with incredible fuel economy. The concept of this environmentally friendly engine is solid performance with low emissions and excellent fuel economy.
•Fuel consumption of approximately 55 kilometres per litre or 158 miles per gallon (imp.). Your actual consumption may vary.
•Fast, dependable electric starting.
•The lightweight aluminum cylinder features a ceramic composite coating which is applied directly to the aluminum, eliminating the need for a heavy iron sleeve. The ceramic coating insures faster, more uniform heat dissipation, reduced friction and a longer service life.
•Three valve cylinder head design utilizes two intake valves and one exhaust valve. The dual intake valves allow for the efficient flow of fuel and air into the engine for both excellent fuel economy and good power output. Compression ratio is 12:1
•Special “carbon cutter” valve design removes any carbon build-up on the valve stems to keep the engine operating at maximum efficiency, especially important when the unit is being ridden at slow speeds in stop & go traffic.
•Roller rocker arms are used to actuate the valves. These specially designed rocker arms not only reduce friction for increased power, but also reduce mechanical noise for a quiet, enjoyable ride.
•Automatic cam chain tensioner reduces both mechanical noise and maintenance time
•Lightweight aluminum piston and carburized connecting rod provide excellent performance with great durability.
•Liquid-cooling is used to maintain stable engine temperatures even during stop and go riding. Liquid-cooling allows for a higher state of tune for increased engine performance, while also reducing mechanical engine noise. The radiator and cooling fan are positioned longitually in the frame on the right hand side.
•19mm Mikuni throttle body fuel injection system provides excellent fuel economy, fast, easy starting and low emissions. Other benefits of fuel injection include choke-free starting, automatic idle adjustment and crisp throttle response.
•The fuel system has been designed to accept E10 fuel (10% ethanol fuels). The BWs 50 uses regular gasoline.
•16 bit ECU controls the fuel injection process.
•Easy access, paper-type air filter is used. The air box is specially designed to reduce intake noise.
•Fully automatic CVT transmission (CVT = constantly variable transmission) ensures easy “twist-the-throttle-and-go” operation. There is no clutch lever or gear shifting involved … the transmission is fully automatic.
•Maintenance-free T.C.I. (transistor controlled) ignition system with 3-D mapping provides a precise, high-voltage spark for fast, sure starts and crisp engine performance at all rpms.
•Air induction System (AIS) is used to further reduce harmful exhaust emissions. The AIS system injects fresh air into the exhaust to ensure complete fuel combustion, thereby reducing both hydrocarbons (HC) and carbon monoxide (CO) emissions. It also helps to maximize the function of the catalytic converters.
•Environmentally responsible exhaust system produces a very quiet exhaust note. The muffler contains dual honeycomb-style catalytic converters to further reduce exhaust emissions.
•Rugged, large diameter, step-through “under bone” steel frame provides excellent durability and makes getting on and off the unit very easy.
•Wheelbase, centre of gravity, weight distribution and tire design, have all been engineered to provide light, agile handling and great manoeuvrability.
•Wide floorboards and front leg cowl enhance rider comfort and provide good splash and wind protection.
•26mm front fork provides 58mm (2.3″) of wheel travel. Rubber fork boots help protect and extend the service life of the fork seals. Large diameter outer fork tubes offer a beefy / rugged image.
•Single shock unit swingarm rear suspension with 56mm (2.2″) of wheel travel provides good ride quality.
•Lightweight, rugged 5-spoke aluminum “mag” wheels are fitted with wide, aggressive 120/90-10 tires. These wheels & tires are well suited for rough, “pot holed” urban roadways. They also provide lots of grip and help create the BW’s unmistakably fun look.
•Hydraulic front disc brake with single piston caliper and stylish 180mm “wave style” rotor combine with the rear drum brake to provide serious stopping power.
•Both front and rear brakes are hand-operated like on a bicycle … making riding simple and fun.
•Instrumentation includes a speedometer, odometer and fuel gauge. There are also warning lights for coolant temperature, high beam, turn signals and an engine warning light.
•Spacious 23 litre, lockable under seat storage can hold selected full-face helmets or other items like a backpack, lap top computer, rain suit etc.
•Plush seat provides excellent comfort and plenty of room.
•4.5 litre fuel tank is accessed via a panel on the “foot tunnel”. This location keeps the centre of gravity low for easy handling and minimizes mess if some fuel gets accidentally spilled.
•Multifunction, 3 in 1 main key switch combines the ignition, fork lock and under seat storage compartment lock into one convenient switch. This switch also features an anti-theft “shutter” that can be closed to prevent someone from tampering or attempting to force the ignition switch.
•Dual 35 watt halogen headlights provide excellent illumination and rider visibility as well as enhancing the BW’s tough yet sporty rally styling.
Additional Features :
•Rugged rear cargo rack adds additional carry space
•Handy front mounted storage pocket is perfect for small items like a cell phone or wallet.
•Front mounted folding hook for additional carrying convenience , perfect for bags & handbags
•Stylish clear turn signal lenses
•Extra long rear fender extension reduces road splash
•Easy-to-use centre stand
•Easy access oil level dip stick
•Side reflectors enhance visibility
•Locking gas cap
•Easy access, low maintenance, sealed battery (located in under seat storage area)
2013 Yamaha BWs 50 – USA Specifications/Technical Details
US MSRP Price: See 2013 Yamaha Zuma 50
See 2013 Yamaha Zuma 50
*Prices and specifications subject to change without notice. Please read your Owner’s Manual and all labels before operation.
**Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha. Your actual mileage will vary depending on road
conditions, how you ride and maintain your vehicle, accessories, cargo, and operator/passenger weight.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel.
2013 Yamaha BWs 50 – Canadian Specifications/Technical Details
Canada MSRP Price: $3,079 CDN
Engine 4-stroke, liquid-cooled, SOHC, 3-valve, single
Bore and Stroke 38 x 43.6 mm
Compression Ratio 12 : 1
Maximum Torque 0.4 kg-m (3 ft-lbs.) @ 6,500 rpm
Fuel Delivery Mikuni 19mm throttle body F.I.
Estimated Fuel Consumption* 55 kpl / 158 mpg (imp.)
Lubrication Wet sump
Ignition / Starting TCI / Electric
Transmission Fully Automatic CVT
Final Drive Enclosed V-belt / Spur gear
Suspension (Front) 26mm fork
Suspension (Rear) Single shock unit swingarm
Brakes (Front) 180mm disc
Brakes (Rear) drum
Tires (Front) 120/90-10
Tires (Rear) 120/90-10
Length 1,855mm (73 ”)
Width 730mm (28.7 ”)
Height 1,095mm (43.1 ”)
Wheelbase 1,280mm (50.2 ”)
Ground Clearance 115mm (4.5″)
Seat Height 770mm (30.3 ”)
Fuel Capacity 4.5 litres (1.0 Imp. gal.)
Wet Weight 93kg (205 lbs)
Maximum Load 85kg (187 lb)
Colour(s) Matte Black
± Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.
Specifications, appearance, and price of product are subject to change without notice.
* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less. See your local dealer for out the door pricing.
