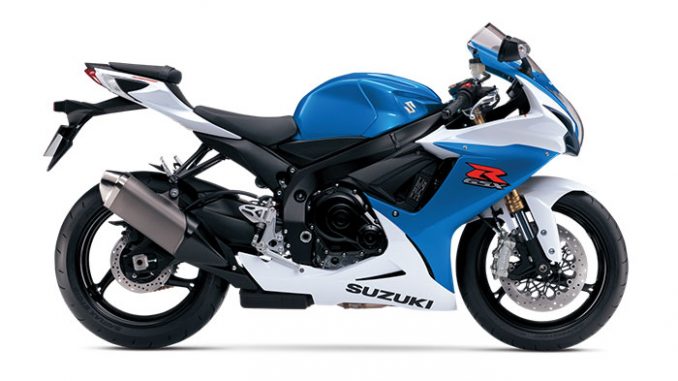

2014 Suzuki GSX-R750
2014 Suzuki GSX-R750

2014 Suzuki GSX-R750
2014 Suzuki GSX-R750

2014 Suzuki GSX-R750
2014 Suzuki GSX-R750



2014 Suzuki GSX-R750 Review

2014 Suzuki GSX-R750 on Totalmotorcycle.com

State-of-the-art…

In 1985, Suzuki unleashed the GSX-R750 to the world, which would become the foundation for today’s sportbikes. With unmatched engineering feats in light weight frames and power, it made its race track debut with a stunning victory at The Le Mans 24-hour World Endurance Championships!

Suzuki has remained true to the GSX-R’s original concept with continued evolution the GSX-R750. The GSX-R750 remains the best choice for riders who appreciate a state-of-the-art 750cc engine combined with the compactness of a GSX-R600cc Supersport. When you ride a GSX-R750 you experience the breathtaking combination of outstanding race winning heritage, engine performance, crisp handling, compact size and light weight. It’s a winning combination that allows any rider to experience the exhilarating rush any time, any place, anywhere.







2014 Suzuki GSX-R750 Totalmotorcycle.com Key Features

Built to own the racetrack and let loose on the streets. Since 1985, the GSX-R has been continuously refined to deliver new levels of performance and agility. In 2013, this legacy of innovation continues with over 1 million legends made.







2014 Suzuki GSX-R750 Totalmotorcycle.com Features and Benefits

Engine Features


A 750cc, four-cylinder engine with a race-proven oversquare bore/stroke ratio provides exceptionally potent, high-revving performance.


Engine utilizes forged pistons, shot-peened conrods, chrome-nitride-coated upper compression and oil control rings, and pentagonal ventilation holes for outstanding engine performance.


Lightweight titanium-alloy valves are controlled by single valve spring to reduce mechanical losses.


Class leading Suzuki Dual Throttle Valve (SDTV) fuel injection system includes fine-spray 8-hole injectors, providing improved fuel atomization contributing to more complete combustion in the cylinder.


Advanced, MotoGP-developed transistorized ignition control circuit helps maintain more precise ignition timing across the range of engine temperatures.


Lightweight, durable forged pistons are designed with the Finite Element Method (FEM) and fatigue analysis technology and optimized camshaft profiles was developed using proven MotoGP racing technology.


A 4-into-1 stainless-steel exhaust system features a titanium muffler, which carries a Suzuki Exhaust Tuning (SET) valve. The system maximizes torque and improves throttle response, especially in the low-to-mid RPM range.


Suzuki Drive Mode Selector (S-DMS) offers push-button selection of two racing-developed engine control maps to suit road conditions and personal preference.


Suzuki Composite Electrochemical Material (SCEM) plated cylinders integrated into the upper crankcase helps reduce friction, improve heat transfer, increase durability and provide better ring seal.

Transmission Features


A six-speed close-ratio transmission features vertically staggered shafts to reduce overall engine length.


Race-proven back-torque-limiting clutch contributes to smoother downshifting and corner entry.

Chassis Features


Race-developed, lightweight 41mm Showa Big Piston front-Fork (BPF) delivers superb feedback and consistent performance.


A lightweight and compact twin-spar aluminum cradle frame is made of five cast sections and features a cast swingarm.


An electronically controlled steering damper provides lighter steering at lower speeds and more damping force at racetrack and highway speeds.


Front brakes feature fully floating 310mm discs and radial-mounted, four-piston Brembo monoblock calipers.


A single Showa rear shock features externally adjustable rebound and compression damping, along with adjustable ride height.

Suspension


3-way adjustable footpegs, adjustable shift lever, and short fuel tank help compose a comfortable riding position.


Compact, lightweight instrument cluster with a built-in lap timer/stopwatch and programmable engine rpm indicators.


Analog tachometer. LCD readouts include speedometer, odometer, dual trip meter, reserve trip meter, clock, coolant temperature/oil pressure indicator, S-DMS and gear position indicators.










2014 Suzuki GSX-R750 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $12299 USD


Engine:



Engine 750cc, 4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore x Stroke 70.0 mm x 48.7 mm (2.756 in x 1.917 in)
Compression Ratio 12.5 : 1
Fuel System Suzuki Fuel Injection
Starter Electric
Lubrication Wet sump


Drive Train:



Transmission 6-speed, constant mesh
Final Drive RK525ROZ5Y, 116 links, Chain


Chassis:



Suspension Front Inverted Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Brembo, Disc, Twin
Brakes Rear Disc
Tires Front 120/70ZR17M/C (58W), tubeless
Tires Rear 180/55ZR17M/C (73W), tubeless
Fuel Tank Capacity 4.5 US
Color Metallic Triton Blue / Pearl Glacier White, Glass Sparkle Black / Pearl Mira Red


Electrical:



Ignition Electronic ignition (Transistorized)


Dimensions and Curb Weight:



Overall Length 2030 mm (79.9 in)
Overall Width 710 mm (28.0 in)
Wheelbase 1390 mm (54.7 in)
Ground Clearance 130 mm ( 5.1 in)
Seat Height 810 mm (31.9 in)


Curb Weight 190 kg (419 lbs)


Warranty:



Warranty
12 month unlimited mileage limited warranty.














2014 Suzuki GSX-R750 – Totalmotorcycle.com Canada Specifications/Technical Details
Canadian MSRP Price: $13,199 CDN

Engine
Engine 750 cm 3 (45.8 cu. in) 4-stroke, 4-cylinder, liquid-cooled,
Bore Stroke 70.0 mm x 48.7 mm
Compression Ratio 12.5 : 1
Fuel System Electronic Fuel Injection
Starter Electric
Lubrication Wet sump
DriveTrain
Transmission 6-speed constant mesh
Final Drive RK525ROZ5Y, 116 links, Chain
Chassis
Suspension Front Inverted Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Brembo, Disc, Twin
Brakes Rear Disc
Tires Front 120/70ZR17M/C (58W), tubeless
Tires Rear 180/55ZR17M/C (73W), tubeless
Fuel Tank Capacity 17.0 L (4.5 US gal )
Color Glass Sparkle Black / Pearl Mira Red and Metallic Mat Black No.2 / Pearl Bracing White
Electrical
Ignition Electronic ignition (Transistorized)
DimensionsandCurbWeight
Overall Length 2030 mm (79.9 in)
Overall Width 710 mm (28.0 in)
Wheelbase 1390 mm (54.7 in)
Ground Clearance 130 mm ( 5.1 in)
Seat Height 810 mm (31.9 in)
Curb Weight 190 kg (419 lbs )
Warranty
Warranty 12 Month unlimited mileage limited warranty





Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
