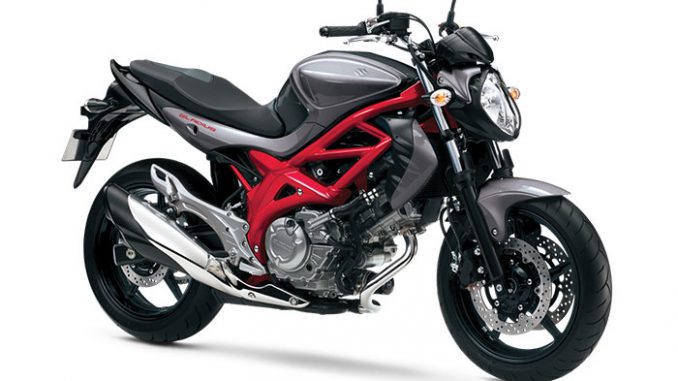

2014 Suzuki SFV650 Gladius ABS Review
2014 Suzuki SFV650 Gladius ABS on Totalmotorcycle.com
V-Twin Power with ABS…
The SFV650 helps define a unique motorcycling experience. With a compact open trellis frame, aggressive styling, and a 645cc V-twin, double overhead camshaft power plant, the SFV650 appeals from the outside in. It’s light crisp feel and smooth low to mid-range power delivery from the SFV650 just screams for a tour of your favorite road.
Get a grip on a whole new standard. Striking looks. Comfort. Power. Versatility. Our standards deliver easy ergonomics, modern style, and metro muscle in dynamite packages. Whatever type of riding you prefer, our standards can handle it.
Flexibility is only available from a motorcycle of reliable performance, designed through the application of modern technology – this is the freedom not to costrain the riders’ style. This machine with brisk performance in a neat package and the full range of options, gives many various images for your rider lifestyle. Welcome to the world of new riding styles!
2014 Suzuki SFV650 Gladius ABS Totalmotorcycle.com Key Features
39mm Throttle Bodies
Dual Floating ABS Front Brakes
Adjustable Rear Suspension
2014 Suzuki SFV650 Gladius ABS Totalmotorcycle.com Features and Benefits
Each cylinder head features a compact combustion chamber with two 31mm intake valves set at 14-degrees from the cylinder centerline and two 25.5mm exhaust valves set at 16-degrees from the cylinder centerline.
1 Each 39mm throttle body carries a 10-hole fuel injector. The extra-fine atomization injectors produce an average spray particle diameter that is smaller for improved combustion efficiency
Suzuki Dual Throttle Valve (SDTV) fuel injection system provides better efficiency and throttle response through a butterfly valve system with the primary valve controlled by the rider and the secondary throttle valve controlled by the engine management system.
An automatic Idle Speed Control (ISC) system is integrated into each throttle body, and produces stable idle while improving cold starting and reducing emissions immediately after start up.
Dual spark plugs cylinder heads feature iridium spark plugs reduce spark plug electrode degradation and allow the electrode to be finer producing a more intense, hotter spark and further enhancing combustion.
Single valve springs reduce inertia weight and mechanical losses while maintaining accurate valve control.
SFV650 is powered by a sporty fuel injected, DOHC 90-degree V-twin engine based on the proven SV650 powerplant famous for its long term reliability, broad power and quiet rumble.
An oval throttle pulley helps smooth low rpm/mid-range power delivery
Conventional pressed in iron liners are replaced with Suzuki’s own race proven nickel-phosphorus-silicon-carbide coating (SCEM), which reduces friction and improves heat transfer, durability and ring seal.
The SFV650 arrives with a lighter and narrower radiator to increase efficiency, while an enhanced liquid to liquid oil cooler reduces weight.
A strong and smooth shifting 6-speed transmission.
Clutch release mechanism is changed from ball-screw type to cam type system and the transmission gear engagement dogs are strengthened to help improve shifting of the six speed transmission. .
To reduce mechanical noise, a scissor type primary gear is split length wise with the two halves spring loaded, and the clutch and countershaft sprocket covers are now double layered for additional sound reduction.
2 Compact trellis steel frame featuring 25-degree of rake and 104 mm of trail for stable and sporty handling with a beautiful look
Chassis and bodywork are designed to be as slim as possible where the fuel tank meets the seat, the outside forward edges of the seat are rounded and features a low 796mm seat height. All to make the new SFV650 easier for entry level riders to comfortably put both feet on the ground when stopping and for maximum rider confidence.
Dual floating front brake discs measure 290mm in diameter and work with dual piston calipers.
Rear shock spring is preload adjustable over a seven step range and rear wheel travel is 130 mm
Single rear shock is connected to the rectangular-section steel swingarm through a progressive linkage which allows the suspension to react smoothly to bumps and improve overall ride comfort.
Front forks feature 41mm stanchions with spring preload adjustability over a 15mm range and front wheel travel is 125 mm
3 Instrument cluster is positioned above the headlight and provides an analog tachometer, LCD digital speedometer, LCD dual trip-meters and odometer. An LCD digital clock, and LCD digital gear position indicator are also featured. Indicator lights include a two way remaining fuel warning lamp, backed up by an LCD digital reserve trip meter.
Fuel pump is lighter and more compact and located within the 15 liter fuel tank.
4 Organically shaped multi reflector headlight incorporates high and low beams as well as a position light and flanked by chrome lens turn indicators.
5 Compact combination tail and brake light is packaged neatly underneath the rear seat framed by stylish seat rails and also flanked by clear lens turn indicators
Dunlop qualifiers sport radials are fitted with a 120/70ZR17 front and a 160/60ZR17 rear tire.
Stylish 17 inch cast aluminum ?alloy wheels feature a new five spoke design with a 17 x 3.50 inch front wheel and a 17 x 5.00 inch rear wheel
Tubular handlebar shape and footpeg positions are designed to work with the seat position to add to rider comfort.
The carefully shaped seat has ample padding and the rear edges are bolstered to support the rider’s hips well.
New European inspired styling treatment features sleek flowing lines and an unmatched elegant new look.
2014 Suzuki SFV650 Gladius ABS – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: NA USD
See Non-ABS SFV650.
2014 Suzuki SFV650 Gladius ABS – Totalmotorcycle.com Canada Specifications/Technical Details
Canadian MSRP Price: $8,299 CDN
Engine 645 cc, 4-stroke, 2-cylinder, liquid-cooled, DOHC, 90-degree V-Twin
Bore Stroke 81.0mm x 62.6mm (3.19 in x 2.46 in)
Compression Ratio 11.5 : 1
Fuel System Fuel Injection
Lubrication Wet sump
Transmission 6-speed, constant mesh
Final Drive Chain
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Dual piston calipers, 290 mm disc, twin
Brakes Rear 1-piston caliper, 240mm disc
Tires Front 120/70ZR17M/C (58W), tubeless
Tires Rear 160/60ZR17M/C (69W), tubeless
Fuel Tank Capacity 14.5 L (3.8 US gal)
Color Pearl Vigor Blue / Pearl Glacier White and Metallic Mat Black No.2/Glass Sparkle Black
Ignition Electronic ignition (Transistorized)
Overall Length 2130 mm (83.9 in.)
Overall Width 760 mm (29.9 in.)
Wheelbase 1445mm (56.9 in.)
Ground Clearance 135mm (5.3 in.)
Seat Height 785 mm (30.9 in.)
Curb Weight 202kg (446lbs)
Warranty 12 Month unlimited mileage limited warranty
Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
