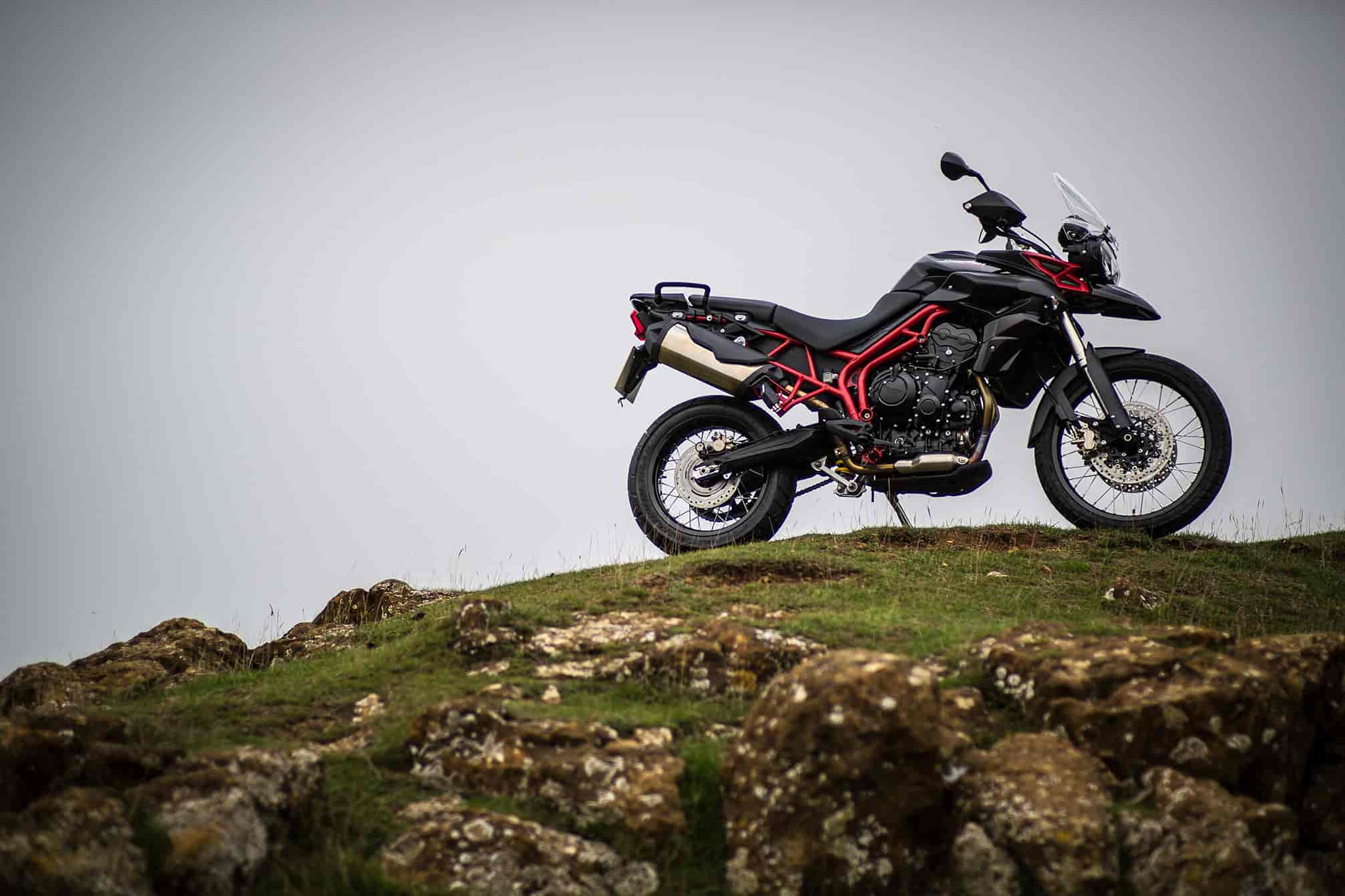

2014 Triumph Tiger 800 XC
2014 Triumph Tiger 800 XC

2014 Triumph Tiger 800 XC
2014 Triumph Tiger 800 XC

2014 Triumph Tiger 800 XC
2014 Triumph Tiger 800 XC



2014 Triumph Tiger 800 XC Review

The 2014 Triumph Tiger 800 XC on Totalmotorcycle.com

A bike with a thrist for long distance riding…

We built the Tiger 800XC to be just like the Tiger 800, but with a little bit more

Using the rugged Tiger 800 as a starting point, we added a pack of special off-road equipment so you can keep on going when you run out of tarmac.

The three-cylinder engine is the same 800cc triple found in the Tiger 800 so it’s got loads of torque and muscular power. And the tough steel frame and long distance fuel range are from the Tiger 800 too. The added XC is what gives you the next-level off-road ability.

This is a hard-core bike that you can cross continents on, whether or not there are roads going in that direction. Just load it up and go.



2014 Triumph Tiger 800 XC Totalmotorcycle.com Features and Benefits

ENGINE

Performance

The three-cylinder 95PS engine, like the rest of the Tiger 800XC, is made for adventure.

With so much torque spread right across the rev range you can pull hard from low revs. That’s great for overtaking without the need to work the gearbox and touring effortlessly through mountainous terrain, but it’s also exactly what you need to dig yourself out of tough off-road situations.

But this is a Triumph so there’s a lot more to it than clinical horsepower.

We gave the Tiger an animated snarl that adds a whole new layer of character. An engine that communicates and encourages you to use it to the best of its, and your, ability.
Transmission

The rugged dependability applies just as much to the transmission: six gears, a tough clutch with a light lever action that’s needed in difficult conditions, and chain drive for simplicity, reduced weight and the best ground clearance This makes it easy to alter the final drive ratio for sustained low speed riding.



CHASSIS

Suspension

The suspension travel for the Tiger 800XC is a huge 220mm at the front, 215mm at the rear. Just what you need on poor condition trails. We fitted 45mm Showa upside down forks along with a preload and rebound adjustable Showa monoshock so you can adjust for either off or on-road riding.
Brakes

We needed to give you enough stopping force on the road without being too sharp or intimidating in the dirt. So at the front of the Tiger 800XC is a pair of two-piston sliding callipers and 308mm discs, with a single-piston calliper at the rear and a 255mm disc.

ABS is standard but this can be switched off for off-road riding where you might want to be able to lock up a wheel.
Wheels

We added spoked wheels to the Tiger 800XC for better cushioning on rough terrain. The front is a big 21inch diameter to take dedicated off-road tyres and cope with holes and ridges. And the front mudguard is higher so that clogging mud won’t spoil your ride.
Riding Position

We built the Tiger 800XC to have genuine off-road capability, so it’s tall with an upright and very spacious riding position. We made the bars wider than the standard Tiger 800s to give you extra manoeuvrability and the seat is lofty, although it’s easily adjusted without the need for tools.

Despite your high up stance the screen does a great job of fending off the wind pressure so you can stay at motorway speeds for as long as you need.

We even gave your passenger plenty of room, chunky grab handles and well positioned footrests so long distances are no less comfortable on the back than they are for you.
Adjustable seat height

You can adjust the seat height without tools between 845mm and 865mm to suit different kinds of riding.
Handlebars

The aluminium handlebars can also be adjusted fore and aft and the handlebar levers are span-adjustable.
Frame

As you’d expect the Tiger 800XC uses the same tubular steel trellis frame as the Tiger 800 so you know it’s strong enough to take the knocks during serious off road use. The rear subframe is the same, designed to take our capacious panniers and big top box, plus a passenger, then go places where pure road bikes daren’t venture.



EQUIPMENT

ABS

The ABS system on the Tiger 800XC uses the latest technology to prevent wheel lock-up in any condition you find yourself in. And it can be switched off for off-road use, in case you want to lock a wheel up deliberately.
Immobiliser

Just in case your Tiger 800XC attracts the wrong kind of attention, we’ve added a high technology security system. It detects a microchip in the key body and if it’s not present the ignition system is disabled.

This prevents a copy of the correct key being used to switch the bike on.
Instruments and Computer

With the Tiger 800XC you are fully equipped for all kinds of conditions, on-road and off. As standard you get the rear rack, along with the sturdy hand protectors and the coded key immobiliser for security.

The dash shows you all the information you could need including average and instant fuel economy and range remaining, fuel gauge, service indicator, gear position and clock as well as speed and engine rpm. It’s also preconfigured for the optional Tyre Pressure Monitoring System.
Alternator

Serious all-weather riders expect to be able to use additional electrical equipment, so we fitted the Tiger 800XC with a high output alternator. Plenty of power for you to use heated grips, spotlights or electrically heated clothing. All of which are available as extras.
Screen

We added the aerodynamically optimised screen to take the force out of the slipstream and make your ride comfortable at sustained high speed.
Luggage Capacity

You never know where you’ll end up on a Tiger 800XC so you need to prepare for any eventuality. And that can mean taking a lot of equipment with you. So luggage options include the capacious adventure-style panniers and top case, tank bags, tail packs and inner bags to suit every need. All developed in conjunction with the Tiger 800XC, so wherever you go you can take it all with you. There’s even a clever lever behind the headlights for when the bike is loaded up, to dip them lower and compensate for the tail-down stance. No tools needed, just pull the lever and the lights are pointing along the road once again.



WARRANTY

Overview Our confidence provides you with a two-year unlimited mileage warranty on your new Triumph and Genuine Accessories. Alongside the knowledge that we give you a 12 month unlimited mileage warranty on replacement parts. The Tiger 800 carries 6,000 mile (10,000km) service intervals.



2014 Triumph Tiger 800 XC Special Edition

Overview This special edition of Triumph’s Tiger 800XC takes the tough and capable characteristics of the standard 800XC model and adds a distinctive, fresh look. Frame Adding to the unique look is a fiery red main frame plus black exhaust heat shields and black pillion grab rails. Components The commanding view the Tiger 800XC is now framed by black finished handlebars and matt-finished Diablo Red cockpit infills. Paint At first glance the new Volcanic Black paint looks like a simple black finish, but when the lines catch the light you’ll see a burst of red metallic highlights.








2014 Triumph Tiger 800 XC – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: Lunar Silver – $11,999; Special Edition TBA USD
Canada MSRP Price: $13,399; Special Edition TBA CDN
UK/European MSRP Price: £8,699.00; Special Edition £8,699.00 (VAT Included)

CHASSIS
FRAME Tubular steel trellis frame
SWINGARM Twinsided, cast aluminium alloy
FRONT WHEELS 36spoke 21 x 2.5in, aluminium rim
REAR WHEELS 32spoke 17 x 4.25in, aluminium rim
FRONT TIRES 90/90 21
REAR TIRES 150/70 R17
FRONT SUSPENSION Showa 45mm upside down forks, 220mm travel
REAR SUSPENSION Showa monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment, 215mm rear wheel travel
BRAKES FRONT Twin 308mm floating discs, Nissin 2piston sliding calipers, Switchable ABS
BRAKES REAR Single 255mm disc, Nissin single piston sliding caliper, Switchable ABS

INSTRUMENT DISPLAY AND FUNCTIONS
LCD multifunctional instrument pack with digital speedometer, trip computer, analogue tachometer, gear position indicator, fuel gauge, service indicator, switchable ABS and clock.

ENGINE
TYPE Liquidcooled, 12 valve, DOHC, inline threecylinder
CAPACITY 799cc
BORE 74.0mm
STROKE 61.9mm
SYSTEM Multipoint sequential electronic fuel injection
EXHAUST Stainless steel 3 into 1, high level stainless steel silencer
FINAL DRIVE ORingChain
CLUTCH Wet, MultiPlate
GEARBOX 6Speed
OIL CAPACITY 1.0US Gallon

COLOUR OPTIONS
Matt Khaki Green
Crystal White
Phantom Black

PERFORMANCE
MAX POWER EC 95PS @ 9300
MAX TORQUE EC 79NM @ 7850

Fuel Consumption
urban – 49.6us mpg
56mph/90kph – 75.3us mpg


Specifications, features and prices to change by manufacturer without notice. Information from Total Motorcycle.com; All information correct as of posted date.
