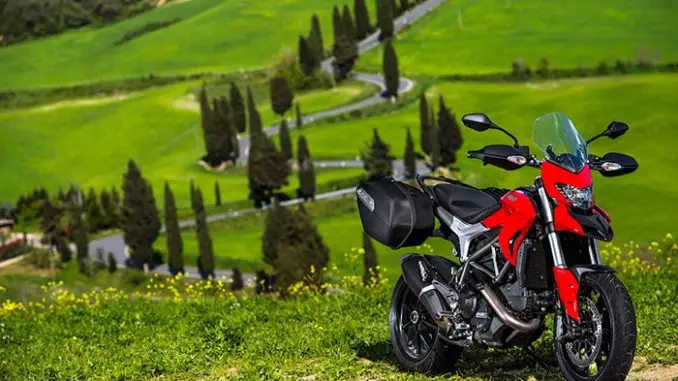

2015 Ducati Hyperstrada
2015 Ducati Hyperstrada

2015 Ducati Hyperstrada
2015 Ducati Hyperstrada

2015 Ducati Hyperstrada
2015 Ducati Hyperstrada

2015 Ducati Hyperstrada
2015 Ducati Hyperstrada

2015 Ducati Hyperstrada
2015 Ducati Hyperstrada



2015 Ducati Hyperstrada Review

2015 Ducati Hyperstrada on Totalmotorcycle.com

Hyper performance, extreme versatility

The Hyperstrada extends the hypermotard concept to fascinating new horizons. ABS, DTC, windshield, side bags, dedicated ergonomics and a series of touring features offering a new riding experience for everyone who loves curves, even when they’re far away from home.

Hyperstrada: broaden the horizons of your emotions.

The Hyperstrada model represents a new dimension for Hypermotard, with the innovative realisation of a unique model that is a “cross-over” between the worlds of motard and touring. This incredibly versatile motorcycle opens an exciting new road to explore and releases the full potential of this thrilling family.

Its factory-equipped touring components present a comfortable and user-friendly travel companion with generous luggage capacity and the added security of ABS and DTC combined into the Ducati Safety Pack and fully integrated into the Sport (110 hp – High), Touring (110 hp – Medium) and Urban (75 hp – Low) Riding Modes.

Preparing the model for the open road, Ducati has fitted a strong, lightweight and elegantly styled 50 litres of quickly-detachable side-luggage – and offers an extra 31 litre top case as an accessory – with a centre stand for stable parking when fully loaded. The Hyperstrada also features handlebars 20 mm (0.78 in) higher than the Hypermotard, a touring screen to provide improved wind protection and, with long journey comfort in mind, a special wide touring seat fitted with thick foam cushioning for both the rider and passenger and confidence-inspiring passenger grab-handles. At 830 mm (32.7 in), the seat height offers sure-footed confidence when fully loaded with luggage and passenger, with the opportunity to lower it even further with a 20 mm lower accessory seat. Two auxiliary 12 V power outlets, intended to feed navigation accessories or heated clothing, complete the enhanced specification.

The Hyperstrada model considerably enhances sure-footed confidence, especially when combined with the accessory low saddle to achieve a reduction of 20 mm for an 810 mm (31.9 in) seat height.

The front suspension of the Hyperstrada uses 43mm Kayaba upside-down forks, with a stroke of 130 mm (5.1 in) and the rear suspension with single Sachs rear shock absorber providing 130 mm (5.1 in) of rear wheel travel with rebound damping and user-friendly remote hydraulic spring preload adjustment.

The full touring trim tips the scales with a dry weight of 181 kg (399 lb) and rides on Pirelli Scorpion Trail tyres, mounted on 10-spoke 1199 Panigale-style cast aluminium wheels. The Hyperstrada is finished in Ducati red against subtle racing grey Trellis frames and black wheels and has side luggage in textured black with polished stainless steel “Ducati” name plates.





2015 Ducati Hyperstrada Totalmotorcycle.com Key Features

Hyperstrada
Colours
1. Body | Frame | Wheels: Ducati red | racing grey | black

Equipment
o Ducati Safety Pack (ABS, DTC)
o Riding Modes (Sport | Touring | Urban)
o Touring screen*
o Touring seat*
o Passenger grab-handles*
o Side luggage*
o Centre stand*
o Engine sump guard*
o Remote rear suspension pre-load
o 2 x auxiliary 12v power outlets
o Enhanced generator
o Extended front and rear mudguards

*Available from Ducati Performance also as an accessory for Hyperstrada and Hyperstrada SP





2015 Ducati Hyperstrada Totalmotorcycle.com Features and Benefits

Design


The new Hypermotard family has done it again with the latest design which offers, as with the first version, a stunning looking bike that is a joy to ride.
The original dirtbike-inspired look has become even more daring thanks to the visibly higher ground clearance, the high and tapered tail and the narrow sides. These are the design elements that characterise the new version and which have been created for a motorbike that can be used for urban commuting, touring or for a thrilling day-out on the track.
Although maintaining the typical hand protectors of off-road models, the new Hypermotard offers redesigned rear-view mirrors in order to blend in perfectly with the model’s clean design and the need to use it in the city. The attention paid to the flow of the lines has allowed the essential and minimalist image of this family to be maintained, despite the complexity of integrating the new Ducati 821 cc Testastretta 11° water-cooled engine.
The new Hypermotard family therefore stands out because of its proportions, ergonomics and practicality, besides being equipped with the latest Ducati technology. While the Hypermotard and Hypermotard SP versions faithfully maintain an essential Supermotard look, the Hyperstrada model seems less extreme and has specific features aimed at touring.

Hyperstrada


The Hyperstrada model is of a completely new size for the Hypermotard family: a unique and innovative motorbike which represents a kind of “crossover” between the Motard world and that of Touring. This incredibly versatile vehicle opens up new and thrilling horizons for motorbike enthusiasts and further emphasises the potential of this new family.
Featuring a more relaxed riding position and with full Touring equipment as standard, the Hyperstrada is the ideal travelling companion thanks to its generous load capacity and the safety guaranteed by the ABS and DTC, combined in the Ducati Safety Pack. There are three Riding Modes available for this specific version: Sport, Touring and Urban

Hyper Story


When the prototype Hypermotard was first shown at the 2005 Milan show it represented the creation of a new sector, one that bridged the gap between refined sportsbikes and minimalist supermotards. But some people at Ducati had reservations about the initial Hypermotard concept and were unsure if people were ready for such a motorcycle.
Despite these reservations, the project continued, driven by the belief in the upright and in-control riding position of a dirtbike, but without the harsh characteristics of its single cylinder engine. These confident few designed a bike that combined the agility and lightweight precision of a supermotard with the refined power and characteristics of a charismatic L-Twin sportbike.
The launch of the Hypermotard in 2007 created a new crossover category: pure fun reinvented in a motorcycle that can be used every day.
2013 marks the new milestone in this development: Ducati presents the new and exciting generation of Hypermotards, which has drawn on elements from the original concept which made this bike unique and such a success: innovation, design, but above all fun in the extreme. The new Hypermotard not only echoes these features but takes them even further, thanks to a new range consisting of 3 incredible models: the thrilling Hypermotard, the extreme Hypermotard SP and a new even more accessible and practical tourer that is particularly suited to mid-range touring: the Hyperstrada.

New Testastretta 11°


The new Hypermotard family has left the 2-valve configuration behind to adopt a new 4-valve engine with a water-cooled cylinder, featuring a bore x stroke of 88 mm x 67.5 mm designed to achieve a perfect balance between usability and performance: this is the new 821 cc Testastretta 11° engine which provides maximum power of 110 hp @ 9,250 rpm and torque of 89 Nm @ 7,500 rpm.
The new Testastretta 11° adopts technical solutions which directly reflect Ducati’s engineering know-how and have led to the creation of an extremely fluid and stable engine: the 11° valve overlap confirms the excellent results obtained in the Multistrada 1200 family and improves the exhaust and intake stages with consequent steady operation at medium and low speeds. The relocation of the fuel injectors, which was also applied to the engine of the new Multistrada 1200, aims the jet of fuel directly at the hotter rear end of the suction valve, so that all fuel is atomised; a secondary air system similar to that of the 1199 Panigale enables the engine’s operation to be optimised thanks to the controlled flow of oxygen which reduces cyclical combustion dispersion, thus effectively eliminating unburnt fuel.
Ultimately, Ducati has managed to obtain a new engine that is extremely enjoyable, performs excellently and which can significantly limit emissions of unburnt fuel.

Power modes


The Ride-by-Wire system, which is present on all the models in the Hypermotard family, allows 3 different engine mappings to be used to control torque and power:
110 hp with sporting “HIGH” torque
110 hp with progressive “MEDIUM” torque
75 hp with progressive “LOW” torque
The structural features of the new 821 cc Testastretta 11° engine, together with the use of the Ride-by-Wire system which controls the opening of the butterfly valves on the basis of the input received, are the starting point in obtaining the Riding Modes for the new Hypermotard models.
Each Riding Mode has a preset engine mapping, but can be adjusted and customised to suit rider needs.

Exhaust system


The 2-1 exhaust system has been completely redesigned with 50 mm exhaust headers and valves which flow into the new single silencer made with a very compact, high absorption technology with a black finish and stainless steel rear frame. The system includes a catalytic converter and two lambda sensors, to guarantee complete compliance with Euro 3 regulations.

APTC clutch


The new engine is equipped with an APTC oil bath clutch with ‘slipper’ function which can be activated with reduced force on the lever. Its design uses a progressive self-servo system with plates with a high wear coefficient and this increases the torque available, with all other factors being constant, and hence reduces clutch spring loading and, ultimately, loading on the lever. All the models are now equipped with cable-clutch control; this has proven the best solution for this application in terms of build simplicity. The slipper function intervenes when the drive force is reversed and reduces the pressure on the clutch discs and so enables the vehicle’s stability to be maintained during aggressive changes typical in sports riding.

Service interval of 18,500 miles


Thanks to the constant investment by Ducati in quality and reliability, the new 821 cc Testastretta 11° engine has enabled further progress in maintenance planning: valve adjustment is now scheduled for every 18,500 miles which is a great advantage for Ducati customers.

New Trellis frame


The new Hypermotard family of bikes is equipped with a new tubular steel Trellis frame with 34 mm main section tubes, 25.5° rake, 104 mm trail and 30 mm offset, dimensions which allow steady and safe control without compromising the agility typical of this motorbike. The frame connects into the seat rail and, as in the new Multistrada 1200, includes an intermediate section in engineering polymer. A wide 70° steering angle allows great handling, while the wheel base has been increased to 1500 mm to maximise stability at high speeds.

Touring ergonomics


With the wider and more comfortable Touring seat set at a height of just 850 mm and the handlebars raised by 20 mm, the new Hyperstrada further improves the rider’s comfort and position so long distances can be covered, even with a passenger, in complete comfort.

New fuel tank


The fuel tank in the new Hypermotard family has been completely redesigned and its capacity increased to 16 litres (4.6 litres more than the previous models), guaranteeing a greater range without affecting the bike’s fundamental and sinuous lines.

Bosch-Brembo braking system


The front braking system features a pair of the new double Brembo M4.32 monobloc 4-piston radial callipers, which are activated by the brake master cylinder with its 4-position adjustable lever on the Hypermotard and Hyperstrada and by the radial brake master cylinder with an adjustable 5-position lever on the SP model. The front discs are 320 mm, while on the rear there is a single 245 mm disc with a single Brembo calliper.
All the new Hypermotard models are also equipped with the new multilevel Bosch 9MP ABS as standard that make braking safe and effective in any road conditions.
This component ensures optimum braking performance in the sector, a typical feature of every Ducati.

Sachs monoshock with remote adjustment


The rear suspension includes a Sachs monoshock which is easily adjustable in remote hydraulic braking in extension and preload, which allows rear wheel travel of 150 mm

Single-sided swingarm


The rear suspension of the new Hypermotard family relies on the exclusive die-cast aluminium single-sided swingarm, which has been specially designed to provide strength and guarantee excellent control of the rear axle. This elegant mechanical solution helps emphasise the bold and sporty character of the new models.

ABS Bosch 9MP


The new Hypermotard family is equipped with the latest Bosch 9MP ABS, an integral part of the Ducati Safety Pack. This unrivalled combination of safety and braking power provides shorter stopping distances and greater stability under braking. The system integrates perfectly with the Riding Modes and has two operation levels.
Level 1, for Sport Riding Mode, ensures high braking performance with reduced anti lift-up control for sport use on the road. Level 2, for Touring and Urban Riding Modes, offers excellent stability on braking and maximum control over rear wheel lift.
Riders who wish to try out unassisted braking performance can disable the ABS from the instrument panel menu. The ABS will remain disabled at the next key-on and this setting can be stored for each Riding Mode.

Touring equipment


Designed for travel outside urban centres, Ducati has equipped the Hyperstrada with robust, semi-rigid side bags, but which are at the same time light and stylish. The bags have a capacity of 50 litres and can be easily removed, making them particularly convenient and practical.
The presence of a centre stand, on the other hand, increases the stability of the motorbike under full load.
Special consideration has been given to riders who wish to share their travel experience with a passenger and a special wider seat has been built, with thicker foam support to increase comfort on long journeys. To this are added passenger grab handles that enable a wider and safer grip for excellent stability.

Ducati Safety Pack (DSP)


The whole range of the new Hypermotard family is equipped with the Ducati Safety Pack (DSP), which highlights the extent to which Ducati is focused on the issue of road safety. Designed to maximise the control of the bike and active safety while riding, the DSP includes the Brembo braking system with Bosch ABS in its latest 9MP version, and 8-level Ducati Traction Control (DTC).

Riding modes


The Ducati Riding Modes mark a turning-point in motorbike engineering and allow a choice to be made, depending on the model, from preset modes to optimise the vehicle’s performance on the basis of the rider’s riding style and the environmental conditions.
The new Hypermotard and Hyperstrada models offer 3 Riding Modes which are programmed to instantly change the engine torque and the intervention levels of the ABS and Ducati Traction Control even while riding:
SPORT: The Sport Riding Mode provides 110 hp with a direct response from the RbW on acceleration, reduced intervention from the DTC system and the level 1 setting (high braking efficiency) from the ABS with reduced control over rear wheel lift.
TOURING: The Touring Riding Mode provides 110 hp with a more gradual response from the RbW on acceleration, greater intervention from the DTC system and level 2 braking efficiency from the ABS with maximum stability on braking and lift-up control.
URBAN: The Urban Riding Mode provides 75 hp with gradual response from the RbW on acceleration, even greater intervention from the DTC system and level 2 braking efficiency from the ABS with maximum stability on braking and rear wheel lift control.

Ducati Traction Control (DTC)


An integral part of the Ducati Safety Pack (DSP), the Ducati Traction Control system, which is adjustable over 8 levels (3 of which are integrated into the Riding Modes), processes the input from the wheel speed sensors to control rear wheel slip, significantly improving performance and active safety.
At the first stage, if skidding is detected, the system intervenes “softly” by delaying ignition resulting in up to a 60% reduction in torque. If this initial intervention fails to control the skid, the Ducati Traction Control software continues to delay ignition and also cuts off the fuel injection to further reduce torque, until optimal rear-wheel grip is re-established.
Each stage of the DTC, preset in the Riding Modes, can be tailored by the user and saved in the set-up menu.

Instruments


The compact instruments of the new Hypermotard family include warning lights in the upper part of the dashboard for signals relating to neutral, indicators, high beam, rev limit, oil pressure and fuel reserve, while the lower section includes an LCD display with a DOT-matrix readout to view all the other data.
The display provides data on speed, revs, mileage, trip 1 and trip 2, engine coolant temperature, ambient temperature and the time. In addition, it shows current fuel consumption, average fuel consumption, average speed and journey time. The DOT-matrix readout permanently shows the chosen Riding Mode and the corresponding ABS and DTC levels set; it is possible to choose from 3 Riding Modes very easily whether stationary or on the move using the indicator button.

Controls


The integral Ride-by-Wire system on the new Hypermotards includes a new and compact electronic throttle control, which combines perfectly with the minimalist design of the displays. The Hypermotard uses the innovative display which features an exclusive ‘safety’ function which protects the starter switch when the engine off button is pressed. For all the models the clutch has traditional cable control and, for the rear brake, a lever that can be adjusted in 4 positions (5 positions for the SP model with radial brake master cylinders). The die-cast aluminium foot pegs are painted black and have integrated heel guards and support the brake and gear change footplates made from forged aluminium.

10-spoke sports alloy wheels


The new Hypermotard and Hyperstrada models boast the latest cast-aluminium 10-spoke wheels, with a design inspired by those of the 1199 Panigale, a clear expression of Ducati’s unmistakeable sporting spirit.

Headlights and indicators


The headlight is extremely light and compact and uses a single “blue-vision” filament lamp for dipped and full-beam functions, while the directional indicators employ LEDs. The rear light employs a specially designed strip of LEDs enhanced by a high-diffusion lens shaped into the sleek lines of the tailpiece. It acts both as a rear light and as a brake light. The front directional indicators are harmoniously integrated into the handguards maintaining the sleek lines of the Hypermotard as a result. On the new Hypermotard models there is also a 4-way hazard light function which can be activated by holding the left indicator button down for four seconds.

Power outlets


The new Hyperstrada has two 12 V power outlets, one on each side just below the rider’s seat. They supply loads up to a total of 8 A (fused capacity), including heated riding gear, intercom, mobile battery charger and navigating instruments.

Pirelli Scorpion Trail


The Hyperstrada’s ability to tackle long distances is also shown in the choice of its tyres. The new tourer in the Hypermotard family, just like the new Multistrada 1200, has Pirelli Scorpion Trail tyres as standard which, thanks to a mix of the latest components, guarantee excellent traction in all weather conditions and superb fuel efficiency. The front wheel takes a 120/70 x 17″ tyre, while the rear has a 180/55 x 17″ tyre.











2015 Ducati Hyperstrada – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $13,495 USD


Engine
Type
Testastretta 11° L-Twin, 4 Desmodromically actuated valves per cylinder, liquid cooled
Displacement
821.1cc
Bore x Stroke
88 x 67,5 mm
Compression ratio
12,8:1
Power
110hp (81kW) @ 9250rpm
Torque
89 Nm (65.8 lb-ft) @ 7750 rpm

Technical data referring to power and torque was measured on an engine test stand at Ducati.
Fuel injection
Electronic fuel injection system. Throttle bodies with full Ride by Wire system
Exhaust
Single stainless steel muffler with catalytic converter and two lambda probes.

Transmission

Gearbox
6 speed
Primary drive
Straight cut gears, Ratio 1.85:1
Ratio
1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final drive
Chain, Front sprocket 15, Rear sprocket 45
Clutch
Slipper and self-servo wet multiplate clutch mechanically operated

Chassis

Frame
Tubular steel Trellis frame
Front suspension
43mm usd forks
Front wheel
10-spoke in light alloy 3.50″ x 17″
Front Tyre
Pirelli Scorpion Trail, 120/70 ZR17
Rear suspension
Progressive linkage with adjustable spring preload and rebound damping monoshock. Remote hydraulic spring preload adjustment. Aluminium single-sided swingarm
Rear wheel
10-spoke in light alloy 5.50″ x 17″
Rear tyre
Pirelli Scorpion Trail, 180/55 ZR17
Front wheel travel
150 mm (5.9 in)
Rear wheel travel
150 mm (5.9 in)
Front brake
2 x 320 mm semi-floating discs, radially mounted Monobloc Brembo calipers, 4-piston 2-pad, axial pump with adjustable lever, ABS 9MP as standard
Rear brake
245 mm disc, 2-piston caliper, ABS 9MP as standard
Instrumentation
Multifunction digital dashboard with white backlight, composed of LCD segments for rev counter and a Dot-Matrix area for all other information: odometer (total, trip 1 and trip2), speedometer, clock, coolant temperature, selected riding mode, current fuel consumption, average fuel consumption, average speed, air temperature, trip time, maintenance intervals indicator (Km), errors detection (diagnosis), setup menu and customization functions. Interface for the management of Riding Modes (ABS, throttle response power, traction control). Lights: oil pressure, neutral N, fuel warning, turn signal, EOBD (diagnosis), high beam, DTC intervention (Traction Control) and deterrent immobilizer (in Key-Off). Headlight control: auto switching-off during engine start, auto turning-off after 60 seconds from Key-On without starting the engine, hazard lights. The key management of the various function menus are integrated in the left and right switch controls.

Dimensions and weight

Dry weight
181kg (399lb)

Weight data refers to the dry weight of the motorcycle without battery, lubricants and coolants for liquid-cooled models.
Wet weight (KERB)
204 kg (450 lb)

Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EC standard 93/93).
Seat height
850mm – 830mm (33.5in – 32.7in)
Wheelbase
1.490 mm (58.7 in)
Rake
25,5°
Trail
104mm (4.1In)
Fuel tank capacity
16l – 4.2gallon (US)
Number of seats
Dual seat

Equipments

Standard Equipment
Riding Modes, Power Modes, Ducati Safety Pack (ABS + DTC), RbW. 50 l (13.2 gal) semi-rigid side panniers with incorporated supports, touring windshield, touring seat, passenger grab handle, centre stand, larger front and rear mudguards, engine sump guard,two 12 V power outlets. Ready for anti-theft system, heated grips, sat-nav.


Warranty
2 years unlimited mileage
Maintenance service intervals
15,000 km (9,000 mi)/12 months
Valve clearance check
30,000 km (18,000 mi)

Emissions and Consumption

Standard
follows the US Federal Regulation








2015 Ducati Hyperstrada – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $13,995 CDN

Engine
Type
Testastretta 11° L-Twin, 4 Desmodromically actuated valves per cylinder, liquid cooled
Displacement
821.1cc
Bore x Stroke
88 x 67,5 mm
Compression ratio
12,8:1
Power
110hp (81kW) @ 9250rpm
Torque
89 Nm (65.8 lb-ft) @ 7750 rpm

Technical data referring to power and torque was measured on an engine test stand at Ducati.
Fuel injection
Electronic fuel injection system. Throttle bodies with full Ride by Wire system
Exhaust
Single stainless steel muffler with catalytic converter and two lambda probes.

Transmission

Gearbox
6 speed
Primary drive
Straight cut gears, Ratio 1.85:1
Ratio
1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final drive
Chain, Front sprocket 15, Rear sprocket 45
Clutch
Slipper and self-servo wet multiplate clutch mechanically operated

Chassis

Frame
Tubular steel Trellis frame
Front suspension
43mm usd forks
Front wheel
10-spoke in light alloy 3.50″ x 17″
Front Tyre
Pirelli Scorpion Trail, 120/70 ZR17
Rear suspension
Progressive linkage with adjustable spring preload and rebound damping monoshock. Remote hydraulic spring preload adjustment. Aluminium single-sided swingarm
Rear wheel
10-spoke in light alloy 5.50″ x 17″
Rear tyre
Pirelli Scorpion Trail, 180/55 ZR17
Front wheel travel
150 mm (5.9 in)
Rear wheel travel
150 mm (5.9 in)
Front brake
2 x 320 mm semi-floating discs, radially mounted Monobloc Brembo calipers, 4-piston 2-pad, axial pump with adjustable lever, ABS 9MP as standard
Rear brake
245 mm disc, 2-piston caliper, ABS 9MP as standard
Instrumentation
Multifunction digital dashboard with white backlight, composed of LCD segments for rev counter and a Dot-Matrix area for all other information: odometer (total, trip 1 and trip2), speedometer, clock, coolant temperature, selected riding mode, current fuel consumption, average fuel consumption, average speed, air temperature, trip time, maintenance intervals indicator (Km), errors detection (diagnosis), setup menu and customization functions. Interface for the management of Riding Modes (ABS, throttle response power, traction control). Lights: oil pressure, neutral N, fuel warning, turn signal, EOBD (diagnosis), high beam, DTC intervention (Traction Control) and deterrent immobilizer (in Key-Off). Headlight control: auto switching-off during engine start, auto turning-off after 60 seconds from Key-On without starting the engine, hazard lights. The key management of the various function menus are integrated in the left and right switch controls.

Dimensions and weight

Dry weight
181kg (399lb)

Weight data refers to the dry weight of the motorcycle without battery, lubricants and coolants for liquid-cooled models.
Wet weight (KERB)
204 kg (450 lb)

Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EC standard 93/93).
Seat height
850mm – 830mm (33.5in – 32.7in)
Wheelbase
1.490 mm (58.7 in)
Rake
25,5°
Trail
104mm (4.1In)
Fuel tank capacity
16l – 4.2gallon (US)
Number of seats
Dual seat

Equipments

Standard Equipment
Riding Modes, Power Modes, Ducati Safety Pack (ABS + DTC), RbW. 50 l (13.2 gal) semi-rigid side panniers with incorporated supports, touring windshield, touring seat, passenger grab handle, centre stand, larger front and rear mudguards, engine sump guard,two 12 V power outlets. Ready for anti-theft system, heated grips, sat-nav.


Warranty
2 years unlimited mileage
Maintenance service intervals
15,000 km (9,000 mi)/12 months
Valve clearance check
30,000 km (18,000 mi)

Emissions and Consumption

Standard
follows the US Federal Regulation






2015 Ducati Hyperstrada – Totalmotorcycle.com European/UK Specifications/Technical Details
UK/European MSRP Price: £10,795 GBP (On The Road) (including 20% VAT + Pre-delivery Inspection)

Engine
Type
Testastretta 11° L-Twin, 4 Desmodromically actuated valves per cylinder, liquid cooled
Displacement
821.1cc
Bore x Stroke
88 x 67,5 mm
Compression ratio
12,8:1
Power
110hp (81kW) @ 9250rpm (35 Kw with output reduction )
Torque
89 Nm (65.8 lb-ft) @ 7750 rpm

Technical data referring to power and torque was measured on an engine test stand at Ducati.
Fuel injection
Electronic fuel injection system. Throttle bodies with full Ride by Wire system
Exhaust
Single stainless steel muffler with catalytic converter and two lambda probes.

Transmission

Gearbox
6 speed
Primary drive
Straight cut gears, Ratio 1.85:1
Ratio
1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final drive
Chain, Front sprocket 15, Rear sprocket 45
Clutch
Slipper and self-servo wet multiplate clutch mechanically operated
Chassis
TOP
Frame
Tubular steel Trellis frame
Front suspension
43mm usd forks
Front wheel
10-spoke in light alloy 3.50″ x 17″
Front Tyre
Pirelli Scorpion Trail, 120/70 ZR17
Rear suspension
Progressive linkage with adjustable spring preload and rebound damping monoshock. Remote hydraulic spring preload adjustment. Aluminium single-sided swingarm
Rear wheel
10-spoke in light alloy 5.50″ x 17″
Rear tyre
Pirelli Scorpion Trail, 180/55 ZR17
Front wheel travel
150 mm (5.9 in)
Rear wheel travel
150 mm (5.9 in)
Front brake
2 x 320 mm semi-floating discs, radially mounted Monobloc Brembo calipers, 4-piston 2-pad, axial pump with adjustable lever, ABS 9MP as standard
Rear brake
245 mm disc, 2-piston caliper, ABS 9MP as standard
Instrumentation
Multifunction digital dashboard with white backlight, composed of LCD segments for rev counter and a Dot-Matrix area for all other information: odometer (total, trip 1 and trip2), speedometer, clock, coolant temperature, selected riding mode, current fuel consumption, average fuel consumption, average speed, air temperature, trip time, maintenance intervals indicator (Km), errors detection (diagnosis), setup menu and customization functions. Interface for the management of Riding Modes (ABS, throttle response power, traction control). Lights: oil pressure, neutral N, fuel warning, turn signal, EOBD (diagnosis), high beam, DTC intervention (Traction Control) and deterrent immobilizer (in Key-Off). Headlight control: auto switching-off during engine start, auto turning-off after 60 seconds from Key-On without starting the engine, hazard lights. The key management of the various function menus are integrated in the left and right switch controls.

Dimensions and weight

Dry weight
181kg

Weight data refers to the dry weight of the motorcycle without battery, lubricants and coolants for liquid-cooled models.
Wet weight (KERB)
204 kg (450 lb)

Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EC standard 93/93).
Seat height
850mm – 830mm (33.5in – 32.7in)
Wheelbase
1.490 mm (58.7 in)
Rake
25,5°
Trail
104mm (4.1In)
Fuel tank capacity
16l – 4.2gallon (US)
Number of seats
Dual seat

Equipments

Standard Equipment
Riding Modes, Power Modes, Ducati Safety Pack (ABS + DTC), RbW. 50 l (13.2 gal) semi-rigid side panniers with incorporated supports, touring windshield, touring seat, passenger grab handle, centre stand, larger front and rear mudguards, engine sump guard,two 12 V power outlets. Ready for anti-theft system, heated grips, sat-nav.


Warranty
2 years unlimited mileage
Maintenance service intervals
15,000 km (9,000 mi)/12 months
Valve clearance check
30,000 km (18,000 mi)

Emissions and Consumption

Standard
Euro 3





Specifications and appearance are subject to change without prior notice.

About Michael Le Pard 955 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle. Supporting Motorcyclists and Motorcycling for 18 great years.

Be the first to comment

Leave a Reply
