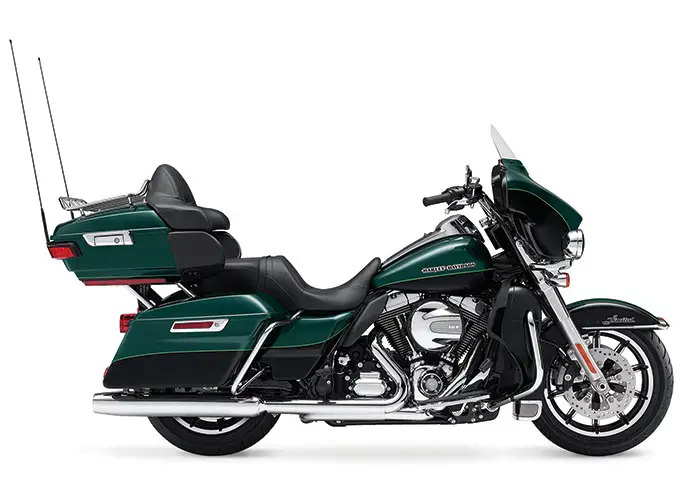

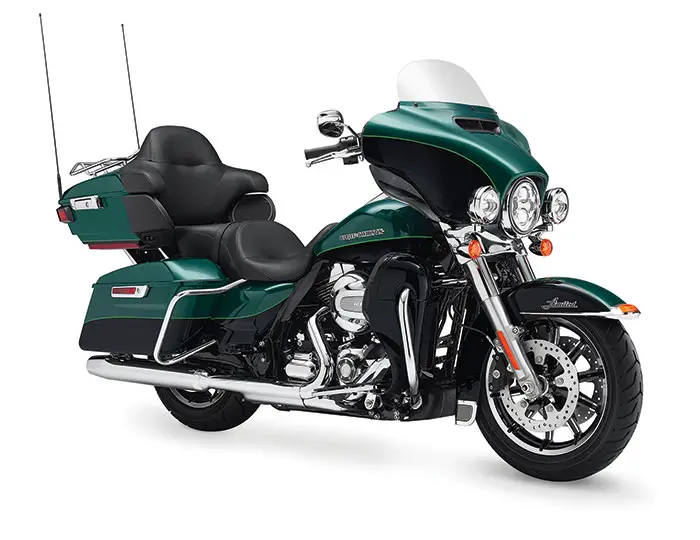

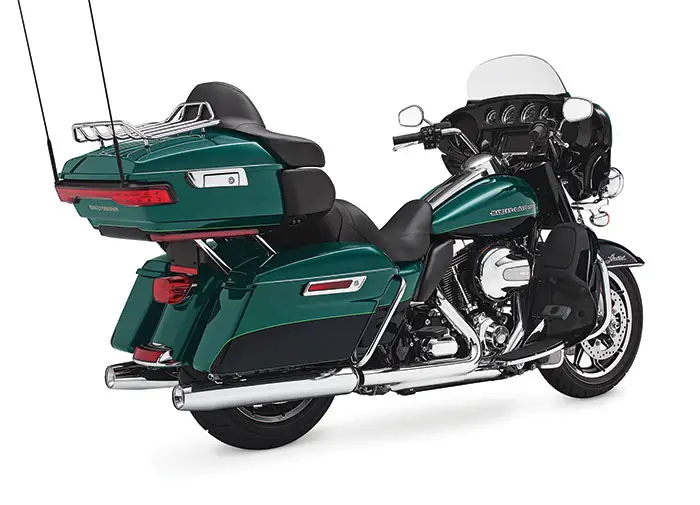

2015 Harley-Davidson FLHTKL Electra Glide Ultra Limited Low
2015 Harley-Davidson FLHTKL Electra Glide Ultra Limited Low

2015 Harley-Davidson FLHTKL Electra Glide Ultra Limited Low
2015 Harley-Davidson FLHTKL Electra Glide Ultra Limited Low

2015 Harley-Davidson FLHTKL Electra Glide Ultra Limited Low
2015 Harley-Davidson FLHTKL Electra Glide Ultra Limited Low

2015 Harley-Davidson FLHTKL Electra Glide Ultra Limited Low
2015 Harley-Davidson FLHTKL Electra Glide Ultra Limited Low



2015 Harley-Davidson FLHTKL Electra Glide Ultra Limited Low Review

2015 Harley-Davidson FLHTKL Electra Glide Ultra Limited Low on Totalmotorcycle.com

The farther you go on a motorcycle, the better it gets. Whether riding one, or building a new one from LED headlamp to taillight. Welcome to the top of the line bagger…

The 2015 Electra Glide® Ultra Classic® Low offers the lowest seat height available in a premium touring bike and a package of features designed to address comfort and fit issues fit for riders under 5 feet 7 inches tall.

Those features include:

A seat height of 25.6 inches allows more riders to place both feet flat on the ground when the motorcycle is stopped, and a new low-profile seat reduces the reach to the foot controls. Premium lowered front and rear suspension lowers the bike’s center of gravity and makes it easier to lift the motorcycle off its jiffy stand, yet delivers outstanding comfort and handling.
The overall width of the primary drive housing and derby cover are reduced to further improve leg clearance to the ground.
A pull-back handlebar places hand controls two inches closer to the rider, putting many riders in a more comfortable position that can reduce back and shoulder strain.
Smaller-diameter hand grips reduce the finger reach to the brake and clutch levers.
Assist and Slip (A&S) hydraulic clutch reduces lever effort 23 percent, a key benefit in stop- and-go traffic.
A new passenger footboard mount allows the footboards to be folded up so they are out of the way when pushing the motorcycle in a garage or driveway.
A new toe tab extension reduces the reach required to retract the jiffy stand.

Visually indistinguishable from standard Harley-Davidson Touring models, the Ultra Classic® Low is equipped with the full complement of Project RUSHMORE features that set the standard for long-haul touring comfort and convenience. The High Output Twin Cam 103™ engine provides abundant power for touring two-up and confident passing. A wind tunnel-tested Batwing fairing with Splitstream vent limits head buffeting.

The Boom!™ Box 4.3 audio system features Bluetooth capability and a 25-watt per channel amplifier driving four speakers. A King Tour-Pak® and hard saddlebags with One touch latches, Reflex™ Linked Brakes with ABS, Daymaker™ LED lighting, electronic cruise control, and the H-D® Smart Security System are standard features.

Lower than Low

Harley-Davidson® takes fit further with the 2015 Electra Glide® Ultra Classic® Low and Ultra Limited Low motorcycles, new models that offer the lowest seat height, and the highest rider confidence, available in a premium touring bike. The seat is slammed to get a rider’s feet closer to the pavement, but that’s just one of the ergonomic enhancements built into these new Low models that offer more freedom to more riders, right off the showroom floor.

From the width of the primary drive housing to the diameter of the hand grips, Harley-Davidson went over its premium Touring motorcycles from top to bottom, responding to customer input to develop a better fit for riders as short as 5 feet 5 inches tall. Visually indistinguishable from standard Harley-Davidson Touring models, the new Ultra Classic Low and Ultra Limited Low are also equipped with the full complement of Project RUSHMORE features that have recalibrated the expectations of touring motorcyclists. The look, sound and feel of the premium Harley-Davidson Touring experience is unaltered, but the fit will be right for more riders.

“With these new models we are addressing the important issue of fit, perhaps the ultimate expression of personalization,” said Michelle Kumbier, Harley-Davidson Senior Vice President of Motorcycle Operations. “These Low models will allow many riders to feel more comfortable and more confident when they settle into the seat.”
The Ultra Classic Low and Ultra Limited Low share a package of features designed to work together to address comfort and fit issues specific to riders of shorter stature.

• A seat height of 25.6 inches – 1.7 inches lower than the Harley-Davidson Electra Glide Ultra Classic model and the lowest of any premium touring motorcycle on the market today – allows more riders to place both feet flat on the ground when the motorcycle is stopped. A new low-profile seat reduces the reach to the foot controls. Premium front and rear suspension lowers the bike’s center of gravity and makes it easier to lift the motorcycle off its side stand, yet delivers outstanding comfort and handling.
• The width of both the primary drive housing and derby cover has been reduced to further improve leg clearance to the ground.
• A new handlebar places the hand controls two inches closer to the rider, putting many riders in a more comfortable position that can reduce back and shoulder strain.
• Smaller-diameter hand grips reduce finger reach to the brake and clutch levers.
• Assist and Slip hydraulic clutch reduces lever effort, a key benefit in stop-and-go traffic.
• A new passenger footboard mount allows the footboards to be folded up out of the way when pushing the motorcycle in a garage or driveway.
• A new toe tab extension reduces foot reach required to retract the side stand.

The 2015 Electra Glide® Ultra Classic® Low sets the standard for long-haul touring comfort and convenience. The High Output Twin Cam 103™ engine provides abundant power for touring two-up and confident passing. A wind tunnel-tested Batwing fairing with splitstream vent limits head buffeting. The Boom!™ Box 4.3 audio system features Bluetooth capability and a 25-watt per channel amplifier driving four speakers. A King Tour-Pak® carrier and hard saddlebags with One-Touch latches, Reflex™ linked brakes with Anti-lock Braking System, Daymaker™ LED lighting, electronic cruise control, and the H-D™ Smart Security System are standard features.

The 2015 Ultra Limited Low redefines touring motorcycle refinement. The Twin- Cooled™ High Output Twin Cam 103™ engine delivers steady performance in any riding situation. A Touch screen and GPS navigation are features of the 100-watt Boom! ™ Box 6.5GT infotainment system. Contrast chrome Impeller cast-aluminum wheels, rich two-tone paint schemes, a premium Tour-Pak luggage rack, premium saddlebag travel bags and a premium Tour-Pak travel-pak are among the deluxe features of the Ultra Limited Low.





2015 Harley-Davidson FLHTKL Electra Glide Ultra Limited Low www.Totalmotorcycle.com Key Features

• Rubber-mounted, Air-Cooled 1690cc High Output Twin Cam 103™ engine with integrated oil cooler; finished in Black with chrome covers
– 6-Speed Cruise Drive® transmission
– Hydraulic Assist and Slip clutch
– Electronic Cruise Control
– Low-maintenance belt drive
• Pull-back handlebar places grips two inches closer to the rider
• Super premium reduced reach, low-profile two-up seat
• Reduced-width primary housing and derby cover for improved rider leg clearance
• Upgraded Premium lowered front and rear suspension lowers motorcycle by one inch
• Smaller diameter hand grips reduce lever reach
• Jiffy stand extension reduces reach
• Passenger footboards and pivoting mounts permit easier mobility and greater leg clearance
• Batwing fairing with Splitstream vent for reduced head buffeting
• Reflex™ Linked Brakes with ABS; floating open front brake rotors
• Daymaker™ LED headlight and fog lights
• Boom!™ Box 6.5 GT infotainment system with GPS and touchscreen, Bluetooth capability, with 25-watt per channel amplifier and four speakers, CB radio
• Jukebox media compartment with USB connection and One-Touch access door
• Injection-molded hard saddlebags with chrome One-Touch design latch
• Injection-molded Tour-Pak® case with One-Touch latch and integrated lock
• Rear LED stop, turn, and position lights located on the Tour-Pak®
• Impeller Cast Aluminum wheels
• Chrome 2-1-2 dual exhaust with tapered mufflers
• Heated hand grips
• Raised, “stadium-style” gauges with lighted tic band
• Tour-Pak® luggage rack, Premium Saddlebag Travel Bags and Premium Tour-Pak® Travel Pak





2015 Harley-Davidson FLHTKL Electra Glide Ultra Limited Low Totalmotorcycle.com Features and Benefits

All the Standard features of the Electra Glide Ultra Limited PLUS:

Premium Lowered Front and Rear Suspension

We added premium 1 inch lowered front and rear suspension on the Ultra Limited Low motorcycle, moving it closer to the pavement than it is on the Ultra Limited motorcycle. It not only gives you a low-slung look, it drops your center of gravity for easier more confident handling and puts your feet that much closer to the ground when you’re stopped. The ride, though, stays smooth, thanks to premium components tested and proven over miles on the test track and on the open road.

Lowest Seat Height In Touring

The seat of the Ultra Limited Low motorcycle is as low as you can go on a top-of-the-line Grand American touring machine. It makes lifting the bike off the side stand easier and puts the ground within a short reach of your boot soles.

Reduced Width Primary Housing and Derby cover

Getting both feet flat on the ground gets easy on the Ultra Limited Low motorcycle. We reduced the width of the primary housing and derby cover to give your left leg a straighter shot to the pavement. It might seem like a little detail, but it’s the little details that make the difference between any motorcycle and the one that’s perfect for you to ride.

Shorter Windscreen for Reduced Head Buffeting

Head buffeting is caused by the vacuum of air created by the windscreen. On the Ultra Limited Low motorcycle we reduced the height of the windscreen. It’s a simple equation: Less height = less vacuum = less head buffeting.

New Handlebar Position and Reduced Diameter Grips

A new, closer handlebar position and reduced diameter grips combine to make working the clutch and front brake levers easy on the new Ultra Limited Low motorcycle. Long story short, it’s less reach for your arms and fingers.

New Passenger Footboard Mounts

You don’t have to worry about having your legs bumping into the passenger footboards when you’re backing up the bike. New passenger footboard mounts let you fold them up and tuck them completely out of the way in seconds. On the Ultra Limited Low motorcycle, riding is easy. And so is maneuvering your bike into a parking spot.








2015 Harley-Davidson FLHTKL Electra Glide Ultra Limited Low – www.Totalmotorcycle.com American Specifications/Technical Details
USA MSRP Price:
Vivid Black $26,999; Color Option $27,599; Two-Tone Option $28,049; Custom Color Option $28,299 USD

PRICING 6
Vivid Black $26,999
Color Option $27,599
Two-Tone Option $28,049
Custom Color Option $28,299
Security Option STD
ABS Option STD
Cruise Control Option STD
California Emissions $200
Freight $435
Premium Radio Option Standard

DIMENSIONS
Length 102.4 in.
Seat Height, Laden 7 25.6 in.
Seat Height, Unladen 7 27 in.
Ground Clearance 4.6 in.
Rake (steering head) (deg) 26
Trail 6.7 in.
Wheelbase 64 in.
Tires, Front Specification BW 130/80B17 65H
Tires, Rear Specification BW 180/65B16 81H
Fuel Capacity 6 gal.
Oil Capacity (w/filter) 4 qt.
Weight, As Shipped 861 lb.
Weight, In Running Order 896 lb.
Luggage Capacity -Volume 4.7 cu ft

INFOTAINMENT(BOOM! BOX™ 6.5GT)
SCREEN
Size 6.5 inch
Type Color
Color Choices Orange (default), Blue, Brown, Green, Gray, Purple, Red
Day/Night Dimmer Standard
Audio Output
Watts Per Channel 25
Speakers 4
Speaker Size 5.25 inch/6.5 inch – P&A Upgrade
Bass Port Rear Speakers Standard
Distortion (THD) 1%
Internal Amp Standard
External Amp P&A Upgrade
Wired Headset Standard
Headset Specifications (if equipped) 16-64 ohms
AUDIO SOURCES
AM Standard
FM Standard
Weather Band (WB) Standard
MP3 – USB Connection Supported
SD Card – via USB Connection Supported
Flash Drive – via USB Connection Supported
AUDIO SETUP
CB Presets 6
AM Presets 6
FM Presets 15
SiriusXM Presets 20.0
iPod Device Presets 20.0
USB-Storage Device Presets 20.0
WB Presets 6
Media Player Device Presets 20
Global Presets Selectable, up to 20 presets
Favorites 1 FAV hardkey plus 6 favorites
Classic Mode Selectable
Seek/Scan Standard
INTERFACE LANGUAGES
Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese
VOICE RECOGNITION
Hands-free Mobile Phone – via Bluetooth Standard
Voice Recognition Languages: Phone functions only English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese
Voice Recognition Languages: Tuner/Media/Navigation English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese
COMMUNICATION
Rider/Passenger Intercom Standard
OTHER FEATURES
“Vehicle Information Screen (Air temperature, oil pressure and engine temperature)” Standard
Software Update via USB interface Standard
Text-to-Speech (TTS) Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese
USB USB/MTP/iPod/iPhone
Bluetooth Phone/Media Supported

ENGINE
Engine 1 Twin-Cooled™ High Output Twin Cam 103™
Bore 3.87 in.
Stroke 4.374 in.
Displacement 103.1 cu in
Compression Ratio 10:01
Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.593
Gear Ratios (overall) 2nd 6.65
Gear Ratios (overall) 3rd 4.938
Gear Ratios (overall) 4th 4.0
Gear Ratios (overall) 5th 3.407
Gear Ratios (overall) 6th 2.875

CHASSIS
Exhaust Chrome, 2-1-2 dual exhaust with tappered mufflers
Wheels, Front Type 9 Contrast Chrome Impeller Cast Aluminum
Wheels, Rear Type Contrast Chrome Impeller Cast Aluminum
Brakes, Caliper Type 32 mm, 4-piston fixed front and rear

PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 2 105.5 ft-lb
Engine Torque (rpm) 3,750
Lean Angle, Right (deg.) 27.8
Lean Angle, Left (deg.) 28.6
Fuel Economy: Combined City/Hwy 5 42 mpg

ELECTRIC
Lights (as per country regulation), Indicator Lamps 8 High beam, running lights, front fender running lights, directional lights, neutral, low oil pressure, engine diagnostics, accessory, speakers, turn signals, security system, gear indication, battery, low fuel warning, cruise control, ABS, fog/aux lamp indicator
Gauges New from MY2014 gauges: 10% larger speedometer and tachometer with 68% wider numbers; 28% larger fuel and volt gauges with 30% wider numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators

Recommended 91 octane or higher fuel (R+M)/2.
Values shown are nominal. Performance may vary by country and region.
Standard and optional fuel systems may vary by country.
See motorcycle owner’s manual for complete details.
Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.
Measurement reflects 180 lb. (81.7 kg) operator weight.
North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
Standard and optional wheels may vary by country and region.






2015 Harley-Davidson FLHTKL Electra Glide Ultra Limited Low – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: Vivid Black $ 32,999; Color Option $ 33,729; Two-Tone Option $ 34,279; Custom Color Option $ 34,579 CDN

PRICING
Vivid Black $ 32,999
Color Option $ 33,729
Two-Tone Option $ 34,279
Custom Color Option $ 34,579

DIMENSIONS
Length 2,600 mm
Seat Height, Unladen 6 685 mm
Ground Clearance 115 mm
Rake (steering head) (deg) 26
Trail 170 mm
Wheelbase 1,625 mm
Tires, Front Specification BW 130/80B17 65H
Tires, Rear Specification BW 180/65B16 81H
Fuel Capacity 22.7 l
Oil Capacity (w/filter) 3.8 l
Weight, As Shipped 391 kg
Weight, In Running Order 406 kg
Luggage Capacity -Volume 0.132 m3

INFOTAINMENT
SCREEN
Size 6.5 inch
Type Color
Color Choices Orange (default), Blue, Brown, Green, Gray, Purple, Red
Day/Night Dimmer Standard
Audio Output
Watts Per Channel 25
Speakers 4
Speaker Size 5.25 inch/6.5 inch – P&A Upgrade
Bass Port Rear Speakers Standard
Distortion (THD) 1%
Internal Amp Standard
External Amp P&A Upgrade
Wired Headset Standard
Headset Specifications (if equipped) 16-64 ohms
AUDIO SOURCES
AM Dependent on Region
FM Standard
MP3 – USB Connection Supported
SD Card – via USB Connection Supported
Flash Drive – via USB Connection Supported
AUDIO SETUP
CB Presets 6
AM Presets 6
FM Presets 15
SiriusXM Presets 20.0
iPod Device Presets 20.0
USB-Storage Device Presets 20.0
WB Presets 6
Media Player Device Presets 20
Global Presets Selectable, up to 20 presets
Favorites 1 FAV hardkey plus 6 favorites
Classic Mode Selectable
Seek/Scan Standard
INTERFACE LANGUAGES
Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese
VOICE RECOGNITION
Hands-free Mobile Phone – via Bluetooth Standard
Voice Recognition Languages: Phone functions only English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese
Voice Recognition Languages: Tuner/Media/Navigation English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese
COMMUNICATION
Rider/Passenger Intercom Standard
OTHER FEATURES
“Vehicle Information Screen (Air temperature, oil pressure and engine temperature)” Standard
Software Update via USB interface Standard
Text-to-Speech (TTS) Lanugages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese
USB USB/MTP/iPod/iPhone
Bluetooth Phone/Media Supported

ENGINE
Engine 1 Twin-Cooled™ High Output Twin Cam 103™
Bore 98.4 mm
Stroke 111.1 mm
Displacement 1,690 cc
Compression Ratio 10:01
Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.593
Gear Ratios (overall) 2nd 6.65
Gear Ratios (overall) 3rd 4.938
Gear Ratios (overall) 4th 4.0
Gear Ratios (overall) 5th 3.407
Gear Ratios (overall) 6th 2.875

CHASSIS
Exhaust Chrome, 2-1-2 dual exhaust with tappered mufflers
Wheels, Front Type Contrast Chrome Impeller Cast Aluminum
Wheels, Rear Type 8 Contrast Chrome Impeller Cast Aluminum
Brakes, Caliper Type 32 mm, 4-piston fixed front and rear

PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 2 143 Nm
Engine Torque (rpm) 3,750
Lean Angle, Right (deg.) 31.9
Lean Angle, Left (deg.) 31.8
Fuel Economy: Combined City/Hwy 5 5.6 l/100 km

ELECTRIC
Lights (as per country regulation), Indicator Lamps 7 High beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS
Gauges New from MY2014 gauges: 10% larger speedometer and tachometer with 68% wider numbers; 28% larger fuel and volt gauges with 30% wider numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators

Recommended 91 octane or higher fuel (R+M)/2.
Values shown are nominal. Performance may vary by country and region.
Standard and optional fuel systems may vary by country.
See motorcycle owner’s manual for complete details.
Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
Measurement reflects 180 lb. (81.7 kg) operator weight.
North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
Standard and optional wheels may vary by country and region.

Specifications and appearance are subject to change without prior notice.

About Michael Le Pard 2126 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle. Supporting over Motorcyclists and Motorcycling for 19 great years. Total Motorcycle is my pride and joy and being able to reach out 300 million people has been incredible but I could not have done it without the support of my visitors, readers and members, thank you so much! You are making a difference to millions of riders worldwide. Thank you.
